• Thickness Tolerance：+,-0.02mm
• Shipment：Container or Bulk Vessel
• Delivery：Within 15days After Received Deposit or L,C
• Test：ISO,CE,BV,SGS,Cu,V-Trust,Pvoc,Soncap
• Coating Structure：2,1, 2,2
• Coil ID：508,610mm
• Width：600-1250mm
• Thickness：0.13-1.2mm
• Color Available：All Ral Color
• Paint Back：7-25um
• Paint Top：15-35um
• Usage：Roof or Wall
• Type of Paint：PE, PVDF, HDP, SMP
• Base Material：Gi or Gl Steel Coil
• Stock：Stock
• Model NO.：CUS-SX-PPGIC
• Loading Type：Vertical or Horizontal
• Transport Package：Seaworthy Package
• Specification：CE,ISO,SGS,BV
• Trademark：CUS
• Origin：China
• HS Code：72107010
• Production Capacity：200000 Tons,Year

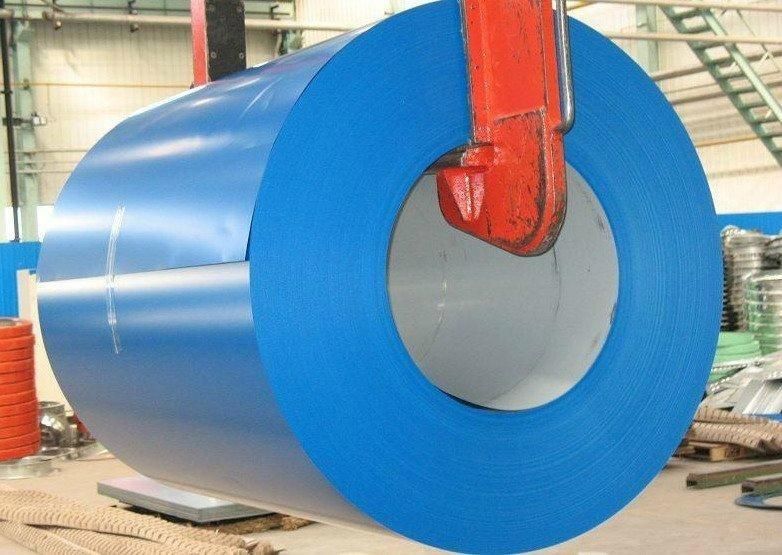

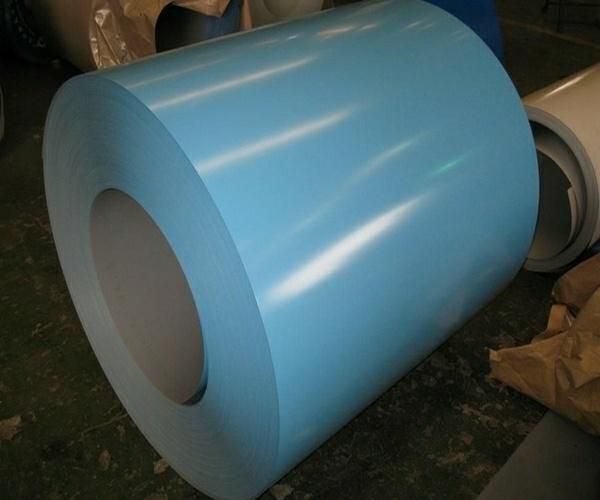

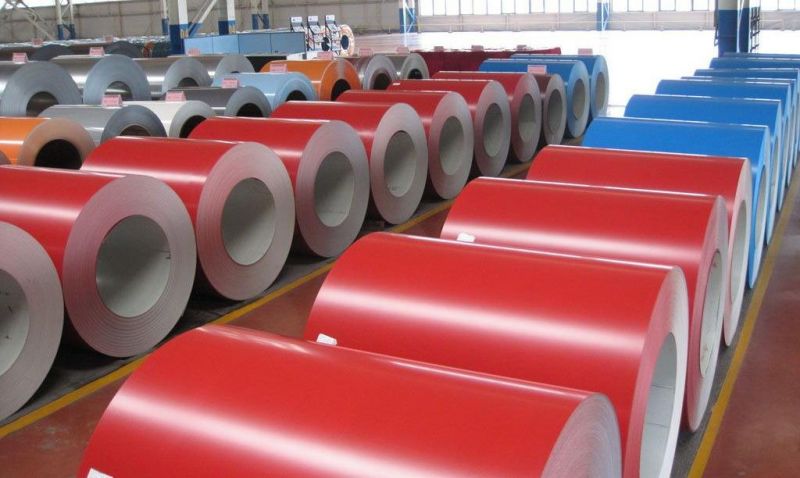

PPGI steel coil/ galvanized steel coilThickness0.12mm-1.2mmWidth800mm-1500mmTechniqueCold rollingSurface treatmentgalvanized, paintedStandardEN10142,JIS G3302,GB/T-12754-2006Zinc CoatingZ40~Z275gr/m2 (both side total coating thickness)MaterialSGCC, SPCC, DC51D, SGHC,A653SpangleRegular/Zero/BigCoil Weight3~15MTPackageStandard export sea-worthy packing TEST ITEM                TOP                        BACK                      PAINT THICKNESS>5+185-7GLOSSYHIGH70±5,MEDIUM50±5,LOW30±535±5COATING HARDNESS≥H≥HT BENDING≤3T≤4TIMPACT RESISTANCE≥9J≥6JDISSOLVENT
RESISTANCE(TIMES)≥100≥50SALT SPAY TEST≥720hr ACID RESISTANCESOAKED IN 5%HCL SOLUTION FOR 300HR WHITHOUT BLISTERING, COLOR FADING AND COATING PEEL-OFFALKALI RESISTANCESOAKED IN 5%NAOH SOLUTION FOR 300HR WHITHOUT BLISTERING, COLOR FADING AND COATING PEEL-OFF
