Cold Rolled Galvanized Galvalume Steel Coil with Gi Coil Price
Shanghai Huagang Steel Co., Ltd.- Certification：ISO, RoHS, IBR, Bsi
- Standard：ASTM, JIS, GB, AISI, DIN, BS, En
- Warranty：1 Year
- After-sales Service：Processing Service
- Surface Treatment：Polished
- Technique：Cold Rolled
Base Info
- Zn Coating：30-400GSM
- Name：Regular Spangle Zinc Coated Galvanized Steel Coil
- Length：as for Your Requirement
- Thickness：0.12mm-6.0mm
- Material：Dx5d, SPCC, SGCC, CGCC, S350gd..etc
- Surface：Oiled, Galvanized, Chromated
- Application2：Building Material Boiler Plate
- Coil Weight：3-8 Tons
- Edge Treatment：Mill
- Tolerance：1%, 2%, 3%
- Type：Coil, Strip
- Sample：Available
- Delivery Time：7-10 Days
- Keyword：Carbon Steel Plate Sheet Coil
- Stock：Stock
- Edge：Slit edge
- Application：Electric Appliance,Door
- Model NO.：DX51D G60 G90 Z40 Z80 Z100 Z275 AZ150
- Color：Ral Color,Printed,Filmed,Pressed,Matte
- Transport Package：Standard Seaworthy Package
- Specification：1000*2000mm, 1220*2440mm (4X8), 1500*6000mm
- Trademark：HUAGANG
- Origin：China
- HS Code：7220900000
- Production Capacity：500000ton,Year
Description
Bundle, or with all kinds of colors PVC or as your requirements
Production Introduction:

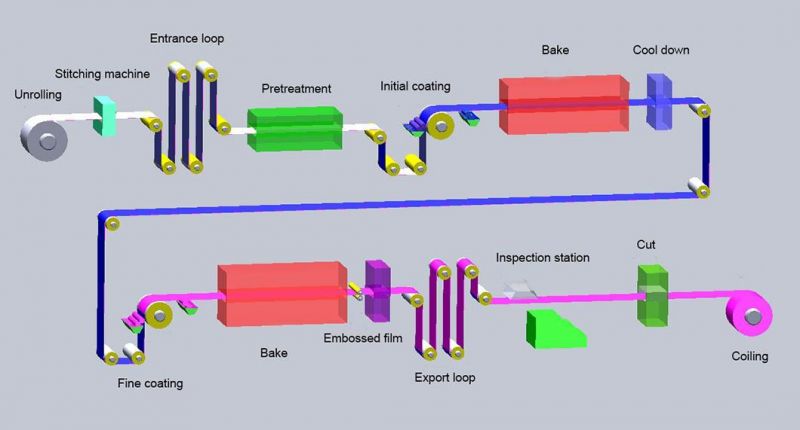

* The total thickness of the pre-panted galvanized steel coil is composed of the base steel - coating -primer - top paint -
protective layer thickness. The top paint thickness is 10-25μm, and the back paint thickness is 5-20μm. The thinner the base
steel thickness, the higher the price of the ppgi steel coil, because the processing cost becomes higher.
* Usually, the paint coating material is polyester (PE) and the color of the back paint is white grey. The color can be
customized according to the RAL color card or customer samples. Special patterns can be made, such as wood grain, flower print,
camouflage, brick.
1) PPGI is also known as prepainted galvanized steel coil and color coated steel coil, with a hot dip zinc coated steel sheet
substrate.
2) PPGL is also known as prepainted galvalume steel coil, with a galvalume steel sheet as a substrate.
PPGI Sheet Coating Layer* Top (Finish) Coating (PE/HDP/PVDF, etc.)
* Primer Coating
* Pre Treatment (Chromate Coating)
* Plating Layer (Zn, AL, 55%AL+Zn)
* Base Metal (Cold Rolled Steel Sheet)
* Plating Layer (Zn, AL, 55%AL+Zn, Sn, Cr, etc.)
* Pre Treatment (Chromate Coating)
* Functional Painting (Epoxy, Polyester )
Type Of Coating
The coating types currently used for PPGI/PPGL steel coil include PE, PVDF, SMP, acrylic, PVC, etc.
PE
The PE-coated color-coated steel sheet is easy to be processed and formed because of its good adhesion, and the price is relatively cheap. But the other degree of UV resistance and chalking resistance is relatively low. PE color coated steel can be used for the roof of ordinary civil buildings.
SMP
SMP steel plate has better durability, and the cost is higher than the PE coating. Silicone is not as good as PE in terms of adhesion and processing formability to materials,
High Durable Polyester (HDP)
It is better than ordinary SMP coatings, and its outdoor weather resistance reaches 16 years. Its flexibility and weather resistance are higher.
PVC
PVC coating has nice anti-chemical and anti-water, and the coasting is relatively thick, which can well protect the substrate. The PVC coating is rarely used because they pollute the environment.
PVDF
PVDF coatings have great color retention and corrosion resistance. Among the PPGI sheet coating for construction, it is the highest grade.
Acrylic
The comprehensive performance is good, the price is expensive, and it is only used in specific fields (such as containers).

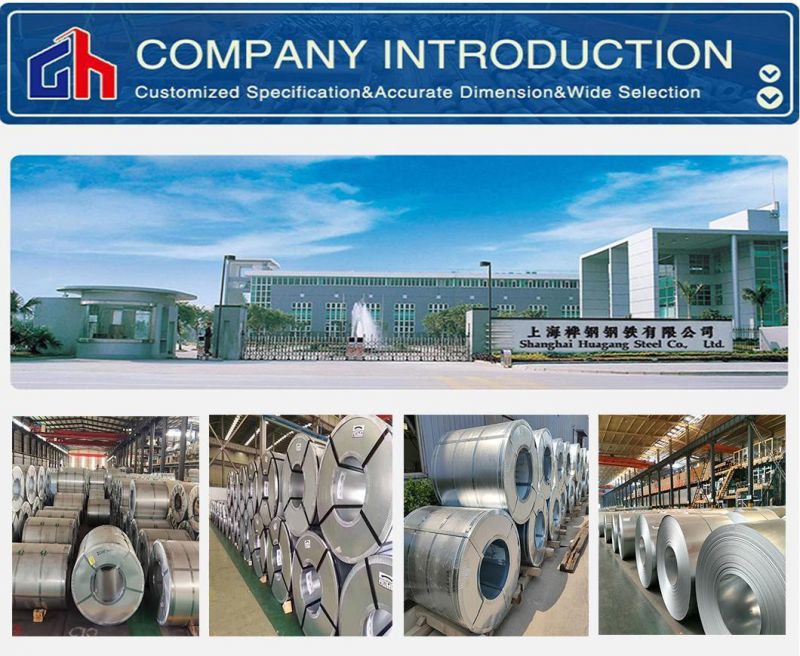

Company Introduction:
Shanghai Huagang Steel Co., Ltd. is one of the leading manufactories with ISO 9001 certificate who is specializing in manufacturing & exporting various kinds of steel pipes, steel plate, steel coil, round bar, flat bar, angle bar, H beam and other steel products in China. We owned the complete production technique and related equipment for coking, sintering, iron, steel, steel rolling etc, also including the related energy source power system. Meanwhile, we have reached the production technique` s completeness and systematicness at the modern steel industry. The company's annual sales amount is more than 100 million yuan.
Through the global sales network, the products sell well in domestic and foreign markets, Huagang Steel has exported steel products
to over 100 countries in the world. Our products are marketed widely all over the country and exported to North American, Europe, Middle East, South American, Southeast Asia, Africa, Australia etc and get highly appreciated for our quality and service. We now have 5 branch offices in China now, the head factory is located in ChenQiao Road, Fengxian District, Shanghai.We have been engaged in stainless steel business since 2009,with 13 years growth,Huagang Steel has become a competitive steel conglomerate in China.Our company aims to provide customers with high-quality and low-price steel products and strives to create value for customers. We have advanced processing equipment and powerful logistics distribution system, which can meet customers' various needs at any time.
We adhere to the principle of "customer first" to provide our customers with high-quality services. Our company has won the trust and praise from customers with the business advantages of complete specifications, cheap price and fast transmission, and the service concept of keeping promise and focusing on quality.
FAQ
Q1.Are you a manufacturer or trader?
We are a manufacturer ,and we can have our own factory produced many steel products.
Q2.Whether your company supports Trade Assurance order?
Yes , we can (100% product quality protection;100% on-time shipment protection; 100% payment protection)
Q3.Can we get the some samples?Any charges?
Yes,you can get available samples in our stock.If the samples from new production, we will charge some reasonable cost, but this amount will be deducted from your first order.
Q4.How do we build up business relations with your company ?
Send us your requirement which includes size , coating info ,parameters,quantity ,destination .
Q5.What is the MOQ?
We can accept small orders.Please feel free to contact us, we can meet your requirements.
Q6.What's your advantage?
With high-quality products and efficient customer service, we adhere to the principle of customer first.
Production Introduction:
* The total thickness of the pre-panted galvanized steel coil is composed of the base steel - coating -primer - top paint -
protective layer thickness. The top paint thickness is 10-25μm, and the back paint thickness is 5-20μm. The thinner the base
steel thickness, the higher the price of the ppgi steel coil, because the processing cost becomes higher.
* Usually, the paint coating material is polyester (PE) and the color of the back paint is white grey. The color can be
customized according to the RAL color card or customer samples. Special patterns can be made, such as wood grain, flower print,
camouflage, brick.
1) PPGI is also known as prepainted galvanized steel coil and color coated steel coil, with a hot dip zinc coated steel sheet
substrate.
2) PPGL is also known as prepainted galvalume steel coil, with a galvalume steel sheet as a substrate.
PPGI Sheet Coating Layer* Top (Finish) Coating (PE/HDP/PVDF, etc.)* Primer Coating
* Pre Treatment (Chromate Coating)
* Plating Layer (Zn, AL, 55%AL+Zn)
* Base Metal (Cold Rolled Steel Sheet)
* Plating Layer (Zn, AL, 55%AL+Zn, Sn, Cr, etc.)
* Pre Treatment (Chromate Coating)
* Functional Painting (Epoxy, Polyester )
Type Of Coating
The coating types currently used for PPGI/PPGL steel coil include PE, PVDF, SMP, acrylic, PVC, etc.
PE
The PE-coated color-coated steel sheet is easy to be processed and formed because of its good adhesion, and the price is relatively cheap. But the other degree of UV resistance and chalking resistance is relatively low. PE color coated steel can be used for the roof of ordinary civil buildings.
SMP
SMP steel plate has better durability, and the cost is higher than the PE coating. Silicone is not as good as PE in terms of adhesion and processing formability to materials,
High Durable Polyester (HDP)
It is better than ordinary SMP coatings, and its outdoor weather resistance reaches 16 years. Its flexibility and weather resistance are higher.
PVC
PVC coating has nice anti-chemical and anti-water, and the coasting is relatively thick, which can well protect the substrate. The PVC coating is rarely used because they pollute the environment.
PVDF
PVDF coatings have great color retention and corrosion resistance. Among the PPGI sheet coating for construction, it is the highest grade.
Acrylic
The comprehensive performance is good, the price is expensive, and it is only used in specific fields (such as containers).
Company Introduction:
Shanghai Huagang Steel Co., Ltd. is one of the leading manufactories with ISO 9001 certificate who is specializing in manufacturing & exporting various kinds of steel pipes, steel plate, steel coil, round bar, flat bar, angle bar, H beam and other steel products in China. We owned the complete production technique and related equipment for coking, sintering, iron, steel, steel rolling etc, also including the related energy source power system. Meanwhile, we have reached the production technique` s completeness and systematicness at the modern steel industry. The company's annual sales amount is more than 100 million yuan.
Through the global sales network, the products sell well in domestic and foreign markets, Huagang Steel has exported steel products
to over 100 countries in the world. Our products are marketed widely all over the country and exported to North American, Europe, Middle East, South American, Southeast Asia, Africa, Australia etc and get highly appreciated for our quality and service. We now have 5 branch offices in China now, the head factory is located in ChenQiao Road, Fengxian District, Shanghai.We have been engaged in stainless steel business since 2009,with 13 years growth,Huagang Steel has become a competitive steel conglomerate in China.Our company aims to provide customers with high-quality and low-price steel products and strives to create value for customers. We have advanced processing equipment and powerful logistics distribution system, which can meet customers' various needs at any time.
We adhere to the principle of "customer first" to provide our customers with high-quality services. Our company has won the trust and praise from customers with the business advantages of complete specifications, cheap price and fast transmission, and the service concept of keeping promise and focusing on quality.
FAQ
Q1.Are you a manufacturer or trader?
We are a manufacturer ,and we can have our own factory produced many steel products.
Q2.Whether your company supports Trade Assurance order?
Yes , we can (100% product quality protection;100% on-time shipment protection; 100% payment protection)
Q3.Can we get the some samples?Any charges?
Yes,you can get available samples in our stock.If the samples from new production, we will charge some reasonable cost, but this amount will be deducted from your first order.
Q4.How do we build up business relations with your company ?
Send us your requirement which includes size , coating info ,parameters,quantity ,destination .
Q5.What is the MOQ?
We can accept small orders.Please feel free to contact us, we can meet your requirements.
Q6.What's your advantage?
With high-quality products and efficient customer service, we adhere to the principle of customer first.
