Prepainted Galvanised PPGL Steel Coil/PPGI Metal Roll with Pattern
Zhengzhou City Unites Steel Industrial Co., Ltd.- Technique:Prepainted
- Surface Treatment:Coated
- Certification:RoHS, IBR
- Standard:ASTM, JIS, GB, AISI, DIN, BS
- Application:Construction and Other Building Material
- Edge:Slit edge
Base Info
- Hscode:72107010
- Lead Time:10-20 Days After Receiving Deposit
- Standards:GB,JIS G,DIN En
- Quality Standard:En10142,En10346,En10169,JIS3302
- Usage:Roofing,Uz Channel,Fencing,Cladding
- Width:600-1250mm
- Type of Paint:PE, PVDF, HDP, SMP
- Coil Weight:3-5 Tons
- Coil ID:508 or 610mm
- Coating Structure:2,1, 2,2
- Coating Mass:Top:15-35um; Back:7-25um
- Color Available:Ral Color or Sample Color
- Zinc Coating:40-275GSM
- Raw Material:Cold Steel Coil
- Stock:Stock
- Model NO.:CUS-STEEL(SS7-J)
- Test:ISO,CE,BV,SGS,Cu,V-Trust,Pvoc,Soncap
- Transport Package:Seaworthy Packaging
- Specification:SGS, ISO9001: 2000,
- Trademark:CUS-STEEL
- Origin:China
- HS Code:72107010
- Production Capacity:200000 Tons Per Year
Description
Basic Info.
Model NO. CUS-STEEL(SS7-J) Stock Stock Raw Material Cold Steel Coil Zinc Coating 40-275GSM Color Available Ral Color or Sample Color Coating Mass Top:15-35um; Back:7-25um Coating Structure 2/1, 2/2 Coil ID 508 or 610mm Coil Weight 3-5 Tons Type of Paint PE, PVDF, HDP, SMP Width 600-1250mm Usage Roofing/Uz Channel/Fencing/Cladding Quality Standard En10142/En10346/En10169/JIS3302 Standards GB/JIS G/DIN En Lead Time 10-20 Days After Receiving Deposit Hscode 72107010 Test ISO/CE/BV/SGS/Cu/V-Trust/Pvoc/Soncap Transport Package Seaworthy Packaging Specification SGS, ISO9001: 2000, Trademark CUS-STEEL Origin China HS Code 72107010 Production Capacity 200000 Tons Per YearProduct Description
1. Prepainted Galvanized Steel Coils introduction:Prepainted Galvanized Steel Coil has the strength and shape-exchanging performance of the steel plate, at the same time has the good adornment and anti-erode performance of organism material. Coating adhesive force of color-coated steel coil is strong, which keeps the color and luster novel for a long time.
2. Prepainted Galvanized Steel Coils main usage in building industry:
1). Prepainted Galvanized Steel Coils in outdoor application
Roof, structural balcony, panels, window sills, window frames, gates, garage doors, rolling doors, booths, shutters, watch rooms, makeshift houses, street waiting room (booth), refrigerators, etc.
2). Color Coated Profile Sheet in indoor application
Room doors, dividing walls, door frames, light house steel structures, sliding doors, screens, ceilings, toilets, interior elevator lobby, stairway ventilating duct, communication pipelines.
3. Prepainted Galvanized Steel Coils quality control:
Strict procurement process---skillful technical workers---final products inspection
(resistance to corrosion, salt spray test, exposure test, machinability, thermal resistance)
---standard packing
4. Prepainted Galvanized Steel Coils main products:
Prepainedt Galvanized Steel Coils includes the PPGI(prepainted galvanized steel coil), GI(galvanized steel coil), Galvalume steel coil or sheet, stainless steel, aluminum sheet in coils, Cold rolled steel coil, hot rolled steel coil, all kinds of steel strip, etc.
Goods | Pre painted Galvanized Steel Coils |
Technical Standard: | JIS 3302 / ASTM A653 / EN10143 /EN10327 |
Grade | DX51D / DX52D/ DX53D/ S250, 280, 320GD, SGCC, SGCH |
Regular Width | 600-1250mm |
Thickness | 0 .13 - 0.8 mm (0. 25 -0. 45 mm is the most advantage thickness) |
Type of coating: | Color painting |
Color Type | PE, PVDF, HDP, SMP |
Zinc coating | Z40- 275 g/m2 |

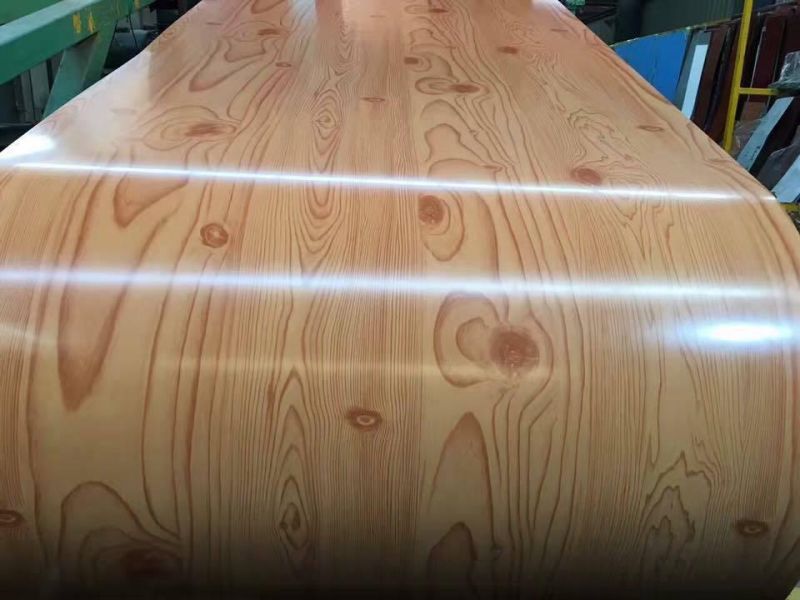

Surface treatment | Embossed, Filmed, Patterned |
Coil structure: | 2/1 or 2/2 |
ID coil | 508mm or 610mm |
Coil weight | 3-5 MT per coil |

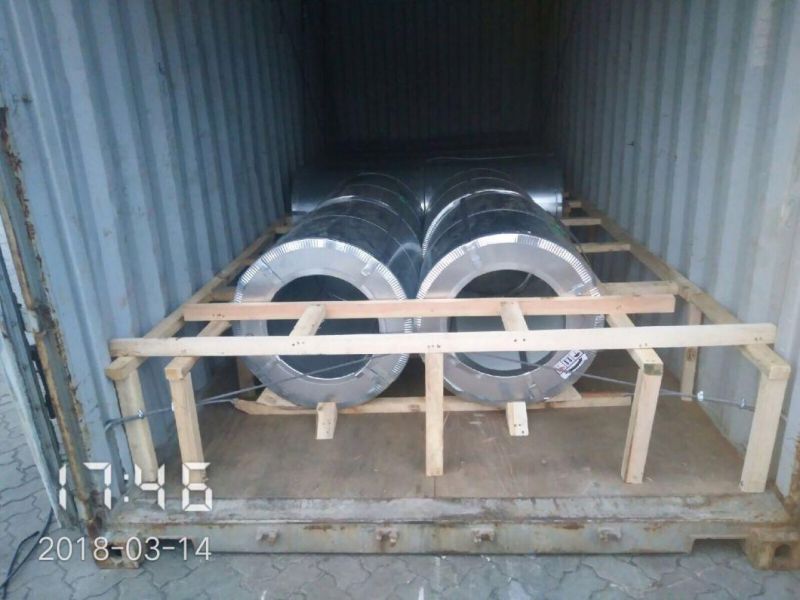

Package: | Standard seaworthy packaging in 20''containers |
Price terms | FOB, CFR, CIF |
delivery time | 15-20 working days after receipt deposit |
