• Lead Time：10-20 Days After Receiving Deposit
• Standards：GB,JIS G,DIN En
• Quality Standard：En10142,En10346,En10169,JIS3302
• Coil Weight：3-5 Tons
• Coil ID：508,610mm
• Width：600-1250mm
• Thickness：0.13mm-0.8mm
• Coating Structure：2,1, 2,2
• Coating Mass：Top:15-35um; Back:7-25um
• Color Available：Ral Color or Sample Color
• Type of Paint：PE, PVDF, HDP, SMP
• Zinc Coating：40-275GSM
• Materials：Gi or Gl Steel Coil
• Stock：Not Stock
• Model NO.：CUS-810
• Usage：Roofing,Uz Channel,Fencing,Cladding
• Hscode：72106100
• Transport Package：Seaworthy Package with Container
• Specification：CE,ISO,SGS
• Trademark：CUS
• Origin：China
• HS Code：72107010
• Production Capacity：200000 Tons Per Year

Basic Info.

Model NO. CUS-810 Stock Not Stock Materials Gi or Gl Steel Coil Zinc Coating 40-275GSM Type of Paint PE, PVDF, HDP, SMP Color Available Ral Color or Sample Color Coating Mass Top:15-35um; Back:7-25um Coating Structure 2/1, 2/2 Thickness 0.13mm-0.8mm Width 600-1250mm Coil ID 508/610mm Coil Weight 3-5 Tons Quality Standard En10142/En10346/En10169/JIS3302 Standards GB/JIS G/DIN En Lead Time 10-20 Days After Receiving Deposit Usage Roofing/Uz Channel/Fencing/Cladding Hscode 72106100 Transport Package Seaworthy Package with Container Specification CE/ISO/SGS Trademark CUS Origin China HS Code 72107010 Production Capacity 200000 Tons Per Year

Product Description

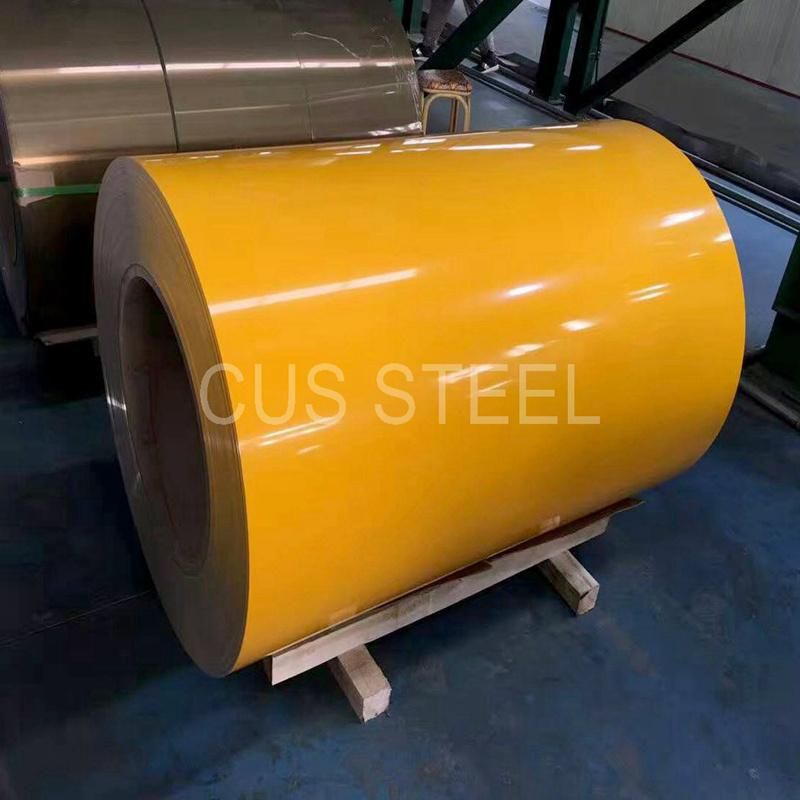

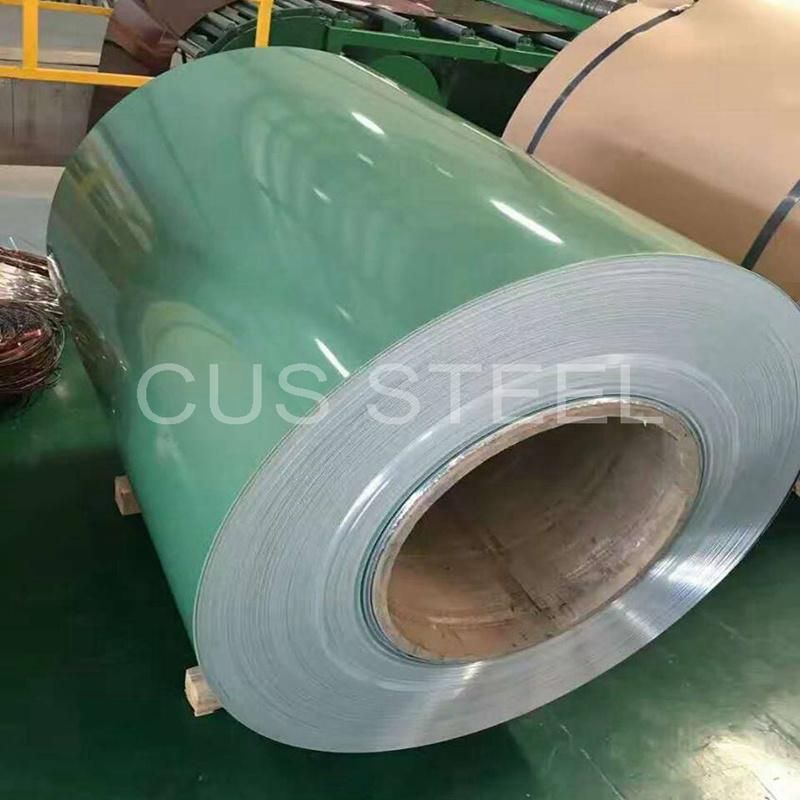

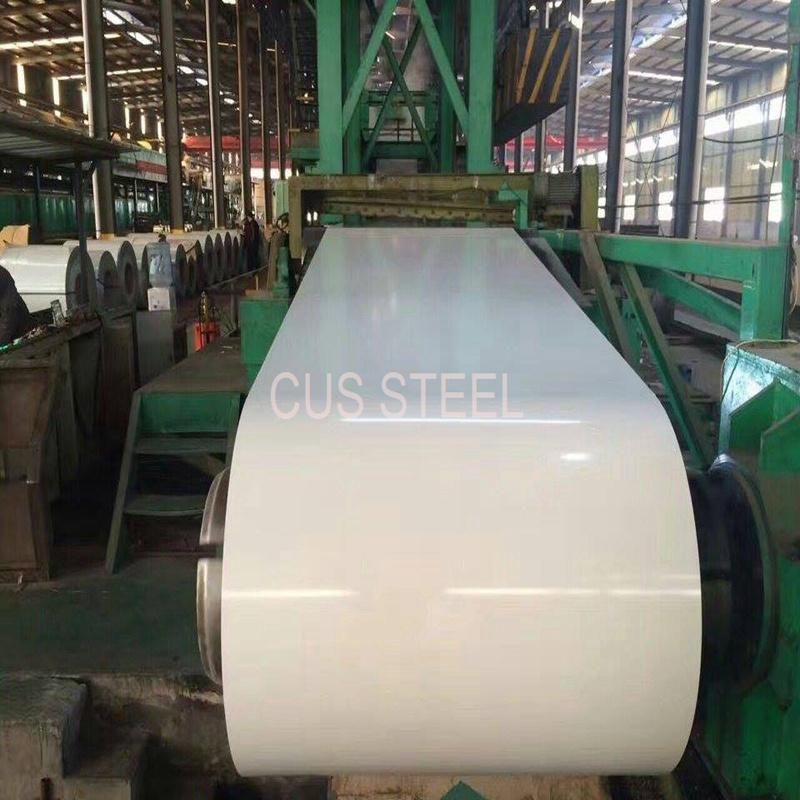

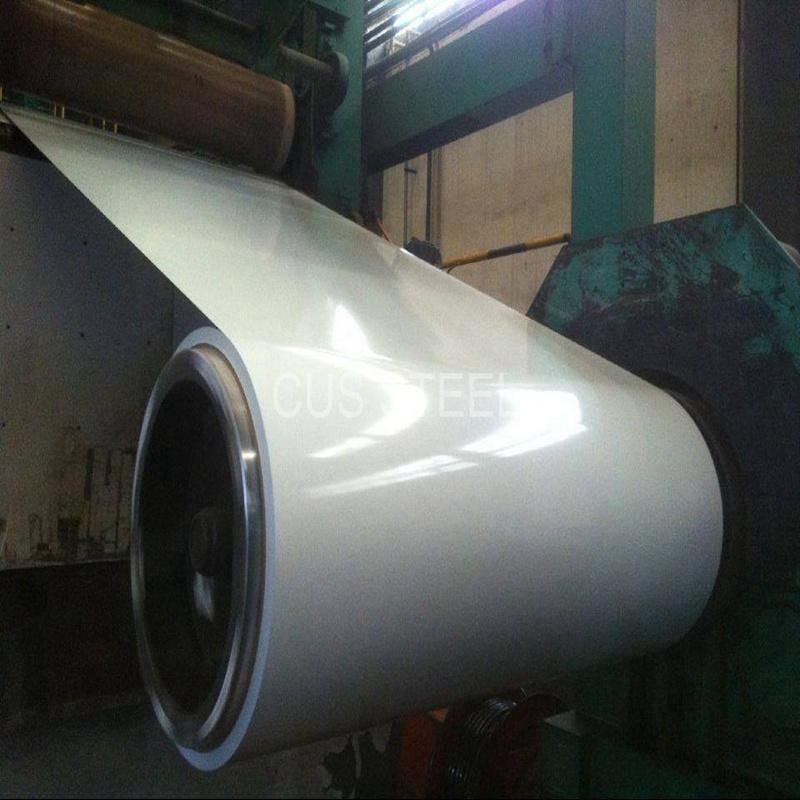

1. Prepainted Galvanized Steel Coils introduction:
Prepainted Galvanized Steel Coil has the strength and shape-exchanging performance of the steel plate, at the same time has the good adornment and anti-erode performance of organism material. Coating adhesive force of color-coated steel coil is strong, which keeps the color and luster novel for a long time.


2. Prepainted Galvanized Steel Coils main usage in building industry:

1). Prepainted Galvanized Steel Coils in outdoor application
Roof, structural balcony, panels, window sills, window frames, gates, garage doors, rolling doors, booths, shutters, watch rooms, makeshift houses, street waiting room (booth), refrigerators, etc.
2). Color Coated Profile Sheet in indoor application
Room doors, dividing walls, door frames, light house steel structures, sliding doors, screens, ceilings, toilets, interior elevator lobby, stairway ventilating duct, communication pipelines.


3. Prepainted Galvanized Steel Coils quality control:
Strict procurement process---skillful technical workers---final products inspection

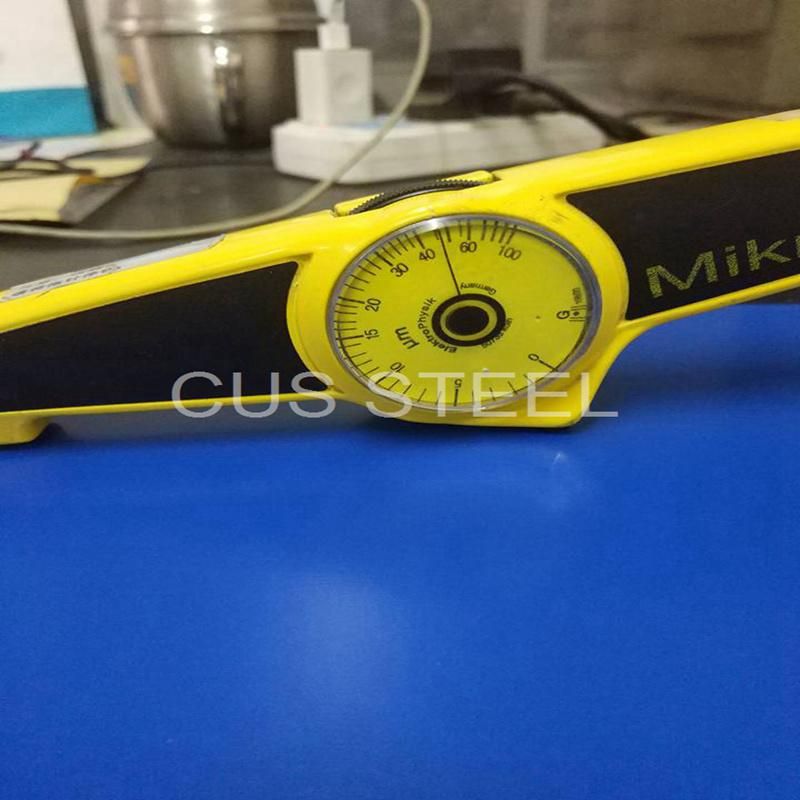

(resistance to corrosion, salt spray test, exposure test, machinability, thermal resistance)
---standard packing


4. Prepainted Galvanized Steel Coils main products:

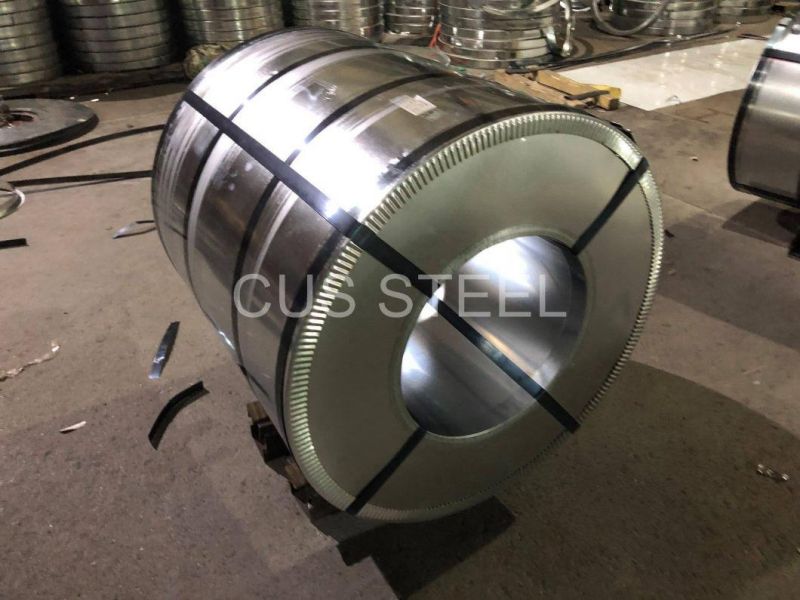

Prepainedt Galvanized Steel Coils includes the PPGI(prepainted galvanized steel coil), GI(galvanized steel coil), Galvalume steel coil or sheet, stainless steel, aluminum sheet in coils, Cold rolled steel coil, hot rolled steel coil, all kinds of steel strip, etc.


Goods	Pre painted Galvanized Steel Coils
Technical Standard:	JIS 3302 / ASTM A653 / EN10143 /EN10327
Grade	DX51D / DX52D/ DX53D/ S250, 280, 320GD, SGCC, SGCH
Regular Width	600-1250mm
Thickness	0 .13 - 0.8 mm (0. 25 -0. 45 mm is the most advantage thickness)
Type of coating:	Color painting
Color Type	PE, PVDF, HDP, SMP
Zinc coating	Z40- 275 g/m2

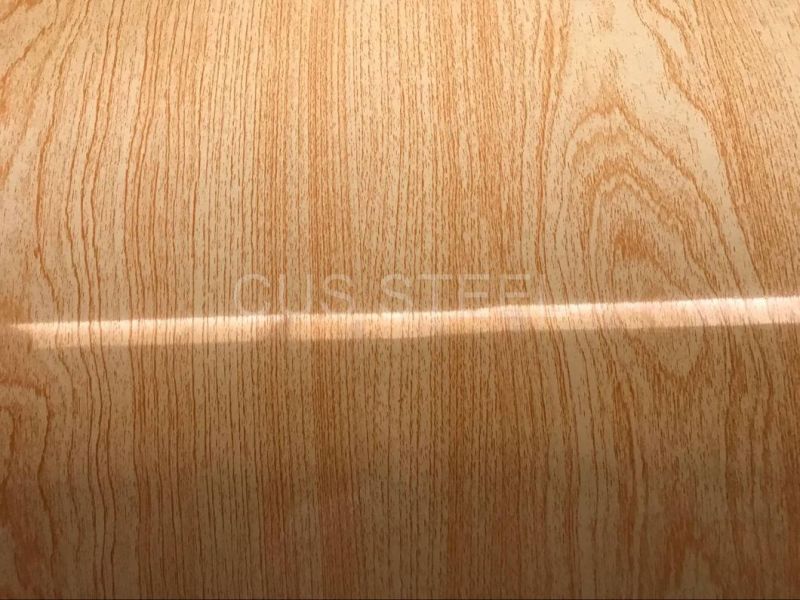

Surface treatment	Embossed, Filmed, Patterned
Coil structure:	2/1 or 2/2
ID coil	508mm or 610mm
Coil weight	3-5 MT per coil

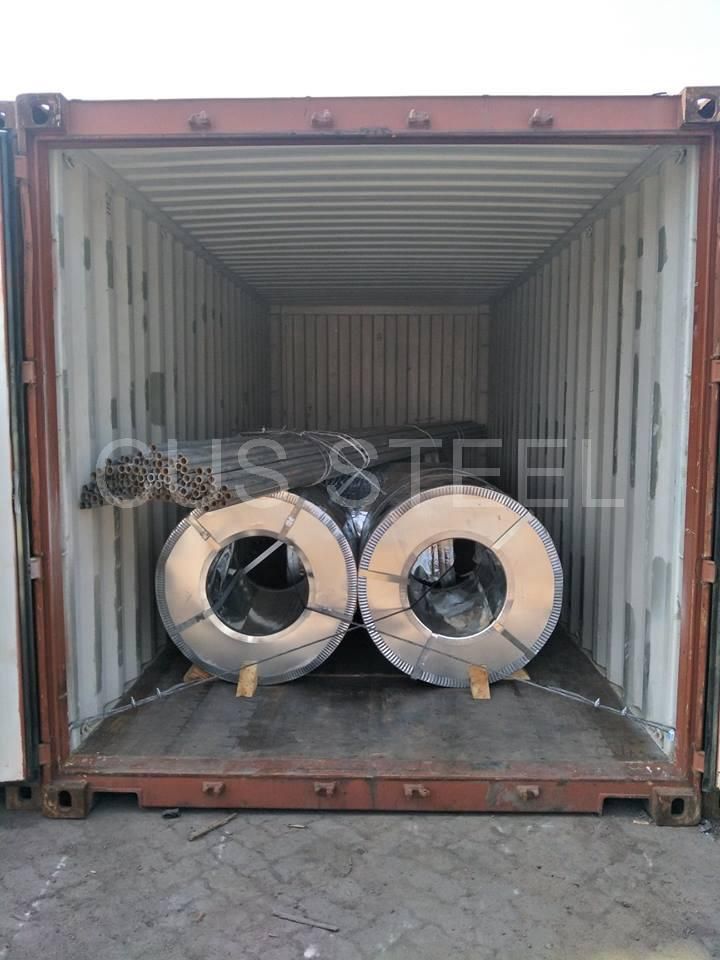

Package:	Standard seaworthy packaging in 20''containers
Price terms	FOB, CFR, CIF
delivery time	15-20 working days after receipt deposit
