• Transport Package：Wooden Case
• material：Ni22Cr3 Ni36
• features：Medium than bending and resistivity

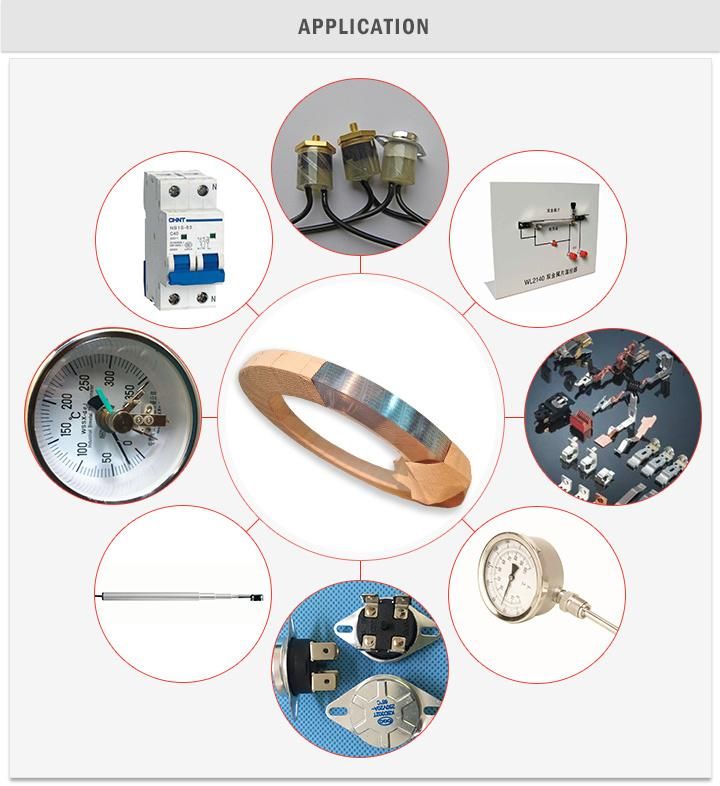

• use：Temperature measuring element
• Modulus of elasticity：147000
• Temperature curvature：26.2%±5%
• Linear temperature：-20~180
• Allows the use of temperature：-70~350
• density：8.2
• resistivity：0.8
• Model NO.：Chace 2400
• Specification：negotiable
• Trademark：tankii
• Origin：China
• HS Code：7408229000
• Production Capacity：3000 Tons,Year

GradeCSiMnPSNiCrCuFeNi36≤0.05≤0.3≤0.6≤0.02≤0.0235~37--Bal. GradeCSiMnPSNiCrCuFeNi22Cr3≤0.350.15~0.30.3~0.6≤0.02≤0.0221~232.0~4.0-Bal.


CompositionGradeChace 2400High expansion layerNi22Cr3Low expansion layerNi36

Style of supplyAlloys NameTypeDimension Chace 2400StripW= 5~120 mmT= 0.1~5 mm

Typical Physical propertiesDensity (g/cm3)8.2Electrical resistivity at 20ºC(OMmm2/m)0.8±5%Thermal conductivity, λ/ W/(m*ºC)22Elastic Modulus, E/ Gpa147~177Bending K / 10-6 ºC-1(20~135ºC)14.3Temperature bending rate F/(20~130ºC)10-6ºC-126.2%±5%Allowable temperature (ºC)-70~ 350Linear temperature (ºC)-20~ 180
