• Transport Package：Wooden Case

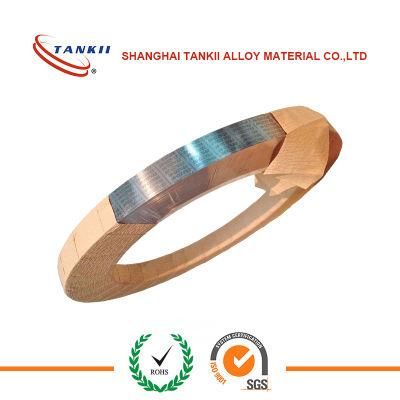

• name：TB20110
• features：High resistivity
• use：Temperature compensation element
• Modulus of elasticity：1.38
• Temperature curvature：39.4
• Linear temperature：-20~200
• Allows the use of temperature：-70~260
• density：7.7g,cm³
• resistivity：1.12
• Than bending：20.5
• Stock：Stock
• Model NO.：TB20110
• Specification：0.5*120
• Trademark：tankii
• Origin：Shanghai
• HS Code：7226920000
• Production Capacity：3000 Tons,Year

shop signBR1With brand Composite layer
alloybrandHigh expansion layerMn75Ni15Cu10(Mn72Ni10Cu18)middle layer--------Low expansion layerNi36
Chemical compositionshop signNiCrFeCoCuZnMnSiCSP≤Ni3635.0~37.0-allowance---≤0.6≤0.30.050.020.02Mn72Ni10Cu188.0~11.0-≤0.8-17.0~19.0-allowance≤0.50.050.030.02Mn75Ni15Cu1014.0~16.0-≤0.8-9.0~11.0-allowance≤0.50.050.020.03
performanceThan bending K(20~135ºC)Temperature curvature
F/(greenhouse ~ 130 ºC) resistivityLinear temperature
/ ºCAllows the use of temperature / ºCDensity (g/cm after)Nominal valueAllowable deviationStandard valuesAllowable deviationLevel 1Level  220.8±5%±7%39.0%±5%1.13±5%-20~150-70~2007.7 Modulus of elasticity
E/GPaHardness (HV)Tensile strength
MPaAllow stress MPaHigh expansion layerLow expansion layer minimumbiggest113~142190~240200~255736~834147294
