R60 Thermal bimetal alloy strip
Shanghai Tankii Alloy Material Co., Ltd.- Stock:Stock
- Application:Flange Plate
- Technique:Cold Rolled
- Surface Treatment:light
- Standard:JIS, GB
- Than bending:14.2
Base Info
- Transport Package:Wooden Case
- The highest temperature:480
- features:High thermal sensitivity

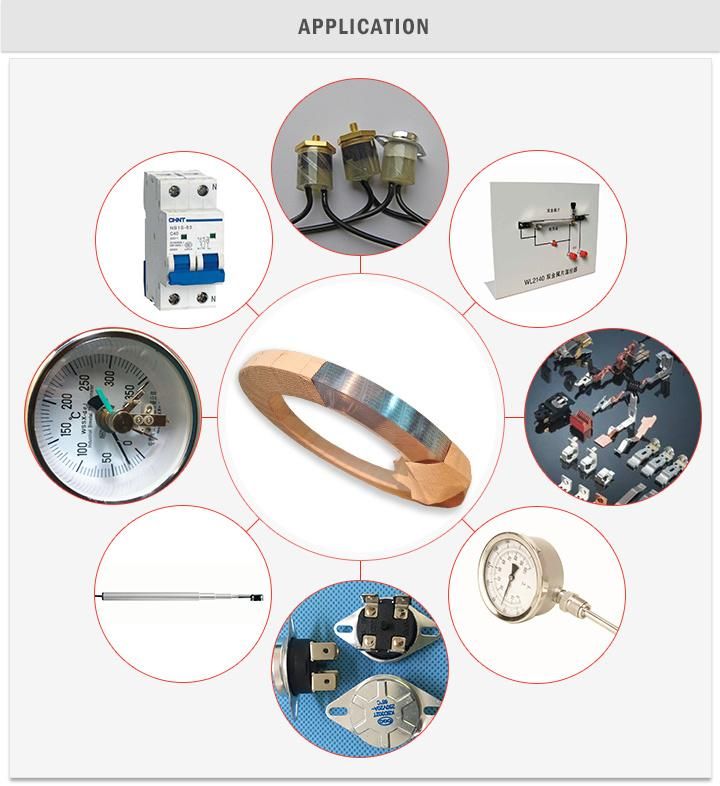

- use:Machine tool electrical appliances
- Modulus of elasticity:1.72
- Temperature curvature:27.0%±5%
- Linear temperature:-20~150
- Allows the use of temperature:-70~370
- density:8.03
- resistivity:0.58
- Model NO.:R60
- Specification:negotiable
- Trademark:tankii
- Origin:China
- HS Code:7408229000
- Production Capacity:3000 Tons,Year
Description
shop signR60 With brand Composite layer
alloybrand High expansion layer Ni22Cr3 middle layer Ni Low expansion layer Ni36
Chemical compositionshop signNi Cr Fe Co Cu Zn Mn Si C S P ≤ Ni36 35.0~37.0 - allowance - - - ≤0.60 ≤0.3 0.05 0.02 0.02 Ni ≤99.3 - ≤0.15 - ≤0.15 - - ≤0.15 0.15 - 0.01 Ni22Cr3 21.0~23.0 2.0~3.0 Bal - - - - 0.15~0.30 0.05 0.02 0.02
performanceThan bending K(20~135ºC)Temperature curvature
F/(greenhouse ~ 130 ºC) resistivity Linear temperature
/ ºC Allows the use of temperature / ºC Density (g/cm after) Nominal value Allowable deviation Standard values Allowable deviation Level 1 Level 2 14.2 ±5% ±10% 27.0%±5% 0.5/8 ±10% -20~150 -70~370 8.03
