NAK 80, P21 Hot Rolled Alloy Steel Sheet for Die Steel
Guangzhou Changfeng Steel Co., Ltd.- Type：Alloy Steel Bar
- Standard：AISI, ASTM, DIN, JIS, GB, BS
- Composition：alloy steel
- Technique：Hot Rolled
- Shape：Plate
- Surface Treatment：Black Surface
Base Info
- Model NO.：NAK80, P21
- Special Use：Free Cutting Steel, Mold Steel
- Application：Die Steel Bar
- Model Number：NAK80 , P21
- Payments：30% Deposit T,T, Balance by L,C at Sight
- Hardness：HRC37-43
- Delivery Quatity：Include MOQ
- Delivery Time：7-15 Days
- Transport Package：Export Standard Packing or Customers′demand
- Specification：thickness: 20-300mm width: >=155mm, length: 5800mm
- Trademark：CF STEEL
- Origin：China
- HS Code：7228300000
- Production Capacity：1000 Tons, Month
Description
Application
Used for high precision mirror plastic mould,high appearance home electronic plastic mould.
Widely used in the medical and cutlery industries.
Hot hard type and Long-life plastic mould.
Plastic mould.Large size injection mold.
37-43HRC
Specification
Steel Grade
Plate size
Thickness:20-300mm
Width:>=155mm
Length:5800mm
6, Chemical composition:
| C | Si | Mn | Ni | Al |
| 0.10~0.15 | 0.15~1.00 | 1.00~2.00 | 3.20 | 0.50~1.50 |
Delivery Condition:EAF+LF+VD+(ESR), forged, annealed, UT tested, peeled or machined.
Heat Treatment:
Forge:At 900° C-1100° C Cool slowly and anneal immediatedly
Anneal:At 880° C Cool slowly in furnace
Stress Relieve:At to 600° C - 650° C Cool in still air
Harden:Preheat at 600° C - 850° C raise to 1020° C -1100° C Cool in air, iol or into salt bath held at 200° C - 300° C and then air cool

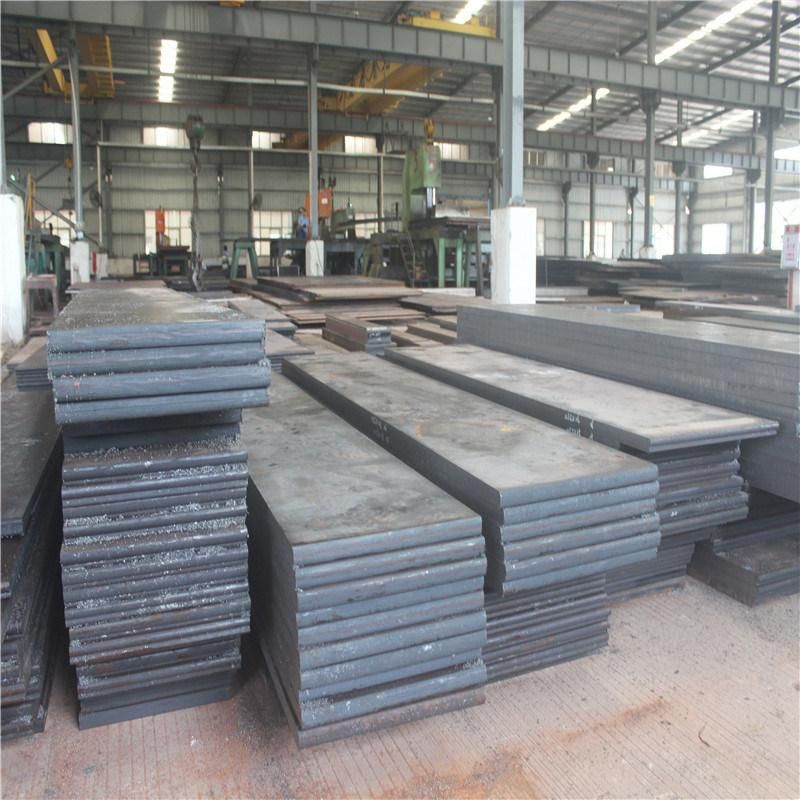

Product Photo

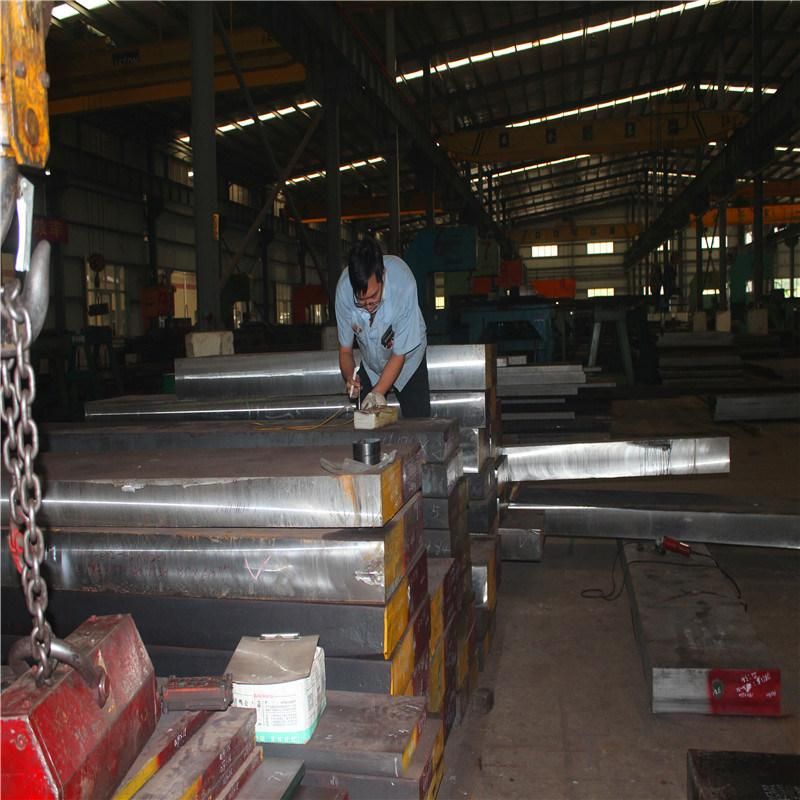

Strict Quality Control

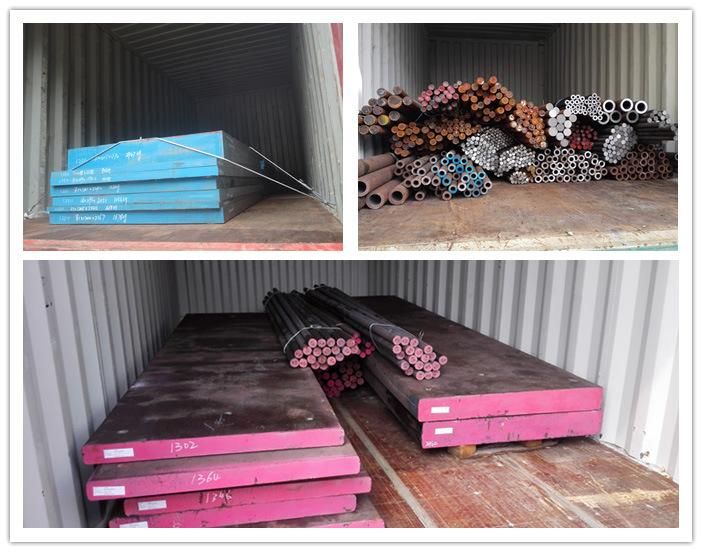

Loading Photo
About us:
Guangzhou ChangFeng Steel Co., Ltd. is a professional special steel company, which specialized in exporting mould steel products based in China. With more than 20 years experience in special steel industry, our main products are Plastic Mould Steel, Hot Work Mould Steel, Cold Work Mould Steel, Alloy Structural Steel, Tool Steel, Stainless Steel, Carbon Steel and Forged Block.
To ensure provide high quality products to customers, we have close cooperation with many Chinese first class special steel enterprises, including Baosteel Group, Dongbei Special Steel, Changcheng Special Steel, Hongsheng Heavy Industry, Xingcheng Special Steel, Daye Special Steel.
We have thousand tons of stock materials in our own factory and also can provide processing services to customers. We are full of export experience for many years, the product covers America, Germany, France, Italy, Turkey, Singapore, Thailand, Malaysia, Vietnam, Taiwan, and Middle-East.
After years of development, the company has established a complete quality management and export service system. We have a group of experienced and competent elites and is capable of offering the best service to clients.
Our company equips with large-sized Vertical saw machines, Horizontal saw machines, Milling machines, Grinding machines and other advanced equipments to provide customers with cutting and other processing services.
All the products should be inspected the metallographic analysis, hardness, ultrasonic flaw detection and other strict inspection processes, which meet the standards of DIN, AISI, JIS and GB to ensure their function and quality.
