1.7225, SAE4140, SCM440 Steel Plate and Flat Bar of Alloy steel for Mechanical
Guangzhou Changfeng Steel Co., Ltd.- Type：Steel Plate
- Standard：ASTM, AISI, GB, JIS, DIN, BS
- Certification：ISO, RoHS
- Surface Treatment：Blackface
- Technique：Hot Rolled
- Application：Mold & Dies
Base Info
- Model NO.：1.7225, SAE4140, SCM440
- Special Use：High-strength Steel Plate, Wear Resistant Steel
- Stock：Stock
- Heat Treatment：Annealing,Q+T
- Technology：Hot Rolled,Forged,Clod Drawn
- Certificate：ISO,Mill Certificate
- Test：SGS,Ut100%,Elements Testing
- Payment：30% Deposit, Blance by L,C at Sight or T,T
- Delivery Quantity：Include MOQ
- Transport Package：for Customers′ Request
- Specification：thickness: 20-280mm width: >=155mm, length: 5800m
- Trademark：CF STEEL
- Origin：China
- HS Code：7225401000
- Production Capacity：1000t,Month
Description
16-4503000-6000
1, Application
It used for section large forgings, such as locomotive traction gears, with supercharger drive gear, the rear axle, the connecting rod and the spring load greatly clip,oil drill pipe joints and fishing tools,etc.
2, Feature
1) Weldability suffers with increasing chromium content;
2) High temperature strength and high pressure hydrogenation properties are promoted by chromium and molybdenum;
3) Molybdenum significantly reduces temper brittleness;
4) Chromium renders steel oil hardenable and increase hardenability;
5) Chromium molybdenum high tensile steel with yield strength of 550N/mm2;
3.Mechanical Properties:
Tensile strength:σb (MPa):≥1080(110)
Yield strength:σs (MPa):≥930(95)
Elongation:δ5 (%):≥12
Section shrinkage:ψ (%):≥45
Impact work:Akv (J):≥63
Impact toughness value:αkv (J/cm²):≥78(8)
4.Delivery state:
Hot rolled, Heat Treatment,black, hardness or tempered hardness:28-34 HRC.
Annealing:HBS<=235.
5, Delivery time
For abundant stock, 7-15 days.For customized products, 30-50 days.
We have full set of equipement (sawing machine/grinding/polishing machine) to make customer's specification.

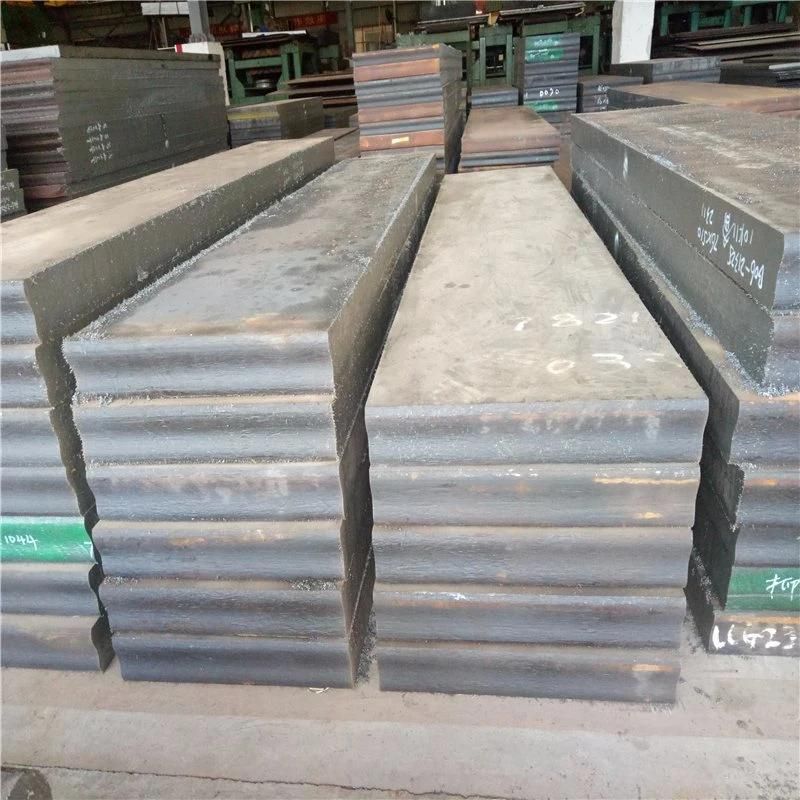

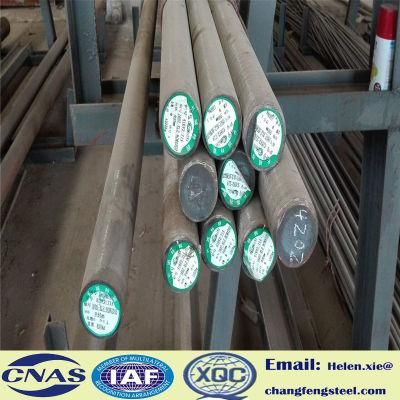

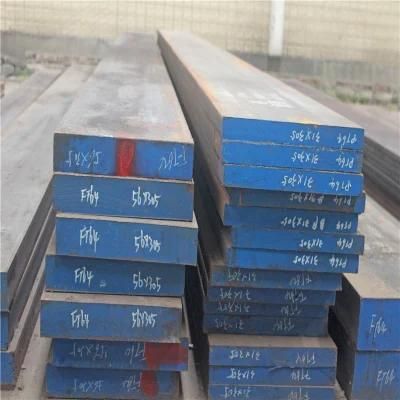

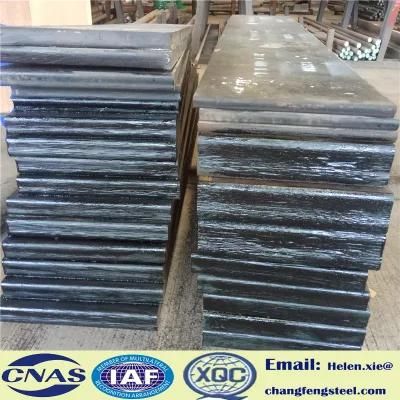

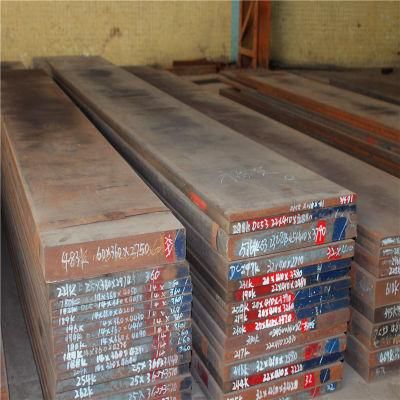

Products show

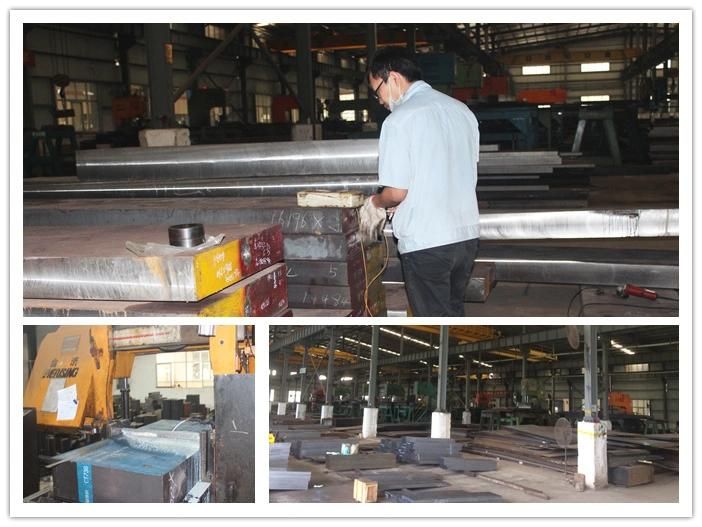

Strict Quality Control

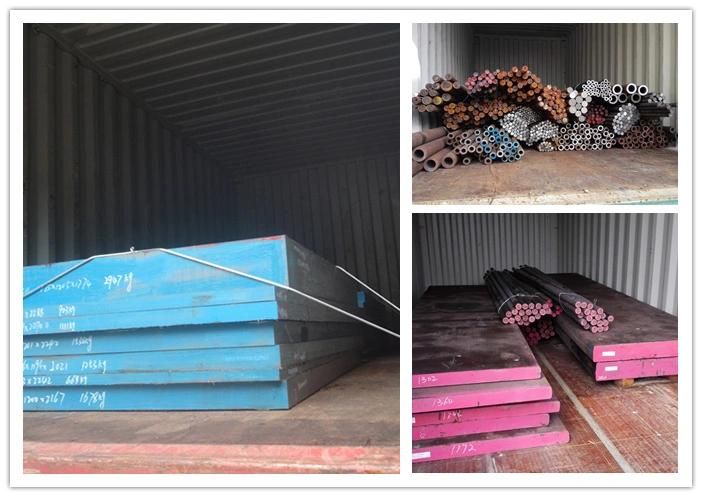

Loading Photo
Company Certificate
About us:
Guangzhou ChangFeng Steel Co., Ltd. is a professional special steel company, which specialized in exporting mould steel products based in China. With more than 20 years experience in special steel industry, our main products are Plastic Mould Steel, Hot Work Mould Steel, Cold Work Mould Steel, Alloy Structural Steel, Tool Steel, Stainless Steel, Carbon Steel and Forged Block.
To ensure provide high quality products to customers, we have close cooperation with many Chinese first class special steel enterprises, including Baosteel Group, Dongbei Special Steel, Changcheng Special Steel, Hongsheng Heavy Industry, Xingcheng Special Steel, Daye Special Steel.
We have thousand tons of stock materials in our own factory and also can provide processing services to customers. We are full of export experience for many years, the product covers America, Germany, France, Italy, Turkey, Singapore, Thailand, Malaysia, Vietnam, Taiwan, and Middle-East.
After years of development, the company has established a complete quality management and export service system. We have a group of experienced and competent elites and is capable of offering the best service to clients.
Our company equips with large-sized Vertical saw machines, Horizontal saw machines, Milling machines, Grinding machines and other advanced equipments to provide customers with cutting and other processing services.
All the products should be inspected the metallographic analysis, hardness, ultrasonic flaw detection and other strict inspection processes, which meet the standards of DIN, AISI, JIS and GB to ensure their function and quality.
1, Application
It used for section large forgings, such as locomotive traction gears, with supercharger drive gear, the rear axle, the connecting rod and the spring load greatly clip,oil drill pipe joints and fishing tools,etc.
2, Feature
1) Weldability suffers with increasing chromium content;
2) High temperature strength and high pressure hydrogenation properties are promoted by chromium and molybdenum;
3) Molybdenum significantly reduces temper brittleness;
4) Chromium renders steel oil hardenable and increase hardenability;
5) Chromium molybdenum high tensile steel with yield strength of 550N/mm2;
3.Mechanical Properties:
Tensile strength:σb (MPa):≥1080(110)
Yield strength:σs (MPa):≥930(95)
Elongation:δ5 (%):≥12
Section shrinkage:ψ (%):≥45
Impact work:Akv (J):≥63
Impact toughness value:αkv (J/cm²):≥78(8)
4.Delivery state:
Hot rolled, Heat Treatment,black, hardness or tempered hardness:28-34 HRC.
Annealing:HBS<=235.
5, Delivery time
For abundant stock, 7-15 days.For customized products, 30-50 days.
We have full set of equipement (sawing machine/grinding/polishing machine) to make customer's specification.
Products show
Strict Quality Control
Loading Photo
Company Certificate
About us:
Guangzhou ChangFeng Steel Co., Ltd. is a professional special steel company, which specialized in exporting mould steel products based in China. With more than 20 years experience in special steel industry, our main products are Plastic Mould Steel, Hot Work Mould Steel, Cold Work Mould Steel, Alloy Structural Steel, Tool Steel, Stainless Steel, Carbon Steel and Forged Block.
To ensure provide high quality products to customers, we have close cooperation with many Chinese first class special steel enterprises, including Baosteel Group, Dongbei Special Steel, Changcheng Special Steel, Hongsheng Heavy Industry, Xingcheng Special Steel, Daye Special Steel.
We have thousand tons of stock materials in our own factory and also can provide processing services to customers. We are full of export experience for many years, the product covers America, Germany, France, Italy, Turkey, Singapore, Thailand, Malaysia, Vietnam, Taiwan, and Middle-East.
After years of development, the company has established a complete quality management and export service system. We have a group of experienced and competent elites and is capable of offering the best service to clients.
Our company equips with large-sized Vertical saw machines, Horizontal saw machines, Milling machines, Grinding machines and other advanced equipments to provide customers with cutting and other processing services.
All the products should be inspected the metallographic analysis, hardness, ultrasonic flaw detection and other strict inspection processes, which meet the standards of DIN, AISI, JIS and GB to ensure their function and quality.
