• Model NO.：ASTM A234 WP5, WP9, WP11, WP22, WP91
• Sch：Sch 10s, 40s, 80s, 160s, Xxs
• Transport Package：Bundle, Wooden Case
• Specification：Size 1,2" NB-48"NB
• Trademark：C,N
• Origin：China
• Production Capacity：1000 Ton,Month

Basic Info.

Model NO. ASTM A234 WP5, WP9, WP11, WP22, WP91 Sch Sch 10s, 40s, 80s, 160s, Xxs Transport Package Bundle, Wooden Case Specification Size 1/2" NB-48"NB Trademark C/N Origin China Production Capacity 1000 Ton/Month

Product Description

Alloy steel elbow long radius


ASTM A234 WP P5, P9, P11, P12, P21, P22 & P91 Alloy Steel Buttweld Pipe Fittings Manufacturer & Exporter.



Looking for ASTM A234 WP5 Eccentric Reducers in specific standards & size at Factory Rate?

Generally, their size designations are either long radius or short radius. The ASTM A234 WP5 long radius elbow is usually adequate for standard service conditions. The center-to-end dimension is always 1-1/2 times the nominal size of the elbow. ASTM A234 WP5 Short radius elbows have a center-to-end measurement equl to pipe diameter.


ASTM A234 WP5 long radius elbow costs less than a short radius fittings. ASTM A234 WP5 Long radius elbows offer minimum resistance to flow consistent with space savings and presently account for more than 90 percent of all elbows in use.

1. ASTM A234 WP5 45° Long Radius Elbow
2. ASTM A234 WP5 90° Long Radius Elbow

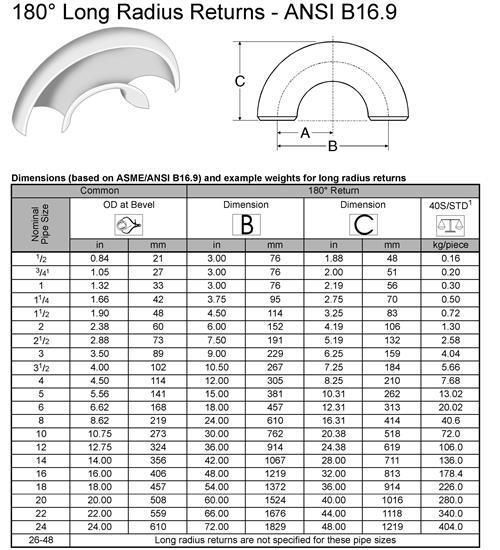

3. ASTM A234 WP5 180° Long Radius Elbow



ASTM A234 WP5 LR Elbow Fittings Specifications

Grade Specifications	Chrome Moly Grades P1, P5, P9, P11, P22, P91
Specification	ASTM/ ASME A/SA234 WP1, WP5, WP9, WP11, WP22, WP91
Type	Seamless / Welded / Fabricated / Forged
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Range	½" NB to 48″ NB in Sch 10s, 40s, 80s, 160s, XXS.
Dimensions	ANSI/ASME B16.9, B16.28, MSS-SP-43.
Applicable Standards	1-ASME B 16.9 for large Bore 2-ASME B 16.11 for small Bore (socket welded) 3-ASME B 16.25 for butt weld ends 4-ASME B 16.28 for small radius elbow
End Prep:	Beveled Ends Squared Ends Flanged Ends Cut Grooves   Threaded Ends (Male & Female)
