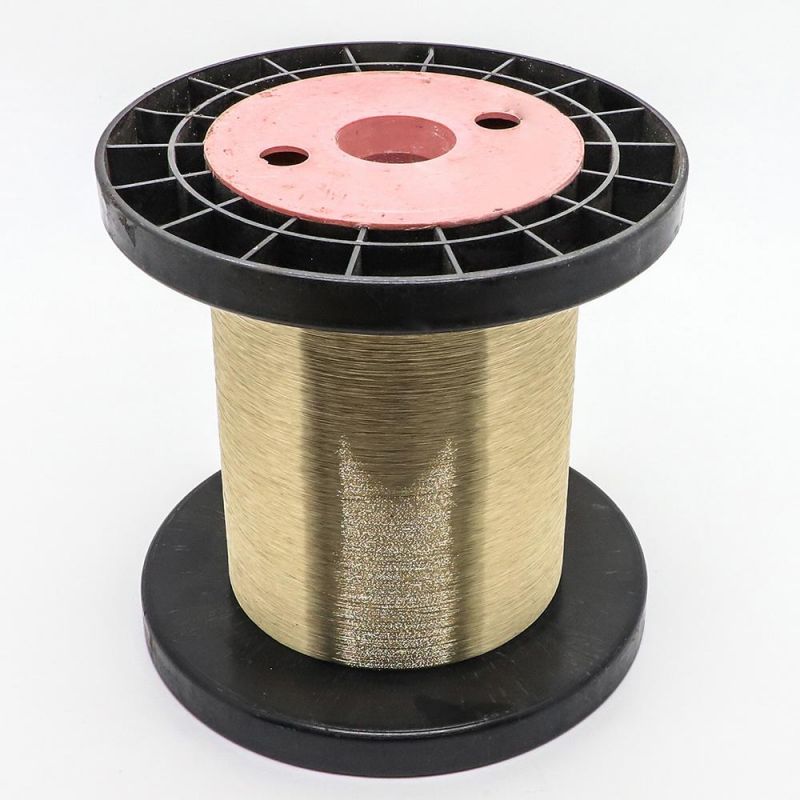

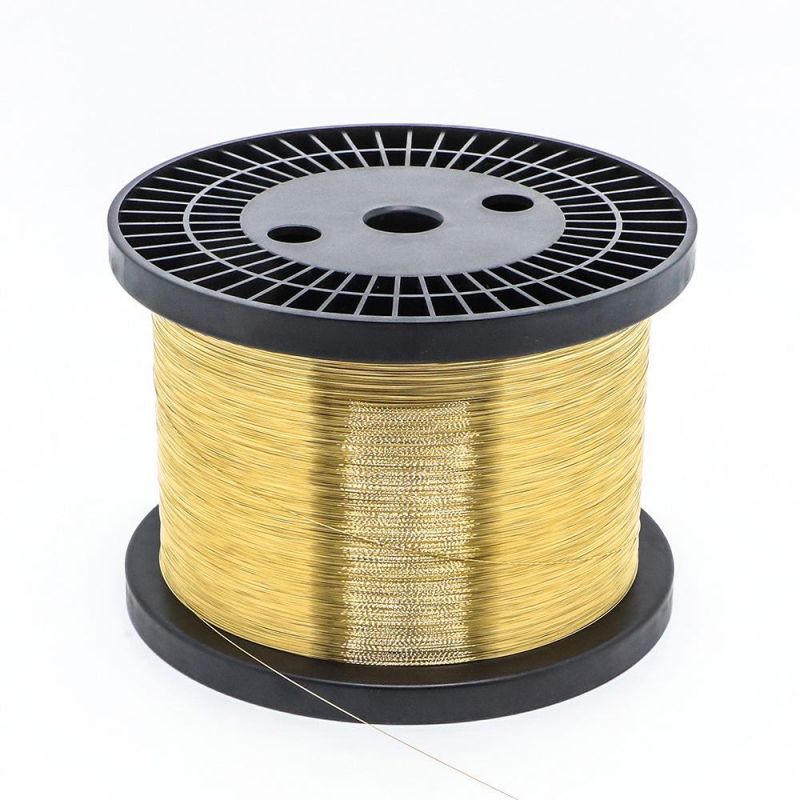

High Recision Cutting Line Uses High Purity High-Carbon Steel Cutting Wire
SHANGHAI GM TECH CO., LTD.- Technique：Copper Coated
- Application：Cutting
- Alloy or Not：Alloy
- Specification(Um)：105
- Diameter(Um)：105±3
- Ovality(Um)：Max:3
Base Info
- Breaking Force(N)：32±5
- Tensile Strength(MPa)：3700
- Transport Package：Pallet
- Specification：80-350um
- Trademark：OEM,ODM
- Origin：China
- Production Capacity：1000tons,Month
Description
Specification Parameters:
| No. | Specification(um) | Diameter(um) | Ovality(um) | Breaking Force(N) | Tensile Strength(Mpa) |
| 1 | 80 | 80±3 | Max:3 | 19±4 | 3800 |
| 2 | 90 | 90±3 | Max:3 | 24±4 | 3800 |
| 3 | 100 | 100±3 | Max:3 | 29±4 | 3700 |
| 4 | 105 | 105±3 | Max:3 | 32±5 | 3700 |
| 5 | 110 | 110±3 | Max:3 | 35±5 | 3700 |
| 6 | 115 | 115±3 | Max:3 | 38±5 | 3700 |
| 7 | 120 | 120±3 | Max:3 | 42±5 | 3700 |
| 8 | 125 | 125±3 | Max:3 | 45±5 | 3700 |
| 9 | 130 | 130±3 | Max:3 | 49±5 | 3700 |
| 10 | 135 | 135±3 | Max:3 | 51±5 | 3600 |
| 11 | 140 | 140±3 | Max:3 | 56±5 | 3600 |
| 12 | 250 | 250±3 | Max:3 | 159±15 | 3200 |
| 13 | 300 | 300±3 | Max:3 | 205±15 | 2900 |
| 14 | 350 | 350±3 | Max:3 | 280±15 | 2900 |
Storage and Usage Suggestion:
- High precision cutting wire is vacuum packaged, and each pallet of spool pallet is provided with desiccant;
- The packaged pallets can be stored in the warehouse in proper temperature and humidity for 6 months;
- Before unwrapped from the vacuum package, the pallets should be moved to the working environment to avoid condensation caused by temperature difference;
- Do not touch the steel wire with bare hands;
- When you unpack spool package to weld/knot steel wire on machines, rubber ring at the end should be strained to avoid threading and slack;
- Do not stack pallets during transportation.
