• Model NO.：7X19
• Structure：7*19
• Tensile Strength：1570-1960MPa
• Diameter：as Customer′s Request
• Steel Grade：High Carbon Wire Rod
• Transport Package：in Wooden Reel
• Specification：0.2-52mm
• Trademark：GEYO
• Origin：China
• HS Code：7312100000
• Production Capacity：10000meters,Month

Basic Info.

Model NO. 7X19 Structure 7*19 Tensile Strength 1570-1960MPa Diameter as Customer′s Request Steel Grade High Carbon Wire Rod Transport Package in Wooden Reel Specification 0.2-52mm Trademark GEYO Origin China HS Code 7312100000 Production Capacity 10000meters/Month

Product Description

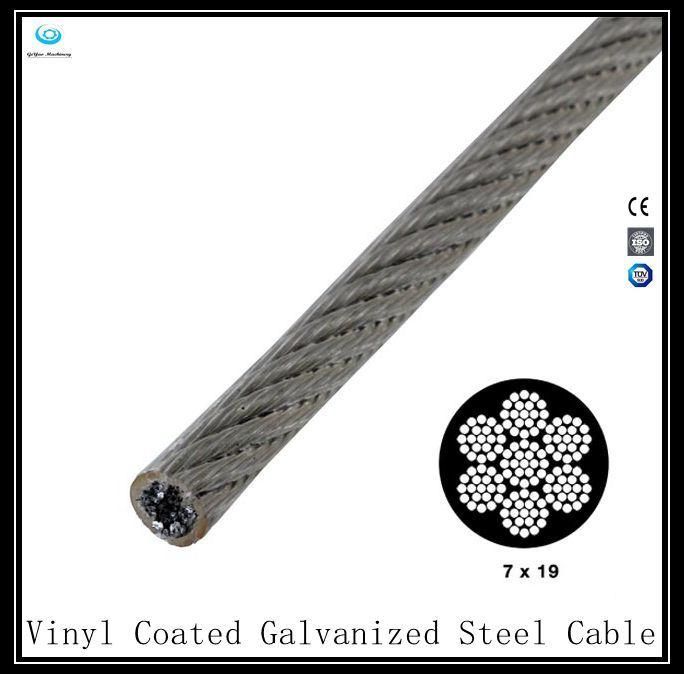

 7x19 Vinyl Coated Galvanized Steel Cable-Aircraft Cable
   Features
 1.Superior Corrosion Resistant, Flexible and Wear Resistant.
 2.Used with Winch Lines, Garage Door Cable, Exercise Equipment, and Railings.
 Brief Description
 1.Vinyl-coated galvanized wire cable is strong yet flexible, perfect for deck railings, porch railings, stair railings- anywhere you want to add a measure of safety without obstructing the view of the area.
 2.The vinyl adds an extra layer of protection to the wire while also making it easy to handle.
 3.An excellent multi-purpose cable for both indoor and outdoor use.
 4.Not intended for overhead lifting or aircraft use. Do not exceed suggested working load limit.
 5.Be sure to check our categories of wire rope clipsand wire rope thimbles for everything you need for the job. We also carry a wide selection of wire rope in thicker diameters.


Specification

Diameter	Diameter w/ coating	Class	Material	Quantity	Break strength
1/8"	3/16"	7x19	Vinyl Coated Galvanized Steel	Ordered in lineal foot	2000lbs
3/16"	1/4"	7x19	Vinyl Coated Galvanized Steel	Ordered in lineal foot	4200lbs
1/4"	5/16"	7x19	Vinyl Coated Galvanized Steel	Ordered in lineal foot	7000lbs
5/16"	3/8"	7x19	Vinyl Coated Galvanized Steel	Ordered in lineal foot	9800lbs
3/8"	7/16"	7x19	Vinyl Coated Galvanized Steel	Ordered in lineal foot	12000lbs

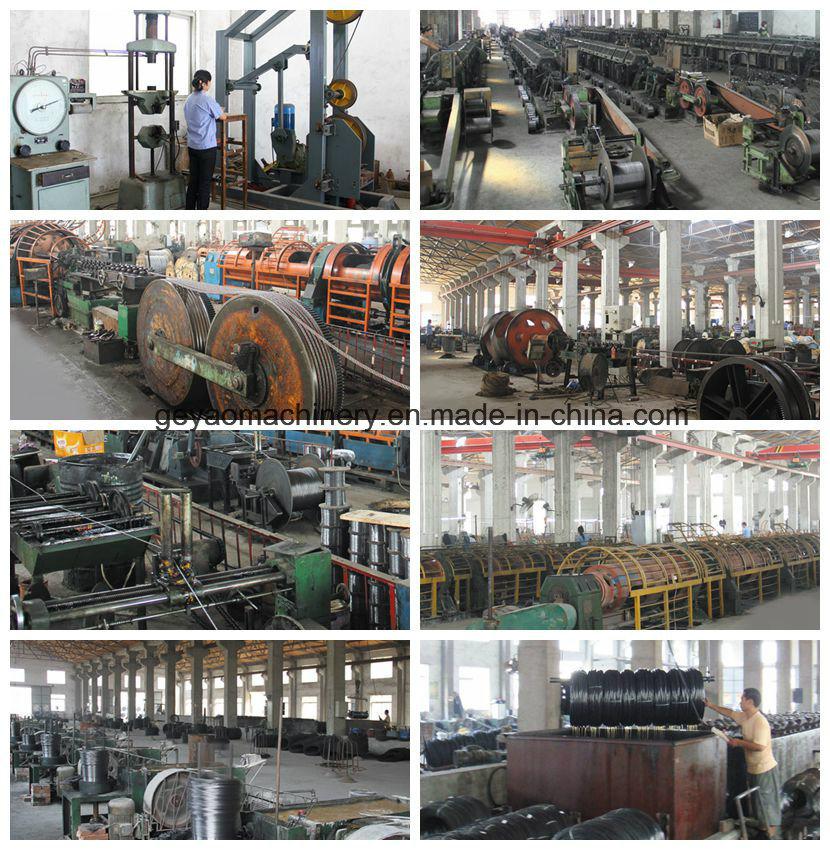

PRODUCTION

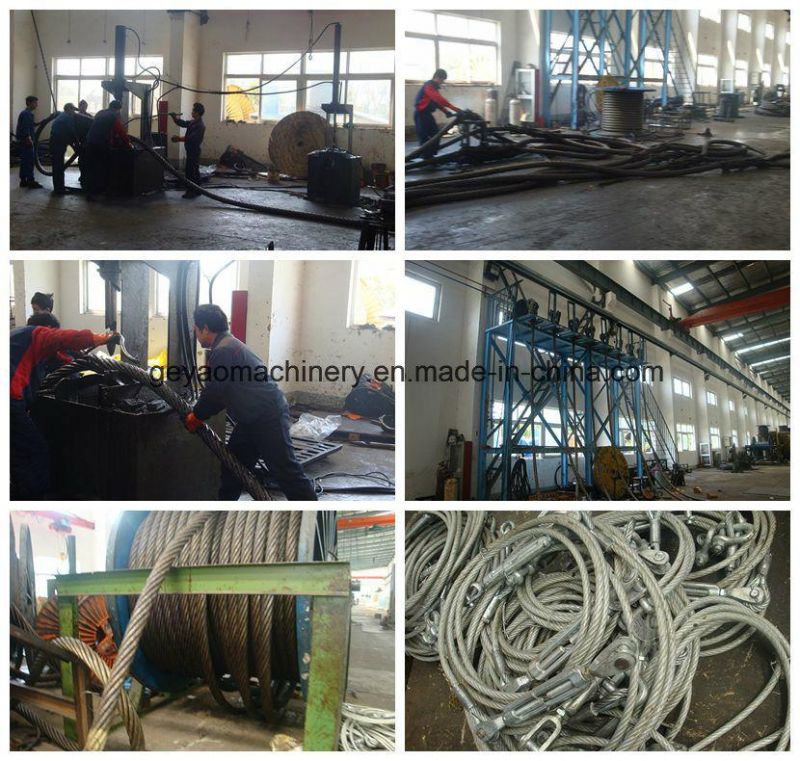

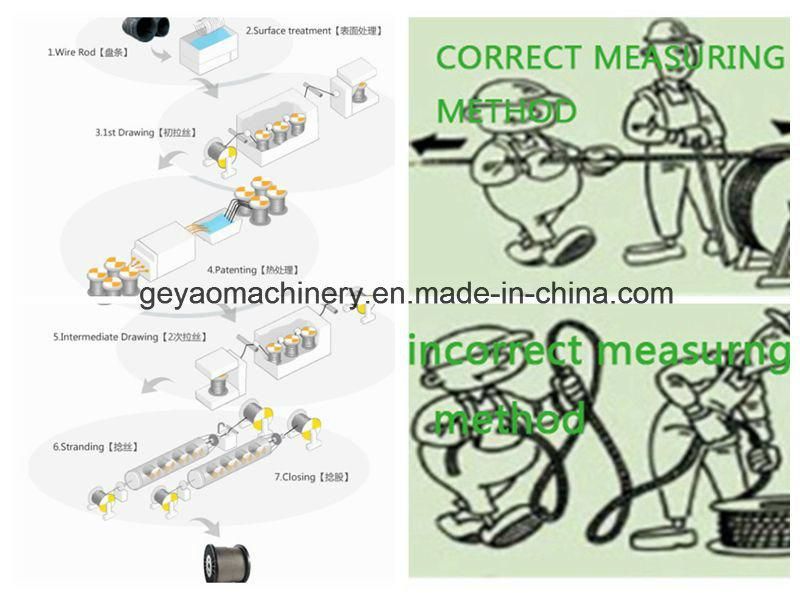

PRODUCTION FLOW AND MEASURING METHOD OF WIRE ROPE

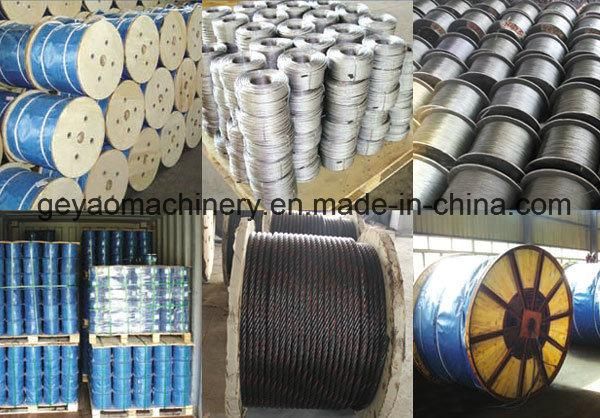

STORAGE

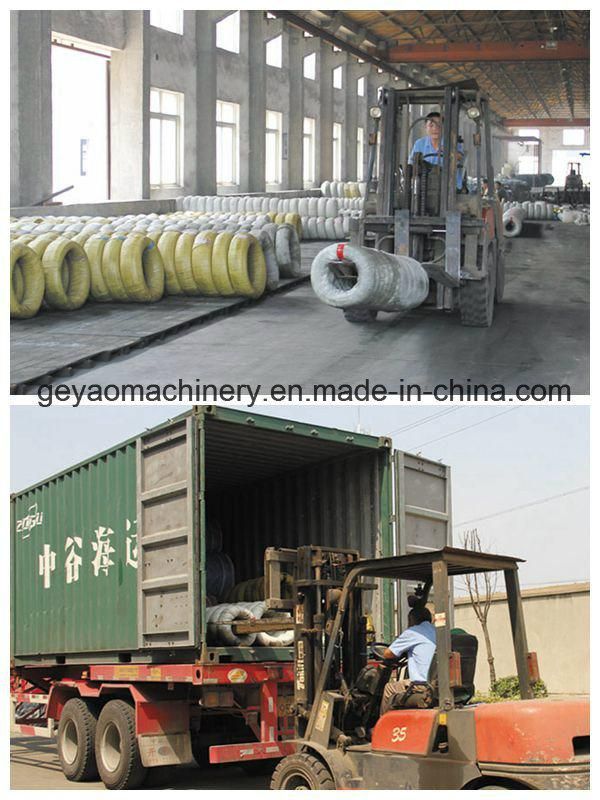

TRANSPORTATION OR LOADING

For enquiry,please kindly advise below information to us.

1.Application:  For which rope will be used.
2.Size: Diameter of the rope in millimeter or inches.
3.Construction: Number of strands, number of wires per strand and type of strand construction.
4.Type of Core: Fiber core(FC), independent wire rope core(IWRC) or independent wire strand core(IWSC).
5.Lay: Right regular lay,left regular lay,right lang lay,left lang lay.
6.Lubrication:Preformed or not.
7.Material:  Bright(un-galvanized),galvanized or stainless steel
8.Grade of wire:  Tensile strength of wires
9.Breaking Load:  Minium or calculated breaking load in tones or pounds.
10.Length:  Length of wire rope.
11.Packing:  In coils wrapped with oil paper and hessian(orp.p)cloth, or on wooden reels.
12.Quantity: By number of coils or reels,by length or weight
13.Specification: Any recognized specification, if necessary.
14.Certification:  Mill sheet and/or a third party's inspection,if necessary.
15.Remarks:  Shipping marks and any other special requirements.
