6X19 Iwrc Class Galvanized Wire Rope Eips (Steel Core)
Chongqing Geyo Machinery Co., Ltd.- Certification:ISO, CE, ISO, CE, TUV
- Surface:Galvanized,Ungalvanized,Stainless Steel, Smooth
- Technique:Galvanized, Ungalvanized
- Application:Rope, Manufacturing, Fencing, Rope, Construction
- Alloy or Not:Non-alloy, Non-Alloy
- Standard:BS, JIS, GB, ASTM, DIN, AISI, BS, JIS, GB, ASTM, DIN, AISI
Base Info
- Model NO.:6*19
- Structure:6X19+Iwrc
- Tensile Strength:1570-1960MPa
- Diameter:as Customer′s Request
- Steel Grade:High Carbon Wire Rod
- Delivery Time:20 Days
- Transport Package:in Wooden Reel
- Specification:0.2-52mm
- Trademark:GEYO
- Origin:China
- HS Code:7312100000
- Production Capacity:10000meters,Month
Description
Basic Info.
Model NO. 6*19 Structure 6X19+Iwrc Tensile Strength 1570-1960MPa Diameter as Customer′s Request Steel Grade High Carbon Wire Rod Delivery Time 20 Days Transport Package in Wooden Reel Specification 0.2-52mm Trademark GEYO Origin China HS Code 7312100000 Production Capacity 10000meters/MonthProduct Description
IWRC-6X19 Class Galvanized Wire Rope EIPS (Steel Core)Features
- Superior Strength and Excellent Corrosion Resistance
- Used with Marine Environments, Dredging, Excavating, and Logging
- Mooring Lines, Winch Lines, and Skylines
- The 6x19 class galvanized wire offers an added protection against corrosion.
- It's 6x25 construction makes it more flexible than a 6x19 wire rope without sacrificing strength or durability.
- The 6x25 offers the best combination of flexibility and wear resistance of the 6x19 class.
- We also carry coils of wire rope in 5000' lengths.
Diameter | Steel Grade | Core | Class | Material | Quantity | Weight | Break Strength |
3/8" | Extra Improved Plowed Steel (EIPS) | (IWRC) | 6x19 | Galvanized Steel | Ordered in lineal feet | 0.26lbs | 15100lbs |
7/16" | Extra Improved Plowed Steel (EIPS) | (IWRC) | 6x19 | Galvanized Steel | Ordered in lineal feet | 0.35lbs | 20400lbs |
1/2" | Extra Improved Plowed Steel (EIPS) | (IWRC) | 6x19 | Galvanized Steel | Ordered in lineal feet | 0.46lbs | 26600lbs |
9/16" | Extra Improved Plowed Steel (EIPS) | (IWRC) | 6x19 | Galvanized Steel | Ordered in lineal feet | 0.59lbs | 33600lbs |
5/8" | Extra Improved Plowed Steel (EIPS) | (IWRC) | 6x19 | Galvanized Steel | Ordered in lineal feet | 0.72lbs | 41200lbs |
3/4" | Extra Improved Plowed Steel (EIPS) | (IWRC) | 6x19 | Galvanized Steel | Ordered in lineal feet | 1.04lbs | 58800lbs |
7/8" | Extra Improved Plowed Steel (EIPS) | (IWRC) | 6x19 | Galvanized Steel | Ordered in lineal feet | 1.42lbs | 79600lbs |
1" | Extra Improved Plowed Steel (EIPS) | (IWRC) | 6x19 | Galvanized Steel | Ordered in lineal feet | 1.85lbs | 103400lbs |
1-1/8" | Extra Improved Plowed Steel (EIPS) | (IWRC) | 6x19 | Galvanized Steel | Ordered in lineal feet | 2.34lbs | 130000lbs |
1-1/4" | Extra Improved Plowed Steel (EIPS) | (IWRC) | 6x19 | Galvanized Steel | Ordered in lineal feet | 2.89lbs | 159800lbs |
1-1/2" | Extra Improved Plowed Steel (EIPS) | (IWRC) | 6x19 | Galvanized Steel | Ordered in lineal feet | 4.16lbs | 228000lbs |
2-1/2" | Extra Improved Plowed Steel (EIPS) | (IWRC) | 6x19 | Bright Steel | Ordered in lineal feet | 11.6lbs | 604000lbs |
6 x 19 wire rope is a general purpose steel rope that's widely used in the many industries, including marine environments, dredging, excavating and logging. Common applications for 6 x 19 galvanized wire rope include mooring lines, winch lines, chokers, and skylines. The actual rope construction is 6x 25, with 6 strands/25 wires per strand, for a great combination of both flexibility and wear resistance.
The grade of steel used in our 6 x 19 galvanized wire rope is known as EIPS, meaning Extra Improved Plowed Steel. EIPS wire rope has roughly 10% more strength than regular IPS. An independent wire rope core ( IWRC ) provides added strength, reduces the amount of stretch; IWRC wire rope also provides more resistance to heat. A galvanized surface offers extra corrosion resistance over a typical bright wire finish. It does not offer any spin-resistant properties.

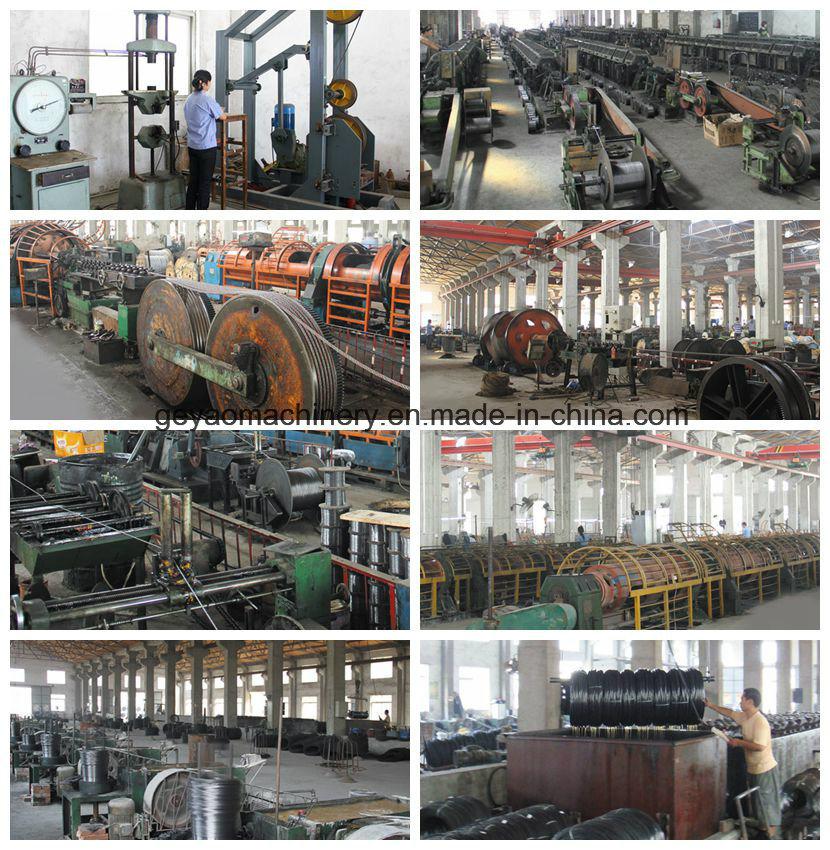

PRODUCTION

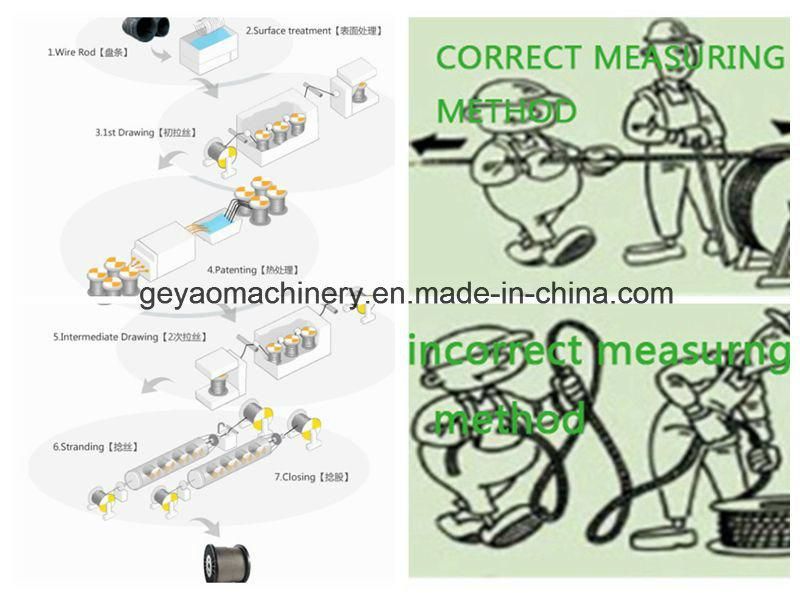

PRODUCTION FLOW AND MEASURING METHOD OF WIRE ROPE

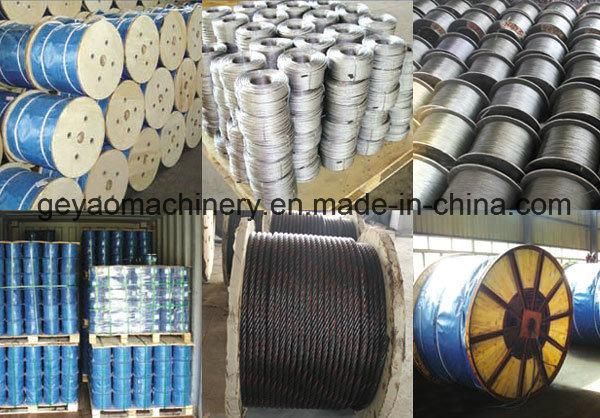

STORAGE
TRANSPORTATION OR LOADING
For enquiry,please kindly advise below information to us.
1.Application: For which rope will be used.
2.Size: Diameter of the rope in millimeter or inches.
3.Construction: Number of strands, number of wires per strand and type of strand construction.
4.Type of Core: Fiber core(FC), independent wire rope core(IWRC) or independent wire strand core(IWSC).
5.Lay: Right regular lay,left regular lay,right lang lay,left lang lay.
6.Lubrication:Preformed or not.
7.Material: Bright(un-galvanized),galvanized or stainless steel
8.Grade of wire: Tensile strength of wires
9.Breaking Load: Minium or calculated breaking load in tones or pounds.
10.Length: Length of wire rope.
11.Packing: In coils wrapped with oil paper and hessian(orp.p)cloth, or on wooden reels.
12.Quantity: By number of coils or reels,by length or weight
13.Specification: Any recognized specification, if necessary.
14.Certification: Mill sheet and/or a third party's inspection,if necessary.
15.Remarks: Shipping marks and any other special requirements.
