Price Building Material AISI Gade 309/309scarbon Stainless Steel Sheet
Shanghai Huagang Steel Co., Ltd.- Certification：ISO, RoHS, IBR, AISI, ASTM, GB, EN, DIN, JIS
- Grade：300 Series
- Standard：ASTM, AISI, GB, JIS, DIN, EN
- Type：Stainless Steel Sheets
- Shape：Square
- Technique：Cold Rolled
Base Info
- 400 Series Steel：409L, 410, 410s, 420, 420j1, 420j2, 430, 444, 441
- 200 Series Steel：201, 202, J1, J2, J3, J4
- Material：Stainless Steel
- Special Use：Cutting Tools, Measuring Tools, Cutters in Common
- Edges：Mill Edge, Slit Edge
- Surface Technics：Flat,Corrugated,Perforated,Embossed,Water Ripple
- Duplex Steel：904L, 2205, 2507, 2101, 2520, 2304
- 300 Series Steel：301, 304, 304L, 314, 316, 316L, 316ti
- MOQ：1 Ton
- Price Term：CIF CFR Fob Ex-Work
- Stock：Stock
- Application：Mold & Dies, Ship Plate, Boiler Plate, Container P
- Model No.：201, 202, 301, 302, 303, 304, 304L, 304h, 309
- Surface Treatment：Polished
- Model NO.：S30900 309 309S SUH309 X12CRNI23-13 1.4833
- Surface：No.1,2b,Ba,Hairline,Polished,Mirror,8K,Color
- Color：Golden,Rose Gold,Silver,Black,Red,Green,Blue,etc
- Transport Package：Standard Seaworthy Export Packing
- Specification：4X8FT,5X10FT,Customize
- Trademark：HGS
- Origin：Shanghai
- HS Code：7304411000
- Production Capacity：50000pieces,Year
Description
MAX24 15 0.08 0.045 0.03 2 balance
309S (UNS S30908)MIN 22 12 / / / / / MAX 24 15 0.08 0.045 0.03 2 balance
Chemical Composition
Physical Properties
The physical properties of grade 309S stainless steel are given in the following table.
Mechanical Properties
The mechanical properties of annealed grade 309S stainless steel are displayed in the following table.
Thermal Properties
The following table outlines the thermal properties of grade 309S stainless steel.
Machinability
Stainless steel sheet, 0.45mm to less than 4.0mm - ASTM A240M
Our Steel has from years of experience determined the popular range of grades, widths and thicknesses of stock. The standard range is as follows:

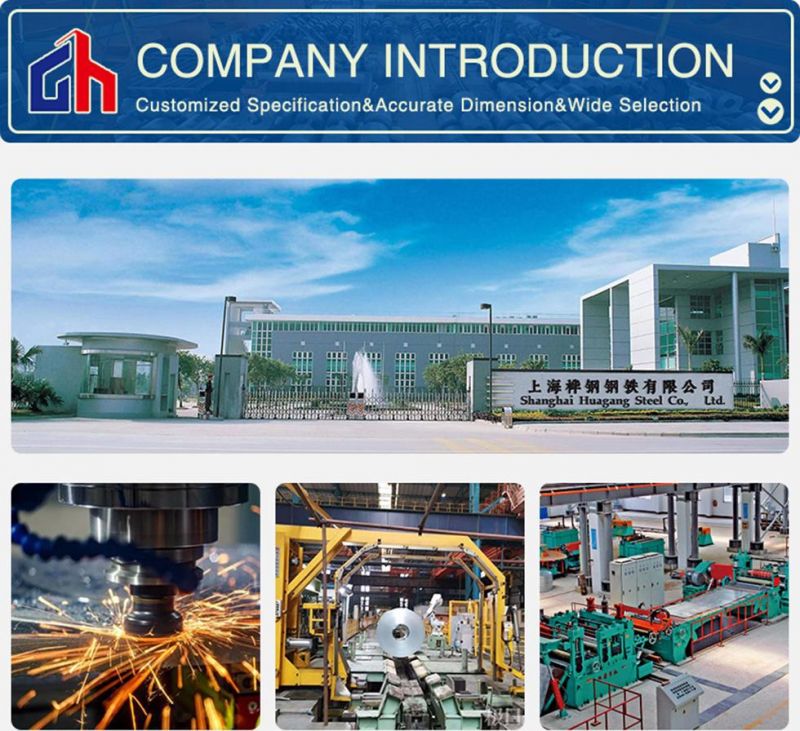

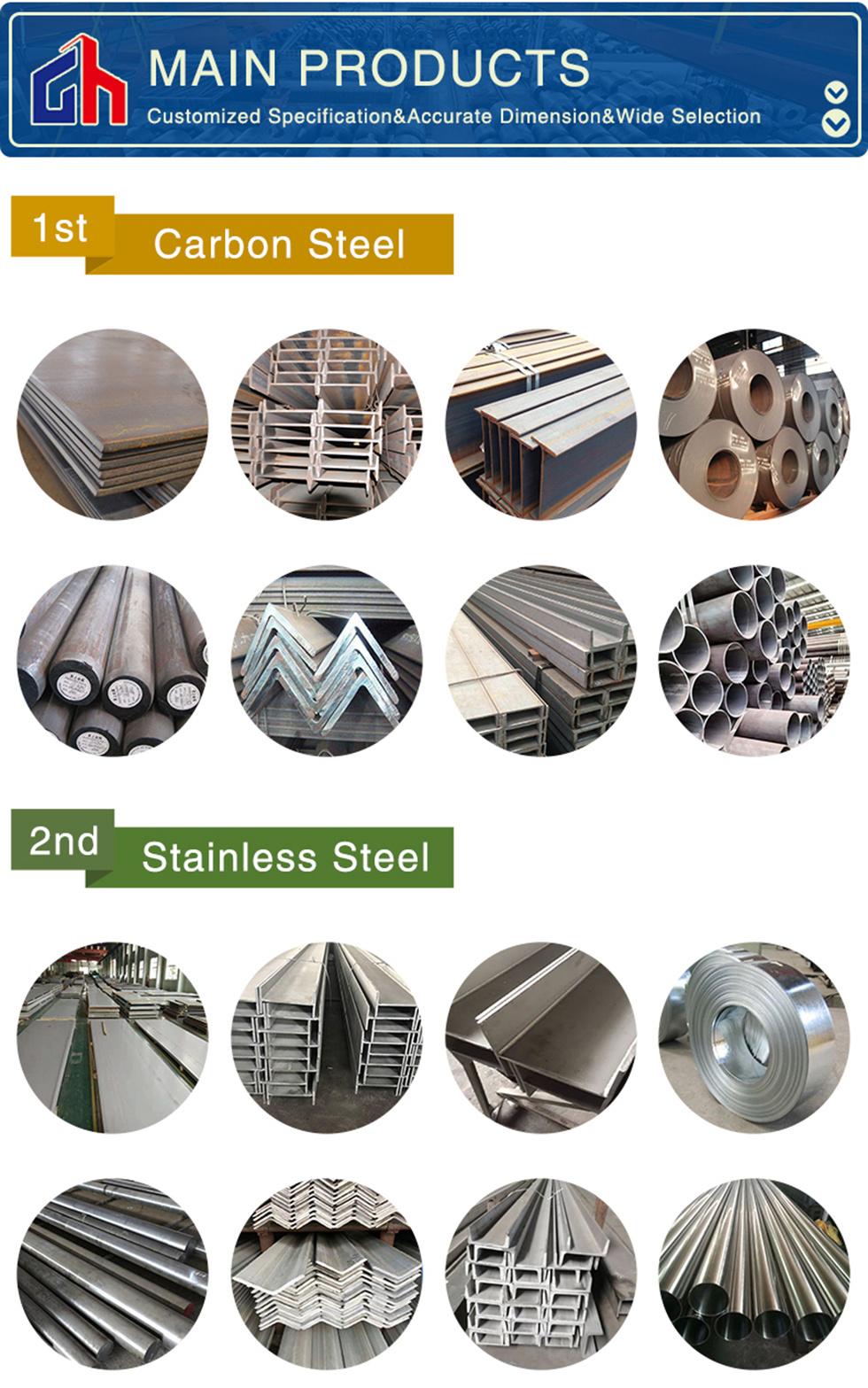

Shanghai Huagang Steel Co., Ltd. is one of the leading manufactories with ISO 9001 certificate who is specializing in manufacturing & exporting various kinds of steel pipes, steel plate, steel coil, round bar, flat bar, angle bar, H beam and other steel products in China. We owned the complete production technique and related equipment for coking, sintering, iron, steel, steel rolling etc, also including the related energy source power system. Meanwhile, we have reached the production technique` s completeness and systematicness at the modern steel industry. The company's annual sales amount is more than 100 million yuan.
Through the global sales network, the products sell well in domestic and foreign markets, Huagang Steel has exported steel products to over 100 countries in the world. Our products are marketed widely all over the country and exported to North American, Europe, Middle East, South American, Southeast Asia, Africa, Australia etc and get highly appreciated for our quality and service.
We now have 5 branch offices in China now, the head factory is located in ChenQiao Road, Fengxian District, Shanghai.We have been engaged in stainless steel business since 2009,with 12 years growth,Huagang Steel has become a competitive steel conglomerate in China.
Our company aims to provide customers with high-quality and low-price steel products and strives to create value for customers. We have advanced processing equipment and powerful logistics distribution system, which can meet customers' various needs at any time.
We adhere to the principle of "customer first" to provide our customers with high-quality services. Our company has won the trust and praise from customers with the business advantages of complete specifications, cheap price and fast transmission, and the service concept of keeping promise and focusing on quality.
FAQ
Q1.Are you a manufacturer or trader?
We are a manufacturer ,and we can have our own factory produced many steel products.
Q2.Whether your company supports Trade Assurance order?
Yes , we can (100% product quality protection;100% on-time shipment protection; 100% payment protection)
Q3.Can we get the some samples?Any charges?
Yes,you can get available samples in our stock.If the samples from new production, we will charge some reasonable cost, but this amount will be deducted from your first order.
Q4.How do we build up business relations with your company ?
Send us your requirement which includes size , coating info ,parameters,quantity ,destination .
Q5.What is the MOQ?
We can accept small orders.Please feel free to contact us, we can meet your requirements.
Q6.What's your advantage?
With high-quality products and efficient customer service, we adhere to the principle of customer first.
309S (UNS S30908)
Chemical Composition
| Element | Content (%) |
| Iron, Fe | 60 |
| Chromium, Cr | 23 |
| Nickel, Ni | 14 |
| Manganese, Mn | 2 |
| Silicon, Si | 1 |
| Carbon, C | 0.08 |
| Phosphorous, P | 0.045 |
| Sulfur, S | 0.03 |
Physical Properties
The physical properties of grade 309S stainless steel are given in the following table.
| Properties | Metric | Imperial |
| Density | 8 g/cm3 | 0.289 lb//in³ |
| Melting point | 1454°C | 2650°F |
Mechanical Properties
The mechanical properties of annealed grade 309S stainless steel are displayed in the following table.
| Properties | Metric | Imperial |
| Tensile strength, ultimate | 620 MPa | 89900 psi |
| Tensile strength, yield (0.2%) | 310 MPa | 45000 psi |
| Izod impact | 120 - 165 J | 88.5 - 122 ft-lb |
| Modulus of elasticity | 200 GPa | 29000 ksi |
| Shear modulus | 77 GPa | 11200 ksi |
| Poissons ratio | 0.3 | 0.3 |
| Elongation at break (in 50 mm) | 45% | 45% |
| Hardness, Brinell (converted from Rockwell B hardness) | 147 | 147 |
| Hardness, Knoop (converted from Rockwell B hardness) | 164 | 164 |
| Hardness, Rockwell B | 85 | 85 |
| Hardness, Vickers (converted from Rockwell B hardness) | 169 | 169 |
Thermal Properties
The following table outlines the thermal properties of grade 309S stainless steel.
| Properties | Metric | Imperial |
| Thermal expansion co-efficient (@ 0-100°C/32-212°F) | 14.9µm/m°C | 8.28µin/in°F |
| Thermal conductivity (@0-100°C/32-212°F) | 15.6 W/mK | 108 BTU in/hr.ft².°F |
Other Designations
Other designations that are equivalent to grade 309S stainless steel include the following:
- AMS 5523 AMS 5574 AMS 5650 ASTM A167 ASTM A213 ASTM A240 ASTM A249 ASTM A276 ASTM A312 ASTM A314 ASTM A473 ASTM A479 ASTM A511 ASTM A554 ASTM A580 ASTM A813 ASTM A814 DIN 1.4833
Fabrication and Heat Treatment
Machinability
Machining of grade 309S stainless steel is similar to that of grade 304.
Welding
Grade 309S stainless steel can be welded using most of the resistance and fusion methods. Oxyacetylene welding is not preferred for this steel.
Hot Working
Hot working of grade 309S stainless steel can be done at 1177°C (2150°F) and reheated at 982°C (1800°F). This process is followed by rapid cooling to obtain maximum corrosion resistance.
Cold Working
Grade 309S stainless steel can be drawn, headed, upset and stamped, although this steel has high work hardening rate. However, it has be fully annealed after cold-working to reduce internal stress.
Annealing
Grade 309S stainless steel can be annealed at temperature ranging from 1038 to 1121°C (1900 to 2050°F) and then quenched with water.
Hardening
Grade 309S stainless steel is unresponsive to heat treatment. The hardness and strength of the steel can be increased through cold working.
Applications
The following are the major applications of grade 309S stainless steel:
- Oven linings
- Boiler baffles
- Fire box sheets
- Furnace components
- Other high temperature containers.
Stainless steel sheet, 0.45mm to less than 4.0mm - ASTM A240MOur Steel has from years of experience determined the popular range of grades, widths and thicknesses of stock. The standard range is as follows:
| Grade | Finish | Thickness (mm) | Width (mm) | Length (mm) |
| 304 | 2B & No. 4 PE | 0.55 | 914 & 1219 | 1828 & 2438 |
| 304 | 2B & No. 4 PE | 0.7 | 914 & 1219 | 1828 & 2438 |
| 304 | 2B, 2B PE, No. 4 PE & BA PE | 0.9 | 914 & 1219 | 1828 & 2438 |
| 304 | 2B, 2B PE, No. 4 PE & BA PE | 1.2 | 914, 1219 & 1500 | 1828, 2438, 3000, 3048 & 3658 |
| 304 | 2B, 2B PE & No. 4 PE | 1.5 | 914, 1219 & 1500 | 1828, 2438, 3000, 3048 & 3658 |
| 304 | 2B, 2B PE & No. 4 PE | 1.6 | 914, 1219 & 1500 | 1828, 2438, 3000, 3048 & 3658 |
| 304 | 2B, 2B PE & No. 4 PE | 2 | 914, 1219 & 1500 | 1828, 2438, 3000, 3048 & 3658 |
| 304 | 2B, 2B PE & No. 4 PE | 2.5 | 914, 1219 & 1500 | 1828, 2438, 3000, 3048 & 3658 |
| 304 | 2B, 2B PE & No. 4 PE | 3 | 914, 1219 & 1500 | 1828, 2438, 3000, 3048 & 3658 |
| 304L | 2B & 2B PE | 4 | 1500 & 2000 | 3000 & 6000 |
| 316 | 2B | 0.55 | 1219 | 2438 |
| 316 | 2B | 0.7 | 1219 | 2438 |
| 316 | 2B | 0.9 | 1219 | 2438 |
| 316 | 2B & No. 4 PE | 1.2 | 1219 | 2438 |
| 316 | 2B & No. 4 PE | 1.5 | 1219 & 1500 | 2438, 3000 & 3658 |
| 316 | 2B & No. 4 PE | 1.6 | 1219 & 1500 | 2438, 3000 & 3658 |
| 316 | 2B & No. 4 PE | 2 | 1219 & 1500 | 2438, 3000 & 3658 |
| 316 | 2B & No. 4 PE | 2.5 | 1219 & 1500 | 2438, 3000 & 3658 |
| 316 | 2B & No. 4 PE | 3 | 1219 & 1500 | 2438, 3000 & 3658 |
| 316L | 2B & 2B PE | 4 | 1500 & 2000 | 3000 & 6000 |
| 430 | BA PE & No. 4 PE | 0.7 | 914 & 1219 | 1828 & 2438 |
| 430 | BA PE & No. 4 PE | 0.9 | 914 & 1219 | 1828 & 2438 |
| 3CR12 | 2B | 1.2 | 1250 | 2500 |
| 3CR12 | 2B | 1.6 | 1250 | 2500 |
| 3CR12 | 2B | 2 | 1250 | 2500 |
| 3CR12Ti | No. 1 | 3 | 1250 & 1500 | 2500, 3000 & 6000 |
| 3CR12 | No. 1 | 4 | 1250 & 1500 | 2500, 3000 & 6000 |
Other grades and widths
Product outside the standard range can be indented from overseas mills or stocked by special arrangement.
