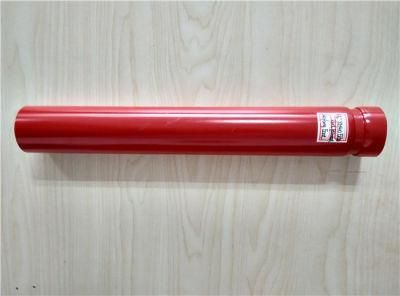

Sch40 UL FM Red Paint Groove End Fire Fighting Steel Pipe
Weifang East Pipe Industry Technical Co., Ltd.- Usage：Pipeline Transport, Boiler Pipe, Hydraulic,Automobile Pipe, Machinery Industry, Chemical Industry, Mining, Construction & Decoration, Special Purpose
- Technique：ERW
- Material：Carbon Steel
- Surface Treatment：Painted, Galvanized...
- Type：Welded
- Section Shape：Round
Base Info
- Specification：NPS: 1,2" ---12" WT: 2.11--10.31
- Transport Package：Plastic Clothes and Steel Strip
- End Finish：Groove. Bevel, Plain, Shoulder End
- Standard：ASTM A53,A795,A135 En10255 BS1387...
- Coating Thickness：Paint Thickness: 20um Zinc Thickness:50-70um
- Model NO.：C-001
- Trademark：EAST
- Origin：China
- HS Code：73063090
- Production Capacity：500, 000 Ton,Year
Description
N.D.O.D. SCH 10 SCH 30/40 W.T. NORMAL WEIGHT W.T. NORMAL WEIGHT (mm) (INCH) (mm) (inch) (mm) (inch) (kg/mtrs) (lbs/ft) (mm) (inch) (kg/mtrs) (lbs/ft) 15 1/2'' 21.30 0.840 ---- ---- ---- ---- 2.77 0.109 1.27 0.85 20 3/4'' 26.70 1.050 2.11 0.083 1.28 0.96 2.87 0.113 1.69 1.13 25 1'' 33.40 1.315 2.77 0.109 2.09 1.41 3.38 0.133 2.50 1.68 32 1.1/4'' 42.20 1.660 2.77 0.109 2.69 1.81 3.56 0.140 3.39 2.27 40 1.1/2'' 48.30 1.900 2.77 0.109 3.11 2.09 3.68 0.145 4.05 2.72 50 2'' 60.30 2.375 2.77 0.109 3.93 2.64 3.91 0.154 5.45 3.66 65 2.1/2'' 73.00 2.875 3.05 0.120 5.26 3.53 5.16 0.203 8.64 5.80 80 3'' 88.90 3.500 3.05 0.120 6.46 4.34 5.49 0.216 11.29 7.58 90 3.1/2'' 101.60 4.000 3.05 0.120 7.41 4.98 5.74 0.226 13.58 9.12 100 4'' 114.30 4.500 3.05 0.120 8.37 5.62 6.02 0.237 16.09 10.80 125 5'' 141.30 5.563 3.40 0.134 11.58 7.78 6.55 0.258 21.79 14.63 150 6'' 168.30 6.625 3.40 0.134 13.85 9.30 7.11 0.280 28.29 18.99 200 8'' 219.10 8.625 4.78 0.188 25.26 16.96 7.04 0.277 36.82 24.72 250 10'' 273.10 10.750 4.78 0.188 31.62 21.23 7.08 0.307 51.05 34.27
ASTM A53NPS DN OD,in.[mm] WT,in.[mm] Weight Plain End
lb/ft[kg/m] SCH PCS/ BUNDLE ½'' 15 0.840[21.3] 10 120 0.109[2.77] 0.85[1.27] 40 120 ¾'' 20 1.050[26.7] 0.083[2.11] 0.86[1.28] 10 84 0.113[2.87] 1.13[1.69] 40 84 1'' 25 1.315[33.4] 0.109[2.77] 1.41[2.09] 10 60 0.133[3.38] 1.68[2.50] 40 60 1-1/4'' 32 1.660[42.2] 0.109[2.77] 1.81[2.69] 10 42 0.140[3.56] 2.27[3.39] 40 42 1-1/2'' 40 1.900[48.3] 0.109[2.77] 2.09[3.11] 10 36 0.145[3.68] 2.72[4.05] 40 36 2'' 50 2.375[60.3] 0.109[2.77] 2.64[3.93] 10 26 0.154[3.91] 3.66[5.44] 40 26 2-1/2'' 65 2.875[73.0] 0.120[3.05] 3.53[5.26] 10 18 0.203[5.16] 5.80[8.63] 40 18 3'' 80 3.500[88.9] 0.120[3.05] 4.34[6.46] 10 14 0.216[5.49] 7.58[11.29] 40 14 3-1/2'' 90 4.000[101.6] 0.120[3.05] 4.98[7.41] 10 12 0.226[5.74] 9.12[13.57] 40 12 4'' 100 4.500[114.3] 0.120[3.05] 5.62[8.37] 10 10 0.237[6.02] 10.80[16.07] 40 10 5'' 125 5.563[141.3] 0.134[3.40] 7.78[11.58] 10 7 0.258[6.55] 14.63[21.77] 40 7 6'' 150 6.625[168.3] 0.134[3.40] 9.30[13.85] 10 5 0.280[7011] 18.99[28.26] 10 5 8'' 200 8.625[219.1] 0.188C[4.78] 16.96[25.26] 10 3 0.322[8.18] 28.58[42.55] 40 3 10'' 250 10.750[273.1] 0.188C[4.78] 21.23[31.62] 10 3 10.750[273.0] 0.365[9.27] 40.52[60.29] 40 3 12'' 300 12.750[323.8] 0.406[10.31] 53.57[79.70] 40 2
BS1387 (BLACK & GALVANISED)
N.D. O.D. WALL THICKNESS BLACK WEIGHT GALVANIZED WEIGHT PLAIN ENDS SCREWED&
SOCKETED PLAIN ENDS SCREWED&
SOCKETED Inch (mm) (Maximum mm) (Minimum mm) (mm) (Kg/m) (Kg/m) (Kg/m) (Kg/m) LIGHT 1/2" 15 21.4 21 2 0.947 0.956 0.947 0.956 3/4" 20 26.9 26.4 2.3 1.38 1.39 1.38 1.39 1" 25 33.8 33.2 2.6 1.98 2 1.98 2 1 1/4" 32 42.5 41.9 2.6 2.54 2.57 2.54 2.57 1 1/2" 40 48.4 47.8 2.9 3.23 3.27 3.23 3.27 2" 50 60.2 59.6 2.9 4.08 4.15 4.08 4.15 2 1/2" 65 76 75.2 3.2 5.71 5.83 5.71 5.83 3" 80 88.7 87.9 3.2 6.72 6.89 6.72 6.89 4" 100 113.9 113 3.6 9.75 10 9.75 10 MEDIUM 1/2" 15 21.7 21.1 2.6 1.12 1.22 1.12 1.22 3/4" 20 27.2 26.6 2.6 1.56 1.57 1.56 1.57 1" 25 34.2 33.4 3.2 2.41 2.43 2.41 2.43 1 1/4" 32 42.9 42.1 3.2 3.1 3.13 3.1 3.13 1 1/2" 40 48.8 48 3.2 3.57 3.6 3.57 3.6 2" 50 60.8 59.8 3.6 5.03 5.1 5.03 5.1 2 1/2" 65 76.6 75.4 3.6 6.43 6.55 6.43 6.55 3" 80 89.5 88.1 4 8.37 8.54 8.37 8.54 4" 100 114.9 113.3 4.5 12.2 12.5 12.2 12.5 5" 125 140.6 138.7 5 16.6 17.1 16.6 17.1 6" 150 166.1 164.1 5 19.7 20.3 19.7 20.3 HEAVY 1/2" 15 21.7 21.1 3.2 1.44 1.45 1.44 1.45 3/4" 20 27.2 26.6 3.2 1.87 1.88 1.87 1.88 1" 25 34.2 33.4 4 2.94 2.96 2.94 2.96 1 1/4" 32 42.9 42.1 4 3.8 3.83 3.8 3.83 1 1/2" 40 48.8 48 4 4.38 4.42 4.38 4.42 2" 50 60.8 59.8 4.5 6.19 6.26 6.19 6.26 2 1/2" 65 76.6 75.4 4.5 7.93 8.05 7.93 8.05 3" 80 89.5 88.1 5 10.3 10.5 10.3 10.5 4" 100 114.9 113.3 5.4 14.5 14.8 14.5 14.8 5" 125 140.6 138.7 5.4 17.9 18.4 17.9 18.4 6" 150 166.1 164.1 5.4 21.3 21.9 21.3 21.9
ASTM A53
lb/ft[kg/m]
BS1387 (BLACK & GALVANISED)
SOCKETED
SOCKETED
