Galvanized Rigid Conduit Elbow
Weifang East Pipe Industry Technical Co., Ltd.- Usage：Pipeline Transport, Machinery Industry, Mining, Construction & Decoration, Wire Pulling
- Surface Treatment：Hot DIP Galvanized
- Technique：ERW
- Material：Carbon Steel
- Type：Welded
- Section Shape：Round
Base Info
- Origin：China
- Trademark：east conduit
- Specification：1,2"-6"
- Transport Package：Carton Box
- Model NO.：90°60°45°30°22.5°
- Production Capacity：5000tons,Year
Description
L/C at sight or T/T;
Dimension Chart
| Pipe Size | Mini.UL Radius(mm) | Weight Per 100pcs(KG) | Weight Per 100pcs(LBS) | Standard Carton Qty | Weight Per Carton(KG) |
| 1/2" | 102 | 37.2 | 82 | 50 | 18.59 |
| 3/4" | 114 | 53 | 117 | 50 | 26.49 |
| 1" | 146 | 91.2 | 201 | 25 | 22.8 |
| 1-1/4" | 184 | 148.3 | 327 | 20 | 29.66 |
| 1-1/2" | 210 | 200.7 | 443 | 15 | 30.11 |
| 2" | 241 | 309.6 | 683 | 10 | 30.96 |
| 2-1/2" | 267 | 573.8 | 1265 | 50 | 286.9 |
| 3" | 330 | 898 | 1980 | 35 | 314.31 |
| 3-1/2" | 381 | 1230 | 2712 | 25 | 307.49 |
| 4" | 406 | 1529.6 | 3372 | 25 | 382.4 |
| 5" | 610 | 3173.8 | 6997 | BULK | 31.74 |
| 6" | 762 | 5119.5 | 11286 | BULK | 51.2 |
REMARK:Elbows special threading or special radius available upon request
CONTACT INFORMATION:
TEL:+86-536-8187103

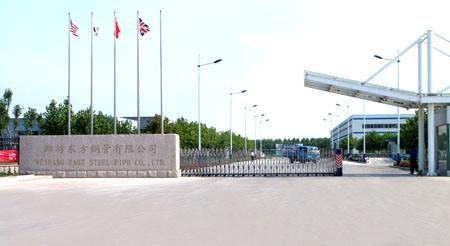

FACTORY

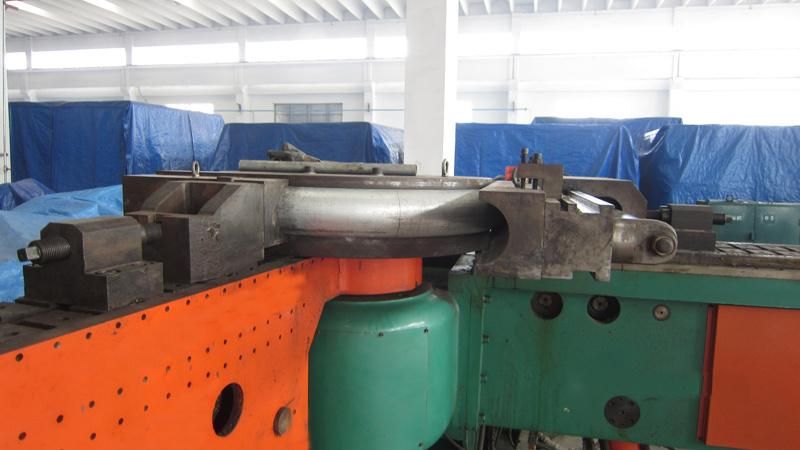

BENDING MACHINE

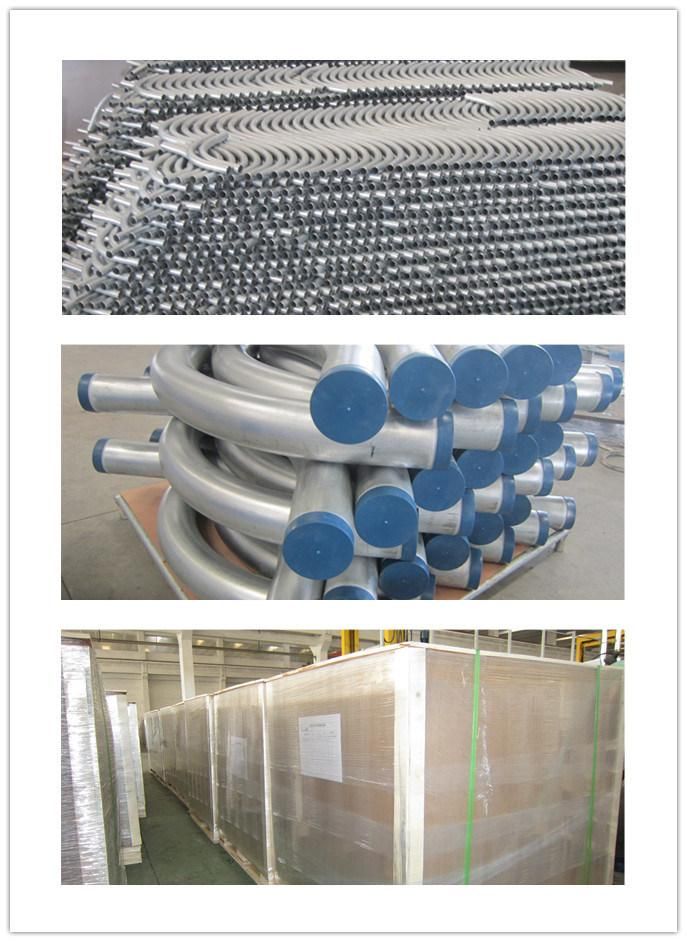

PRODUCTS AND PACKING

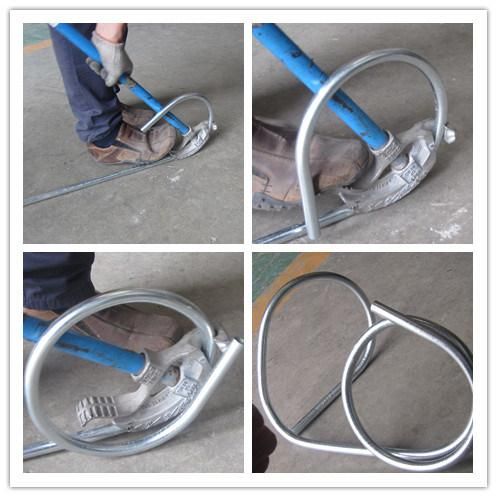

BENDING TEST
