• Hscode：72107010
• Thickness Tolerance：+,-0.02mm
• Loading Type：Vertical or Horizontal
• Quality Standard：En10142, SPCC, Spcd, SGCC
• Lead Time：15-20 Working Days After The Deposit
• Glossiness：35-65
• Coil ID：508,610mm
• Painting of Type：PE, PVDF, HDP, SMP
• Coating Structure：2,1, 2,2
• Coating Mass：Top:15-35um; Back:7-25um
• Color Available：Ral Color or Sample Color
• Zinc Coating：40-275GSM
• Width：600-1250mm
• Thickness：0.13-0.80mm
• Stock：Not Stock
• Model NO.：CUS-812
• Paint Guarantee：10-30 Years
• Transport Package：Seaworthy Package
• Specification：CE,ISO,SGS
• Trademark：CUS
• Origin：China
• HS Code：72107010
• Production Capacity：200000 Tons,Year

Basic Info.

Model NO. CUS-812 Stock Not Stock Thickness 0.13-0.80mm Width 600-1250mm Zinc Coating 40-275GSM Color Available Ral Color or Sample Color Coating Mass Top:15-35um; Back:7-25um Coating Structure 2/1, 2/2 Painting of Type PE, PVDF, HDP, SMP Coil ID 508/610mm Glossiness 35-65 Lead Time 15-20 Working Days After The Deposit Quality Standard En10142, SPCC, Spcd, SGCC Loading Type Vertical or Horizontal Thickness Tolerance +/-0.02mm Hscode 72107010 Paint Guarantee 10-30 Years Transport Package Seaworthy Package Specification CE/ISO/SGS Trademark CUS Origin China HS Code 72107010 Production Capacity 200000 Tons/Year

Product Description

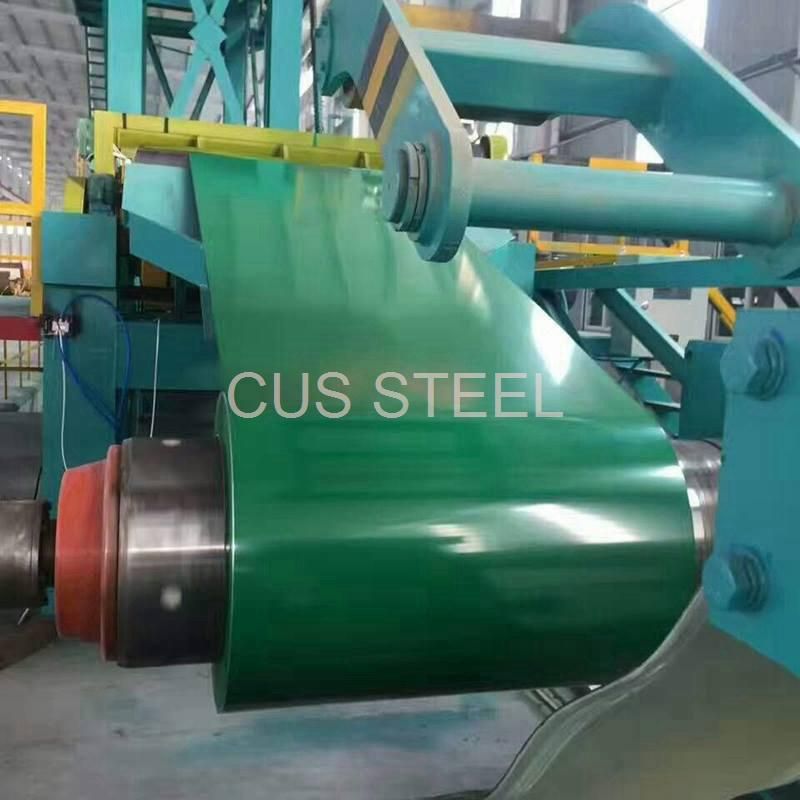

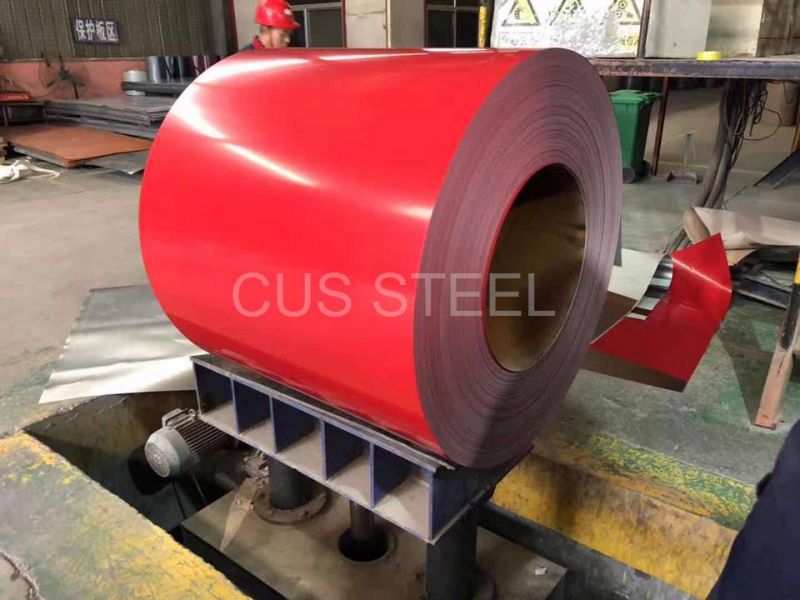

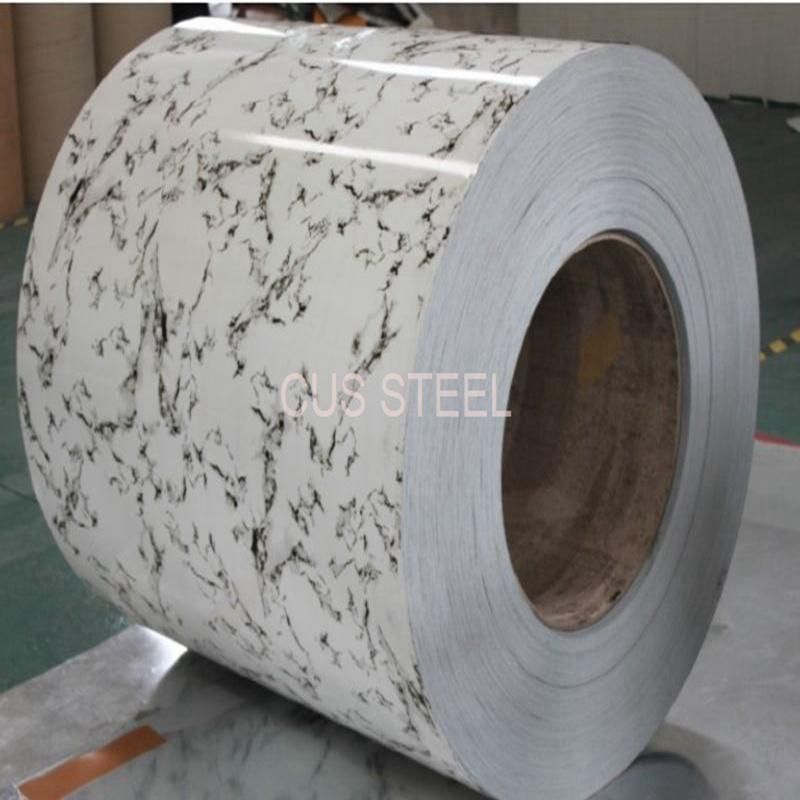

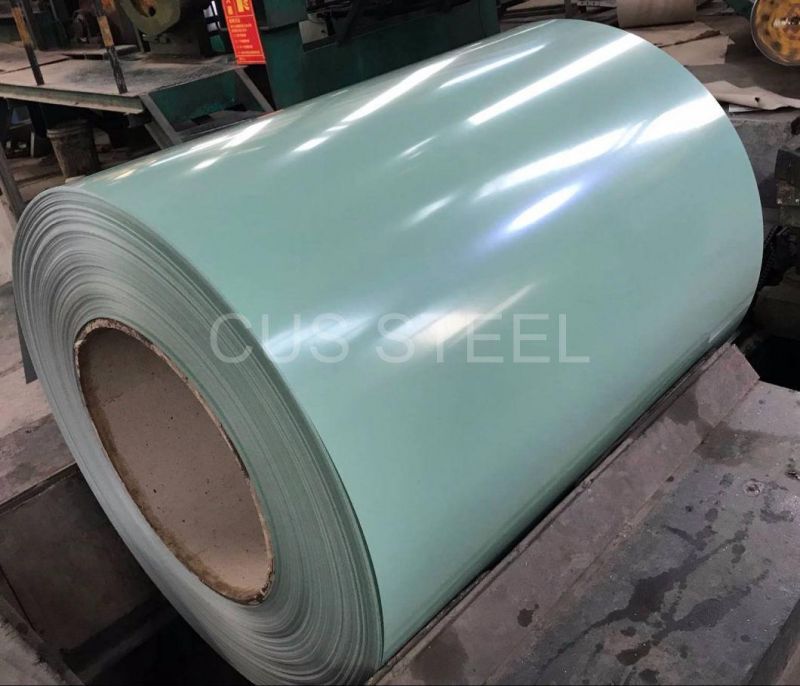

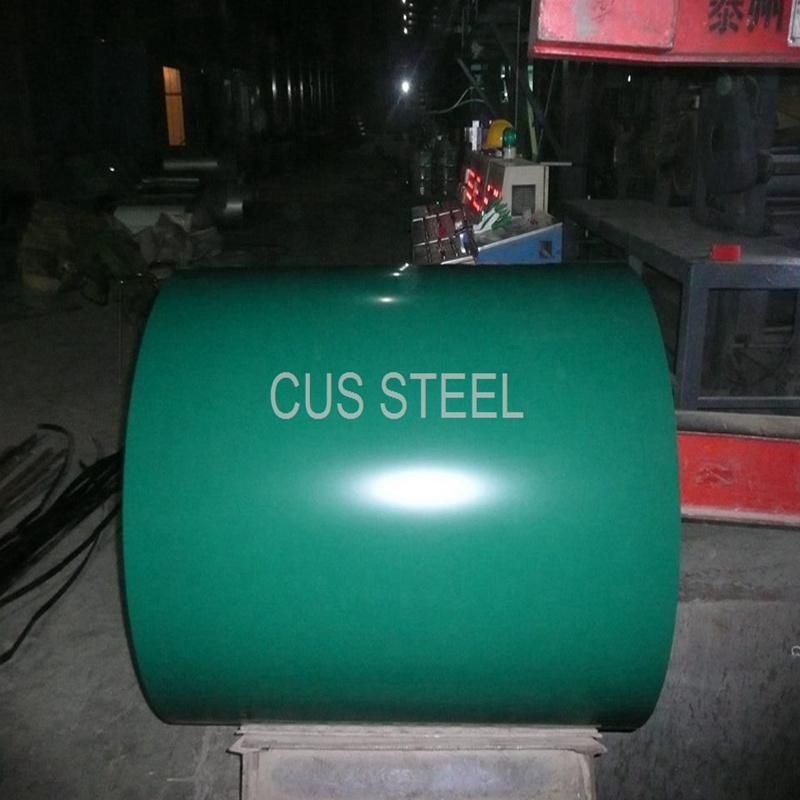

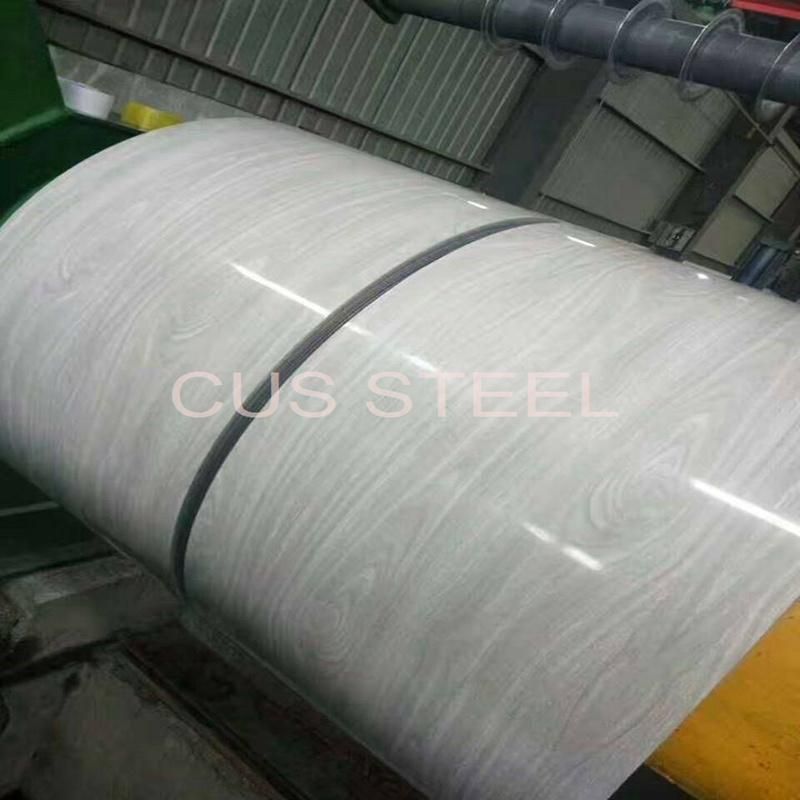

1. Prepainted Galvanized Steel Coils introduction:
Prepainted Galvanized Steel Coil has the strength and shape-exchanging performance of the steel plate, at the same time has the good adornment and anti-erode performance of organism material. Coating adhesive force of color-coated steel coil is strong, which keeps the color and luster novel for a long time.


2. Prepainted Galvanized Steel Coils main usage in building industry:

1). Prepainted Galvanized Steel Coils in outdoor application
Roof, structural balcony, panels, window sills, window frames, gates, garage doors, rolling doors, booths, shutters, watch rooms, makeshift houses, street waiting room (booth), refrigerators, etc.
2). Color Coated Profile Sheet in indoor application
Room doors, dividing walls, door frames, light house steel structures, sliding doors, screens, ceilings, toilets, interior elevator lobby, stairway ventilating duct, communication pipelines.


3. Prepainted Galvanized Steel Coils quality control:
Strict procurement process---skillful technical workers---final products inspection
(resistance to corrosion, salt spray test, exposure test, machinability, thermal resistance)
---standard packing


4. Prepainted Galvanized Steel Coils main products:
Prepainedt Galvanized Steel Coils includes the PPGI(prepainted galvanized steel coil), GI(galvanized steel coil), Galvalume steel coil or sheet, stainless steel, aluminum sheet in coils, Cold rolled steel coil, hot rolled steel coil, all kinds of steel strip, etc.


Goods	Prepainted Galvanized Steel Coils
Technical Standard:	JIS 3302 / ASTM A653 / EN10143 /EN10327
Grade	DX51D / DX52D/ DX53D/ S250, 280, 320GD, SGCC, SGCH
Regular Width	600-1250mm
Thickness	0 .13 - 0.8 mm (0. 25 -0. 45 mm is the most advantage thickness)
Type of coating:	Color painting
Color Type	PE, PVDF, HDP, SMP
Zinc coating	Z40- 275 g/m2
Surface treatment	Embossed, Filmed, Patterned, Matte, Stucco
Coil structure:	2/1 or 2/2
ID coil	508mm or 610mm
Coil weight	3-5 MT per coil

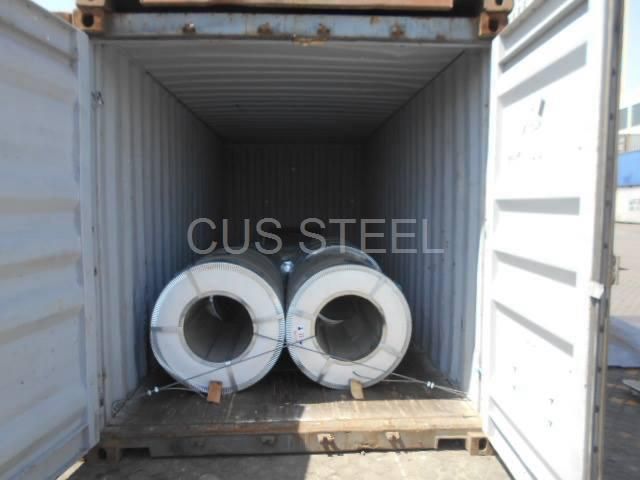

Package:	Standard seaworthy packaging in 20''containers
Price terms	FOB, CFR, CIF
delivery time	15-20 working days after receipt deposit
