• Length：According to Your Need
• Lead Time：10-20 Days After Receiving Deposit
• Usage：Roofing,Uz Channel,Fencing,Cladding
• Quality Standard：En10142,En10346,En10169,JIS3302,Astma755m
• Weight：1-8mt,Usually 3-5mt
• Grade：Q195,SGCC,Dx51d+Z
• Surface：Chromated,Oiled.Anti-Finger Treatment,Phosphate Tr
• Base Materials：Cold Steel Coil
• Coil ID：610,508mm
• Width：600-1250mm
• Thickness：0.12-0.8mm
• Zinc Coating：40-275G,M2
• Spangle：Zero,Small,Regular,Minimized
• Stock：Stock
• Model NO.：CUS-SX-HDGS
• Hscode：72104900
• Product Name：Galvanized Steel Coil
• Transport Package：Seaworthy Package
• Specification：Thickness: 0.12-2.5mm Width: 20-600mm
• Trademark：CUS
• Origin：China
• HS Code：72104900
• Production Capacity：20000tons,Year

Basic Info.

Model NO. CUS-SX-HDGS Stock Stock Spangle Zero,Small,Regular,Minimized Zinc Coating 40-275G/M2 Thickness 0.12-0.8mm Width 600-1250mm Coil ID 610/508mm Base Materials Cold Steel Coil Surface Chromated,Oiled.Anti-Finger Treatment,Phosphate Tr Grade Q195,SGCC,Dx51d+Z Weight 1-8mt,Usually 3-5mt Quality Standard En10142/En10346/En10169/JIS3302/Astma755m Usage Roofing/Uz Channel/Fencing/Cladding Lead Time 10-20 Days After Receiving Deposit Length According to Your Need Hscode 72104900 Product Name Galvanized Steel Coil Transport Package Seaworthy Package Specification Thickness: 0.12-2.5mm Width: 20-600mm Trademark CUS Origin China HS Code 72104900 Production Capacity 20000tons/Year

Product Description

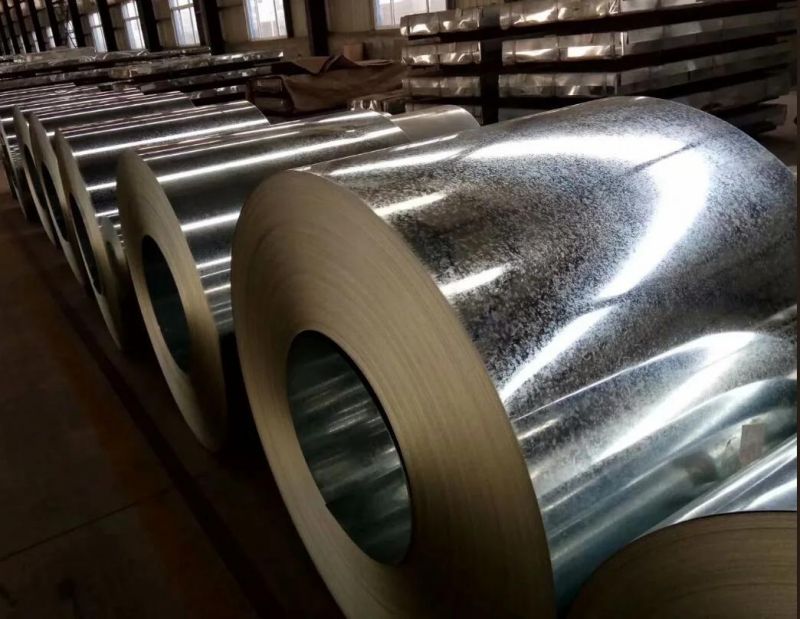

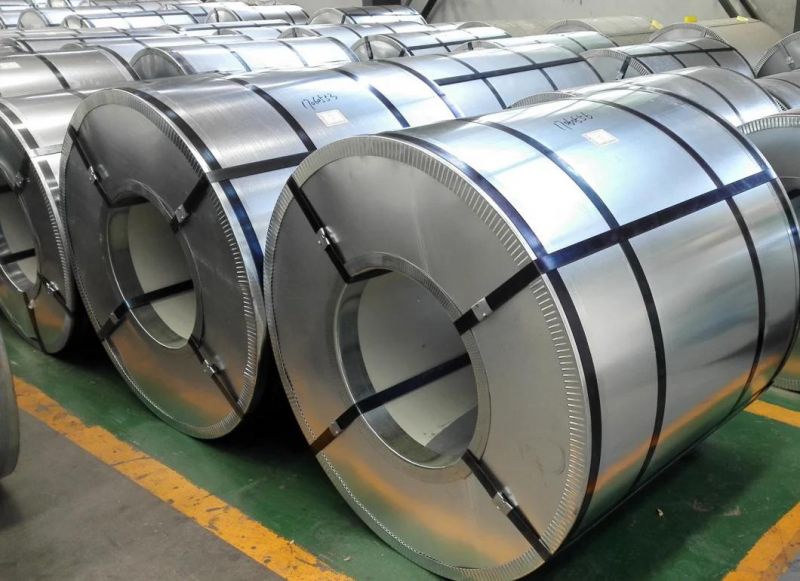

HDGI Steel Coil

Specifications of HDGI Steel Coil:
1) Capacity: About 12000 ton per month for steel strip/tape product
2) Thickness: From 0.12mm to 3.5mm, all available.
3) Width: From 10 to 600mm, all available.
4) Grade: Q195, SGCC, DX51D
5) Coil weight: From 50kg to 700kg, all available.
6) Coil ID: 100mm - 508mm(200, 250, 300, 350, 450, 508 and 610mm)
7) Coil OD: 500mm-1300mm
8) Tensile strength: 28.1-49.2kgf/mm2
19) Zinc coating weight: Min. 60g/m2, double side
10) Spangle: Regular spangle, minimized spangle, zero spangle
11) Surface treatment: Chemical passivating treatment, oils, passivating oils
12) Min trial order 5ton each thickness, 1 x 20' per delivery
13) Components: C%≤ 0.07, Si%≤ 0.03, Mn% ≤ 0.50, P% ≤ 0.025, S% ≤ 0.025, Alt% ≥ 0.02
14) Material strength (normal):
Yield: 195Mpa
Tensile: 380 to 450Mpa

Process of HDGI Steel Coil:
Pay off reel double cut shear welder-notcher entry accumulator pre cleaning section furnace hot bridle zinc pot air knife after cooler water quench dryer skin pass mill dryer tension leveler dryer chemical coater chemical oven cooler exit accumulator oiler exit shear tension reel.


Surface Treatment of HDGI Steel Coil:
Surface TreatmentFeatures
Chemical passivating treatmentminimize the chance of white rust forming during transit and storage
Maintain the bright, shiny appearance for a longer time
Oilsminimize the tendency for storage and transit stain
Passivating oilsprovide the protection from storage and transit stain by special chemicals called corrosion inhibitors


Surface Finish of HDGI Steel Coil:
Surface finishPattern: Application:

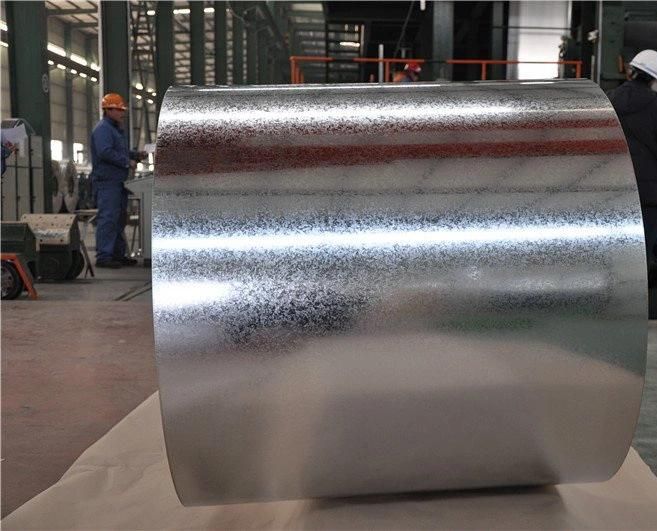

Regular spangleStandard spangles with flower patternGeneral uses
Minimized spangleMinimized spangles than regularGeneral painting application

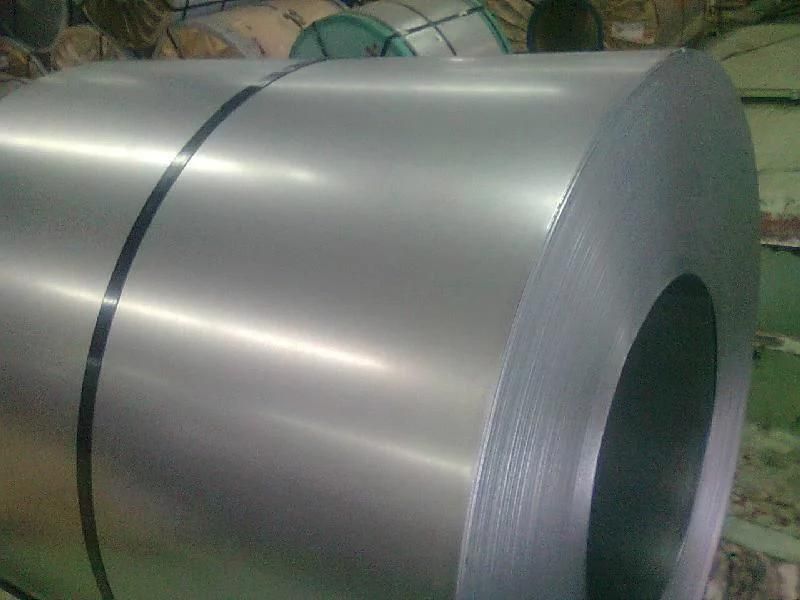

Zero spangleExtremely minimized spanglesSpecial painting application

Applications of HDGI Steel Coil:
1) cable armouring
2) deep drawing applications
3) constructions (roofing, external wall, handrail etc. )
4) electric appliance (refrigerator, washing machine, recorder, microwave, etc)

Features of HDGI Steel Coil:
Galvanized steel strip and tape consists of Cold Rolled Steel Coil after it has undergone hot dip galvanization and slitting processes. Galvanized steel strip and tape with characteristics of superior anti-corrosion, high surface quality and good deep process, and a lifetime exceeds other cold rolled products by 15-20 years.

Goods	Galvalume/Galvanized Steel Coil
Technical Standard:	JIS 3302 / ASTM A653 / EN10143 /EN10327
Grade	DX51D / DX52D/ DX53D/ S250,280,320GD, SGCC, SGCH
Regular Width	600-1250mm
Thickness	0 .13 - 1.5 mm
Type of coating:	Galvalume/galvanized
Zinc coating	Z40- 275 g/m2
Surface Finish Structure:	Zero, Small, Regular, Big
Surface Treatment:	Chromated Passivation, Oiled, AFP
Color Type	PE, PVDF, HDP, SMP
Coil weight	3-5 MT per coil

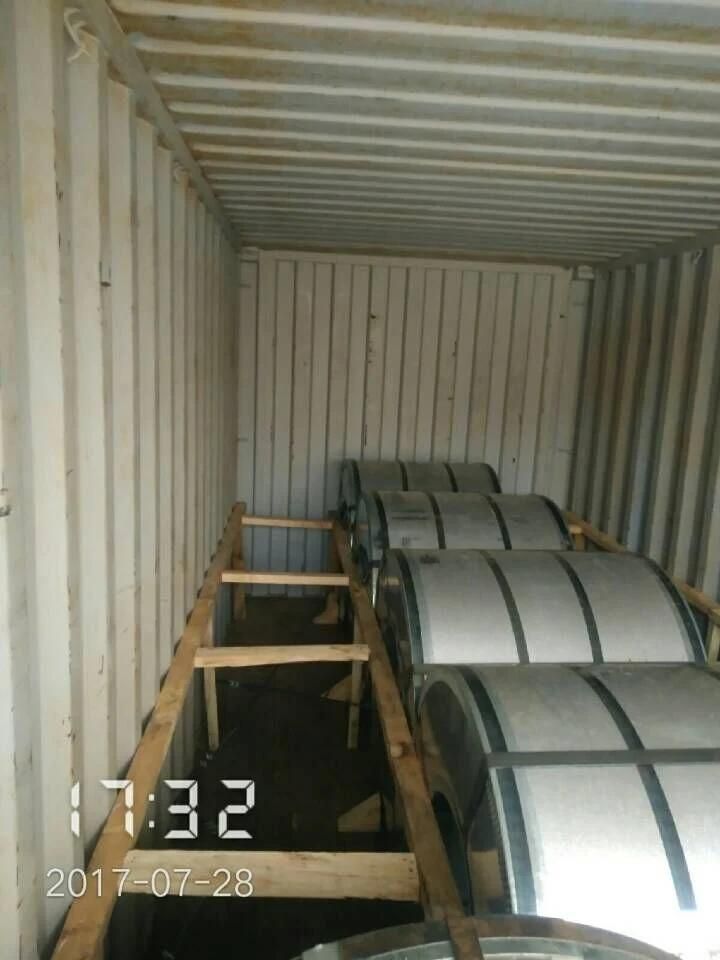

Package:	Standard seaworthy packaging in 20''containers
Price terms	FOB, CFR, CIF
delivery time	15-20 working days after receipt deposit
