• Roofing Length：1.8-11.8 Meters
• Type of Painting：PE,PVDF,HDP,SMP
• Coating Type：2,2 2,1
• Packing Material：Waterproof Paper,Plastic,Steel Plate
• Glossiness：25-95
• Lifetime：15-20 Years
• Thickness：0.13mm-0.8mm
• Grade：SGCC, Dx51d+Z
• Surface：Coated
• Material：Color,Galvanized,Galvalume Steel
• Normal Size：665,800,840,900,1050
• Color：Ral Color, Red, Blue, Green, White
• Stock：Stock
• Special Use：Cutting Tools, Measuring Tools, Cutters in Common Steel, High-strength Steel Plate, Wear Resistant Steel, Silicon Steel
• Application：Mold & Dies, Ship Plate, Boiler Plate, Container Plate, Flange Plate
• Technique：Cold Rolled
• Model NO.：0.12-0.8*665,840,900,925,1040,1100
• Tolerance：Thickness:+,-0.02mm;Width:+,-2mm
• Usage：Roof, Sandwich Panel,Fencing
• Pallet Weight：2-3.5 Ton
• Transport Package：Standard Seaworthy Export Packing
• Specification：SGCC, DX51D, ASTM A653, JISG3302
• Trademark：CUS-STEEL
• Origin：Zhengzhou, China(Mainland)
• HS Code：72107010
• Production Capacity：3000000mt Per Year

Basic Info.

Model NO. 0.12-0.8*665/840/900/925/1040/1100 Technique Cold Rolled Application Mold & Dies, Ship Plate, Boiler Plate, Container Plate, Flange Plate Special Use Cutting Tools, Measuring Tools, Cutters in Common Steel, High-strength Steel Plate, Wear Resistant Steel, Silicon Steel Stock Stock Color Ral Color, Red, Blue, Green, White Normal Size 665/800/840/900/1050 Material Color/Galvanized/Galvalume Steel Surface Coated Grade SGCC, Dx51d+Z Thickness 0.13mm-0.8mm Lifetime 15-20 Years Glossiness 25-95 Coating Type 2/2 2/1 Packing Material Waterproof Paper,Plastic,Steel Plate Type of Painting PE/PVDF/HDP/SMP Roofing Length 1.8-11.8 Meters Tolerance Thickness:+/-0.02mm;Width:+/-2mm Usage Roof, Sandwich Panel,Fencing Pallet Weight 2-3.5 Ton Transport Package Standard Seaworthy Export Packing Specification SGCC, DX51D, ASTM A653, JISG3302 Trademark CUS-STEEL Origin Zhengzhou, China(Mainland) HS Code 72107010 Production Capacity 3000000mt Per Year

Product Description

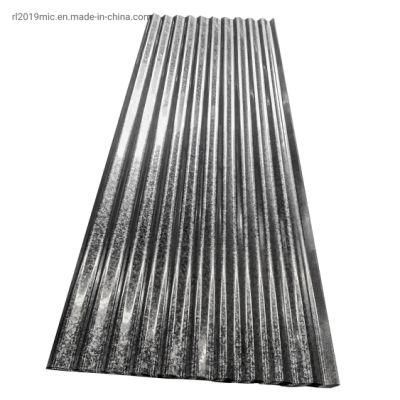

1. PPGI corrugated roofing sheet introduction
It is high in strength, good in rain and corrosion resistance, suitable to continuous rolling, convenient
in installation and disassemble, time saving and low cost, widely used in construction industry, such as
modern courtyard design, large-sized industrial buildings, prefabricated thermal insulation sandwich
board, etc



2. PPGI corrugated roofing sheet main application
Along with the development of light industry, transportation and ship building, the application of colored
sheet has been expanded form building materials to automobile manufacturing, watercraft interior
decoration. Household electrical appliance, furniture, container and cooker, etc., and become a new
material substituting to spray coating steel sheet


3. PPGI corrugated roofing sheet characteristic
1)  Easy to Install
2)  Reasonal price
3)  With high quality
4)  Green and environment friendly
5)  Excellent load-carrying ability
6)  Good sound insulation
7)  Excellent corrosion resistance
8)  eat preservation and heat insulation
9)  Good resistance to impact and low temperature
10) Excellent waterproof performanceIntroduction:


4. PPGI corrugated roofing sheet packing details
1) Water proof paper covered with steel sheet on top of products; Bundle by steel strip with iron pallet
2) Water proof paper covered by whole steel sheet; Bundle by steel strip with iron pallet



5. PPGI corrugated roofing sheet installation instruction
1) Prepare roof surface by removing old roofing, any rotten wood, adding roofing felt to entire surface
2) Calculate the number of PPGI corrugated sheet needed. Divide the area of your roof by the size of
the sheets you will be using. Remember that you will want the metal sheets to overlap
3) Place your first metal sheet in a corner of the roof, flush against the surface
4) Nail in the first metal sheet to the wood of the roof. You should use about 20 nails per sheet
5) Place the second metal sheet alongside the first with an overlap of 3 to 4 inches (or 10 cm)


Product	PPGI corrugated roofing sheet
Base material	Hot dipped galvanized steel sheet Hot dipped galvalume steel sheet
Material Grade	SGCC / SGCH / DX51D+Z / DX51D+AZ, etc
Thickness	0.13-0.8mm
Width before corrugation	750mm,762mm,900mm,914mm,1000mm,1200mm
Tolerance	Thickness: +/-0.02mm  Width:+/-2mm
Zinc-coating	60g/m2-275g/m2(G30-G60)
Technique	Raw material: Hot rolled steel coil --> Cold rolled_>hot dipped galvanized_>corrugated
Terms	Raw material width 762mm, after corrugated width 665mm: 9 waves   Raw material width 914mm ,after corrugated width 800mm:11 waves   Raw material width 1000mm, after corrugated 890mm or 900mm:12-14 waves
Feature	Roofing Steel Sheet have excellent performance of decoration,   corrosion resistance etc.
Export package	Waterproof paper, galvanized steel covered and steel strip packed
