• Model NO.：hhj781
• Special Use：Cold Heading Steel, Free Cutting Steel
• Application：Structural Steel Bar
• Length：300-12500mm
• Diameter：5-500mm
• Model No：Monel 400
• Transport Package：Export Standard Seaworthy Packing
• Specification：EN, GB, ASTM, AISI, JIS, DIN
• Trademark：HHJ
• Origin：Jiangsu China
• HS Code：75051200
• Production Capacity：900 Tons,Month

Basic Info.

Model NO. hhj781 Special Use Cold Heading Steel, Free Cutting Steel Application Structural Steel Bar Length 300-12500mm Diameter 5-500mm Model No Monel 400 Transport Package Export Standard Seaworthy Packing Specification EN, GB, ASTM, AISI, JIS, DIN Trademark HHJ Origin Jiangsu China HS Code 75051200 Production Capacity 900 Tons/Month

Product Description

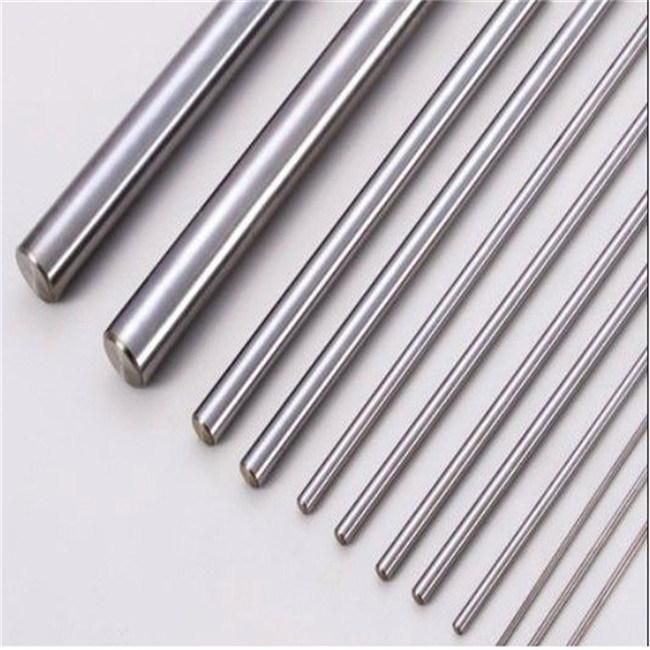

Bright Round Bar Nickel Alloy Monel K500

MONEL K500 is a age-hardenable Nickel-Copper alloy which combines the corrosion resistance of Alloy
400 with high strength corrosion fatigue and erosion resistance.
MONEL K500 is a nickel-copper alloy, precipitation hardenable through additions of aluminum and titanium.
MONEL K500 retains the excellent corrosion resistant characteristics of 400 and has enhanced strength
and hardness after precipitation hardening when compared with 400. Alloy K500 has approximately three
(3) times the yield strength and double the tensile strength when compared with 400. MONEL K500 can be
further strengthened by cold working before the precipitation hardening


the characteristics of Monel K500
.Corrosion resistance in an extensive range of marine and chemical environments. From pure water to
non-oxidizing mineral acids, salts and alkalis.
. Excellent resistance to high velocity sea water
. Resistant to a sour-gas environment
. Excellent mechanical properties from sub-zero temperatures up to about 480C
. Non-magnetic alloy

Chemical Composition(%)

Ni	Cu	Al	Ti	C	Mn	Fe	S	Si
63.0-70.0	Remainder	2.30-3.15	.35-.85	.25 max	1.5 max	2.0 max	.01 max	.50 max

Physcial Property

Condition	Tensile (ksi)	.2% Yield (ksi)	Elongation %	Hardness
Hot-Finished/Aged	140-190	100-150	30-20	27-38 HRC
Hot Finished/Annealed	90-110	40-60	45-25	75-90 HRB
Hot Finished/Annealed/Aged	130-165	85-120	35-20	24-35 HRC
Cold-Drawn/Aged	135-185	95-160	30-15	25-41 HRC
Cold-Drawn/Annealed/Aged	130-190	85-120	30-20	24-35 HRC

Application of Monel K500
Monel K-500 alloy finds wide applications in the marine, chemical, petrochemical and shipbuilding industries. Typical applications include:

• Valve seals, pump sleeves and wear rings in marine environments - high strength and resistance to seawater
• Pump shafts for fire-fighting pumps - high strength (resulting in smaller diameter shafts) and resistance to flowing seawater
• Propeller shafts - high strength (resulting in smaller diameter shafts and thus smaller bearings) and resistance to seawater
• Fasteners e.g. bolts, used in marine atmospheres and tidal waters - resistance to chloride - containing environments
• Doctor blades and scrapers
• Towing cable armoring - high strength, non-magnetic properties and resistance to seawater
• Springs - resistance to a variety of corrosive media
• Oil well drilling equipment such as non-magnetic drill collars, valves and instrumentation sleeves - resistance to chloride-containing media and sour gas environments
• Aviation instrument components - non-magnetic properties








Product Description
1.Machining Inconel Alloy 718 (UNS N07718) Centerless Ground Round Bar
2.Material Grade:
Inconel600/601/625/718/X-750/713C,
Incoloy800H/800/901/925/926/A286
Hastelloy B/B-2/C-4/C-22/C-276,
Monel400/K500,Nickel200/201
N02200/N02201/N04400/N05500/N06600/N06601/
N06625/N06690/N07718/N07750/N08800/N08810/
N08825/N09925/N10001/N10665/N06455/N06022/
N10276/N06200/N08020/S66286/K93600/N08367/N06059/N08904.
MP35N.etc
3.Standard: ASTM BS JIS NF DIN GB
4.Size: for the hot rolled bar, 8mm-100mm
       For the forged bar, 70mm-400mm
5.Length: 500--6000mm,or other length as the customers' requirements.
6.Process: hot rolled, forged, cold drawn
7.Surface: black surface, polished surface


Company information
Wuxi Huihengjia Metal Products Co.,Ltd is a professional engaged
in the production and operation of stainless steel products enterprises, has many years
of experience in the stainless steel industry, the main customer market in Europe, the Middle East,
Southeast Asia and South America and other regions. Our products include stainless steel plates,
rolls, tubes, rods, angles, fittings and flanges
 We specialized in surface treatment, BA ,NO.4, 8K, HL, LINEN, EMBOSSED AND ETCHED etc.
In the future, we will aim to develop service for decoration field, providing the color sheets material,
handrail and even hotel project service.
 Our advantage :
Stable and competitive source: 201&304
Provide free sample for testing
Professional inspection system
Flexible payment options: T/T,L/C at sight
Quick problem solving system
Good service attitude


FAQ
Q1: How many countries you already exported?
A1: Exported to more than 50 countries mainly from Russia, UK,Vietnam, Egypt, Turkey, Saudi Arabia,
 Dubai etc.

Q2: How long will it take to execute my order?
A2: Our normal time to execute the order is 7-20 working days. We will let you know the estimated lead
time after payment ASAP.

Q3 Can I have a sample for testing?
A3: Free samples, you just need to pay the freight.

Q4 Do you have inspection for the products before packing?
A4: 100% self-inspection for the products, we put the quality as our first priority.

Q5 Can I have a visit to your factory before the order?
A5: Sure, welcome to visit our factory.

Why choose us ?
1. More than 10 years experience in dealing stainless steel business
2. Professional business sales
3. Competitive price with good quality material
4. Own reputation from customer
5. Full positive attitude  and responsibility to serve clients
6.Reply email within eight hours
7. 24--hours Online Service
Looking forward to working with you
