Seamless DIN17175 13crmo44 Alloy Steel Tube
Guangzhou Kingmetal Steel Industry Co., Ltd.- Type：Seamless
- Technique：Cold Drawn
- Material：Alloy Steel
- Surface Treatment：Oiled
- Usage：Pipeline Transport, Boiler Pipe, Oil,Gas Drilling, Chemical Industry, Special Purpose
- Section Shape：Round
Base Info
- Model NO.：EYSP
- Length：1-12m
- Wt：1mm-80mm
- Delivery Time：15-30 Days After Down Payment
- Alloy or Not：Alloy
- Secondary or Not：Non Secondary
- Standard or Not：Standard
- Price Term：Fob, CIF, CNF
- Payment：L,C, T,T

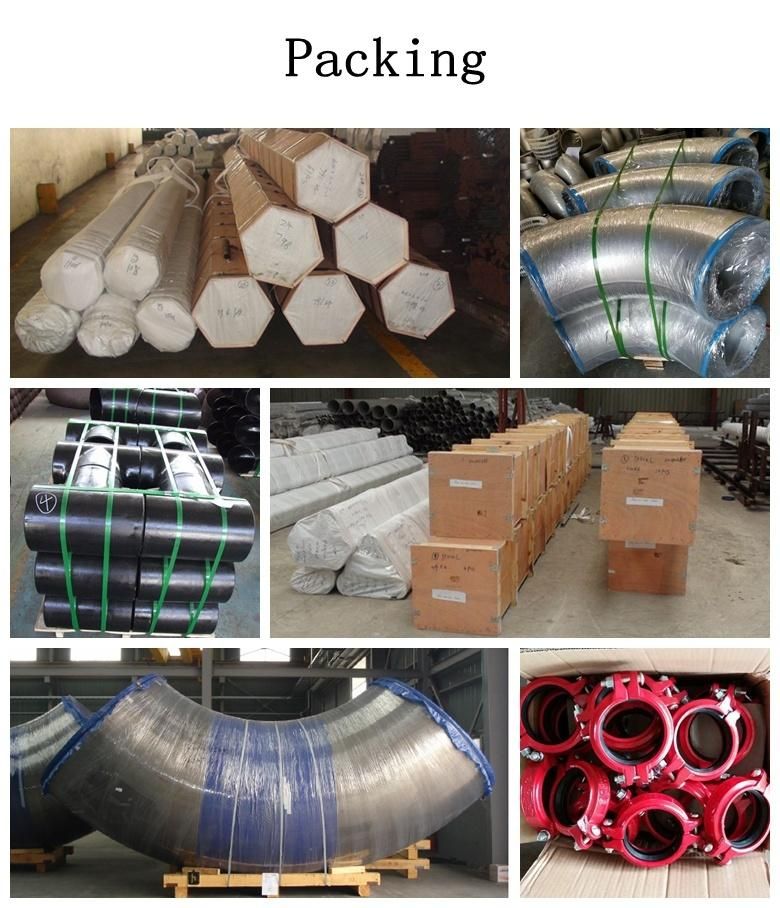

- Transport Package：Bundled & Seaworthy
- Specification：18mm-720mm
- Trademark：Kingmetal
- Origin：China
- HS Code：73045110
- Production Capacity：20000 Tons,Month
Description

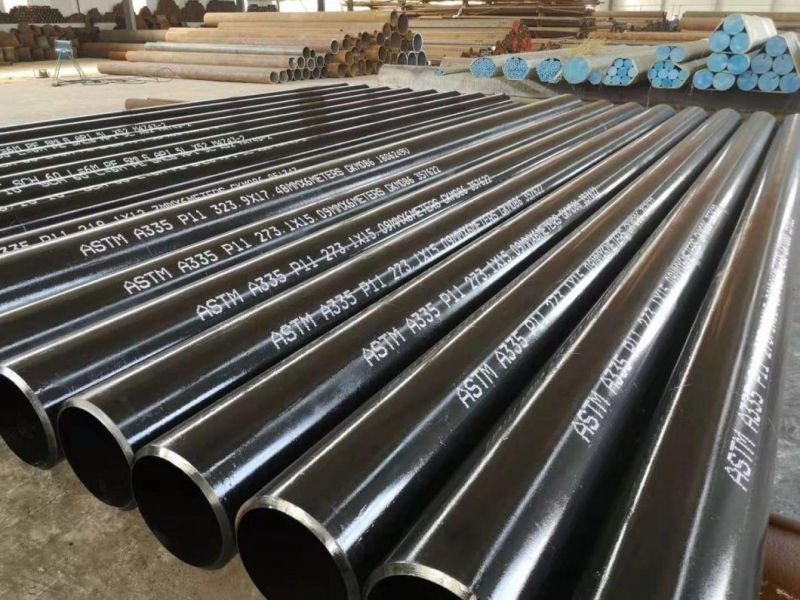

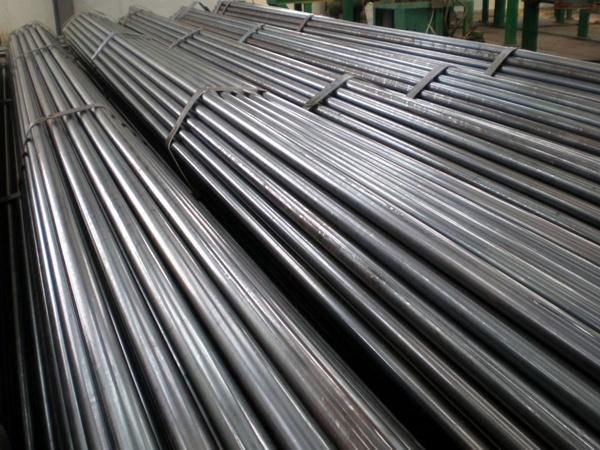

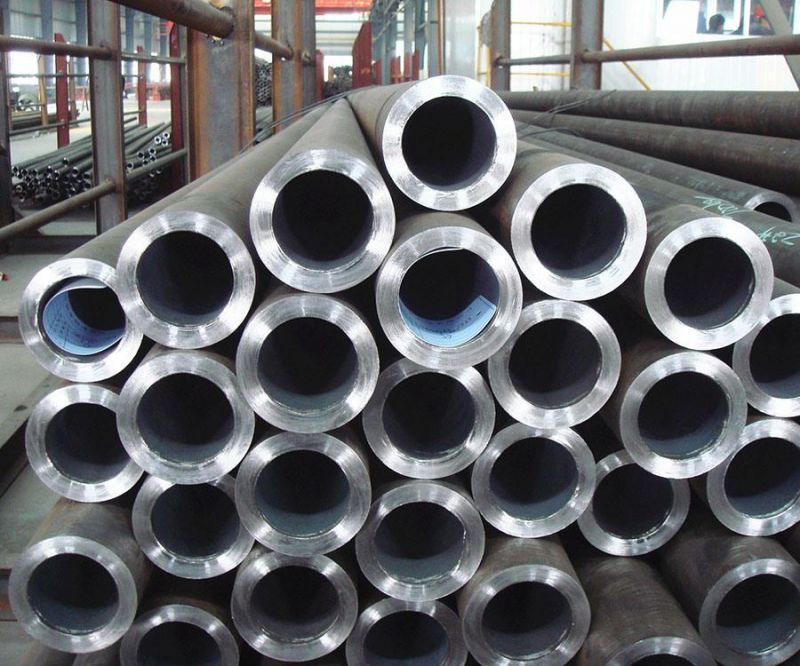

Alloy steel pipe
Standard & Material:
GB5310-2013 Standard: 20G,25MnG, 15MoG,15CrMoG, 20MoG, 12CrMoG, 12Cr2MoG,12Cr1MoVG, 12Cr2MoWVTiB, 10Cr9Mo1VNb, 15CrMoG, 10CrMo910,
ASTM A209M/AS-209M Standard A209T1/SA209 T1, A209 T1b/SA-209 T1b, A209T1a/SA209 T1a
ASTM A213M/ASME SA 213 M Standard: T2, T5, T9, T11, T12, T22, T23, T24, T91, T911, T92, T122
ASTM A333M/ASME SA-333/SA333M Standard: Gr1, Gr3, Gr4, Gr6, Gr7,Gr8, Gr9, Gr10, Gr11
ASTM A334M/ASME SA-334/SA334M Standard: Gr1, Gr3, Gr6, Gr7,Gr8, Gr9, Gr11
ASTM A335/ASME SA335 Standard: P1, P2, P5,P5b, P5c, P9, P11, P12,P21,P22,P23, P24, P91, P92
ASTM A519 Standard: 4118, 4130,4135,4137,4140
ASTM A691 Standard GRADE 91, CM65, CM70, CM75, CMSH70, CMS75, CMSH80,
ASTM A691 Standard GRADE 1/2 Cr, GRADE 1CR, GRADE 1 1/4 CR, 2 1/4 Cr, 3CR, 5CR, 9 CR
DIN17175 Standard: ST35.8, ST45.8, 15Mo3, 13CrMo44, 10CrMo910, 14MoV63,12Cr1MoV
EN10216-2 Standard: P195GH, P235GH, P265GH, 13CrMo4-5, 10CrMo9-10, 16Mo3, 10CrMo5-5, X10CrMoVNb9-1
JIS G3458 Standard: STPA12, STPA20, STPA22, STPA23, STPA24, STPA25, STPA26
JIS G3441 Standard:SCR420 TK,SCM415 TK, SCM418 TK, SCM420TK, SCM430TK, SCM435TK, SCM440TK.
NF A49-213/215 Standard: TU15D3, TU13CD4-04, TU10CD910, TUZ10CD505
Alloy C276
BS3059 Standard: S1-622-440, S2-622-440, S1-622-490, S2-622-490, S1-629-470, S2-629-470, S2-629-590
BS3604Standard: HFS625 CFS625
BS3606Standard: CFS625
Alloy steel pipe applies to petroleum,chemical industry, electric power, boiler, high temperature resistant, low temperature resistant,corrosion resistant seamless steel pipe used.Alloy steel pipealso can made according to the customer.
Chemical properties (%)
Material
C
Si
Mn
P
S
Mo
Cr
%
%
%
max
max
%
max
A335 P2/12CrMo
0,10 - 0,20
0,10 - 0,30
0,30 - 0,61
0,025
0,025
0.44-0.65
0.5-0.81
A335 P5/Cr5Mo
max. 0,15
max. 0,50
0,30 - 0,60
0,025
0,025
0,45-0,65
4,00-6,00
A335 P9/ Cr9Mo
max. 0.15
0.5-1.0
0.3-0.6
0.025
0.025
0.9-1.1
8-10
A335 P11/12CrMoV
0,05 - 0,15
0,50 - 1,00
0,30 - 0,60
0,025
0,025
0,44-0,65
1,00-1,50
A335 P12/12CrMo
0,05 - 0,15
max. 0,50
0,30 - 0,61
0,025
0,025
0,44-0,65
0,80-1,25
A335 P22/ Cr2Mo
0,05 - 0,15
max. 0,50
0,30 - 0,60
0,025
0,025
0,87-1,13
1,90-2,60
A213 P91
0,08 - 0,12
0,20 - 0,50
0,30 - 0,60
0.02
0.01
0.85-1.05
8.00-9.50
Mechanical properties
Material
Tensile
N/mm2
Strength
Min. N/mm2
Yield
% min.
A335 P2
min. 380
205
30
A335 P5
min. 415
205
30
A335 P9
min.415
205
22
A335 P11
min. 415
205
30
A335 P12
min. 415
205
30
A335 P22
min. 510
400
20
A213 P91
min. 585
415
20
