AISI/ASTM 1045/GB 45/JIS S45c/C45e/Cold Rolled Hot Rolled Square Steel
Laiwu Xincheng Metal Co., Ltd.- Standard:AISI, JIS, ASTM, DIN, BS, GB
- Certification:UL, ABS, RoHS
- Technique:Hot Rolled
- Alloy:Non-alloy
- Commodity:Hot Rolled Steel Square Bar
- MOQ:5tons
Base Info
- Model NO.:ASTM 1045 Medium Carbon Steel
- Material:Carbon Steel
- Steel Grade:SAE 1045 S45c C45 S20c Ss400 1020
- Type:Square, Flat
- Steel Square Bar Length:1-8m or as Required
- Product:Steel Square Bars
- Striaghtness of Steel Square Bar:Max 3mm,M
- Certificate of Steel Square Bar:Mtc Supplied
- Marks on Steel:Material, Heat No., Pieces, Weight
- Techniques:Hot Rolled
- Any Futhur Processing Supplied:Cold Drawn , Machined
- Steel Square Bars:Steel Square Bar in Different Sizes
- Transport Package:Standard Sea Worthy
- Specification:10x10-150x150mm
- Origin:China
- Production Capacity:3000tons,Month
Description
Basic Info.
Model NO. ASTM 1045 Medium Carbon Steel Material Carbon Steel Steel Grade SAE 1045 S45c C45 S20c Ss400 1020 Type Square, Flat Steel Square Bar Length 1-8m or as Required Product Steel Square Bars Striaghtness of Steel Square Bar Max 3mm/M Certificate of Steel Square Bar Mtc Supplied Marks on Steel Material, Heat No., Pieces, Weight Techniques Hot Rolled Any Futhur Processing Supplied Cold Drawn / Machined Steel Square Bars Steel Square Bar in Different Sizes Transport Package Standard Sea Worthy Specification 10x10-150x150mm Origin China Production Capacity 3000tons/MonthProduct Description
AISI / SAE 1045 Hot rolled steel square bars produced in ChinaAISI/ASTM 1045/GB 45/JIS S45c/C45e/Cold Rolled Hot Rolled Square Steel
S45C jis material steel square bars , S45C equivalent steel square bar
Hot rolled square bars are produced by hot rolling continuous casting billets.
Usually, they have a square cross- section with sharp and round edges and are intended either to be further machined or cold drawn and so on.
1.Hot rolled steel square bar Sizes we can offer:
1)Side sizes:10X10 to 150X150 MM
2)Length:1-8Metal or as required
3)R corner: Sharo or round corner as per requirements
4)Straightness: max 3mm/m
2.Application of the hot rolled steel square bar
1): Can be used in many fields such as building, automobile, shipbuilding, petrochemical, machinery, medicine, food, electric power, energy, space, building and decoration, etc.
2): Can be made into mould template, mortise pin, column
3): This kind of steel have good mechanical property, is widely used in structural parts which may support stress alternation, especially made into some connecting rods, bolts, wheel gear...
4): This kind of steel is the most common blanks and materials of shaft parts.

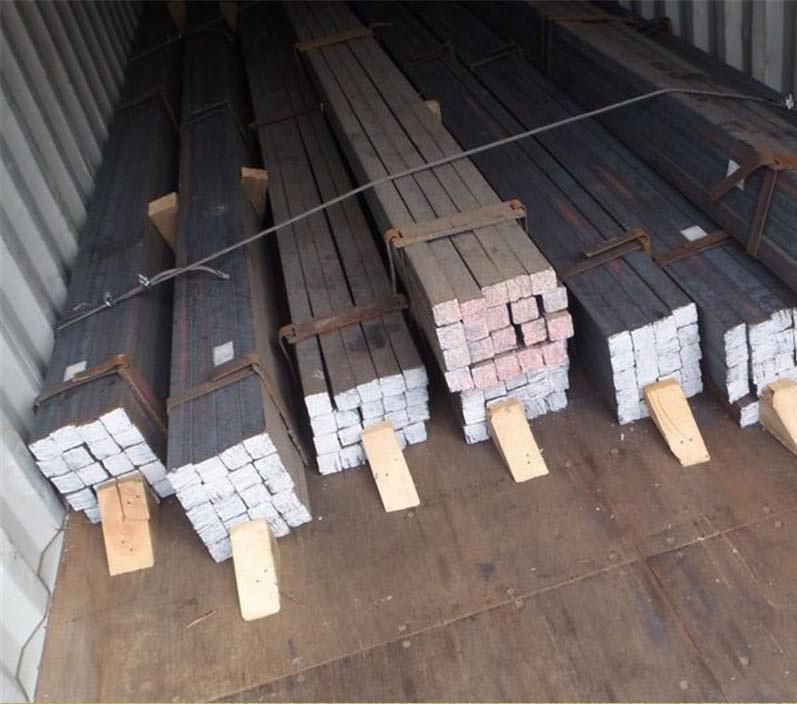

3.Packing :
1): Paint oil on the surface to protect steel bars from rusting.
2): Bundle packing by Iron Strips.
3): Bundle weight is from 2mt to 3 mt.
4): Two or three tags will be attached on each bundle.
4.Equivalent grade and chemical composition to SAE 1045,S45C
Standard | Grade | C | Si | Mn | P | S |
GB/T699 | 45 | 0.42-0.5 | 0.17-0.37 | 0.5-0.8 | 0.035 | 0.035 |
JIS G4051 | S45C | 0.42-0.48 | 0.15-0.35 | 0.6-0.9 | 0.03 | 0.035 |
ASTM A29/A29M | 1045 | 0.43-0.5 | 0.15-0.35 | 0.6-0.9 | 0.04 | 0.05 |
EN 10083-2 | C45E/1.1191 | 0.43-0.5 | 0.4 | 0.5-0.8 | 0.03 | 0.035 |
5.Mechanical property of SAE 1045,S45C steel square bar
Tensile Strength(Mpa) | 600 (min) |
Yield Strength(Mpa) | 355 (min) |
Elongation | 16 (min) |
Shrinkage | 40 (min) |
Akv(J) | 39 (min) |
6.Payment terms: T/T or L/ C
(1)30% paid by T/T and rest 70% by T/T upon the copy of B/B.
(2)100% irrevocable L/C at sight
7.MOQ:5tons
8.Delivery time:7-30 days upon to the order details
9.Trade term: FOB CFR CIF EXW and so on
10.. Mark: including steel material, heat No., pieces, weight, date and so on.
