• Model NO.：SAE 1045 , S45C ,C45 ,EN8
• Grade：SAE 1045 , S45c ,C45 ,En8
• Inspection：Ut 100% Passed
• Condition：Keep Stocks
• Products：SAE 1045 C45 Hot Rolled Steel Round Bars
• Transport Package：Standard Sea Worthy
• Specification：16mm to 350mm
• Trademark：Laiwu Xincheng
• Origin：China
• Production Capacity：3000tons,Month

Basic Info.

Model NO. SAE 1045 / S45C /C45 /EN8 Grade SAE 1045 / S45c /C45 /En8 Inspection Ut 100% Passed Condition Keep Stocks Products SAE 1045 C45 Hot Rolled Steel Round Bars Transport Package Standard Sea Worthy Specification 16mm to 350mm Trademark Laiwu Xincheng Origin China Production Capacity 3000tons/Month

Product Description

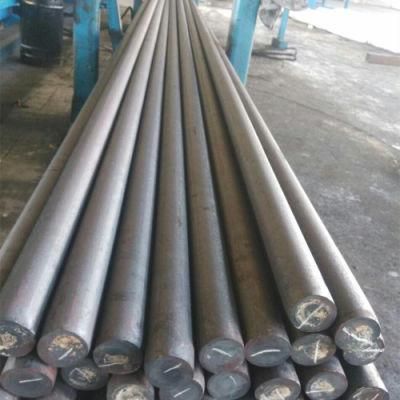

SAE 1045 / S45C /C45 /EN8 Hot rolled carbon steel round bar

Introduction
AISI 1045 steel is a medium tensile steel supplied in the black hot rolled or normalized condition. It has a tensile strength of 570 - 700 MPa and Brinell hardness ranging between 170 and 210.

AISI 1045 steel is characterized by good weldability, good machinability, and high strength and impact properties in either the normalized or hot rolled / forged condition.

AISI 1045 steel has a low through-hardening capability with only sections of size around 60 mm being recommended as suitable for tempering and through-hardening. However, it can be efficiently flame or induction hardened in the normalized or hot rolled condition to obtain surface hardnesses in the range of Rc 54 - Rc 60 based on factors such as section size, type of set up, quenching medium used etc.

AISI 1045 steel lacks suitable alloying elements and hence does not respond to the nitriding process.

1.SAE 1045 S45C C45 chemical composition

Standard	Grade	C	Si	Mn	P	S
GB/T699	45	0.42-0.5	0.17-0.37	0.5-0.8	0.035	0.035
JIS G4051	S45C	0.42-0.48	0.15-0.35	0.6-0.9	0.03	0.035
ASTM A29/A29M	1045	0.43-0.5	0.15-0.35	0.6-0.9	0.04	0.05
EN 10083-2	C45E/1.1191	0.43-0.5	0.4	0.5-0.8	0.03	0.035

2.SAE 1045 S45C C45 mechanical properties:

Tensile Strength,Mpa	Min 625
Yiled Strength,Mpa	Min 530
Elongation(%)	12
Reduction of Area(%)	35
Brinell Hardness	179

3.SAE 1045 steel bar applications:
AISI 1045 is widely used for all industrial applications requiring more wear resistance and strength. Typical applications of AISI 1045 are as follows:

Gears Pins Rams
Shafts Rolls Sockets
Axles Spindles Worms
Bolts Ratchets Light gears
Studs Crankshafts Guide rods
Connecting rods Torsion bars Hydraulic clamps

4.SAE 1045 S45C C45 welding ability
Certain facts about welding of AISI 1045 steel are:

AISI 1045 steel is readily welded when correct procedure is followed.
Welding AISI 1045 steel in through-hardened, tempered and flame or induction hardened condition is not recommended.
Low hydrogen electrodes are preferred for welding AISI 1045 steel.
The workpiece is
Pre-heated at 200°C-300°C (392°F - 572°F)
Maintained at the same temperature during welding
Cooled slowly using sand, ashes etc and
Stress relieved at 550°C - 660°C (1022°F - 1220°F).

5.Sizes we can offer:
Hot rolled steel bar :16mm to 310mm
Cold drawn steel bar :5mm to 80mm

6.MOQ:5tons

7.Delivery time :7-30 days ,upon to the sizes&quantity.

8.Payment term:TT or LC.
