• Usage：Construction & Decoration
• Section Shape：Square
• Surface：Galvanized
• Technical：Hot , Cold Finish
• Transport Package：Seaworthy Export Packing
• Specification：1,2"-12"
• Trademark：Kingmetal
• Origin：Made in China
• HS Code：730661
• Production Capacity：3000 Tons,Month

Basic Info.

Usage Construction & Decoration Section Shape Square Surface Galvanized Technical Hot / Cold Finish Transport Package Seaworthy Export Packing Specification 1/2"-12" Trademark Kingmetal Origin Made in China HS Code 730661 Production Capacity 3000 Tons/Month

Product Description

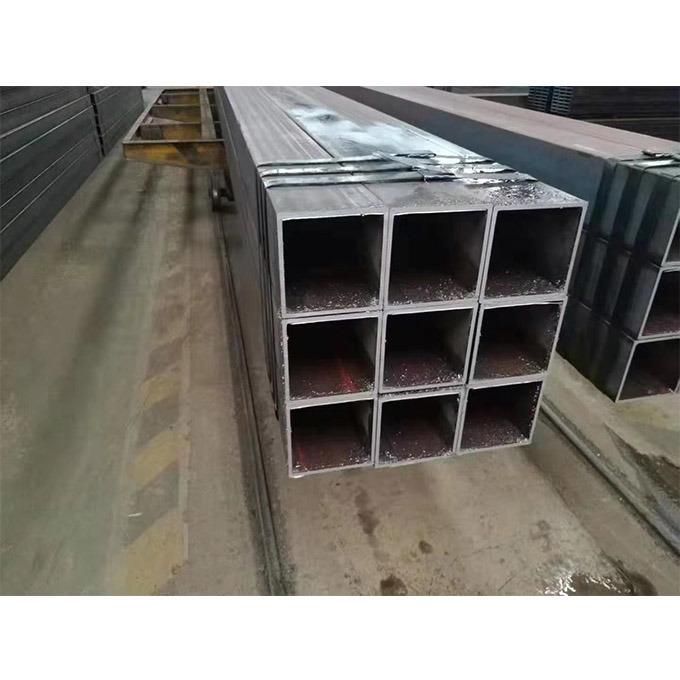

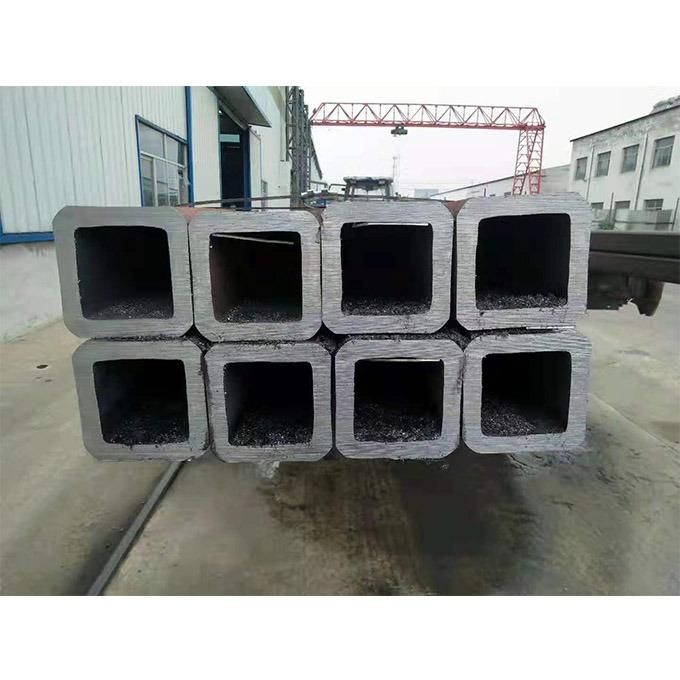

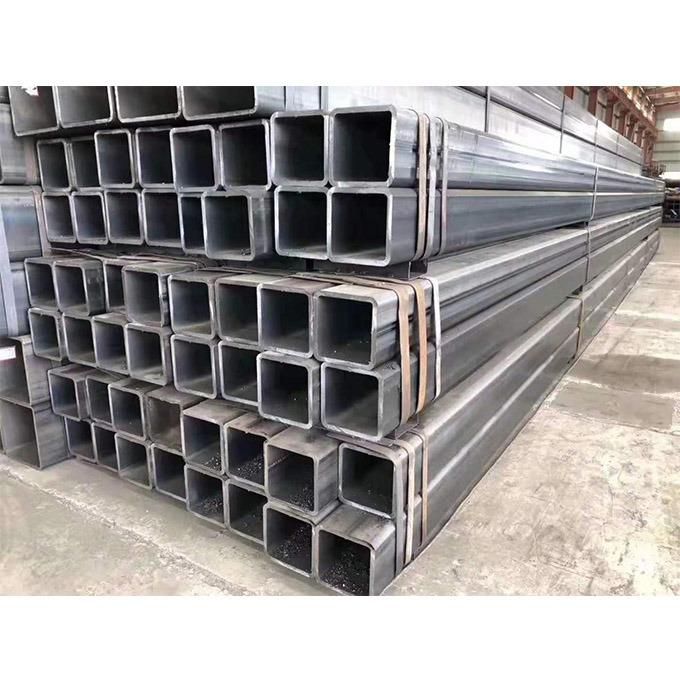

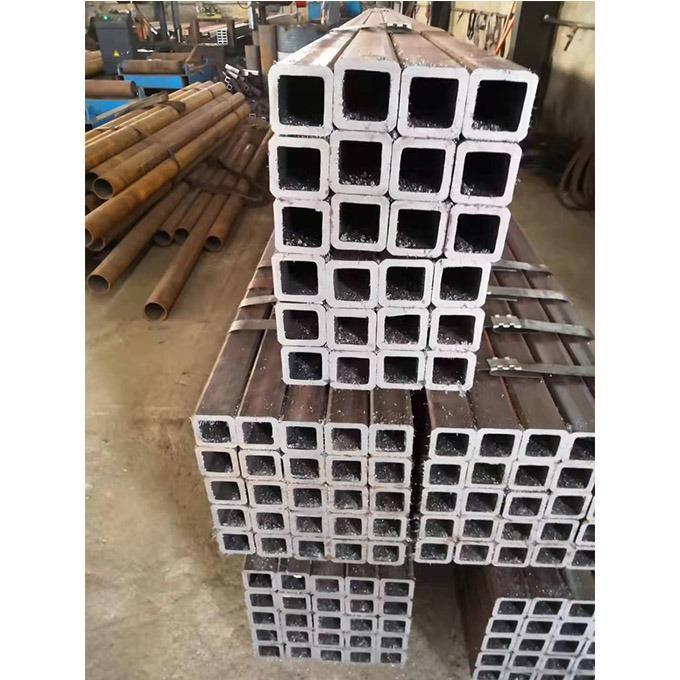

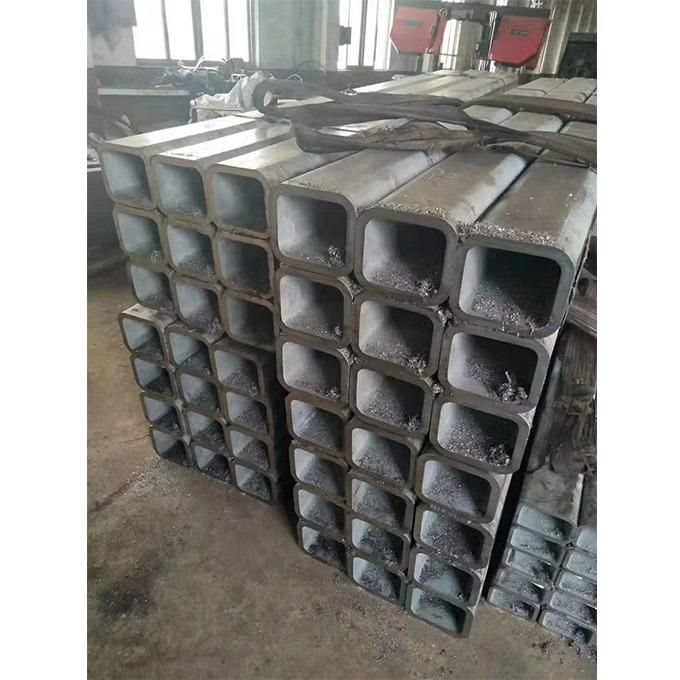

ASTM A500 Gr.A Seamless Square Pipe Galvanized


Sizes : 20*20mm-400*400mm
Wall Thickness : 0.5mm - 25mm
Length : 6000-14000 mm
Type : Seamless / Welded / ERW
Dimensional Tolerances : Thickness : (All sizes +/- 10%)
Packing : In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or square cut, End Capped Certification & supplementary test, Finishing & Identity Mark
Surface Protection : Black (Self Coloured uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized
Chemical Composition

ASTM A500	C, max	P, max	S, max	Cu, min
Grade A	0.26	0.035	0.035	0.20

Mechanical Properties

ASTM A500	Tensile strength, min	Yield strength, min,	Elongation in 2 in. (50.8 mm) min, %
Grade A	310 MPa, 45 000 psi	269 MPa, 39 000 psi	25

Available Sizes

Size mm	kg/m	Size mm	kg/m
20 x 20 x 2.0	1.12	20 x 20 x 2.5	1.35
25 x 25 x 1.5	1.06	25 x 25 x 2.0	1.43
25 X 25 X 2.5	1.74	25 X 25 X 3.0	2.04
30 X 30 X 2.0	1.68	30 X 30 X 2.5	2.14
30 X 30 X 3.0	2.51	40 x 40 x 1.5	1.81
40 x 40 x 2.0	2.31	40 x 40 x 2.5	2.92
40 x 40 x 3.0	3.45	40 x 40 x 4.0	4.46
40 x 40 x 5.0	5.40	50 x 50 x 1.5	2.28
50 x 50 x 2.0	2.93	50 x 50 x 2.5	3.71
50 x 50 x 3.0	4.39	50 x 50 x 4.0	5.72
50 x 50 x 5.0	6.97	60 x 60 x 3.0	5.34
60 x 60 x 4.0	6.97	60 x 60 x 5.0	8.54
60 x 60 x 6.0	9.45	70 x 70 x 3.0	6.28
70 x 70 x 3.6	7.46	70 x 70 x 5.0	10.11
70 x 70 x 6.3	12.50	70 x 70 x 8	15.30
75 x 75 x 3.0	7.07	80 x 80 x 3.0	7.22
80 x 80 x 3.6	8.59	80 x 80 x 5.0	11.70
80 x 80 x 6.0	13.90	90 x 90 x 3.0	8.01
90 x 90 x 3.6	9.72	90 x 90 x 5.0	13.30
90 x 90 x 6.0	15.76	90 x 90 x 8.0	20.40
100 x 100 x 3.0	8.96	100 x 100 x 4.0	12.00
100 x 100 x 5.0	14.80	100 x 100 x 5.0	14.80
100 x 100 x 6.0	16.19	100 x 100 x 8.0	22.90
100 x 100 x 10	27.90	120 x 120 x 5	18.00
120 x 120 x 6.0	21.30	120 X 120 X 6.3	22.30
120 x 120 x 8.0	27.90	120 x 120 x 10	34.20
120 X 120 X 12	35.8	120 X 120 X 12.5	41.60
140 X 140 X 5.0	21.10	140 X 140 X 6.3	26.30
140 X 140 X 8	32.90	140 X 140 X 10	40.40
140 X 140 X 12.5	49.50	150 X 150 X 5.0	22.70
150 X 150 X 6.3	28.30	150 X 150 X 8.0	35.40
150 X 150 X 10	43.60	150 X 150 X 12.5	53.40
150 X 150 X 16	66.40	150 X 150 X 16	66.40
180 X 180 X 5	27.40	180 X 180 X 6.3	34.20
180 X 180 X 8	43.00	180 X 180 X 10	53.00
180 X 180 X 12.5	65.20	180 X 180 X 16	81.40
200 X 200 X 5	30.50	200 X 200 X 6	35.8
200 x 200 x 6.3	38.2	200 x 200 x 8	48.00
200 x 200 x 10	59.30	200 x 200 x 12.5	73.00
200 x 200 x 16	91.50	250 x 250 x 6.3	48.10
250 x 250 x 8	60.50	250 x 250 x 10	75.00
250 x 250 x 12.5	92.60	250 x 250 x 16	117.00
300 x 300 x 6.3	57.90	300 x 300 x 8	73.10
300 x 300 x 10	57.90	300 x 300 x 8	90.70
300 x 300 x 12.5	112.00	300 x 300 x 16	142.00
350 x 350 x 8	85.70	350 x 350 x 10	106.00
350 x 350 x 12.5	132.00	350 x 350 x 16	167.00
400 x 400 x 10	122.00	400 x 400 x 12	141.00
400 x 400 x 12.5mm	152.00	400 x 400 x 16	192
