Stainless Steel Strand Wire Rope and Cable (6X36SW+ IWRC)
Taizhou Suyang Stainless Steel Wire Rope Co., Ltd.- Type：Stainless Steel Wire
- Standard：ASTM, AISI, GB, JIS, DIN, EN
- Grade：Stainless Steel Wire Rope
- Certification：ISO, RoHS, AISI, ASTM, GB, EN, DIN, JIS
- Shape：Round
- Technique：Hot Rolled
Base Info
- Model NO.：6x36SW+IWRC
- Surface Treatment：Bright
- Warranty：1 Year
- Transport Package：Plywood Reel and Pallet
- Specification：AISI, DIN, JIS, EN, GB, ect
- Trademark：Suyang
- Origin：China
- HS Code：73121000
- Production Capacity：3000 Ton Per Year
Description
Basic Info.
Model NO. 6x36SW+IWRC Surface Treatment Bright Warranty 1 Year Transport Package Plywood Reel and Pallet Specification AISI, DIN, JIS, EN, GB, ect Trademark Suyang Origin China HS Code 73121000 Production Capacity 3000 Ton Per YearProduct Description
6x36SW+IWRC / FC is combined parallel SEALE & WARRINGTON construction.1) Meaning: 6 strands each consisting of 36 single wires, which laid by bigger and smaller dia. Wires by turn.
The core is wire rope core, made of 7x7 or fiber core.
2)Dia. Ranges: 8.0mm~30.0mm
3)Spec. EN12385-4 (DIN 3064)
4)Tensile strength: 1570N/mm2~1770N/mm2
5)Lay direction: R. H. O. L. Or L. H. O. L.
6)Grade: AISI316 or AISI304

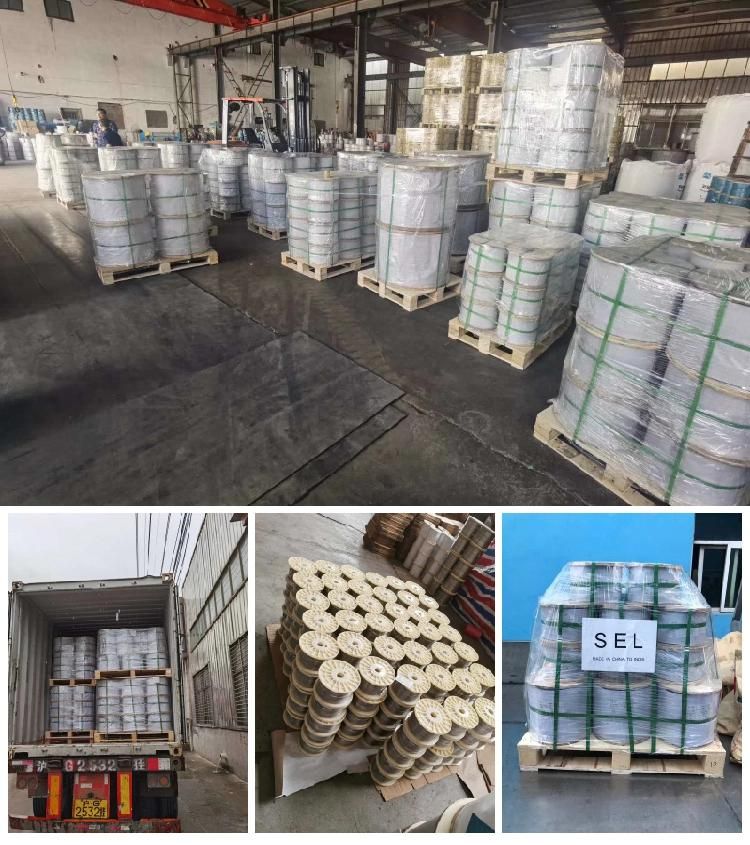

7)Packing: Plywood reel and pallet, 300~2000 meters / reel
8)Characteristics: The mostly flexible, well resistant against wear.
