• Model NO.：Monel 400
• Surface Treatment：Polished
• Transport Package：Wooden Pallet
• Specification：OD 6-426mm
• Production Capacity：50000kgs

400MinBal.28     Max342.50.320.50.024

4 . Mechanical properties:(Minimum value at 20°C):

Tensile StrengthYield StrengthElongationσb/MPaσp0.2/MPaσ5 /%48017035

5 . Applications:

• Marine engineering
• Chemical and hydrocarbon processing equipment
• Gasoline and freshwater tanks
• Crude petroleum stills
• De-aerating heaters
• Boiler feed water heaters and other heat exchangers
• Valves, pumps, shafts, fittings, and fasteners
• Industrial heat exchangers
• Chlorinated solvents
• Crude oil distillation towers

6 . Features

Alloy 400 can easily be welded by gas-tungsten arc, gas metal arc or shielded metal arc processes using appropriate filler metals. There is no need for post weld heat treatment, however, thorough cleaning after welding is critical for optimum corrosion resistance, otherwise there is the risk of contamination and embrittlement.

Finished fabrications can be produced to a wide range of mechanical properties when proper control of the amount of hot or cold working and the selection of appropriate thermal treatments is done.

Like most other nickel alloys, Monel 400 is typically tough to machine and will work harden. However, excellent results can e obtained if you make the correct choices for tooling and machining.

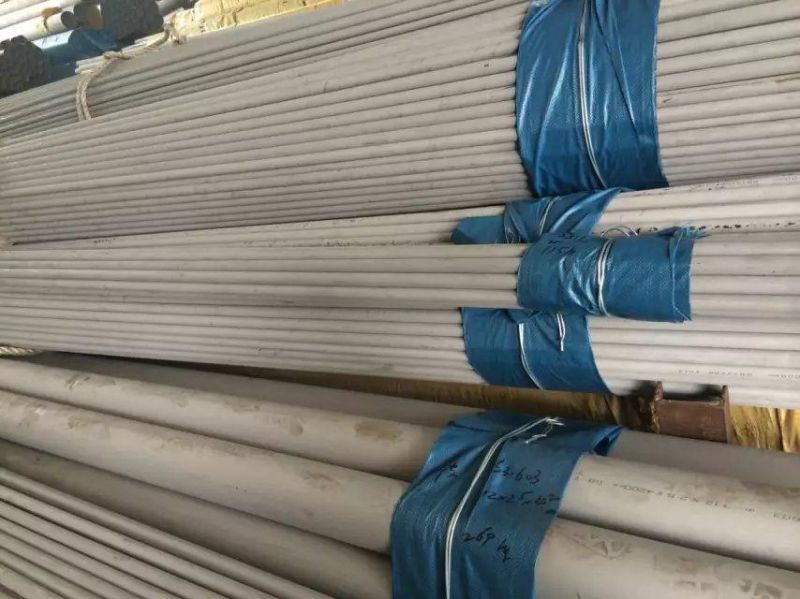

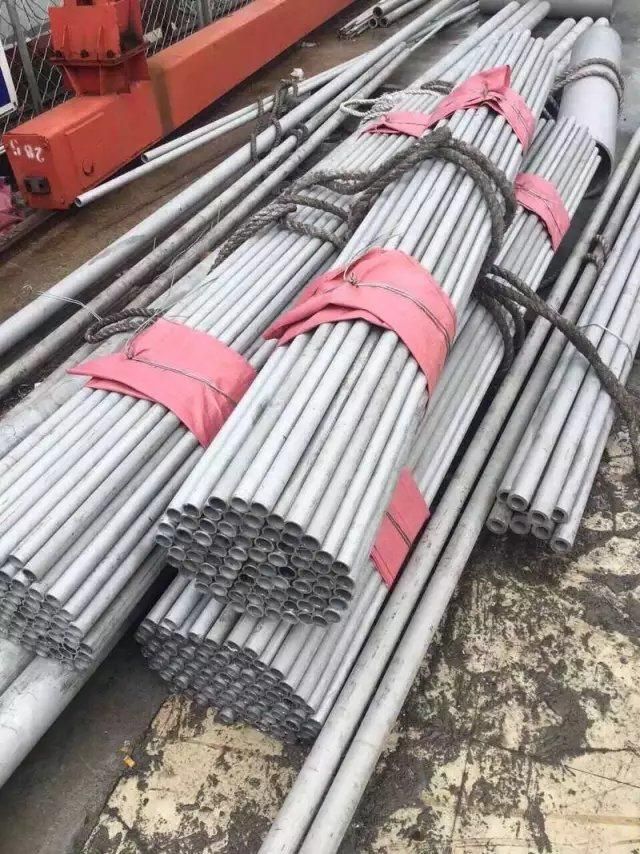

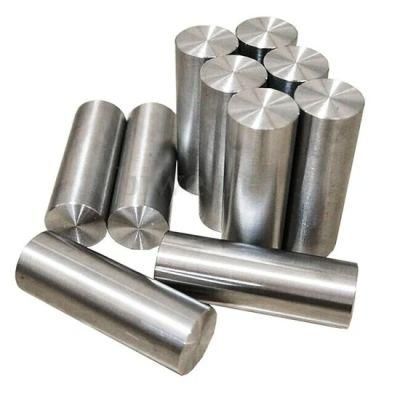

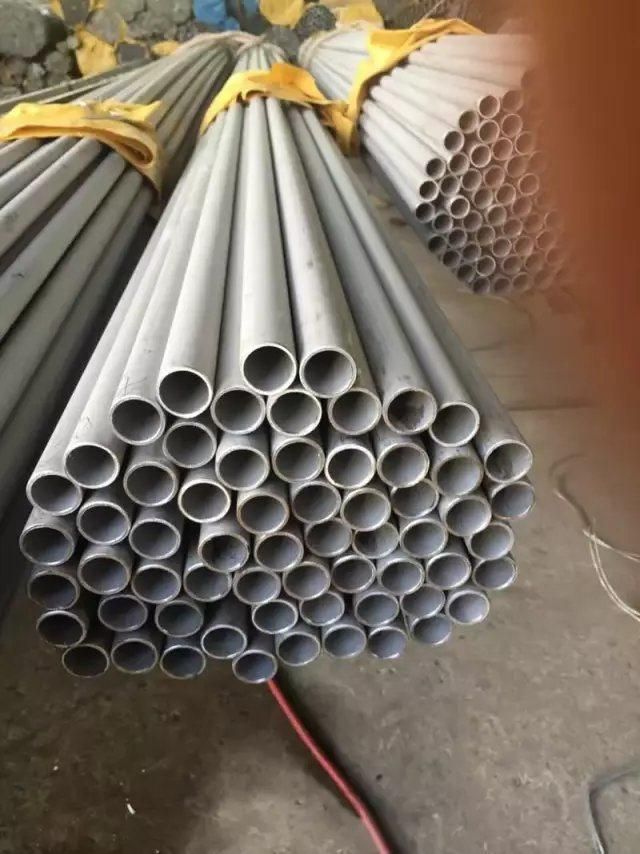

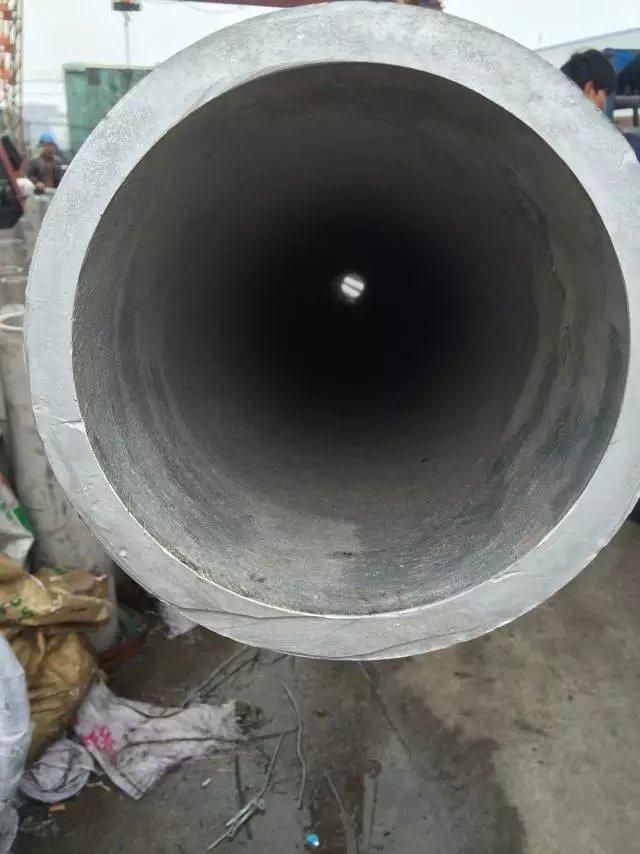

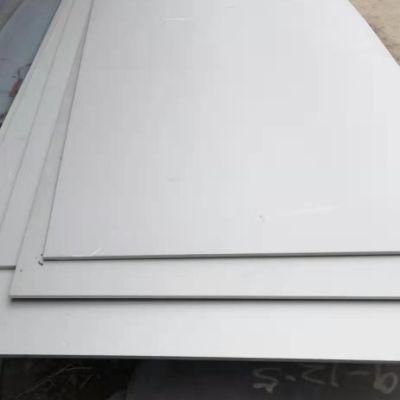

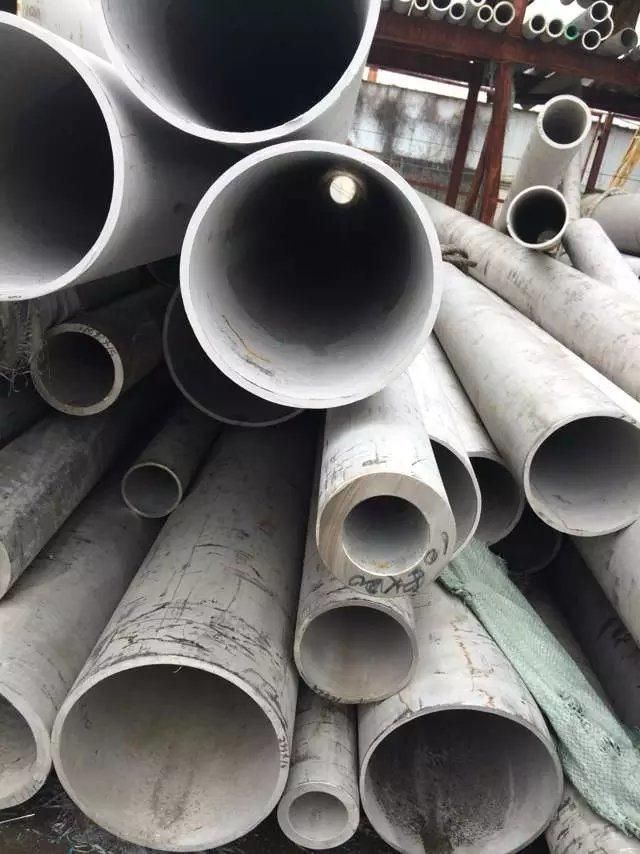

7 . More pictures
