SAE8620 1.6523 20CrNiMo Special Alloy Structure Round Mold Steel
Guangzhou Changfeng Steel Co., Ltd.- Standard:DIN, JIS, AISI, ASTM, GB, BS
- Technics:Hot Rolled
- Application:Tool Steel Bar
- Surface:Black
- Alloy:Alloy
- Special Use:High-strength Steel Plate, Wear Resistant Steel, Free Cutting Steel, Mold Steel
Base Info
- Model NO.:1.6523,SAE8620, 20CrNiMo
- Delivery condition:hot rolled black surface
- Quality Assurance:100% UT passed
- Delivery Time:7days
- Condition:stock
- Transport Package:Standard,Customized
- Specification:standard,customized
- Trademark:customized
- Origin:China
- HS Code:7225400000
- Production Capacity:1000t,Month
Description
Basic Info.
Model NO. 1.6523,/SAE8620/ 20CrNiMo Delivery condition hot rolled black surface Quality Assurance 100% UT passed Delivery Time 7days Condition stock Transport Package Standard/Customized Specification standard/customized Trademark customized Origin China HS Code 7225400000 Production Capacity 1000t/MonthProduct Description
SAE8620 1.6523 20CrNiMo Special Alloy Structure Round Mold Steel1. Stock Size
round bar | Diameter | 12-280mm |
2. Similar Standards
Chinese | American | German | Japanese |
GB | AISI | DIN | JIS |
20CrNiMo | SAE8620 | 1.6523 | / |
3. Chemical Composition
Grades | C | Si | Mn | P | S | Cr | Mo | Cu | Ni |
20CrNiMo | 0.17-0.23 | 0.17-0.37 | 0.6-.95 | ≤0.035 | ≤0.035 | 0.4-.7 | 0.20~0.30 | ≤0.30 | / |
4. Mechanical Properties
Queching Temperature(ºC):850;Cold Media:oil |
Tempering(ºC):200;Cold Media:air |
Tensile strength σb (MPa):≥980(100) |
Yield strengthσs (MPa):≥785(80) |
Elongationδ5 (%):≥9 |
Reduction of area ψ (%):≥40 |
Akv (J):≥47 |
5. Applications
Widely used for stransmission system,motor of tractor and middle-small auto. Alternative 12CrNi3 to make higher class carburization and cyanide carburizing parts such as oil drilling,claws and cone for mining.
It is commonly used for carburized gears, pinions, shafts, bearings, piston rings, ring gears, crankshafts, etc.

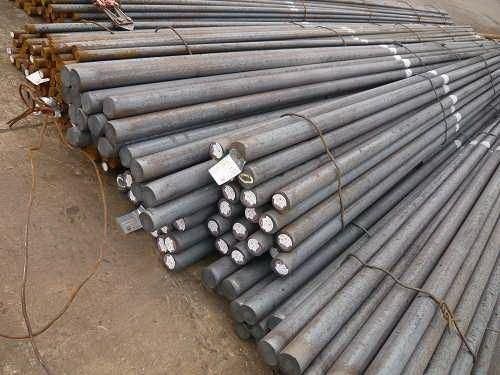

6. Product photos
7. Features 1. Good machinability performance 2. Good Cold strain plasticity 3. Good weldability
4. High hardenability
