ASTM B407 N08810/N08811 Heat Exchanger with (Alloys 800H/HT) Alloy Pipes
Guangzhou Kingmetal Steel Industry Co., Ltd.- Type：Seamless
- Technique：Hot Rolled
- Material：Alloy Steel
- Surface Treatment：Oiled
- Usage：Boiler Pipe
- Section Shape：Round
Base Info
- Model NO.：WAN179
- Length：5.8-11.8
- Size：1,2"-8"
- Name：Steam Boiler Pipe
- Product Material：15NiCuMoNb5,Wb36,1.6368
- Keyword：Alloy 800, Alloy 800h,Ht
- Tag：Alloy Pipes
- Transport Package：Bundles with Steel Strips and Wooden Frame
- Specification：1,8"-2"
- Trademark：KINGMETAL
- Origin：China
- HS Code：73060000
- Production Capacity：100000tons,Month
Description
Basic Info.
Model NO. WAN179 Length 5.8-11.8 Size 1/2"-8" Name Steam Boiler Pipe Product Material 15NiCuMoNb5/Wb36/1.6368 Keyword Alloy 800, Alloy 800h/Ht Tag Alloy Pipes Transport Package Bundles with Steel Strips and Wooden Frame Specification 1/8"-2" Trademark KINGMETAL Origin China HS Code 73060000 Production Capacity 100000tons/MonthProduct Description
Incoloy 800HT can be welded by the common techniques used on stainless steels
INCOLOY800H / 800HT steel pipes
ASTM B 409, B 408, B 407, B 564 steel pipe
UNS Number N08810/N08811 seamless steel pipe
Other common names: Alloy 800 steel pipe, Alloy 800H/HT steel pipe , Alloy Pipes
pipe Outer Diameter: 10mm-273.1mmpipe Wall Thickness: 1mm to 14mm
Other test item can be arranged as per request

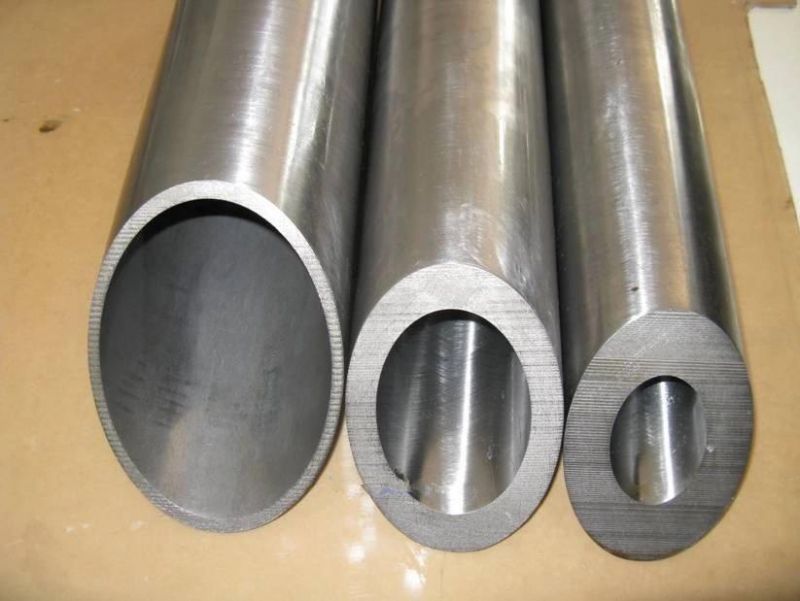

PRODUCT SHOW
What are the characteristics of Incoloy 800H/HT?
- High temperature strength
- High creep rupture strength
- Resistant to oxidation and carburization in high temperature environments
- Good corrosion resistance in many acidic environments
- Good resistance to many sulfur-containing atmospheres
Alloy 800 (UNS N08800) Chemical Composition, %
| Ni | Cr | Fe | C | Al | Ti | Al+Ti |
|---|---|---|---|---|---|---|
| 30.0-35.0 | 19.0-23.0 | 39.5 min | .10 max | .15-.60 | .15-.60 | .30-1.20 |
Alloy 800H (UNS N08810) Chemical Composition, %
| Ni | Cr | Fe | C | Al | Ti | Al+Ti |
|---|---|---|---|---|---|---|
| 30.0-35.0 | 19.0-23.0 | 39.5 min | .05-.10 | .15-.60 | .15-.60 | .30-1.20 |
Alloy 800HT (UNS N08811) Chemical Composition, %
| Ni | Cr | Fe | C | Al | Ti | Al+Ti |
|---|---|---|---|---|---|---|
| 30.0-35.0 | 19.0-23.0 | 39.5 min | .06-.10 | .25-.60 | .25-.60 | 0.85-1.2 |
*Note that the chemical composition of Incoloy 800HT will always be within the limits of Incoloy 800H.
*Note the limits of Incoloy 800H may or may not be within the limits of Incoloy 800HT.
ASTM Specifications
| Alloy | Pipe Smls | Pipe Welded | Tube Smls | Tube Welded | Sheet/Plate | Bar | Forging | Fitting |
|---|---|---|---|---|---|---|---|---|
| Alloy 800 (UNS N08800) | B407 | B154 | B163 | B515 | B409 | B408 | B564 | B366 |
| Alloy 800H (UNS N08810) | B407 | B154 | B163 | B515 | B409 | B408 | B564 | B366 |
| Alloy 800HT (UNS N08811) | B407 | B154 | B163 | B515 | B409 | B408 | B564 | B366 |
Mechanical Properties
Typical room temperature Tensile Properties of Annealed Material
| Product | Tensile (ksi) | .2% Yield (ksi) | Elongation (%) |
|---|---|---|---|
| Rod & Bar | 75-100 | 30-60 | 60-30 |
