Chromated Prepainted Galvalume Steel/Painted Aluzinc Steel Coil for Commercial Use

Zhengzhou City Unites Steel Industrial Co., Ltd.
  • Technique:Cold Rolled
  • Surface Treatment:Coated
  • Certification:ISO, RoHS, IBR
  • Standard:ASTM, JIS, GB, AISI, DIN, BS, En
  • Warranty:10-20 Years
  • Application:Boiler Plate

Base Info

  • Coil Weight:Usually 3-5 Mt or as Per You Request
  • Coil ID:508mm, 610mm
  • Shipment:Container or Bulk
  • Painting Structure:2,1 2,2
  • Back Painting Layer:5-25 Um
  • Top Painting Layer:15-25 Um
  • Zinc Coating:Z:30-275G,M2, Az:30-180G,M2
  • Base Material:Hot DIP Glavanised,Galvalume Steel Coil
  • Tolerance of Width:+-2mm
  • Width:600mm-1250mm
  • Tolerance of Thickness:+-0.02mm
  • Thickness:0.12-1.2mm
  • Steel Grade:Dx51d Dx52D SGCC G550 S280 S320
  • Painting Type:PE, PVDF, SMP, HDP, Easy-Cleaning
  • Stock:Stock
  • Edge:Slit edge
  • Model NO.:0.12-1.2mm*600-1250mm
  • Test:ISO,CE,BV,SGS,Cu,V-Trust,Pvoc,Soncap
  • Transport Package:Export Seaworthy Package
  • Specification:SGS, BV, CE, V-TRUST, CU, SONCAP
  • Trademark:CUS-STEEL
  • Origin:China
  • HS Code:72107010
  • Production Capacity:6000mt,Week

Description

Basic Info.

Model NO. 0.12-1.2mm*600-1250mm Edge Slit edge Stock Stock Painting Type PE, PVDF, SMP, HDP, Easy-Cleaning Steel Grade Dx51d Dx52D SGCC G550 S280 S320 Thickness 0.12-1.2mm Tolerance of Thickness +-0.02mm Width 600mm-1250mm Tolerance of Width +-2mm Base Material Hot DIP Glavanised/Galvalume Steel Coil Zinc Coating Z:30-275G/M2, Az:30-180G/M2 Top Painting Layer 15-25 Um Back Painting Layer 5-25 Um Painting Structure 2/1 2/2 Shipment Container or Bulk Coil ID 508mm, 610mm Coil Weight Usually 3-5 Mt or as Per You Request Test ISO/CE/BV/SGS/Cu/V-Trust/Pvoc/Soncap Transport Package Export Seaworthy Package Specification SGS, BV, CE, V-TRUST, CU, SONCAP Trademark CUS-STEEL Origin China HS Code 72107010 Production Capacity 6000mt/Week

Product Description

CUS-STEEL is a professional enterprise that manufactures the building and decoration materials. It has more than 15 years' export
experience and the products have been sold to more than 60 areas and countries with high quality and reasonable prices.


1. Brief introduction

Painted Aluzinc Steel Coil is coated with organic layer, which provides higher anti-corrosion property and a longer lifespan than that
of galvanized
steel sheets. The base metals for Prepainted Steel Coil consist of and hot-dip alu-zinc coated steel. The finish coats of
Prepainted Steel Coil can be
classified into groups as follows: polyester, silicon modified polyesters, polyvinylidene fluoride, high-durability
polyester, etc.
The production process has evolved from one-coating-and-one-baking to double-coating-and-double-baking,
and even three-coating-and-three-baking.


2.Main usage
Prepainted Galvanzied Steel Coil for Roof and Wall Cladding is used as building materials(ceiling, metal roof tile) machinery parts
(electrically controlled cabinets,Road maintain board, etc, so it is mainly used in advertising Industry, construction, household
appliances industry, electrical industry, furniture industry
and transportation.

3.Quality Control

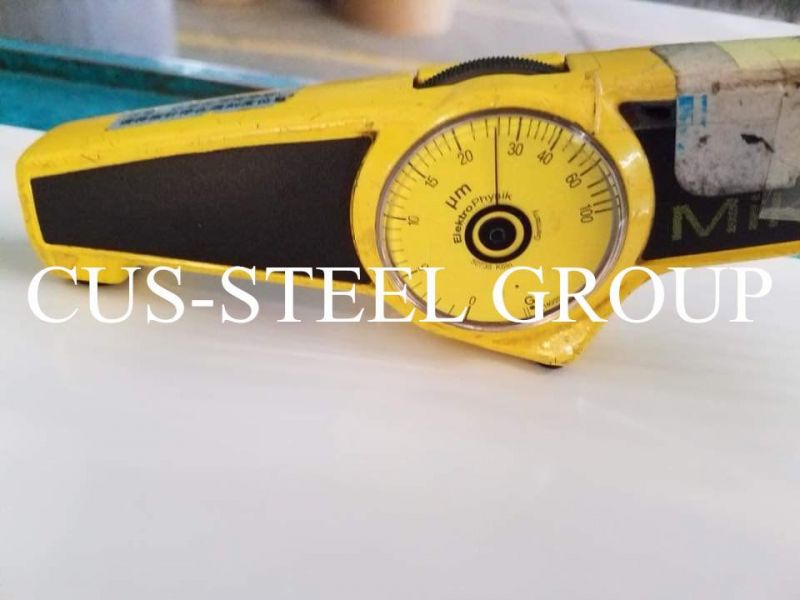

Strict procurement process---skillful technical workers---final products inspection(resistance To corrosion, salt spray test, exposure
test, machinability,
thermal resistance)---standard packing

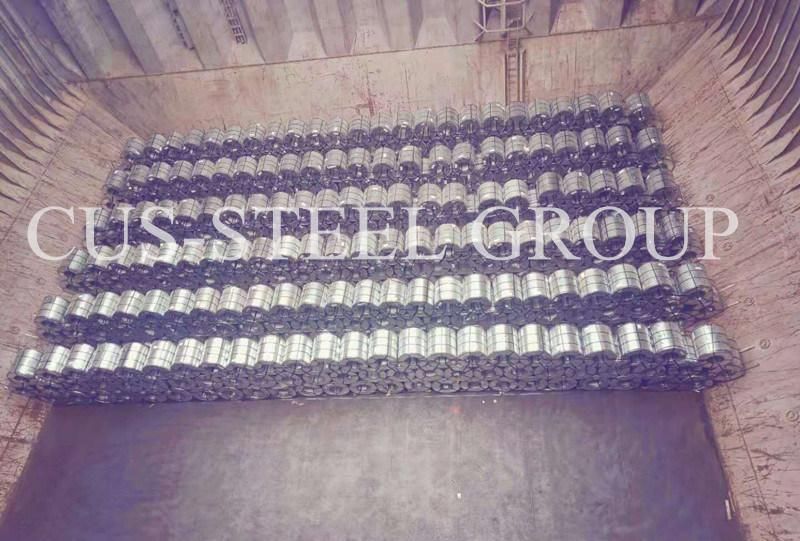

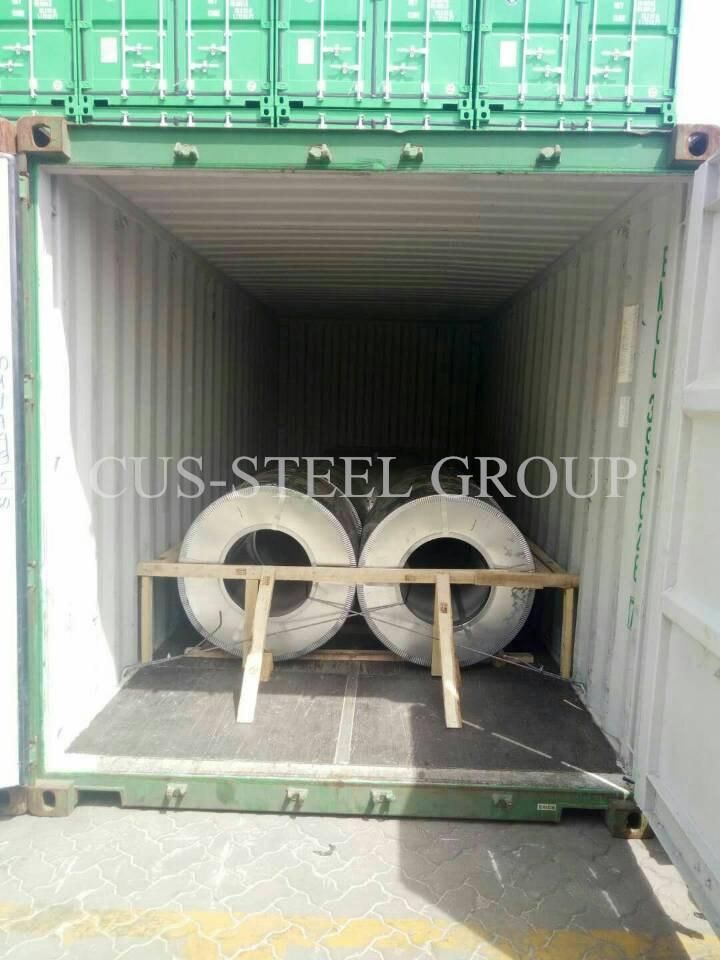

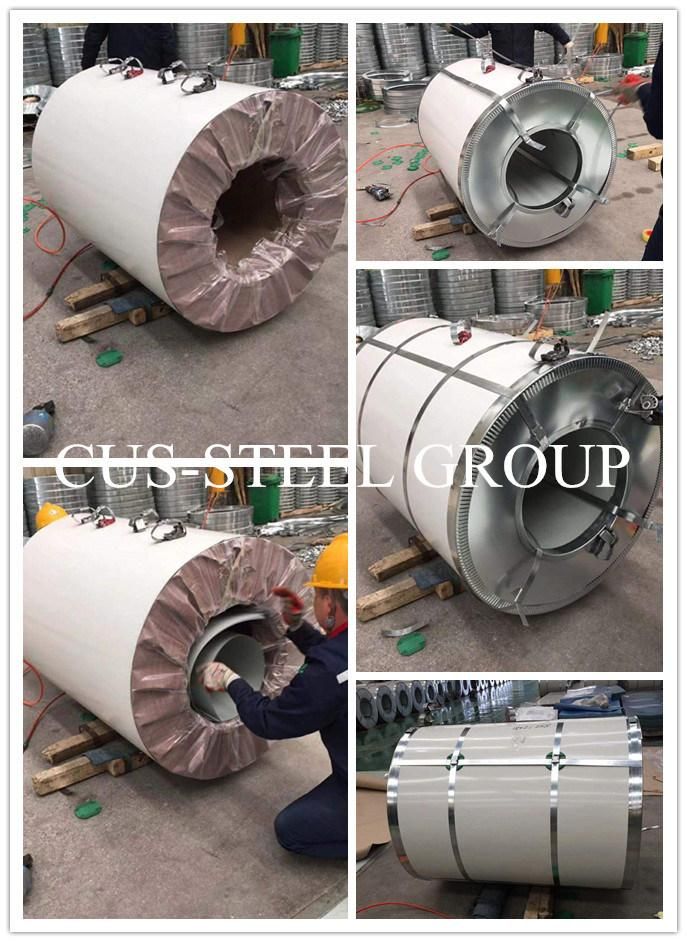

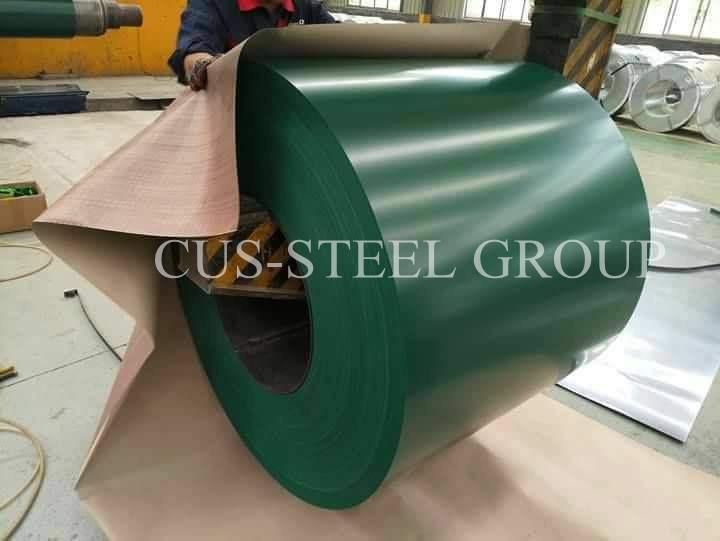

4. Package materials
Standard seaworthy packing
1) 4 eye bands and 4 circumferential bands in steel
2) galvanized metal fluted rings on inner and outer edges
3) galvanized metal & waterproof paper wall protection disk
4) galvanized metal & waterproof paper around circumference


5. Advantages
Flame Resistance, Anti-chemical medicament, Rust, Corrosion and Scratch Resistant, Anti-stain, easy to clean and maintain,
Stable surface quality, Resistance to stamping, Economic material for construction steel, longer life than galvanized steel.


Base MaterialHot Dip Galvanized/Galvalume Steel Coils
Steel GradeDX51D,DX52D,DX53D,S220GD,S250GD,S350GD,SGCC,SPCC
Zinc CoatingZ30-275g/m2 , AZ30-180g/m2
Thickness0.12mm-1.2mm
Width600mm-1250mm
Width Tolerance-2mm~+mm
Inner DiameterØ508mm,Ø610mm
Top CoatingPE,PVDF,HDP,SMP
Coating Type2/2 ,2/1 coating
Top Paint Layer15-25μm
Back Paint Layer5-25μm
Glossiness35--65°
Quality StandardEN10142,EN10346,EN10169,JIS3302,GB/T12754,ASTMA755M
ColorRAL Color,wood /camouflage color plate,marble,pressed plate
Weight of CoilUsually 3-5T or as per your requestment
Package MethodVertical.Horizontal,standard export seaworthy package,with plastic film,paper film,anti-rust paper,steel plate,strapping,paper corner armor,guard board and lock catch
Top CoatingPE, PVDF, HDP, SMP
CertificateISO9001,ISO14001,SGS
AdvantageGood adornment,anti-erode performance,strong coating adhesive
Special PPGI typePrinted,Filmed,Pressed,Matte,Embossed
Delivery Time5-7 days after receiving the deposit


Raw Materials

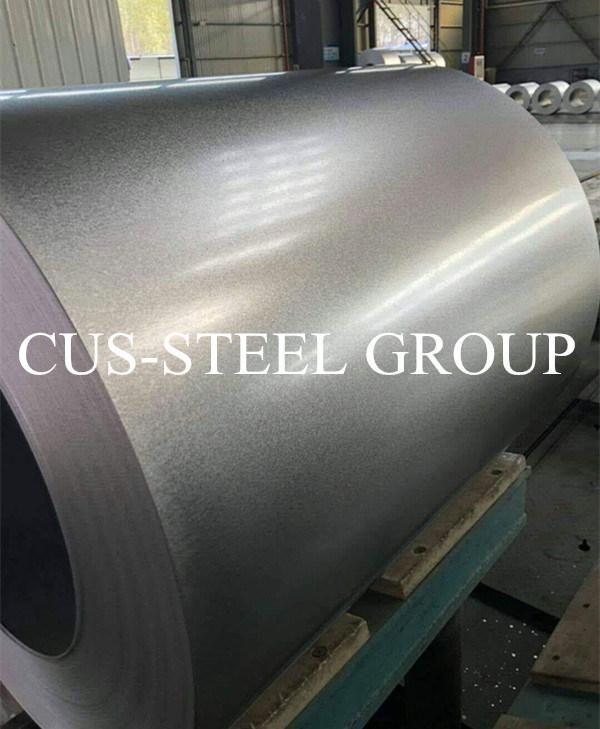

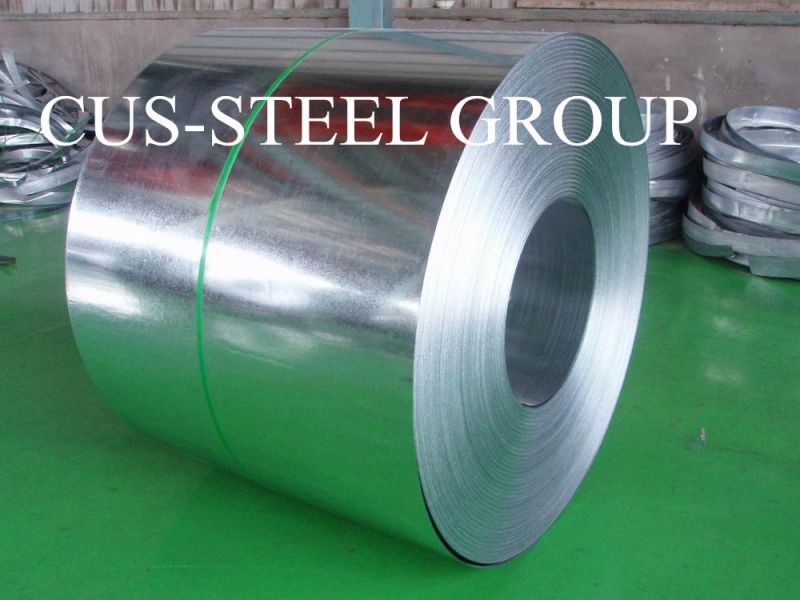

Hot Dip Galvanized Steel Coils

Chromated Prepainted Galvalume Steel/Painted Aluzinc Steel Coil for Commercial Use

Hot Dip Galvalume Steel Coils
Chromated Prepainted Galvalume Steel/Painted Aluzinc Steel Coil for Commercial Use

 Chromated Prepainted Galvalume Steel/Painted Aluzinc Steel Coil for Commercial Use

Chromated Prepainted Galvalume Steel/Painted Aluzinc Steel Coil for Commercial Use

Chromated Prepainted Galvalume Steel/Painted Aluzinc Steel Coil for Commercial Use

Chromated Prepainted Galvalume Steel/Painted Aluzinc Steel Coil for Commercial Use

Ral Color Card
Color can be made as per Ral color card or samples
