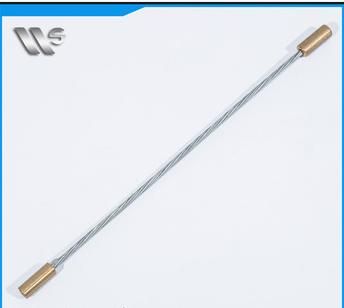

Zinc-5%Aluminum-Mixed Mischmetal Alloy-Coated Steel Wire Strand
ZHEJIANG WANSHENG YUNHE STEEL CABLE CO., LTD.- Technique：Galvanized
- Application：Rope, Packaging, Netting, Manufacturing, Fencing, Construction, Steel Cable
- Surface：Smooth
- Certification：ISO, CCC, CE
- Alloy or Not：Non-alloy
- Standard：BS, JIS, GB, ASTM, DIN, AISI
Base Info
- Trademark：yunhe
- Specification：1*3 1*7 1*19 1*37
- Transport Package：Coil Packing, Z2 Packing, Wooden Reel Packing
- MOQ：1 Ton
- Samples：Free Samples
- Origin：China
- HS Code：7312100000
- Production Capacity：12000 Per Month
Description
Rare earth zinc aluminum alloy coated steel wire strandsuitable for hanger,hang,communication cable,the power line for built on stillsand,and fixing or binding things Con. Dia. mm Dia. strand mm cross-section mm2 Tensile strength,Mpa weight kg/km 1170.00 1270.00 1370.00 1470.00 1570.00 Minmium breaking force,KN 1*3 2.90 6.20 19.86 21.33 23.16 24.98 26.80 28.63 160 3.20 6.40 24.13 25.97 28.19 30.41 32.63 34.85 195 3.50 7.50 28.86 31.06 33.72 36.38 39.03 41.69 233 4.00 8.60 37.70 40.58 44.05 47.52 50.99 54.45 304 1*7 1.00 3.00 5.50 5.92 6.43 6.93 7.44 7.94 43.7 1.20 3.60 7.92 8.53 9.25 9.98 10.71 11.44 62.9 1.40 4.20 10.78 11.60 12.60 13.59 14.58 15.57 85.6 1.60 4.80 14.07 15.14 16.44 17.73 19.03 20.32 112 1.80 5.40 17.81 19.17 20.81 22.45 24.09 25.72 141 2.00 6.00 21.99 23.67 25.69 27.72 29.74 31.76 175 2.20 6.60 26.60 28.63 31.08 33.53 35.97 38.42 210 2.60 7.80 37.17 40.01 43.43 46.85 50.27 53.69 295 3.00 9.00 49.48 53.26 57.81 62.36 66.92 71.47 390 3.2 9.6 56.30 60.60 65.78 70.96 76.14 81.32 447 44.70 3.5 10.50 67.35 72.50 78.69 84.89 91.08 97.28 535 53.48 3.80 11.40 79.39 85.46 92.76 100.10 107.40 114.70 63.04 4.00 12.00 87.96 94.68 102.80 110.90 119.00 127.00 69.84 suitable for hanger,hang,communication cable,the power line for built on stillsand,and fixing or binding things Con. Dia. mm Dia. strand mm cross-section mm2 Tensile strength,Mpa weight kg/1000m 1170.00 1270.00 1370.00 1470.00 1570.00 Minmium breaking force,KN 1*19 1.6 8.0 38.20 40.22 43.66 47.10 50.54 53.98 304 1.8 9.0 48.35 50.91 55.26 59.62 63.97 68.32 385 2.0 10.0 59.69 62.85 68.23 73.60 78.97 84.34 475 2.2 11.0 72.20 76.08 82.58 89.00 95.58 102.09 569 2.3 11.5 78.94 83.12 90.23 97.33 104.40 111.50 628 2.6 13.0 100.90 106.20 115.30 124.40 133.50 142.60 803 2.9 14.5 125.50 132.20 143.40 154.70 166.00 177.30 999 3.2 16.0 152.80 160.90 174.70 188.40 202.20 215.90 1220 3.5 17.50 182.80 192.50 208.90 225.40 241.80 258.30 1460 4.00 20.0 238.80 251.50 272.90 294.40 315.90 337.40 1900 1*37 1.6 11.2 74.39 73.98 80.30 86.63 92.95 99.27 595 1.8 12.6 94.15 93.63 101.60 109.60 117.60 125.60 753 2.0 14.0 116.20 115.50 125.40 135.30 145.20 155.10 930 2.3 16.1 153.70 152.90 165.90 179.00 192.00 205.10 1230 2.60 18.2 196.40 195.30 212.00 228.70 245.40 262.10 1570 2.90 20.3 244.40 243.10 263.80 284.60 305.40 326.20 1950 3.20 22.4 297.60 296.00 321.30 346.60 371.90 397.10 2380
