Dx51d Z150 Galvanized Steel Coil Dx53D Steel Gi Sheet Coil
Shandong Delong Metal Products Co., Ltd.- Standard：ASTM, AISI, GB, JIS, DIN, BS
- Type：Steel Coil
- Warranty：1year
- After-sales Service：1year
- Certification：ISO, RoHS, IBR
- Surface Treatment：Galvanized
Base Info
- Thickness：0.12-2.0mm,as Required
- Temper：Full Hard, Half Hard, Sort
- Length：as Required
- Width：600-2,000mm,as Required
- Grade：SGCC Dx51d+Z, SGCC,Sgch,SPCC,Spcd,Spce
- Surface：Cheomated,Non-Chromated,Non Oiled,Oiled,Anti Finge
- Spangle：Regular Spangle, Minimal Spangle, Zero Spangle
- Tolerance：1%
- Delivery Time：7-14 Days
- Zinc Coated：30G,M2-275G,M2
- Stock：Stock
- Special Use：Cutting Tools, Measuring Tools, Cutters in Common Steel, High-strength Steel Plate, Wear Resistant Steel
- Application：Mold & Dies, Ship Plate, Boiler Plate, Container Plate, Flange Plate
- Technique：Hot Rolled ,Cold Rolled
- Model NO.：Galvanized steel coil,strip
- Coil ID：508mm - 610mm

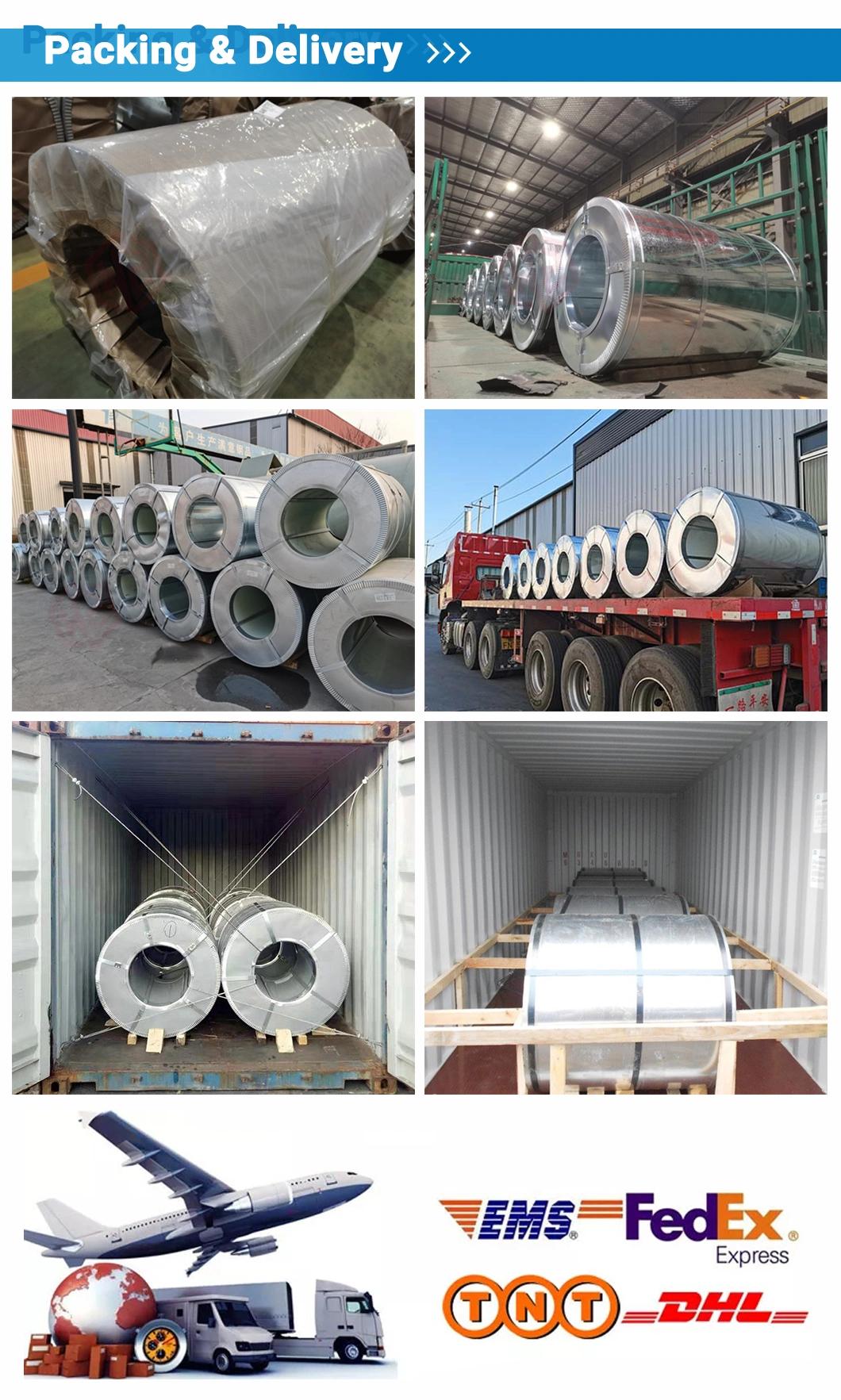

- Transport Package：in Bulk, in Bunddle, in Water Proof Plastic Wrrapp
- Specification：As required
- Trademark：DELONG
- Origin：Shandong
- HS Code：7208519000
- Production Capacity：7000 Tons,Month
Description
CHEMICAL COMPOSITION %C Si Mn S P x103 x103 x102 x103 x103 JIS G3302 SGCC 12 30 41 31 21 JIS G3302 SGCH 12 10 21 18 8 ASTM A653 CS.B 29 30 60 35 30 DX51D+Z 20 21 18 1.8 11 G550 12 6 73 5 17 Gauge mm Inches 8 4.27 0.1681 9 3.89 0.1532 10 3.51 0.1382 11 3.13 0.1233 12 2.75 0.1084 14 1.99 0.0785 16 1.61 0.0635 18 1.31 0.0516 20 1.01 0.0396 21 0.93 0.0366 22 0.85 0.0336 23 0.78 0.0306 24 0.7 0.0276 25 0.63 0.0247 26 0.55 0.0217 27 0.51 0.0202 28 0.47 0.0187 30 0.4 0.0157

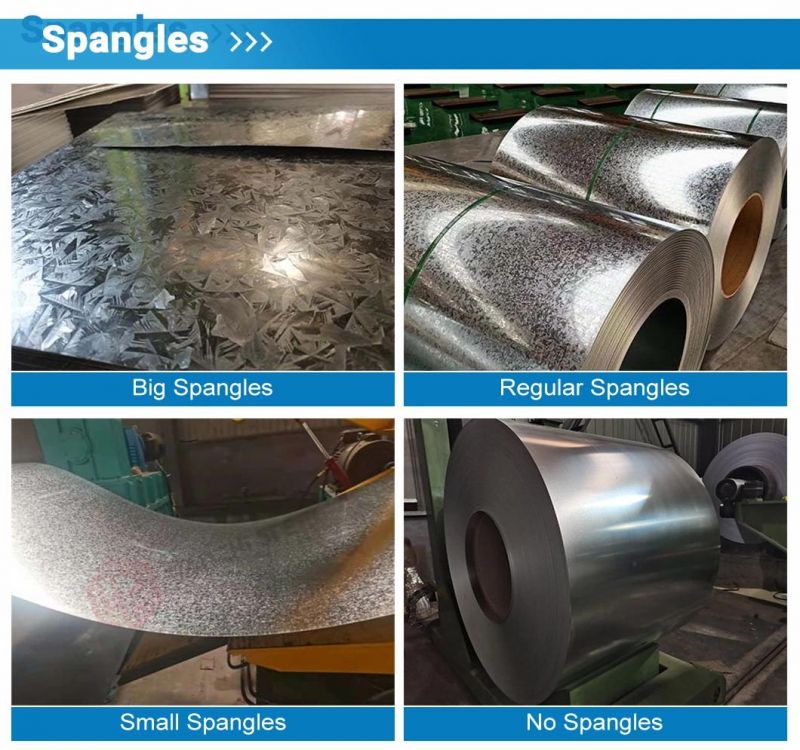

Spangle is formed during the hot-dip galvanizing process. The size, brightness, and
surface of spangles mainly depend on the composition of the zinc layer and the cooling
method. According to the size, it includes small spangles, regular spangles, big
spangles, and free spangles. They look different, but the spangles almost will not
influence the quality of galvanized steel. You can choose according to your preference
and use purpose.
(1) Big or Regular Spangles
Spangle-promoting elements are added to the zinc bath. Then beautiful spangles are
formed as the zinc layer solidifies. It looks good. But the grains are coarse and there is
slight unevenness. In a word, its adhesion is poor but weather resistance is good. It is
most suitable for guardrail, blower, duct, rolling shutter, drain pipe, ceiling bracket, etc.
(2) Small Spangles
During the solidification process of the zinc layer, zinc grains are artificially restricted to
form as fine spangles as possible. The spangle size can be controlled by cooling time.
Generally, the shorter the cooling time, the smaller the size. Its coating performance is
great. Therefore, it is perfect for drainage pipes, ceiling brackets, door columns, the
substrate for color coated steel, car body panels, guardrails, blowers, etc.
(3) Zero Spangles
By adjusting the chemical composition of the bath, the coating has a uniform surface
without visible spangles. The grains are very fine and smooth. It has excellent corrosion
resistance and good coating performance. It is also ideal for drainage pipes, automobile
components, back panels for home appliances, automobile body panels, guardrails,
blowers, etc.

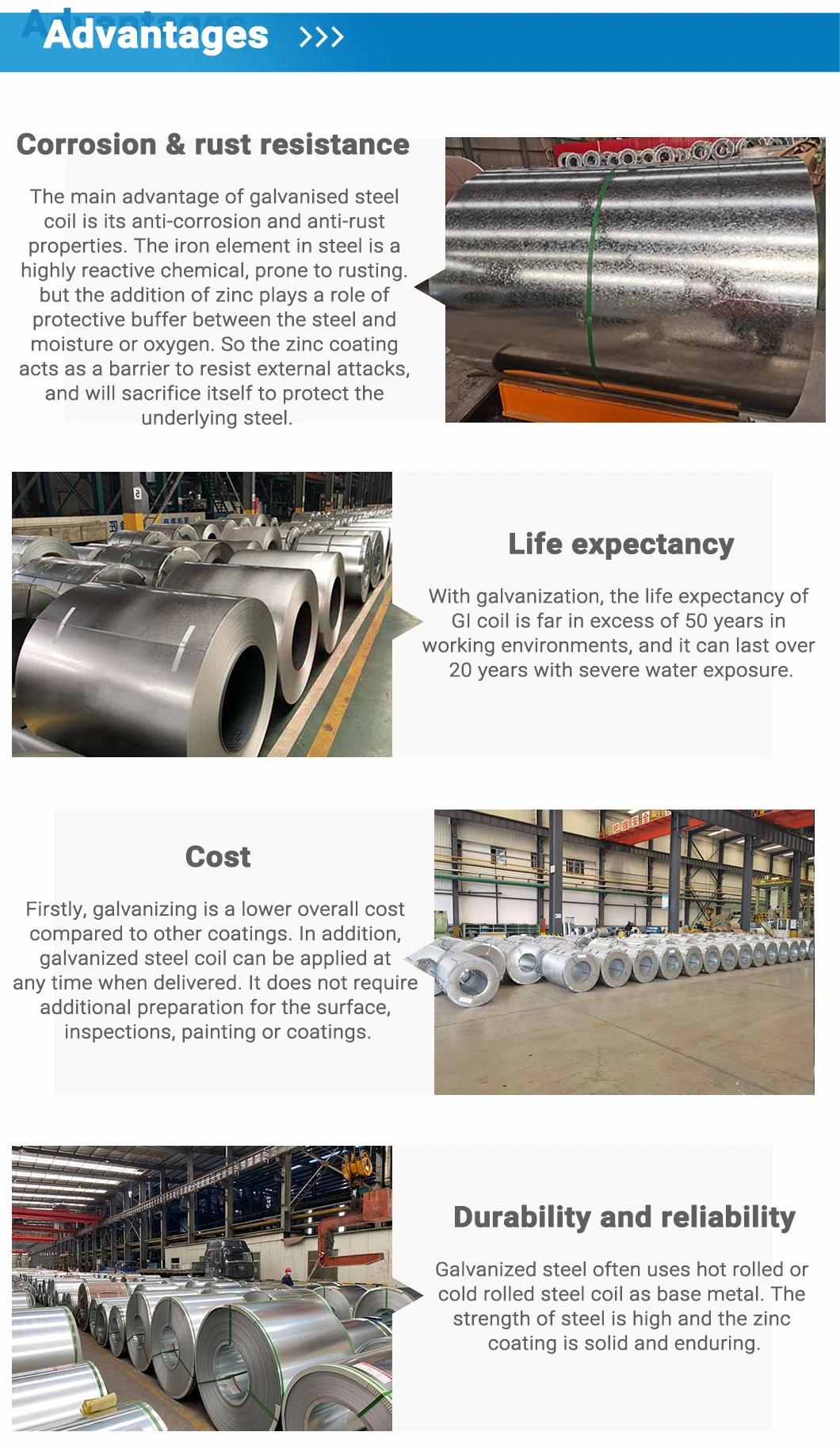

Galvanized coil features lightweight, aesthetics, and excellent corrosion resistance. It
can be used directly or as the base metal for PPGI steel. Therefore, GI coil has been a
new material for many fields, such as construction, shipbuilding, vehicle manufacturing,
furniture, home appliances, etc.
1. Construction
They are often used as roofing sheets, interior and exterior wall panels, door panels and
frames, the surface sheet of the balcony, ceiling, railings, partition walls, windows and
doors, gutter, sound insulation wall, ventilation ducts, rainwater pipes, rolling shutters,
agricultural warehouses, etc.
2. Home Appliances
GI coil is widely applied to home appliances, such as the back panel of air conditioners,
and the outer casing of washing machines, water heaters, refrigerators, microwave
ovens, switch cabinets, instrument cabinets, etc.
3. Transportation
It is mainly used as decorative panels for cars, corrosion-resistant parts for cars, decks
of trains or ships, containers, road signs, isolation fences, ship bulkheads, etc.
4. Light Industry
It is ideal for making chimneys, kitchen utensils, garbage cans, paint buckets, etc. At
Wanzhi Steel, we also make some galvanized products, such as chimney pipes, door
panels, corrugated roofing sheets, floor decks, stove panels, etc.
5. Furniture, such as wardrobes, lockers, bookcases, lampshades, desks, beds,
bookshelves, etc.
6. Other Uses, such as post and telecommunication cable, highway guardrails,
billboards, newsstands, etc.
Spangle is formed during the hot-dip galvanizing process. The size, brightness, and
surface of spangles mainly depend on the composition of the zinc layer and the cooling
method. According to the size, it includes small spangles, regular spangles, big
spangles, and free spangles. They look different, but the spangles almost will not
influence the quality of galvanized steel. You can choose according to your preference
and use purpose.
(1) Big or Regular Spangles
Spangle-promoting elements are added to the zinc bath. Then beautiful spangles are
formed as the zinc layer solidifies. It looks good. But the grains are coarse and there is
slight unevenness. In a word, its adhesion is poor but weather resistance is good. It is
most suitable for guardrail, blower, duct, rolling shutter, drain pipe, ceiling bracket, etc.
(2) Small Spangles
During the solidification process of the zinc layer, zinc grains are artificially restricted to
form as fine spangles as possible. The spangle size can be controlled by cooling time.
Generally, the shorter the cooling time, the smaller the size. Its coating performance is
great. Therefore, it is perfect for drainage pipes, ceiling brackets, door columns, the
substrate for color coated steel, car body panels, guardrails, blowers, etc.
(3) Zero Spangles
By adjusting the chemical composition of the bath, the coating has a uniform surface
without visible spangles. The grains are very fine and smooth. It has excellent corrosion
resistance and good coating performance. It is also ideal for drainage pipes, automobile
components, back panels for home appliances, automobile body panels, guardrails,
blowers, etc.
Galvanized coil features lightweight, aesthetics, and excellent corrosion resistance. It
can be used directly or as the base metal for PPGI steel. Therefore, GI coil has been a
new material for many fields, such as construction, shipbuilding, vehicle manufacturing,
furniture, home appliances, etc.
1. Construction
They are often used as roofing sheets, interior and exterior wall panels, door panels and
frames, the surface sheet of the balcony, ceiling, railings, partition walls, windows and
doors, gutter, sound insulation wall, ventilation ducts, rainwater pipes, rolling shutters,
agricultural warehouses, etc.
2. Home Appliances
GI coil is widely applied to home appliances, such as the back panel of air conditioners,
and the outer casing of washing machines, water heaters, refrigerators, microwave
ovens, switch cabinets, instrument cabinets, etc.
3. Transportation
It is mainly used as decorative panels for cars, corrosion-resistant parts for cars, decks
of trains or ships, containers, road signs, isolation fences, ship bulkheads, etc.
4. Light Industry
It is ideal for making chimneys, kitchen utensils, garbage cans, paint buckets, etc. At
Wanzhi Steel, we also make some galvanized products, such as chimney pipes, door
panels, corrugated roofing sheets, floor decks, stove panels, etc.
5. Furniture, such as wardrobes, lockers, bookcases, lampshades, desks, beds,
bookshelves, etc.
6. Other Uses, such as post and telecommunication cable, highway guardrails,
billboards, newsstands, etc.
