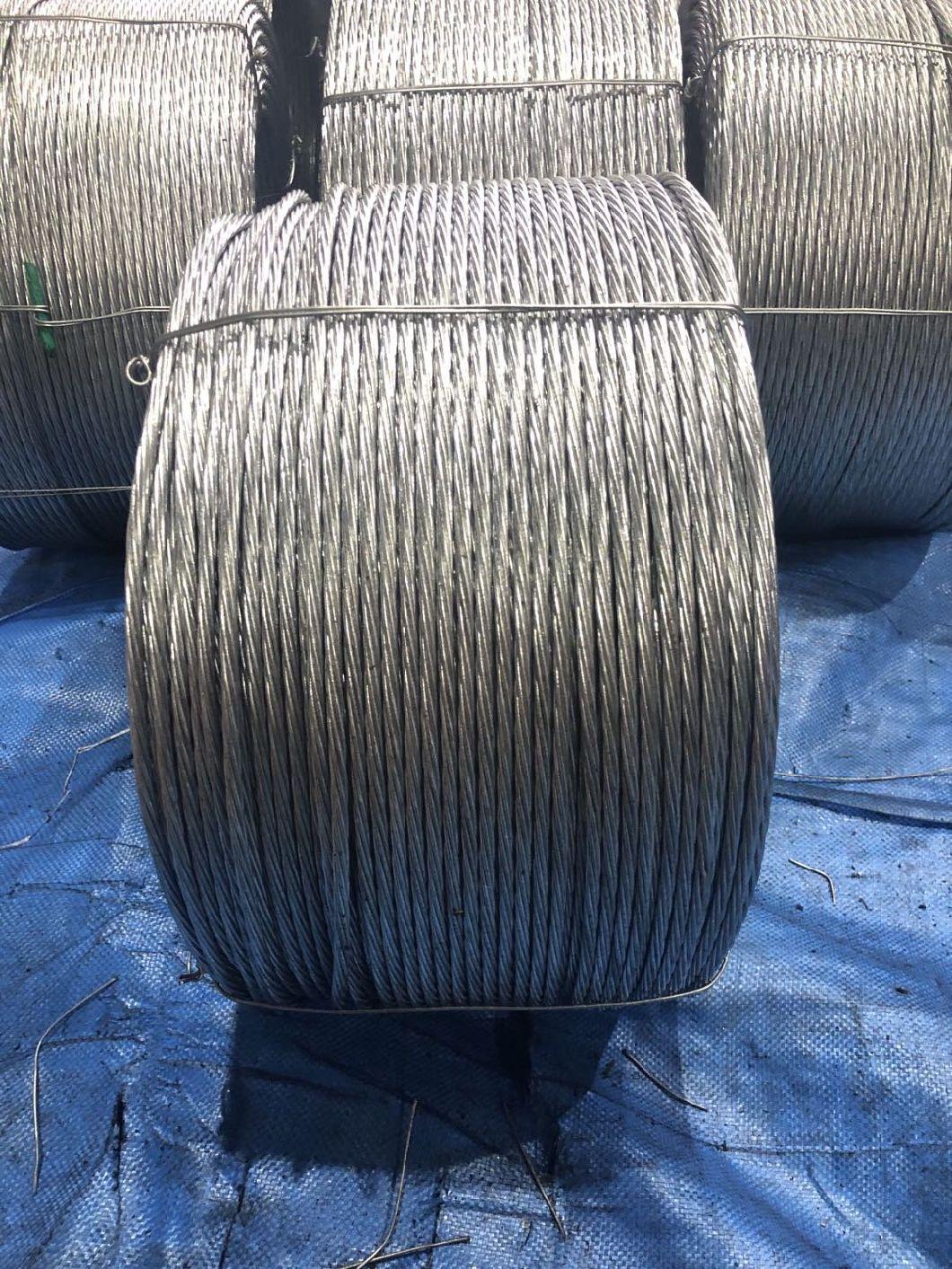

7/2.0mm   Galvanized Stranding Steel Wire for Electrical Usage
ZHEJIANG WANSHENG YUNHE STEEL CABLE CO., LTD.- Certification：ISO, CCC, CE
- Surface：Smooth
- Technique：Galvanized
- Application：Rope, Packaging, Netting, Manufacturing, Fencing, Construction, Steel Cable
- Alloy or Not：Non-alloy
- Standard：BS, JIS, GB, ASTM, DIN, AISI
Base Info
- Model NO.：7,2.0mm
- Samples：Free Samples
- MOQ：1 Ton
- Transport Package：Coil Packing, Z2 Packing, Wooden Reel Packing
- Specification：1*7
- Trademark：yunhe
- Origin：China
- HS Code：7312100000
- Production Capacity：12000 Per Month
Description
Galvanized steel wire strand Con/ Wire Dia (mm) Strand Dia ( mm) Weight
(kg/km) 350 Grade(KN) 700 Grade(KN) 1000 Grade(KN) 1150
Grade(KN) 1300
Grade(KN) Zinc Coating Mass ( g/m2) 7/1.25 3.8 67 3.01 6.00 8.55 9.88 11.15 200 7/1.40 4.2 84 3.75 7.54 10.75 12.35 14.00 215 7/1.6 4.8 110 4.90 9.85 14.10 16.20 18.30 230 7/1.8 5.4 140 6.23 12.45 17.80 20.50 23.20 230 7/2.00 6.0 170 7.70 15.40 22.00 25.30 28.60 240 7/2.36 7.1 240 10.70 21.40 30.60 35.20 39.80 260 7/2.65 8.0 300 13.50 27.00 38.60 44.40 50.20 260 7/3.00 9.0 392 17.30 34.65 49.50 56.90 64.30 275 7/3.15 9.5 430 19.10 38.20 54.55 62.75 70.90 275 7/3.25 9.8 460 20.30 40.65 58.05 66.80 75.50 275 7/3.65 11.0 570 25.60 51.25 73.25 84.20 95.20 290 7/4.00 12.0 690 30.90 61.60 88.00 101.0 114.0 290 7/4.25 12.8 780 34.75 69.50 99.30 114.0 129.0 290 7/4.75 14.0 970 43.40 86.80 124.0 142.7 161.3 290 19/1.4 7.0 230 10.24 20.47 29.25 33.64 38.02 215 19/1.6 8.0 300 13.37 26.75 38.20 43.93 49.66 230 19/2.00 10.0 470 20.90 41.78 59.69 68.64 77.60 240 19/2.50 12.5 730 32.65 65.29 93.27 107.3 121.3 260 19/3.00 15.0 1050 47.00 94.00 134.3 154.5 174.6 275 19/3.55 17.8 1470 65.80 131.6 188.0 216.3 244.5 290 19/4.00 20.0 1870 83.55 167.1 238.7 274.6 310.4 290 19/4.75 23.8 2630 117.85 235.7 336.7 387.2 437.7 29
(kg/km)
Grade(KN)
Grade(KN)
| Zinc coating | BS183 BS443 |
| Material | Q195/Q235/45#/60# |
| Key word | Galvanized steel wire strand |
| Surface treatment | Electro Galvanized Or Hot Dip Galvanized |
| Price Term | FOB, CFR, CIF |
| Package | Standard export packing. In coils, water-proof cloth. Or according to customer's needs. |
| Tensile strength | 350/700/1000/1150 /1300 grade |
| Surface | galvanized |
| Port of loading | Any Port Of China |
| Usage | Suitable for power transmission lines,overhead conductor, communication cable,the power distribution poles,messenger strand,stay wire /earth wire/guy wire , ACSR Cattle cable/Greenhouse/Fence |
The factory was set up in 1958. Registered ZHEJIANG WANSHENG YUNHE STEEL CABLE CO., LTD in 2006. Nowadays it has became an enterprise which specially produce brand "Yunhe" metal product series in metallurgical industry. Also it is national key supporting hightech enterprise. We now have a registered capital of 200 million RMB and covering an area of 30 thousand square meters. Our company has attained ISO9001 quality management system certification and ISO 14001 quality system certification.
We are well recognized and praised by numerous customers both home and abroad because of our first-class quality, in-time delivery and high-efficiency service.
