Cold Drawn 5115 Alloy Steel Bar Manufacture
TJYCT STEEL CO., LTD.- Technique：Hot Rolled
- Composition：Alloy Steel
- Standard：AISI, ASTM, DIN, JIS, GB, BS
- Type：Alloy Steel Bar
- Shape：Bar
- Surface Treatment：Mill
Base Info
- Sample：Free
- Certificate：SGS BV ISO TUV
- Length：3-12m
- Surface：Black, Pickled, Hl ,Brushed, Polished
- Tolerance：0,+1.0mm(Turned) -0,+5.0mm(Black)
- Dia：12mm-900mm
- Material：4140,1.7225,42CrMo4,Scm440,En19
- Delivery Condition：Hot Rolled
- Product Name：5115 Alloy Steel Bar
- Application：Structural Steel Bar
- Special Use：Silicon Steel, Cold Heading Steel, Free Cutting Steel, Mold Steel
- Model NO.：5115 alloy steel bar
- Third Party Inspection：Available
- Transport Package：in Bundle
- Specification：10~900mm
- Trademark：YCT
- Origin：Tianjin China
- HS Code：7214100000
- Production Capacity：5000ton,Month
Description
ASTM A516,A572,A285,A299,
EN10025,
DIN17100,17102,
JIS G3101,G3106,
GB/T700

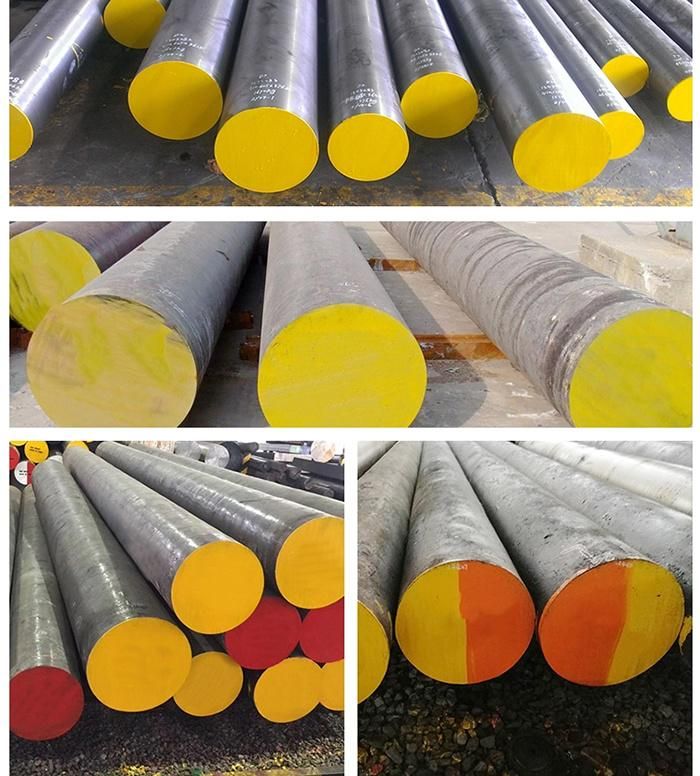

Δ Products Show

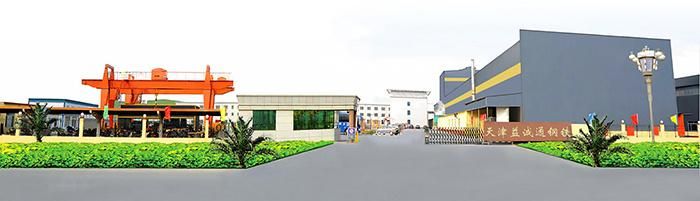

Δ Production Workshop

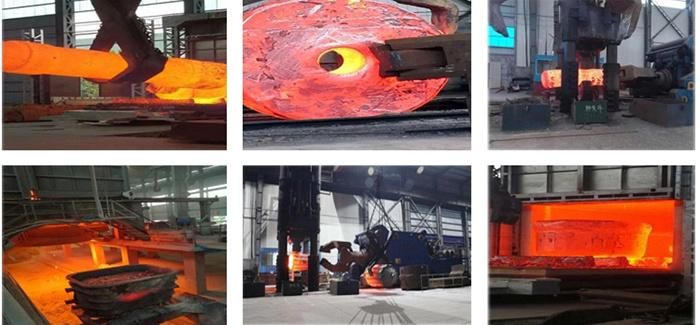

Δ Fabrication and Heat Treatment
1. Forging
Preheat the steel carefully, then raise the temperature to 1150-1200°C for forging. Do not forge below 850°C.
2. Annealing
Heat the AISI 4140 slowly to 800-850°C and allow enough time for the steel to be thoroughly heated. Cool slowly in the furnace to 480°C followed by air cooling.
3. Stress Relieving
When parts are heavily machined, ground or otherwise subject to cold work, stress relieving will be beneficial prior to hardening.
4. Hardening
AISI 4140 steel is usually supplied ready heat treated to 18-22HRC. If further heat treatment is required annealed AISI 4140 should be heated slowly to 840-875°C and after adequate soaking at this temperature quench in oil. Temper as soon as the tools reach room temperature.
5. Tempering
Heat the AISI 4140 carefully to a suitable temperature selected by reference to a tempering chart or table (usually between 550-700°C, soak at the temperature for 2 hours per 25mm of ruling section, then allow to cool in air. Tempering between 250-375°C is not advised as tempering within this range will seriously reduce the impact value.
6. Surface Treatment
Plate: Origin Black, Orign cold rolled bright, Machined, Grinded
Bar: Origin Black, Orign cold rolled(drawn) bright, Turned, Peeled, Grinded
Δ Products Inspection

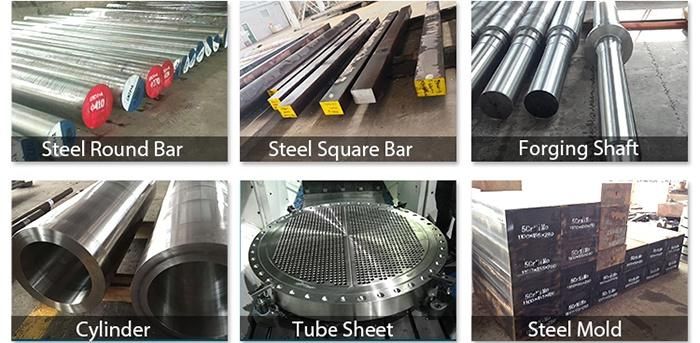

Δ Related Products

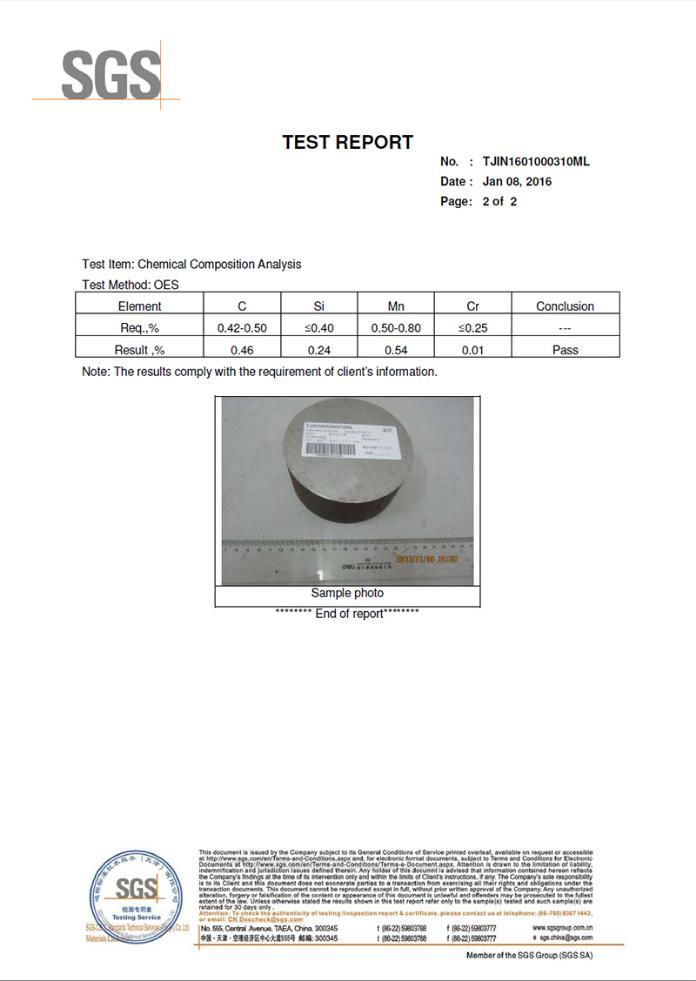

Δ Product Certificate
Δ About Us
TJYCT Steel Co., Ltd is a comprehensive company, who is founded in 2008.
Specialized in stainless steel products, seamless steel pipe, welded steel pipe,steel coil and
plates.
Our company acts as a perennial distributor of seamless steel pipes, stainless steel pipes and alloy pipes for Tianjin Seamless Steel Tube Plant, Chengdu Pangang Group, Baotou Steel Pipe Plant, Daye Steel Plant, Baoshan Steel Pipe Plant and other major steel plants. Stainless steel plate and coils for TISCO BAO STEELJISCOZPSSLISCO, etc.
Δ FAQ
Q: What is the minimum order quantity?
A: 1ton.
Q: What is delivery time?
A: 5 days after deposit. Except for public holidays.
Q: How can you guarantee the quality?
A: We have rigorous quality test system, from raw materials to finished products, the materials
must be checked and signed by QC people.
Q: How long can I get a quote?
A: The quotation can be provided not longer than 24 hours on condition that we know all detailed
requirements.
Q: Can I get a sample?
A: Yes we offer free samples. Delivery cost is to be paid by clients.
Q: Can you provide OEM service?
A: Yes,we can produce under your own brandname. Logo and design need to be provided so as
to make customized brandname.
