Stainless Steel Wire Mesh 304 316 SGS Certified
TIANJIN RUNFEI STEEL PROCESSING CO., LTD.- Standard：GB, ASTM
- Length：15m ~ 30m in Rolls
- Warranty：Yes
- After-sales Service：Yes
- Quality：Prime - First Quality
- Diameter：0.25 ~ 0.5cm
Base Info
- Transport Package：Waterproof Paper, Plastic Film, Wood Box
- Color：Silver,Green, White
- Width：0.5-6m and as Your Requirement
- Application：Construction Wire Mesh, Protecting Mesh, Cages, D
- Surface Finished：Stainless, Galvanized, PVC Coated
- Model NO.：SS
- Specification：As requirements
- Trademark：Runfei Steel
- Origin：China
- HS Code：731414000
- Production Capacity：20000rolls,Week
Description
Stainless Steel Wire Mesh Specifications(Plain Weaving)
Mesh/Inch
Wire Diameter
(mm)
Aperture(mm)
Material(AISI)
7mesh*7mesh
1.00
2.63
304,306
10mesh*10mesh
0.60
1.94
304,306
12mesh*12mesh
0.50
1.62
304,306
16mesh*16mesh
0.40
1.19
304,306
16mesh*16mesh
0.35
1.24
304,306
18mesh*18mesh
0.35
1.06
304,306
20mesh*20mesh
0.40
0.87
304,306
24mesh*24mesh
0.26
0.80
304,306
30mesh*30mesh
0.30
0.55
304,306
35mesh*35mesh
0.17
0.56
304,306
40mesh*40mesh
0.23
0.40
304,306
50mesh*50mesh
0.20
0.31
304,306
60mesh*60mesh
0.15
0.27
304,306
70mesh*70mesh
0.12
0.24
304,306
80mesh*80mesh
0.13
0.19
304,306
90mesh*90mesh
0.12
0.16
304,306
100mesh*100mesh
0.10
0.15
304,306
120mesh*120mesh
0.09
0.12
304,306
150mesh*150mesh
0.063
0.11
304,306
180mesh*180mesh
0.053
0.09
304,306
200mesh*200mesh
0.053
0.07
304,306
Stainless Steel Wire Mesh Specifications(Twill Weaving)
Mesh/Inch
Wire Diameter(mm)
Aperture(mm)
Material(AISI)
250mesh*250mesh
0.040
0.063
316
300mesh*300mesh
0.040
0.044
316
325mesh*325mesh
0.035
0.043
316L
350mesh*350mesh
0.030
0.042
316L
400mesh*400mesh
0.030
0.033
316L
450mesh*450mesh
0.028
0.028
316L
500mesh*500mesh
0.025
0.026
316L

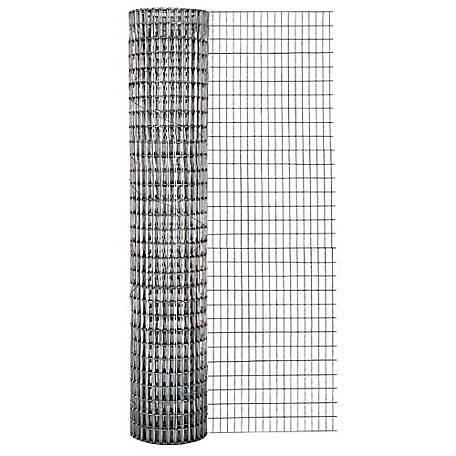

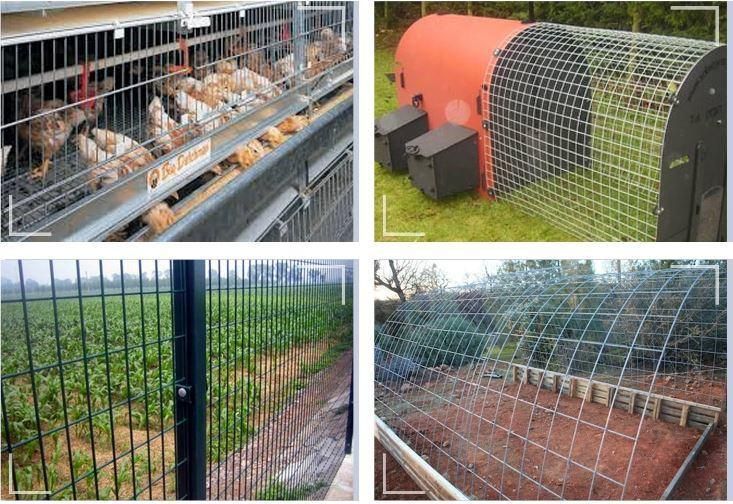

Products pictures:
Special material:pure nickel wire, Ni-cr wire, monel, inconel wire etc.
Plain weave, twill weave and dutch weave, bamboo weave
Hollander weave etc.

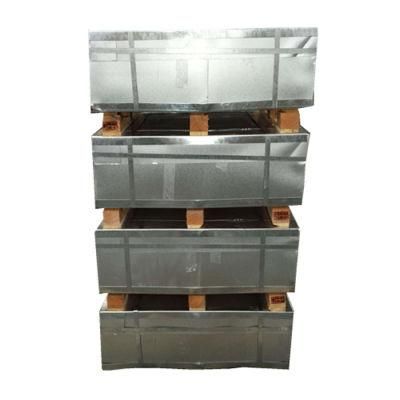

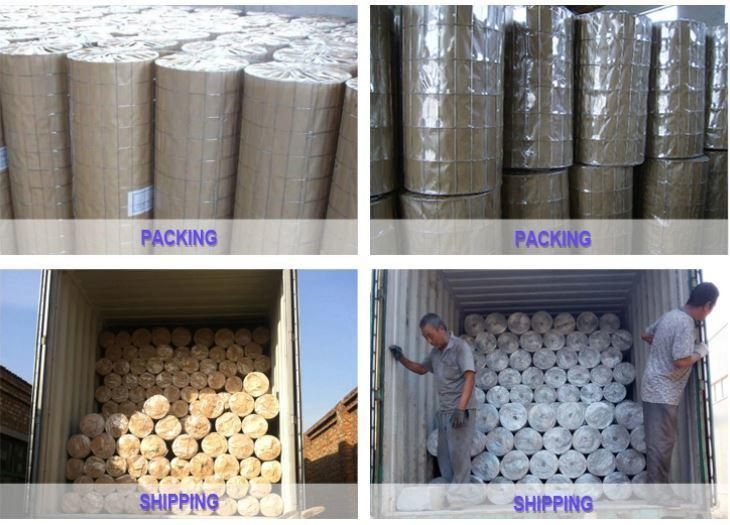

Packing:
Welded wire mesh in panel: are wraped with the shrinked plastic bag then packedin the pallets.
Welded wire mesh in rolI:are by water proof paper then shrinked plasticbag as our negotiation.
Special packing is ok as your request.
Payment terms
• We also provide flexible payment terms to our customers based on their business mode.
• All popular payment terms in international business,
including T/T, sight L/C, usance L/C, D/P, D/A, O/A and Alipay are available from us.

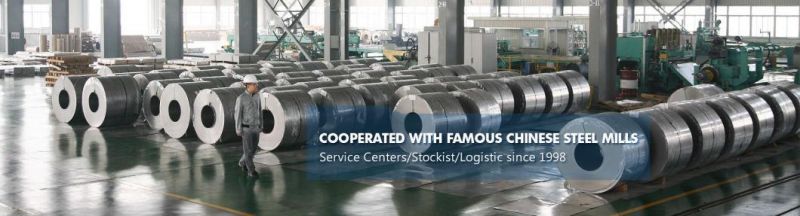

About us
Established in 1998, Runfei Steel Group has developed into a large-scaled enterprise, located in the city of Tianjin, which is the largest artificial harbor in north China. With convenient transportation advantage of Tianjin, intellectual marketing network, powerful system of storage, processing and distribution, and good reputation, Runfei has successfully set up a win-win platform between mills and clients.
Runfei started its oversea trading since 2004 when it obtained the import and export license of proprietary trading, providing the international standard processing and distribution service for customers all over the world.
The headquarter of Runfei Steel Group is located in the CBD of Tianjin economical development region - Airport Economic Area.With the continuous expanding of business, Runfei had established Tianjin Runfei Trade Co., Ltd, Runfei (HK) Co., Limited, Tianjin Runfang Steel Processing Co., Ltd, andTianjin Runfei Steel Processing Co., Ltd. Runfei now owns one processing center for hot rolled steel and the other for cold rolled steel, both are located in Tianjin TEDA Industry Area, taking up over 113,220 square meters. The storage capacity of Runfei is 70,000 metric tons and the annual comprehensive processing capacity comes to 1 million metric tons.
Our goal is to become the comprehensive service center combined with proccessing, assorting and storage. Our mission is to be the pioneer of cost solution and service concept in steel industry chain.

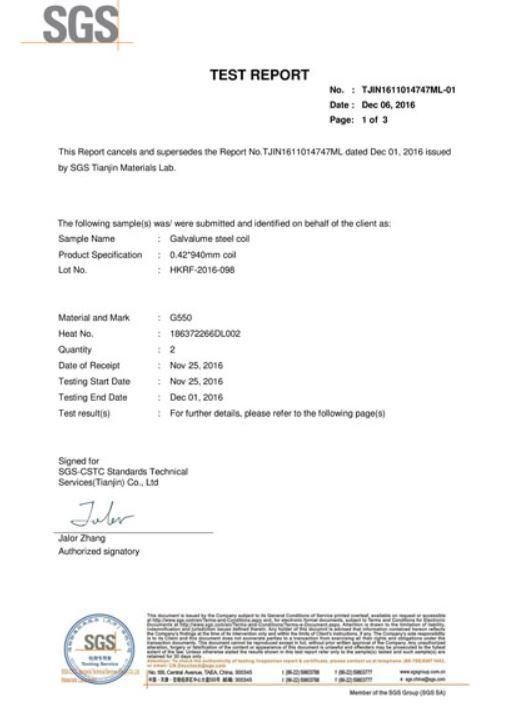

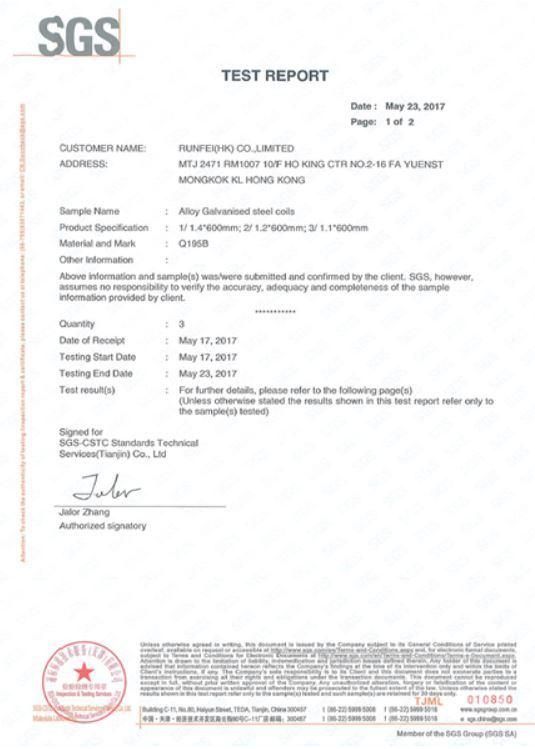

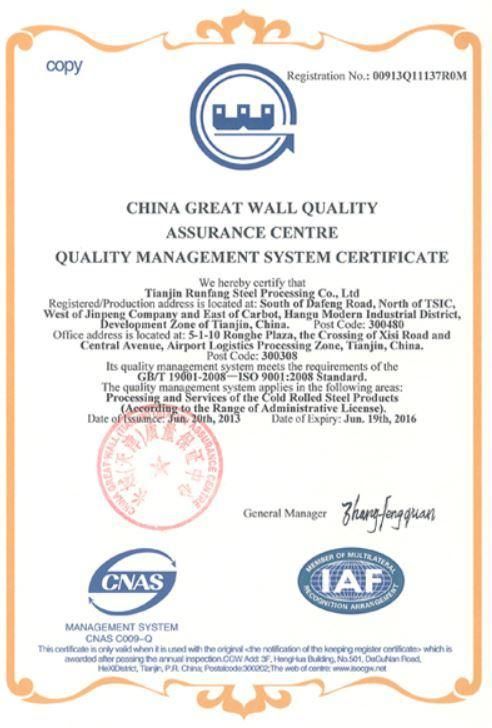

Our certificates
RUNFEI, YOUR BEST STEEL PARTNER!
