• Brand：Made in China
• Service：After-All Sales Service
• Type：Hard&Soft
• Delivery Time：7 Days
• Price Term：Fob
• Steel Grade：304,304L,321,316,316L
• Delivery：Standard Seaworthy Package

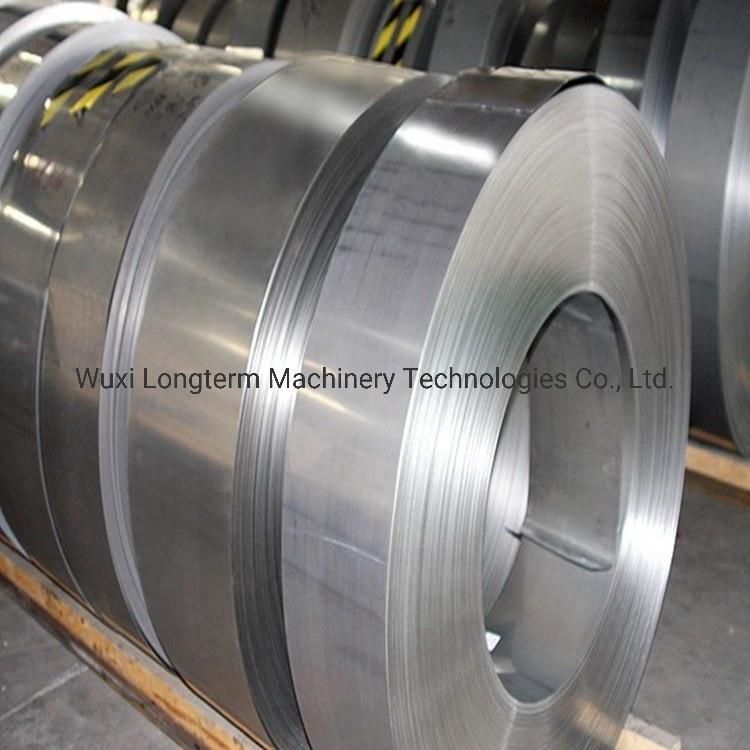

• Product Name：Stainless Steel Flexible Tubing , Metal Hose

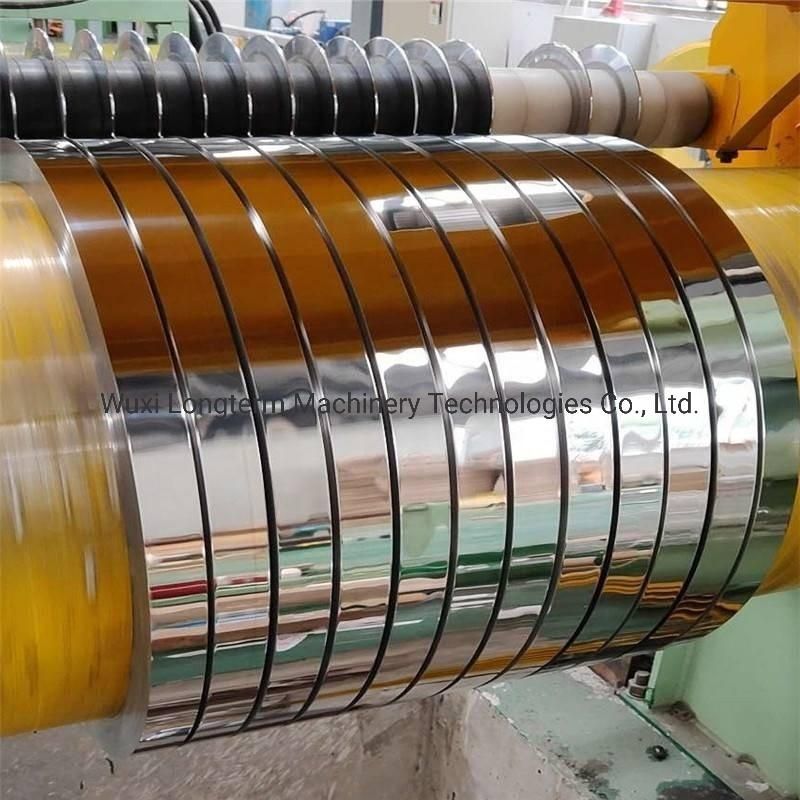

• Processing Service：Slitting
• Hardness：150-180
• Technical Treatm：Bright Annealed
• Surface Finish：2b
• Model Series：300 Series
• Thickness：0.15-3.0mm
• Width：Customized
• Stock：Stock
• Model NO.：comflex
• Transport Package：Standard Seaworthy Packing
• Specification：ISO9001
• Trademark：Comflex
• Origin：Wuxi
• HS Code：8307100000
• Production Capacity：2 Million Tons Per Year

StandardDIN, EN, GB, JISGrade201. 301. 304. 304L. 316L, 430, 410Thickness0.03mm - 3.0mmWidth2mm-600mmHardnessHV145-HV620Delivery timeMax. 15 days for the customized sizeSampleAvailable to providePackageStandard seaworthy package



------Surface Description
 SurfaceDefinitionApplication2BThose finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate lusterMedical equipment, food industry, construction material, kitchen utensilsBAThose processed with bright heat treatment after cold rollingKitchen utensils, Electric equipment, bulding constructionNO.1Finished by hot-rolling, annealing and pickling, characterized by white pickled surfaceChemical industry equipment, industrial tanksBKA mirror-like reflective surface by polishing with finer abrasives over 800 meshRefletor, mirror, interior-exterior decoration for buildingHLFinished by continuous linear polishingArchitecture industries, escalators, kitchen ware, vehicles

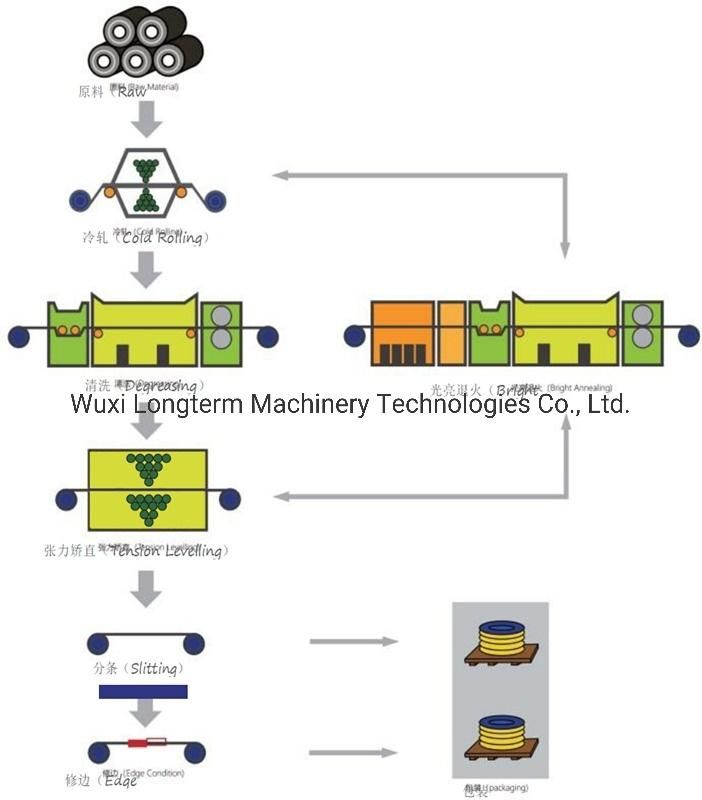

------Manufacturing processes

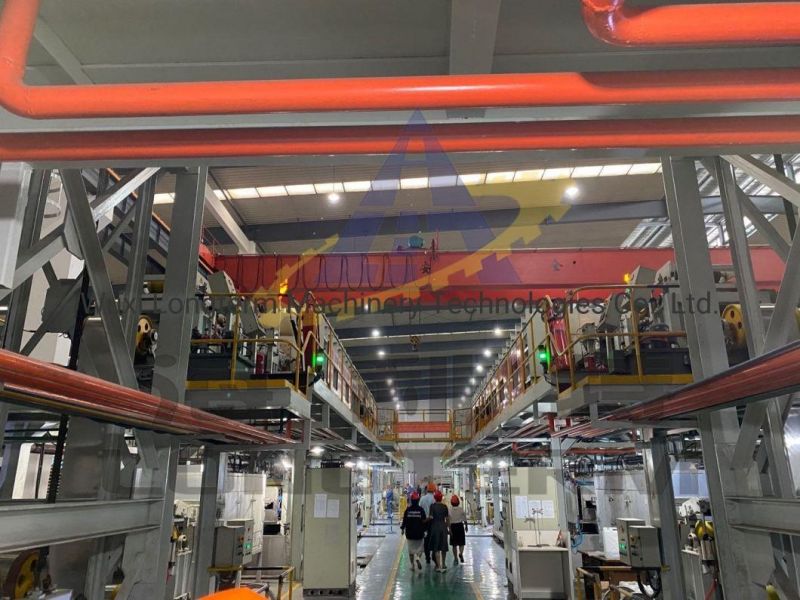

We has 15 sets of advanced and high -end precision equipment. In terms of hardware, efficient production and adequate quality are ensured by advanced fixtures equipped in all processes such as cold-rolling, annealing, tension levelling, slitting and etc.

A. Imported foruteen-high cold-roll reversing mill

Fourteen-high automatic reversing mill is the first cold rolling equipment in China with speed up to 400m/min, which can automatically detect thickness, correct deviation and ensure the overall tolerance within ±0.003mm

B. American twenty-high high-precision sendzimir reversing mill

American twenty-high high-precision sendzimir reversing mill runs at a speed up to 450m/min, which is able to automatically match rollers. Equipped with AGC automatic detour correction system, the overall tolerance can be ensured within ±0.002mm

C. Tension leveller

Twenty-three high tension leveller automatically inspects strip surface online, alarms for defects and keeps defect records for long strips to ensure accuracy of the production process and online data.

D. Continuous bright annealing oven

Equipped with four sets of the largest horizontal continuous bright annealing ovens in China. The production capacity can reach up to 200 tons per day. The production capacity of the annealing overs is three times of that of traditional ones.






------Chemical composition


Grade	C	Si	Mn	P ≤	S ≤	Cr	Ni	Mo	N
201	≤0.15	≤1.00	5.5-7.5	0.06	0.03	16-18	3.5-5.5	-	≤0.25
202	≤0.15	≤1.00	7.5-10.0	0.06	0.03	17-19	4-6	-	≤0.25
301	≤0.15	≤1.00	≤2.00	0.045	0.03	16-18	6-8	-	≤0.10
304	≤0.08	≤1.00	≤2.00	0.045	0.03	18-20	8-10.5	-	-
304L	≤0.03	≤1.00	≤2.00	0.045	0.03	18-20	8-12	-	-
309	≤0.2	≤1.00	≤2.00	0.045	0.03	22-24	12-15	-	-
309S	≤0.08	≤1.00	≤2.00	0.045	0.03	22-24	12-15	-	-
310	≤0.25	≤1.50	≤2.00	0.045	0.03	24-26	19-22	-	-
310S	≤0.08	≤1.00	≤2.00	0.045	0.03	24-26	19-22	-	-
316	≤0.08	≤1.00	≤2.00	0.045	0.03	16-18	10-14	2-3	-
316L	≤0.03	≤1.00	≤2.00	0.045	0.03	16-18	10-14	2-3	-
316H	0.04-0.1	≤1.00	≤2.00	0.045	0.03	16-18	10-14	2-3	-
316Ti	≤0.08	≤1.00	≤2.00	0.045	0.03	16-18	10-14	2-3	≤0.10
317	≤0.08	≤1.00	≤2.00	0.045	0.03	18-20	11-15	3-4	-
317L	≤0.03	≤1.00	≤2.00	0.045	0.03	18-20	11-15	3-4	-
321	≤0.08	≤1.00	≤2.00	0.045	0.03	17-19	9-12	-	≤0.10
321H	0.04-0.1	≤1.00	≤2.00	0.045	0.03	17-19	9-12	-	≤0.10
409	≤0.08	≤1.00	≤1.00	0.045	0.03	10.5-11.7	≤0.50	-	-
410	≤0.15	≤1.00	≤1.00	0.04	0.03	11.5-13.5	( ≤0.75)
420	≥0.15	≤1.00	≤1.00	0.04	0.03	12-14	-	-	-
430	≤0.12	≤1.00	≤1.00	0.04	0.03	16-18	-	-	-

------Certifications

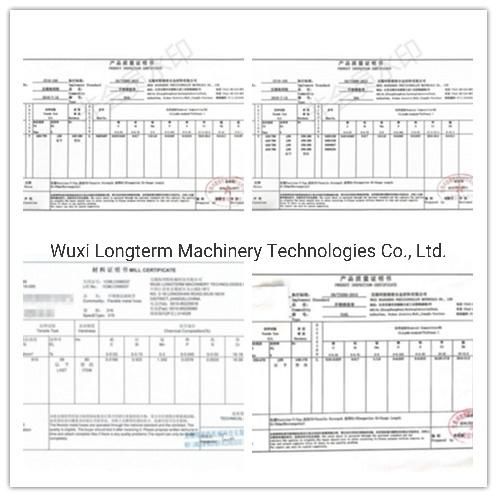

 316L / 304 / 304L mill certificate





------Packaging & Shipping

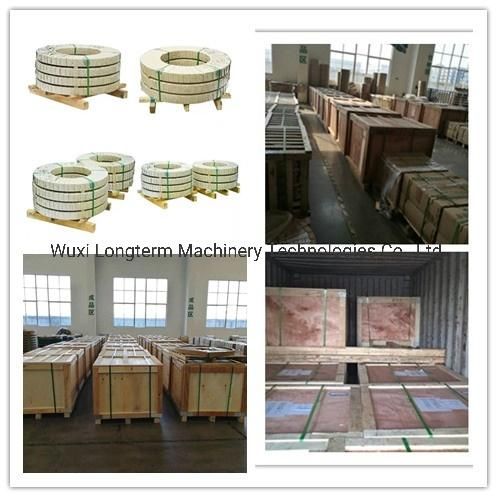

 We adopt seaworthy package for transportation.



------Application

Auromotive industry: engine gasket, flexible coupling, clamp
Textile industry: sinker, reed
Chemical industry: tower packing
Machinery industry: elastic element
Cellphone internal parts, polished shell
Electronic products, optical cable armor
Hypodermic needle
Flexible solar panel

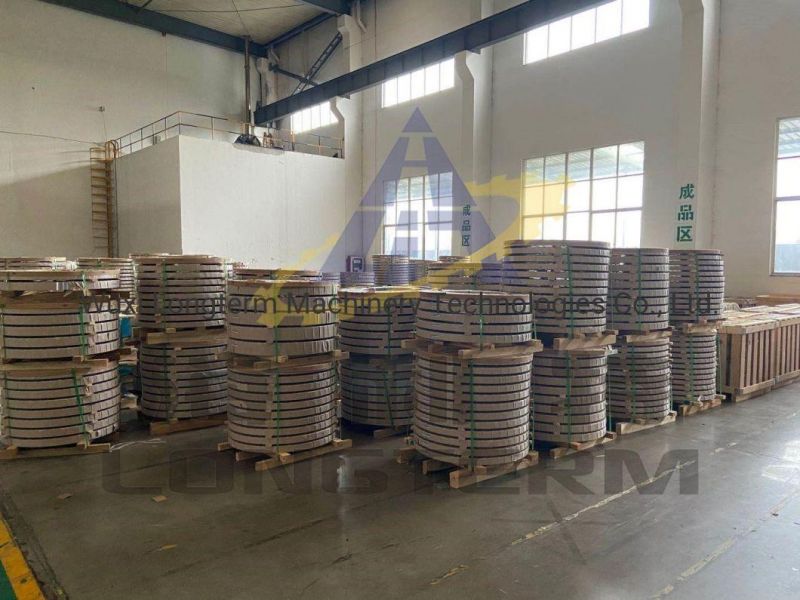

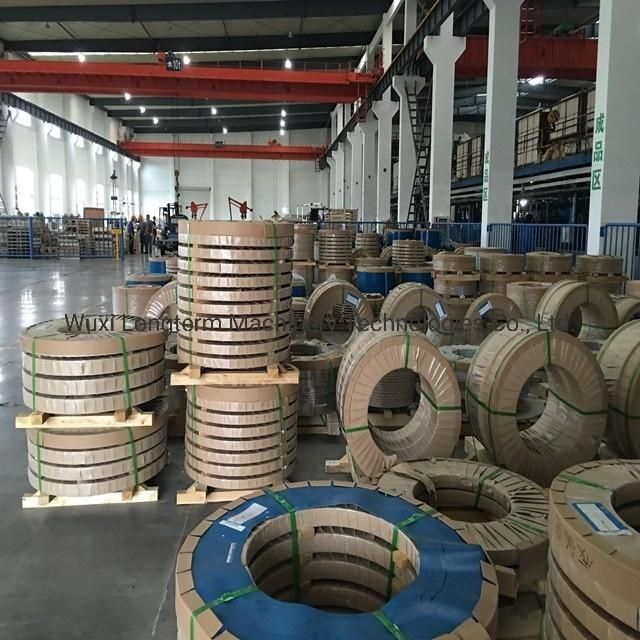

------Factory stockpile overview

We have strong production ability to meet every urgent requirement!

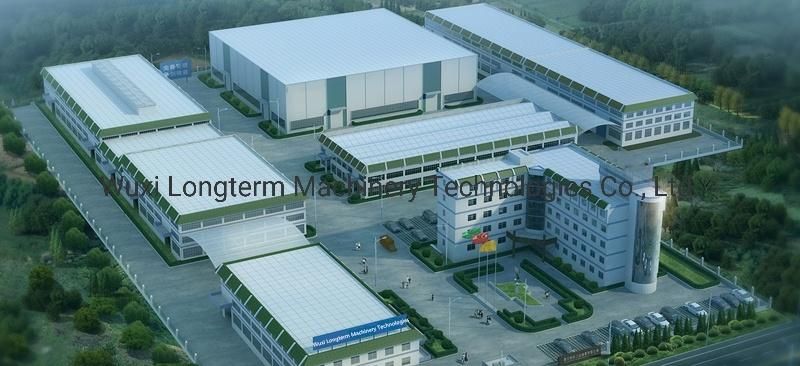

------Company Information

Who we are?

1,We are a professional stainless steel company located in Wuxi city, Jiangsu Province with the good transportation condition.

2, We concentrate on offering stainless steel coils/sheets/strips with good quality and best service.

3,Until now,we have exported STAINLESS STEEL material to following countries: Vietnam, Thailand, Turkey, Russia,Nigeria, Korea ,India,Pakistan,  UAE, Ukraine and so on.


Why do you choose us ?

·         We have high reputation based on best quality products;
·         We can offer competitive price for your buiness;
·         Our after-sell service team will help you solving all the related problems ;

·         Shortest and stable delivery time;
·         We can provide stainless steel processing services

Our advantages

--   Standing Stock More Than 100,000MT for Stainless Steel Coil, Sheet, Plate, Tube
--   10days Delivery for Regular Size and Grade
--   Alibaba Golded Supply With Trade Assurance
--   More than 12 years in metal field
