Factory Price Carbon Steel Plate S50C/SAE1050/1.1210
Guangzhou Changfeng Steel Co., Ltd.- Special Use：High-strength Steel Plate, Wear Resistant Steel, Free Cutting Steel, Mold Steel
- Alloy：Non-alloy
- Surface：Black
- Application：Die Steel Bar
- Standard：DIN, JIS, AISI, ASTM, GB
- Technics：Hot Rolled
Base Info
- Trademark：BAO STEEL
- Specification：standard,customized
- Transport Package：Standard,Customized
- Condition：stock
- Delivery Time：7days
- Quality Assurance：100% UT passed
- Thickness：8-500mm
- Model NO.：S50C,SAE1050,1.1210,50#
- Origin：China
- HS Code：7225401000
- Production Capacity：1000 Mt, Month
Description
Block Thickness 350-1000mm Width 800-1600mm Length 2000-6000mm
5. Chemical Composition
6. Heat Treatment
Annealed: 830ºC; Quechin: ,830ºC; Tempering:,600ºC.
Hardness: 143~187HBS,179~235HBS,212~277HBS.
7. Applications

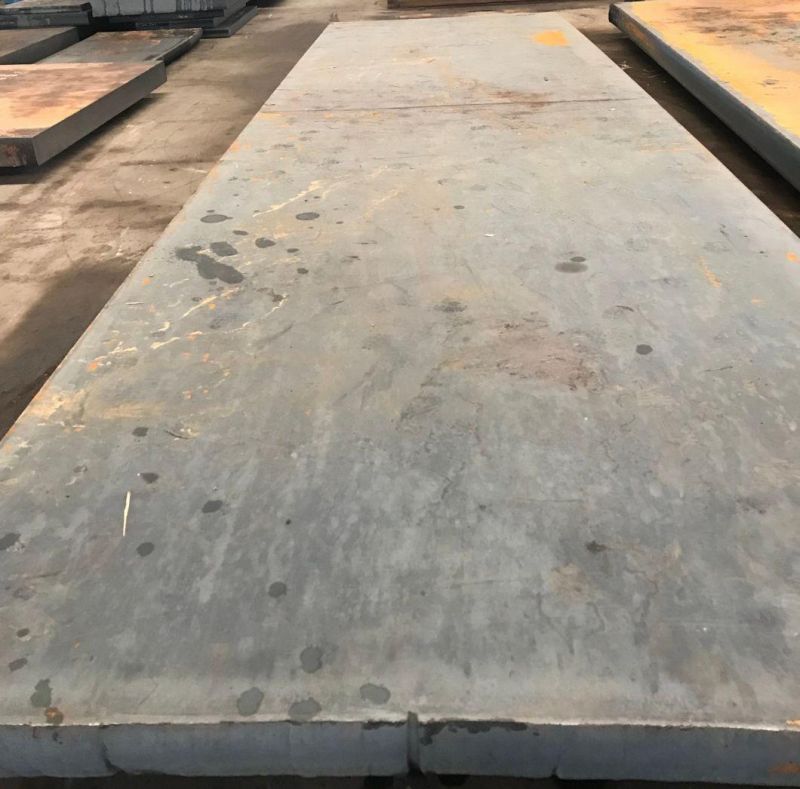

8. Product picture
5. Chemical Composition
| Grades | C | Si | Mn | P | S | Cu | Ni | Cr |
| S50C | 0.47-0.53 | 0.15-0.35 | 0.60-0.90 | ≤0.03 | ≤0.035 | ≤0.30 | ≤0.20 | ≤0.20 |
| 50# | 0.47-0.55 | 0.17-0.37 | 0.50-0.80 | ≤0.035 | / | ≤0.25 | ≤0.30 | ≤0.15 |
6. Heat Treatment
Annealed: 830ºC; Quechin: ,830ºC; Tempering:,600ºC.
Hardness: 143~187HBS,179~235HBS,212~277HBS.
7. Applications

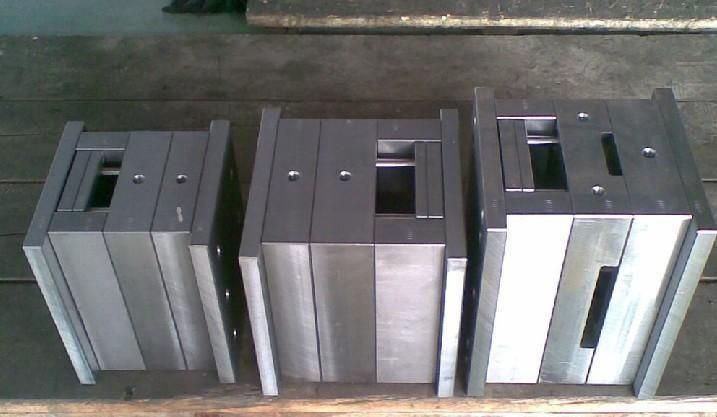

- For making injection plastic mould, mould frame and some middle-range machine
- Various cold work die pads
- Drilling mold fixing plate
- Standard template material
