High Strength Wear Metal Sheet Xar450 Nm400 Steel Plate Price
Shandong Heng Steel Group Co., Ltd.- Standard：ASTM, AISI, GB, JIS, DIN, BS
- Type：Steel Plate
- Warranty：Yes
- After-sales Service：Online Technical Support
- Certification：ISO
- Surface Treatment：Clean, Finishing, Blasting and Painting
Base Info
- Pakege：Standard Sea Worthy Packing
- Delivery States：Hot-Rolled, Controlled, Normalizing
- Delivery Time：15-20 Days, After We Received Your Deposit
- Certificate：BV, ABS, Ce, Dnv
- Surface：Clean, Finishing, Blasting and Painting
- Length：1000-12000mm, as Your Request
- Width：1000-3000mm
- Thicness：2-300mm
- Name：High Strength Wear Steel Plate Xar450 Price
- Stock：Stock
- Special Use：High-strength Steel Plate, Wear Resistant Steel
- Application：Ship Plate, Boiler Plate, Container Plate
- Technique：Hot Rolled
- Model NO.：High Strength Wear Steel Plate Xar450 Price
- MOQ：5tons
- Test：Mtc
- Payment：T,T, L,C
- Trade Term：Fob, CIF, CFR, EXW
- HS ID：72254099
- Sample：Yes
- Transport Package：Standard Sea Worthy Packing
- Specification：2-300*1000-3000*1000-12000mm
- Trademark：HengSteel
- Origin：China
- HS Code：72254099
- Production Capacity：300000ton,Year
Description
Overview
Wear Resistant Steel Plate Specification
Standard
GradeDIN: XAR300,XAR400, XAR450, XAR500, XAR600, DILLIDUR400V,DILLIDUR450V,DILLIDUR500V; X120Mn12; 1.3401;
SSAB:WELDOX700,WELDOX900,WELDOX960;
NF: FORA400,FORA500,Creusabro4800,Creusabro8000;
EN: QUARD400,QUARD450,QUARD500 ; RAEX320,RAEX400,RAEX450,RAEX500; DUrostat400,DUrostat450,DUrostat500;
JIS: WEL-HARD400, WEL-HARD500; SUMIHARD-K340,SUMIHARD-K400,SUMIHARD-K500
GB: NM360,NM400,M450,NM500,NM550,NM600,NR360,NR400,B-HARD360,B-HARD400,B-HARD450,KN-55,KN-60,KN-63. Thickness 2-300mm (2-100mm usually used) Width 1000-3000mm (1000-2200mm usually used) Length 1000-12000mm or as your request Surface Clean, finishing,blasting and painting according to customer requirement Delivery
States Hot-rolled, Controlled rolling, Normalizing, Annealing, Tempering,
Quenching, N+T, Q+T,and other delivery states are available as required Certificate API,ISO,SGS,BV,CE etc Quality MTC will be provided with goods, third part inspection is acceptable, for example
BV,SGS. Package Standard export seaworthy package,suit for all kinds of transport,
or as required. Container
Size
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) Trade term Ex-Work,FOB,CNF,CFR,CIF,etc Application Widely used in a variety of architectural and engineering structures,such as
1.) metal constructions such as buildings,bridges,ships;
2.) transmission tower, reaction tower;
3.) lifting transportation machinery;
4.) industrial furnace;boilers
5.) container frame, warehouse goods shelves, etc
Wear Resistant Steel Plate Chemical Composition and Mechanical Properties Chemical Composition(Max) Material C Si Mn P S Cr Ni Mo Ti Bt Als CEV NM300 0.23 0.70 1.60 0.025 0.015 0.70 0.50 0.40 0.050 0.0005-0.0006 0.010 0.45 NM360 0.25 0.70 1.60 0.025 0.015 0.80 0.50 0.50 0.050 0.0005-0.0006 0.010 0.48 NM400 0.30 0.70 1.60 0.025 0.010 1.00 0.70 0.50 0.050 0.0005-0.0006 0.010 0.55 NM450 0.35 0.70 1.70 0.025 0.010 1.10 0.80 0.55 0.050 0.0005-0.0006 0.010 0.60 NM500 0.38 0.70 1.70 0.020 0.010 1.20 1.00 0.65 0.050 0.0005-0.0006 0.010 0.65 NM550 0.38 0.70 1.70 0.020 0.010 1.20 1.00 0.70 0.050 0.0005-0.0006 0.010 0.72 NM600 0.38 0.70 1.90 0.020 0.010 1.50 1.00 0.70 0.050 0.0005-0.0006 0.010 0.76 Material Tensile MPA Elongation % Impact energy -20ºC HBW NM300 ≥1000 ≥14 ≥24 270-300 NM360 ≥1100 ≥12 ≥24 330-390 NM400 ≥1200 ≥10 ≥24 370-430 NM450 ≥1250 ≥7 ≥24 420-480 NM500 ≥1250 ≥7 ≥24 ≥470 NM550 ≥1250 ≥7 ≥24 ≥530 NM600 ≥1250 ≥7 ≥24 ≥570 Grade C Si Mn P S Cr Mo Cu Ni B XAR400 0.20 0.80 1.50 0.025 0.010 1.00 0.50 -- -- 0.005 XAR450 0.22 0.80 1.50 0.025 0.012 1.30 0.50 0.30 -- 0.005
XAR5000.28 0.80 1.50 0.025 0.010 1.00 0.50 -- -- 0.005
XAR6000.40 0.80 1.50 0.025 0.010 1.50 0.50 -- 1.50 0.005 Grade Yield Strength
Reh MPa Tensile Strength
Rm MPa Elongation BH
(Brinell Hardness) XAR400 1150 1300 ≥12 360-440 XAR450 1200 1350 ≥10 410-490 XAR500 1500 1600 ≥9 450-530 XAR600 -- -- -- ≥550 Material C Si Mn P S Cr Mn13 1.1~1.3 0.3~0.5 12~13 ≤0.100 ≤0.040 ≤1.5 X120Mn12 1.1~1.3 0.3~0.5 12~13 ≤0.100 ≤0.040 ≤1.5 1.3401 1.1~1.3 0.3~0.5 12~13 ≤0.100 ≤0.040
≤1.5 SCMnH11 0.9~1.5 0.3~1.0 10~15 ≤0.100 ≤0.050 ≤1.5 ASTM A128 1.1~1.3 0.3~0.5 12~13 ≤0.100 ≤0.050 ≤1.5

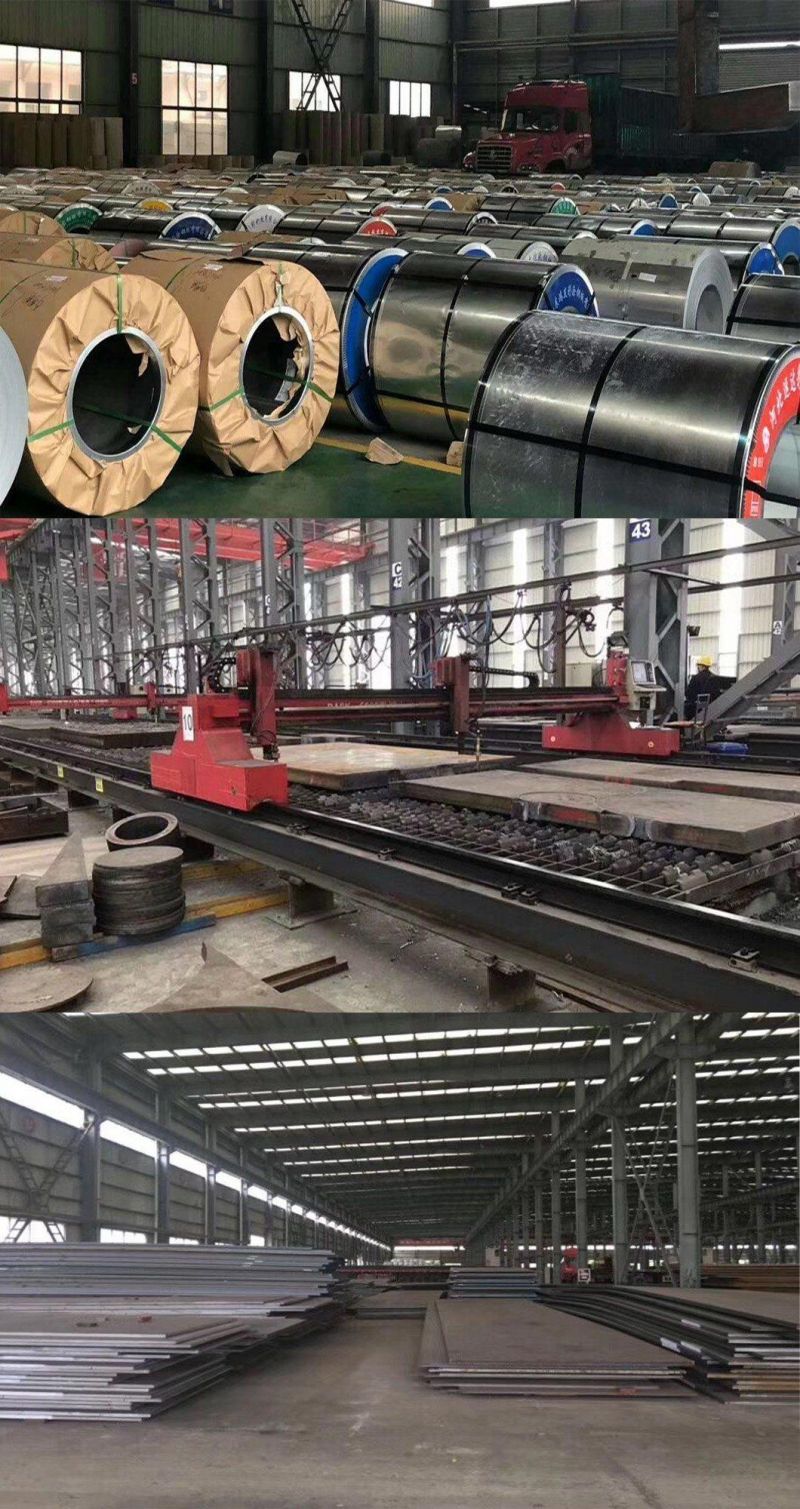

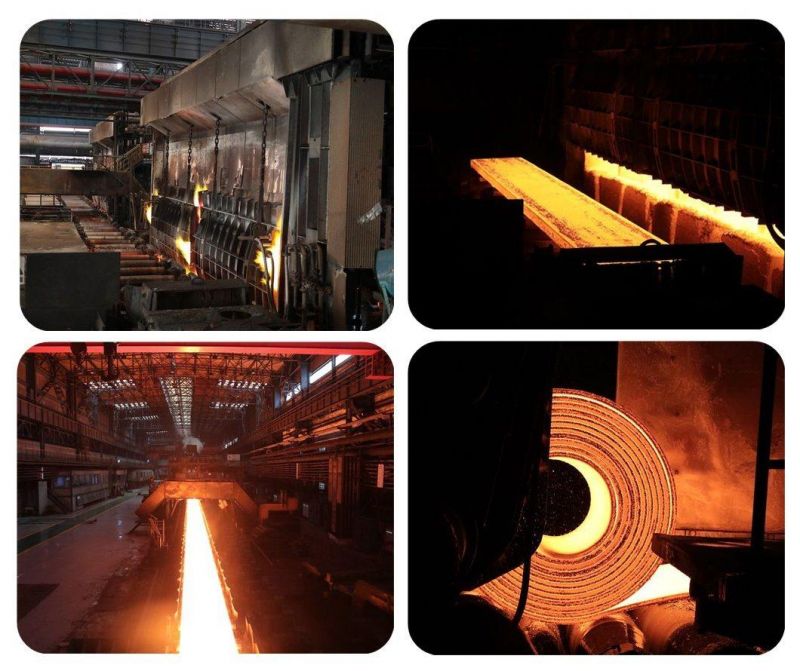

Production process
Packaging & Shipping
Application

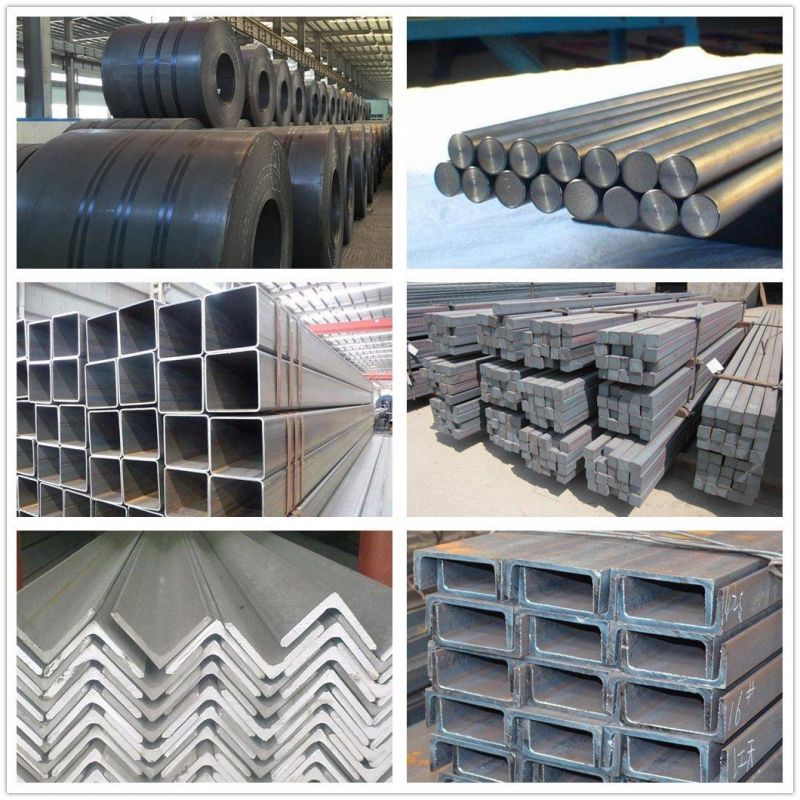

More Products
