• Transport Package：Standard Seaworthy Packing or as Required
• Flange Width Shape：Equal-Width
• Waist Thickness：8.5mm
• Flange Width：65mm
• Height：160mm
• Certificates：ISO9001:2008
• Delivery Term：EXW, Fob,CFR,CIF
• MOQ of Steel Channel：25 Metric Tons
• Technique of Steel Channel：Hot Rolled, Cold Bendin
• Grade：A36, S235jr, St37-2, Ss400, Q235, Q195
• Model NO.：16#b
• Specification：160*65*8.5mm
• Trademark：Huajian Steel
• Origin：Shandong, China
• Production Capacity：5000 Ton One Month

MODEL

WEIGHT(KG/M)

DIMENSION (h*b*d) (mm)

6.3#

6.634

63*40*4.8mm

8.0#

8.046

80*43*5.0mm

10#

10.007

100*48*5.3mm

12#

12.059

120*53*5.5mm

14#a

14.535

140*58*6.0mm

14#b

16.733

140*60*8.0mm

16#a

17.240

160*63*6.5mm

16#b

19.752

160*65*8.5mm

18#a

20.174

180*68*7.0mm

18#b

23.000

180*70*9.0mm

20#a

22.637

200*73*7.0mm

20#b

25.777

200*75*9.0mm

22#a

24.999

220*77*7.0mm

22#b

28.453

220*79*9.0mm

25#a

27.410

250*78*7.0mm

25#b

31.335

250*80*9.0mm

25#c

35.260

250*82*11.0mm

28#a

31.427

280*82*7.5mm

28#b

35.823

280*84*9.5mm

28#c

40.219

280*86*11.5mm

30#a

34.463

300*85*7.5mm

30#b

39.173

300*87*9.5mm

30#c

43.883

300*89*11.5mm

32#a

38.083

320*88*8.0mm

32#b

43.107

320*90*10.0mm

32#c

48.131

320*92*12.0mm

36#a

47.814

360*96*9.0mm

36#b

53.466

360*98*11.0mm

36#c

59.118

360*100*13.0mm

40#a

58.928

400*100*10.5mm

40#b

65.204

400*102*12.5mm

40#c

71.488

400*104*14.5mm

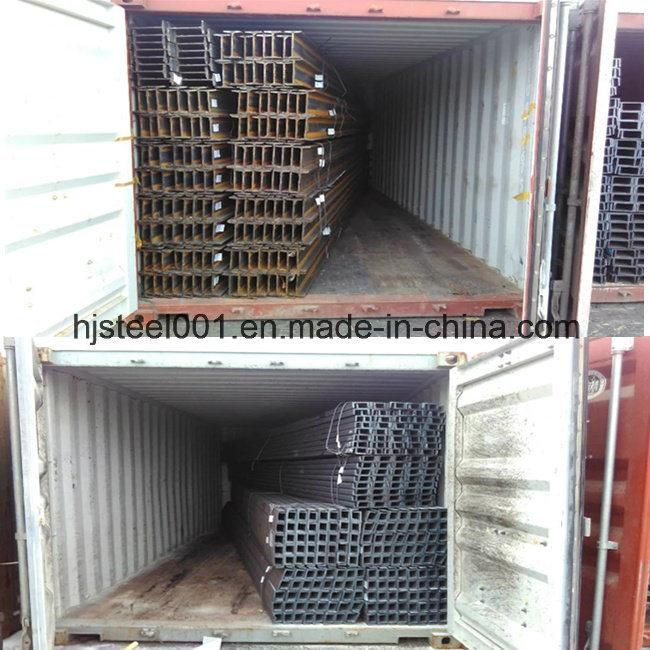

Product Loading
