- Origin：China
- Trademark：yunhe
- Specification：7,2.03mm
- Transport Package：Coil Packing, Z2 Packing, Wooden Reel Packing
- Key Words：Galvanized Steel Wire Strand
- MOQ：1 Ton
- Samples：Free Samples
- Model NO.：7,2.03mm
- HS Code：7312100000
- Production Capacity：12000 Per Month
Galvanized Steel Wire Stand ASTM-A475|
| Number of Wires/Dia. | Approx.Strand Dia. | Siemem Martin Grade | High Strength Grade | Extra-high Strength Grade | Approx.Weight |
|
| | Inch | mm | KN | KN | KN | kg/km |
| 3/2.64 | 7/32 | 5.56 | 10.409 | 15.569 | 21.796 | 131 |
| 3/3.05 | 1/4 | 6.35 | 13.523 | 21.04 | 29.981 | 174 |
| 3/3.05 | 1/4 | 6.35 | - | - | - | 174 |
| 3/3.30 | 9/32 | 7.14 | 15.035 | 23.398 | 33.362 | 204 |
| 3/3.68 | 5/16 | 7.94 | 18.193 | 28.246 | 40.479 | 256 |
| 3/4.19 | 3/8 | 9.52 | 24.732 | 37.187 | 52.489 | 328 |
| 7/1.04 | 1/8 | 3.18 | 4.048 | 5.916 | 8.18 | 49 |
| 7/1.32 | 5/32 | 3.97 | 6.539 | 9.519 | 13.078 | 76 |
| 7/1.57 | 3/16 | 4.76 | 8.452 | 12.677 | 17.748 | 108 |
| 7/1.65 | 3/16 | 4.76 | - | - | - | 118 |
| 7/1.83 | 3/16 | 5.56 | 11.387 | 17.126 | 24.02 | 145 |
| 7/2.03 | 7/32 | 6.35 | 14.012 | 21.129 | 29.581 | 181 |
| 7/2.36 | 1/4 | 7.14 | 18.905 | 28.469 | 39.812 | 243 |
| 7/2.64 | 9/32 | 7.94 | 23.798 | 35.586 | 49.82 | 305 |
| 7/2.77 | 5/16 | 7.94 | - | - | - | 335 |
| 7/3.05 | 3/8 | 9.52 | 30.915 | 48.04 | 68.503 | 407 |
| 7/3.68 | 7/16 | 11.11 | 41.591 | 64.499 | 92.523 | 594 |
| 7/4.19 | 1/2 | 12.7 | 53.823 | 83.627 | 119.657 | 768 |
| 7/4.78 | 9/16 | 14.29 | 69.837 | 108.981 | 155.688 | 991 |
| 7/5.26 | 5/8 | 15.88 | 84.961 | 131.667 | 188.605 | 1211 |
| 19/2.54 | 1/2 | 12.7 | 56.492 | 84.961 | 118.768 | 751 |
| 19/2.87 | 9/16 | 12.49 | 71.616 | 107.202 | 149.905 | 948 |
| 19/3.18 | 5/8 | 15.88 | 80.513 | 124.995 | 178.819 | 1184 |
| 19/3.81 | 3/4 | 19.05 | 116.543 | 181.487 | 259.331 | 1719 |
| 19/4.50 | 7/8 | 22.22 | 159.691 | 248.211 | 354.523 | 2352 |
| 19/5.08 | 1 | 25.4 | 209.066 | 325.61 | 464.839 | 2384 |
| 37/3.63 | 1 | 25.4 | 205.508 | 319.827 | 456.832 | 3061 |
| 37/4.09 | 11/8 | 28.58 | 262 | 407.457 | 581.827 | 4006 |
| 37/4.55 | 11/4 | 31.75 | 324.72 | 505.318 | 721.502 | 4833 |
Galvanized Steel Wire Strand BS 183 : 1972|
| Number of wires/Dia. | Approx.Strand Dia. | Minimum Breaking Load of Strand | Approx. Weight |
| Grade 350 | Grade 480 | Grade 700 | Grade 850 | Grade 1000 | Grade 1150 | Grade 1300 |
| | mm | kN | kN | kN | kN | kN | kN | kN | kg/km |
| 3/1.80 | 3.9 | 2.65 | 3.66 | - | - | - | - | - | 60 |
| 3/2.65 | 5.7 | 5.80 | 7.95 | - | - | - | - | - | 130 |
| 3/3.25 | 7 | 8.70 | 11.95 | - | - | - | - | - | 195 |
| 3/4.00 | 8.6 | 13.20 | 18.10 | - | - | - | - | - | 295 |
| 4/1.80 | 4.4 | 3.55 | 4.90 | - | - | - | - | - | 80 |
| 4/2.65 | 6.4 | 7.70 | 10.60 | - | - | - | - | - | 172 |
| 4/3.25 | 7.9 | 11.60 | 15.90 | - | - | - | - | - | 260 |
| 4/4.00 | 9.7 | 17.60 | 24.10 | 35.20 | - | - | - | - | 390 |
| 5/1.50 | 4.1 | 3.10 | 4.24 | 6.18 | - | - | - | - | 69 |
| 5/1.80 | 4.9 | 4.45 | 6.10 | 8.90 | - | - | - | - | 95 |
| 5/2.65 | 7.2 | 9.65 | 13.25 | 19.30 | - | - | - | - | 220 |
| 5/3.25 | 8.8 | 14.50 | 19.90 | 29.00 | - | - | - | - | 320 |
| 5/4.00 | 10.8 | 22.00 | 30.15 | 43.95 | - | - | - | - | 490 |
| 7/0.56 | 1.7 | 0.60 | 0.83 | 1.20 | - | 1.70 | 1.98 | 2.24 | 14 |
| 7/0.71 | 2.1 | 0.97 | 1.33 | 1.94 | - | 2.75 | 3.19 | 3.60 | 28 |
| 7/0.85 | 2.6 | 1.39 | 1.90 | 2.80 | - | 3.95 | 4.57 | 5.15 | 31 |
| 7/0.90 | 2.7 | 1.55 | 2.14 | 3..1 | - | 4.45 | 5.12 | 5.80 | 35 |
| 7/1.00 | 3 | 1.92 | 2.64 | 3.85 | - | 5.50 | 6.32 | 7.15 | 43 |
| 7/1.25 | 3.8 | 3.01 | 4.10 | 6.00 | - | 8.55 | 9.88 | 11.15 | 67 |
| 7/1.40 | 4.2 | 3.75 | 5.17 | 7.54 | 9.16 | 10.75 | 12.35 | 14.00 | 84 |
| 7/1.60 | 4.8 | 4.90 | 6.75 | 9.85 | 11.95 | 14.10 | 16.20 | 18.30 | 110 |
| 7/1.80 | 5.4 | 6.23 | 8.55 | 12.45 | - | 17.80 | 20.50 | 23.20 | 140 |
| 7/2.00 | 6.0 | 7.70 | 10.55 | 15.40 | - | 22.00 | 25.30 | 28.60 | 170 |
| 7/2.36 | 7.1 | 10.70 | 14.70 | 21.40 | - | 30.60 | 35.20 | 39.80 | 240 |
| 7/2.65 | 8.0 | 13.50 | 18.50 | 27.00 | - | 38.60 | 44.40 | 50.20 | 300 |
| 7/3.00 | 9.0 | 17.30 | 23.75 | 34.65 | - | 49.50 | 56.90 | 64.30 | 392 |
| 7/3.15 | 9.5 | 19.10 | 26.20 | 38.20 | - | 54.55 | 62.75 | 70.90 | 430 |
| 7/3.25 | 9.8 | 20.30 | 27.85 | 40.65 | - | 58.05 | 66.80 | 75.50 | 460 |
| 7/3.65 | 11.0 | 25.60 | 35.15 | 51.25 | - | 73.25 | 84.20 | 95.20 | 570 |
| 7/4.00 | 12.0 | 30.90 | 42.20 | 61.60 | - | 88.00 | 101.00 | 114.00 | 690 |
| 7/4.25 | 12.8 | 34.75 | 47.65 | 69.50 | - | 99.30 | 114.00 | 129.00 | 780 |
| 7/4.75 | 14.0 | 43.40 | 59.45 | 86.80 | - | 124.00 | 142.70 | 161.30 | 970 |
| 19/1.00 | 5.0 | 5.22 | 7.16 | 10.45 | - | 14.92 | 17.16 | 19.40 | 120 |
| 19/1.25 | 6.3 | 8.16 | 11.19 | 16.32 | - | 23.32 | 26.81 | 30.31 | 180 |
| 19/1.40 | 7.0 | 10.24 | 14.04 | 20.47 | - | 29.25 | 33.64 | 38.02 | 230 |
| 19/1.60 | 8.0 | 13.37 | 18.35 | 26.75 | - | 38.20 | 43.93 | 49.66 | 300 |
| 19/2.00 | 10.0 | 20.90 | 28.65 | 41.78 | 50.74 | 59.69 | 68.64 | 77.60 | 470 |
| 19/2.50 | 12.5 | 32.65 | 44.80 | 65.29 | 79.28 | 93.27 | 107.30 | 121.30 | 730 |
| 19/3.00 | 15.0 | 47.00 | 64.50 | 94.00 | 114.10 | 134.30 | 154.50 | 174.60 | 1050 |
| 19/3.55 | 17.8 | 65.80 | 90.27 | 131.60 | 159.90 | 188.00 | 216.30 | 244.50 | 1470 |
| 19/4.00 | 20.0 | 83.55 | 114.60 | 167.10 | 203.00 | 238.70 | 274.60 | 310.40 | 1870 |
| 19/4.75 | 23.8 | 117.85 | 161.40 | 235.70 | 286.00 | 336.70 | 387.20 | 437.70 | 2630 |
Con.Dia. mm | Dia. strand mm | cross-section mm2 | Tensile strength, (Mpa ) | Zinc Coating Mass No Less Than (g/m2) | weight kg/km | |
| 1370 | 1470 | 1570 | 1670 | 1770 |
| Minmium breaking force(KN) |
| 1*7 | 0.33 | 1 | 0.6 | | | | | 0.8 | 5 | 4.9 |
| 0.4 | 1.2 | 0.88 | | | | | 1 | 5 | 7.1 |
| 0.60 | 1.80 | 1.98 | | | | 2.8 | | 5 | 16 |
| 0.80 | 2.4 | 3.52 | | | | 3.04 | | 10 | 28.5 |
| 0.90 | 2.70 | 4.45 | | | 6.43 | | | 10 | 36 |
| 1 | 3.00 | 5.5 | | 7.99 | | | | 20 | 44.5 |
| 1.20 | 3.60 | 7.92 | | 10.71 | | | | 20 | 64 |
| 1.40 | 4.2 | 10.78 | | 14.58 | | | | 20 | 87.2 |
| 1.6 | 4.8 | 14.07 | 17.73 | | | | | 20 | 113.8 |
| 1.8 | 5.40 | 17.87 | 22.45 | | | | | 20 | 144 |
| 2 | 6.00 | 21.99 | 27.72 | | | | | 20 | 177.8 |
Technical DataGeneral
1.24~2.25 | 1340 | 1170 | 3.0 | 16 | | 2.25~2.75 | 1310 | 1140 | 3.0 | 16 |
| 2.75~3.00 | 1310 | 1140 | 3.5 | 16 |
| 3.00~3.50 | 1290 | 1100 | 3.5 | 14 |
| 3.50~4.25 | 1290 | 1100 | 4.0 | 12 |
| 4.25~4.75 | 1290 | 1100 | 4.0 | 12 |
| 4.75~5.50 | 1290 | 1100 | 4.0 | 12 |
| High | 1.24~2.25 | 1450 | 1310 | 2.5 | 16 |
| 2.25~2.75 | 1410 | 1280 | 2.5 | 16 |
| 2.75~3.00 | 1410 | 1280 | 3.0 | 16 |
| 3.00~3.50 | 1410 | 1240 | 3.0 | 14 |
| 3.50~4.25 | 1380 | 1170 | 3.0 | 12 |
| 4.25~4.75 | 1380 | 1170 | 3.0 | 12 |
| 4.75~5.50 | 1380 | 1170 | 3.0 | 12 |
| Very high | 1.24~2.25 | 1620 | 1450 | 2.0 | 14 |
| 2.25~2.75 | 1590 | 1410 | 2.0 | 14 |
| 2.75~3.00 | 1590 | 1410 | 2.5 | 12 |
| 3.00~3.50 | 1550 | 1380 | 2.5 | 12 |
| 3.50~4.25 | 1520 | 1340 | 2.5 | 10 |
| 4.25~4.75 | 1520 | 1340 | 2.5 | 10 |
| 4.75~5.50 | 1520 | 1270 | 2.5 | 10 |

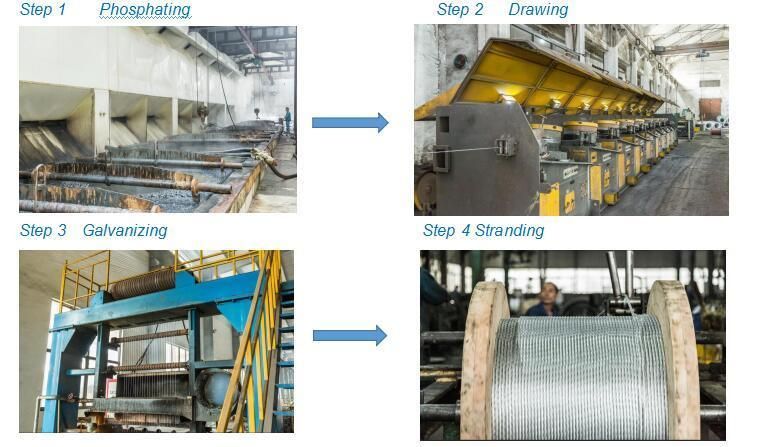

Production process
GSW producing process is phosphating, drawing, galvanizing, stranding and packing .

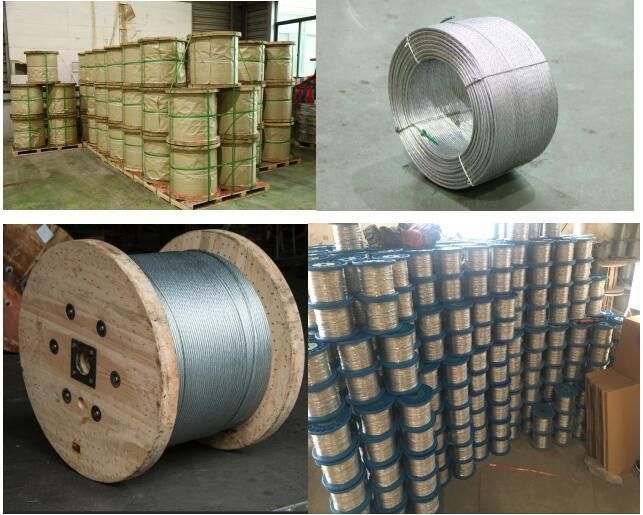

Package

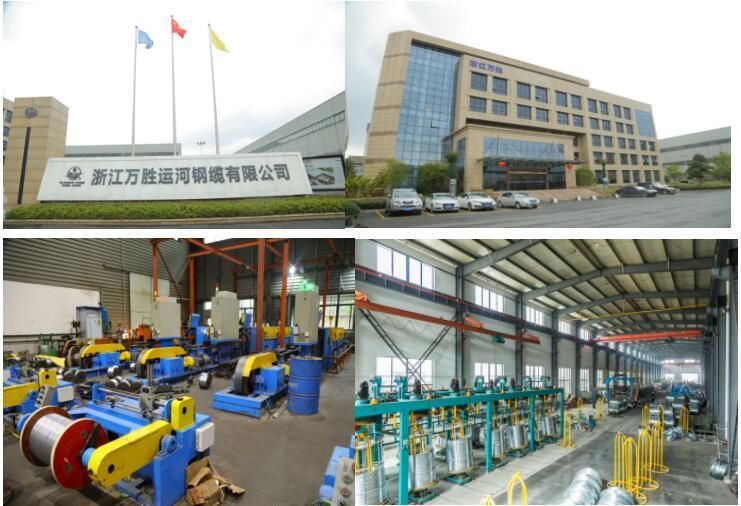

About us
ZHEJIANG WANSHENG YUNHE STEEL CABLE CO .,LTD established in 1958,located in Hangzhou City,it is one of the leading manufacturer for
galvanized steel wire and strand, Aluminium Clad Steel wire & strand for cables & communication industry in China around more than 60 years .Also it is
national key supporting high-tech enterprise.The production capacity at present over 30,000 tons per year.We now have a registered capital of
200 million RMB and covering an area of 37 thousand square meters. Our company has attained ISO 9001 quality management system
certifications and ISO 14001 quality environment system certifications.
Our company's "Yunhe'' brand products as follows: Galvanized steel core wire and strand for aluminum conductor steel reinforced(ACSR)for power
transmission lines, poles or towers,Galvanized steel wire and strand, Phosphate steel wire for optical fiber cable ,Carbon spring steel wire,Aluminium
Clad Steel Wire & Strand ,Galvanized steel wire for armouring cable.
