Painted Ibr Roof Flashing/Trapezoidal Residential Housing Tin Sheetings

Zhengzhou City Unites Steel Industrial Co., Ltd.
  • Technique:Cold Rolled
  • Surface Treatment:Coated
  • Certification:ISO, RoHS, IBR
  • Standard:ASTM, AISI, GB, JIS, DIN, BS
  • Type:Steel Plate
  • Application:Roofing and Wall

Base Info

  • Color:Ral or Customer′s Sample
  • Weight of Pallet:1-3tons
  • Zinc Coating:40-275GSM
  • Length:Max 11.8meters
  • Width:680-1050
  • Thickness:0.13mm-0.8mm
  • Raw Material:PPGI, HDG, Aluminium Sheet, Galvalume Sheet
  • Coating Structure:2,1; 2,2
  • Coating Thickness:Top: 15-35um; Back: 7-25um
  • Type of Painting:PE, PVDF, HDP, SMP
  • Stock:Not Stock
  • Special Use:Fence
  • Model NO.:CUS-864
  • Transport Package:Seaworthy Packaging
  • Specification:according to your requirements
  • Trademark:CUS-STEEL
  • Origin:China
  • HS Code:72107010
  • Production Capacity:200000tons,Year

Description

Basic Info.

Model NO. CUS-864 Special Use Fence Stock Not Stock Type of Painting PE, PVDF, HDP, SMP Coating Thickness Top: 15-35um; Back: 7-25um Coating Structure 2/1; 2/2 Raw Material PPGI, HDG, Aluminium Sheet, Galvalume Sheet Thickness 0.13mm-0.8mm Width 680-1050 Length Max 11.8meters Zinc Coating 40-275GSM Weight of Pallet 1-3tons Color Ral or Customer′s Sample Transport Package Seaworthy Packaging Specification according to your requirements Trademark CUS-STEEL Origin China HS Code 72107010 Production Capacity 200000tons/Year

Product Description

1. Trapezoidal roofing sheet introduction:
It is one of the most corrosion resistant roofing materials which is being applied in the architectural field and siding panel market. It has life than the traditional galvanized finish products.


2. Trapezoidal roofing sheet main structure:
It is galvanized steel sheet coated with painting by a continuous process Production Methods.  Besides, the raw material could also be galvalume steel.




3. Trapezoidal roofing sheet application scope:
It is widely used for commercial, agricultural, and industrial purposes, however, it is now also being recognized as an excellent form of residential roofing.




4. Trapezoidal roofing sheet main features:
1). Combine the excellent barrier corrosion protection of aluminum with the galvanic protection of zinc.
2). Preferred product for long-term resistance to atmospheric corrosion
3). The superior corrosion resistance of Trapezoidal roofing sheet is achieved by the presence of microscopic zinc-rich and aluminum-rich areas within the coating.
4). Easy to install, high strength and lower costs
5). Trapezoidal roofing sheet is widely used as walls or roofs for factories, warehouses, garages, exhibition centers




5. Trapezoidal Roofing Sheet technical processing
Hot rolled steel coil -->Cold rolled- >hot dipped galvanized/ galvalume/painted- > corrugated-->packing


GoodsTrapezoidal Roofing Sheet
Thickness0.13mm-0.8mm
Width665mm-1220 (AC)
Zinc coating40g-275g/m2
Painting CoatingTop: 15-35microns; Back: 7-25microns
Type of PaintingPE, PVDF, SMP, HDP
Length1000mm-6000mm as your required
ToleranceWidth:+/-5mm, Thickness:+/-0.02mm
Base MaterialPPGI or PPGL Steel Plate
Surface treatmentFilmed, Embossed
TechnologyCold Rolled
Material GradeDx51D, SGCC, SGCH
StandardASTM, JIS, DIN, EN, GB

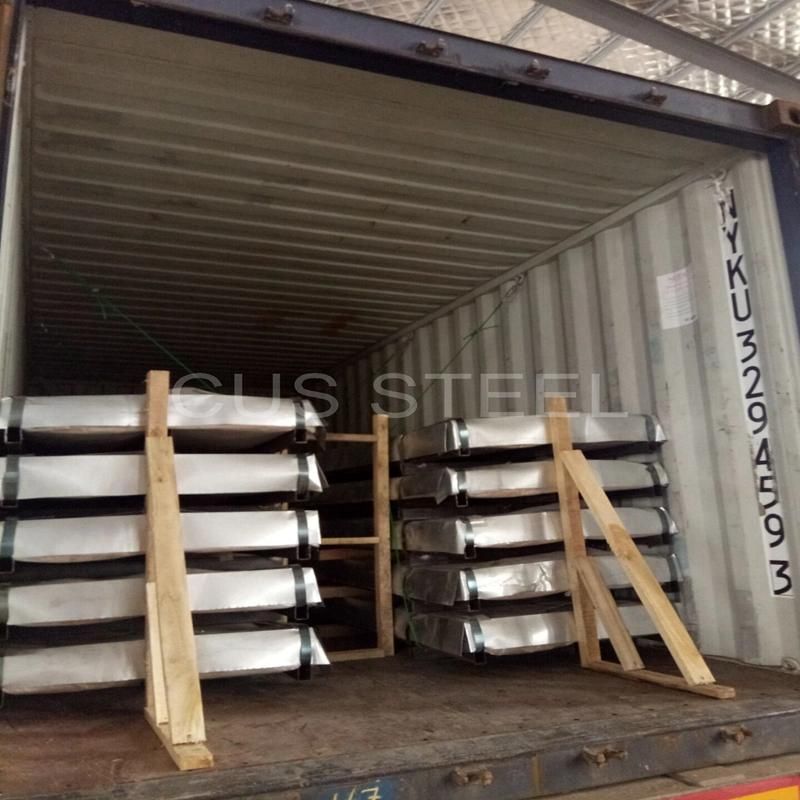

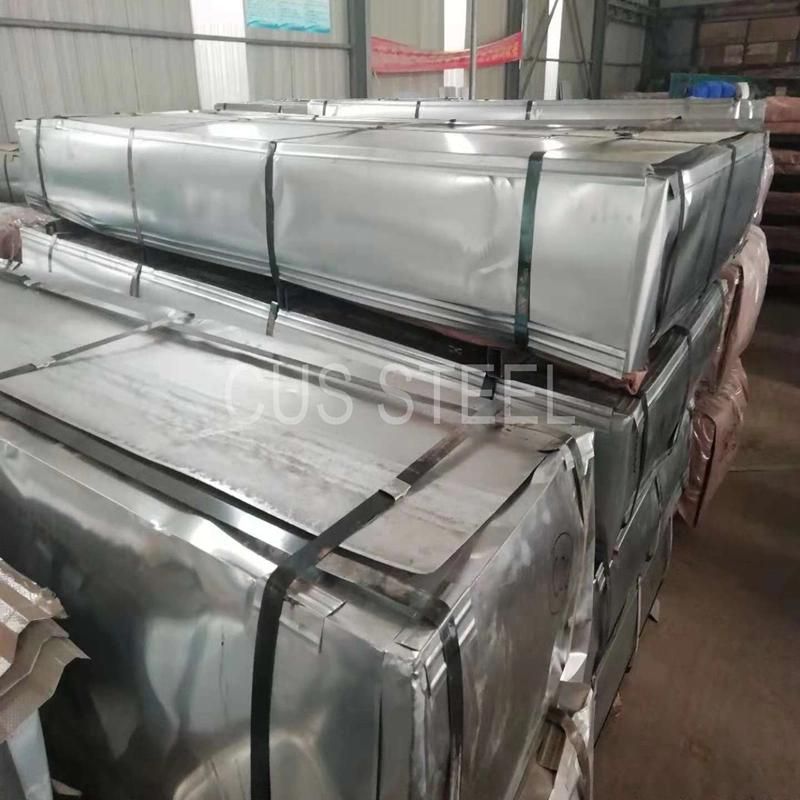

Packagingexport standard seaworthy packaging with moisture resistant paper and metal
wrapping, securely tied for export, on metal skids
Weight of Pallet1-3tons

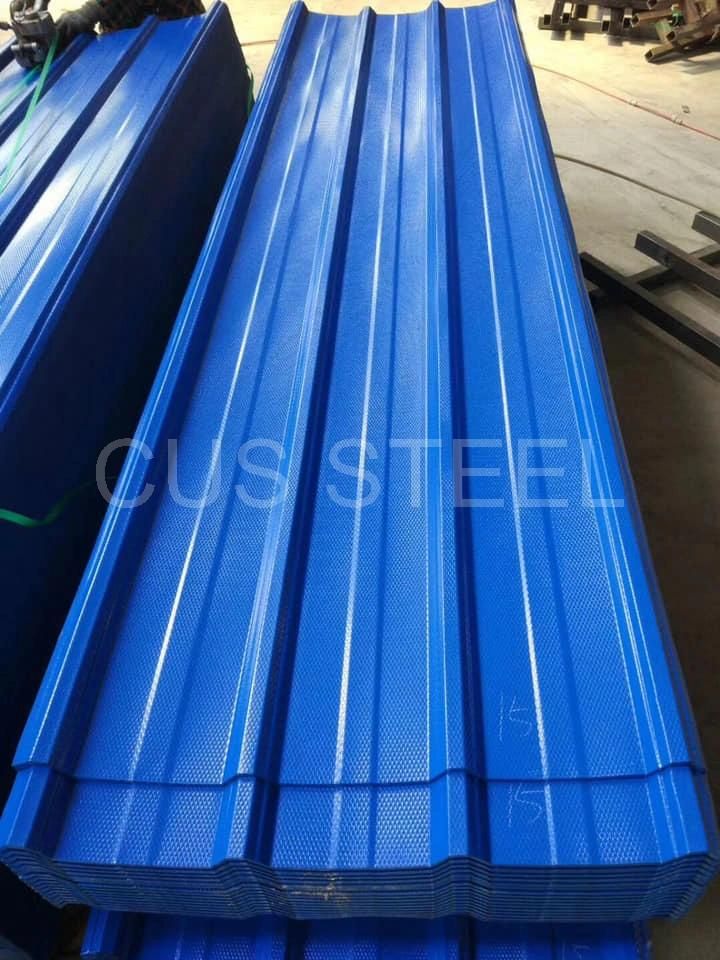

Painted Ibr Roof Flashing/Trapezoidal Residential Housing Tin Sheetings
