• Origin：China
• Trademark：GANGPU
• Specification：40mm
• Transport Package：Pallet
• Surface Treatment：Pickling
• Model NO.：Q235
• HS Code：7220110000
• Production Capacity：10000t,M

Basic Info.

Model NO. Q235 Surface Treatment Pickling Transport Package Pallet Specification 40mm Trademark GANGPU Origin China HS Code 7220110000 Production Capacity 10000t/M

Product Description

High quality Equal Angle Bar/mild steel Angle/Galvanized Angle Steel From China with ASTM BS JIS EU DIN

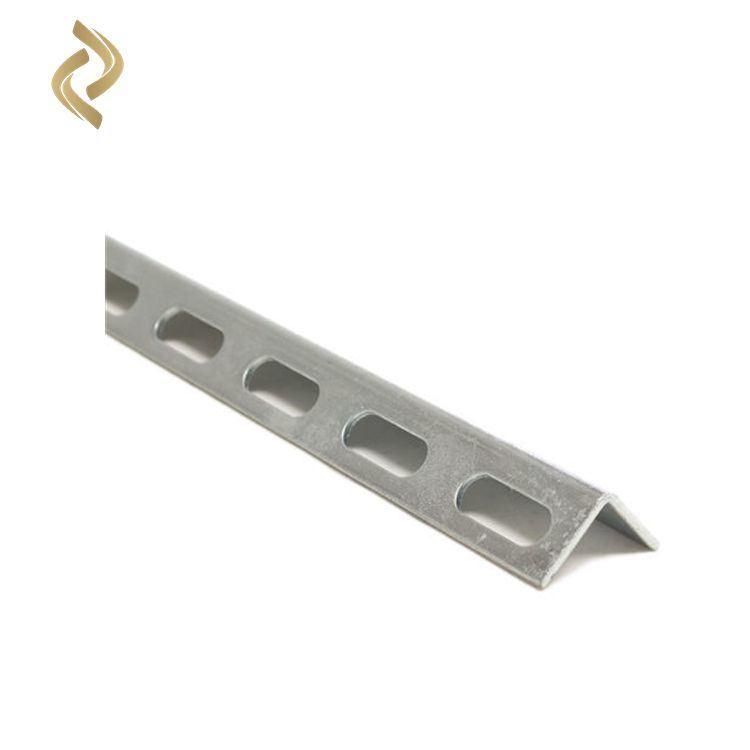

Product image:


Product parameter:

Commodity:  Equal Angle Steel / Unequal Angle Steel
Dimension range:  25x25mm - 200x200mm / 25x16mm - 200x125mm
Wall thickness:  3mm - 20mm
Length:  1-12meters (Normal length 6meters ,accept fixed length)
Material:  Q195 and Q235 Mild Steel ,Q345 Alloy steel,ASTM A36, SS400, S235JRH
Chemical composition : C<0.22%,Mn:0.30-0.65%,P<0.060%,S<0.060%
Surface treatment:  Black Anneal
Thickness tolerance:  +/- 0.05mm
Wing Tolerance:  +/- 0.05mm
Technique:  Hot rolled
Quality: No delamination, scar, crack etc, must be straight.
Application:  Structure steel, Machine steel, Steel products,Fence
                ,Road sign, warmhouse booth,etc
MOQ:  10MT
Package:  to be packed in bundle, wrapped with steel strips.
Payment term:  T/T or L/C at sight
Delivery time:  within 15-20days after receiving the deposit
Remark:  Special spec is available


Size Leg Length × Leg Length × thickness(mm)	GB Weight(kg/m)	Available Length	Size Leg Length × Leg Length × thickness(mm)	GB Weight(kg/m)	Available Length
25 ×25×3	1.124	6-12m	90 ×90×8	10.946	6-12m
25 ×25×4	1.459	6-12m	90 ×90×9	12.219	6-12m
30 ×30×3	1.373	6-12m	90 ×90×10	13.476	6-12m
30 ×30×4	1.786	6-12m	90 ×90×12	15.94	6-12m
40 ×40×3	1.852	6-12m	100 ×100×6	9.366	6-12m
40 ×40×4	2.422	6-12m	100×100×7	10.83	6-12m
40 ×40×5	2.976	6-12m	100 ×100×8	12.276	6-12m
45 ×45×3	2.088	6-12m	100 ×100×10	15.12	6-12m
45 ×45×4	2.736	6-12m	100 ×100×12	17.898	6-12m
45 ×45×5	3.369	6-12m	100 ×100×14	20.611	6-12m
45 ×45×6	3.985	6-12m	100 ×100×16	23.257	6-12m
50 ×50×3	2.332	6-12m	110 ×110×7	11.928	6-12m
50 ×50×4	3.059	6-12m	110 ×110×8	13.532	6-12m
50 ×50×5	3.77	6-12m	110 ×110×10	16.69	6-12m
50 ×50×6	4.465	6-12m	110 ×110×12	19.782	6-12m
56 ×56×3	2.624	6-12m	110 ×110×14	22.809	6-12m
56 ×56×4	3.446	6-12m	120 ×120×10	18.2	6-12m
56 ×56×5	4.251	6-12m	120 ×120×12	21.6	6-12m
60 ×60×5	4.57	6-12m	125 ×125×8	15.504	6-12m
60 ×60×6	5.42	6-12m	125 ×125×10	19.133	6-12m
63 ×63×4	3.907	6-12m	125 ×125×12	22.696	6-12m
63 ×63×5	4.822	6-12m	125 ×125×14	26.193	6-12m
63 ×63×6	5.721	6-12m	140 ×140×10	21.488	6-12m
63 ×63×8	7.469	6-12m	140 ×140×12	25.522	6-12m
70 ×70×5	5.397	6-12m	140 ×140×14	29.49	6-12m
70 ×70×6	6.406	6-12m	140 ×140×16	33.393	6-12m
70 ×70×7	7.398	6-12m	160 ×160×10	24.729	6-12m
70 ×70×8	8.373	6-12m	160 ×160×12	29.391	6-12m
75 ×75×5	5.818	6-12m	160 ×160×14	33.987	6-12m
75 ×75×6	6.905	6-12m	160 ×160×16	38.518	6-12m
75 ×75×7	7.976	6-12m	180 ×180×12	33.159	6-12m
75 ×75×8	9.03	6-12m	180 ×180×14	38.383	6-12m
75 ×75×10	11.089	6-12m	180 ×180×16	43.542	6-12m
80 ×80×5	6.211	6-12m	180 ×180×18	48.634	6-12m
80 ×80×6	7.376	6-12m	200 ×200×14	42.894	6-12m
80 ×80×7	8.525	6-12m	200 ×200×16	48.68	6-12m
80 ×80×8	9.658	6-12m	200 ×200×18	54.401	6-12m
80 ×80×10	11.874	6-12m	200 ×200×20	60.056	6-12m
90 ×90×6	8.35	6-12m	200 ×200×24	71.168	6-12m
90 ×90×7	9.656	6-12m

 More details:


Product package:

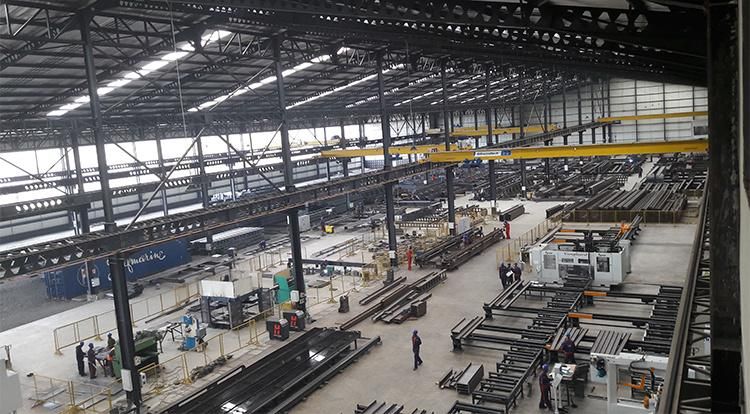

Company profile:

Shandong Gangpu Metal Materials Co., Ltd. is a company with abundant experiences and necessary certificates. Products of Gangpu are applicable for various applications. We can also provide innovative supply chain solutions worldwide.

Gangpu is more than a supplier. We are a partner you can trust for sound advice and responsive service. We will get to know your company, your applications and your specialty metals needs while developing a program that satisfies those needs allowing us to help your company achieve its production and profitability goals.

Every sales manager of Gangpu is backed by years of training and experiences. As a result, they can provide thoughtful services to help you succeed. To drive your success is our commitment. Gangpu prioritizes the integrity, respects every customer, and pursues customer's satisfaction with continuous improvement.
