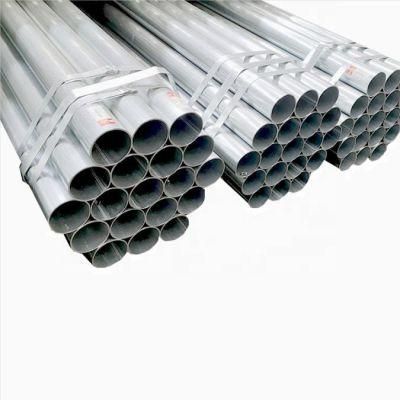

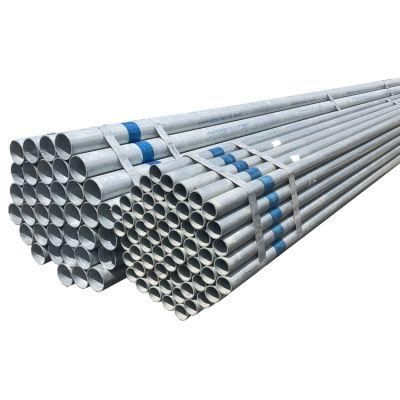

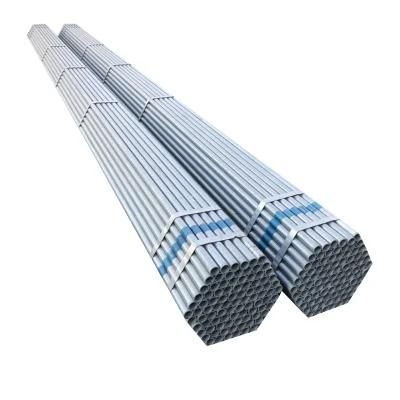

Rigid Electrical Conduit Tubing
Weifang East Pipe Industry Technical Co., Ltd.- Usage：Pipeline Transport, Machinery Industry, Mining, Construction & Decoration, Wire Pulling
- Surface Treatment：Hot DIP Galvanized
- Technique：ERW
- Material：Carbon Steel
- Type：Welded
- Section Shape：Round
Base Info
- Specification：1,2"-6"
- Transport Package：Bundles
- Model NO.：1,2"-6"
- Trademark：east conduit
- Origin：China
Description
| Nominal Wall Thickness | |||||||
| U.S. | Metric | Lbs | Kg | In. | mm | In. | mm |
| 1/2" | 16 | 82 | 37.2 | 0.84 | 21.3 | 0.104 | 2.6 |
| 3/4" | 21 | 109 | 49.44 | 1.05 | 26.7 | 0.107 | 2.7 |
| 1" | 27 | 161 | 73.03 | 1.315 | 33.4 | 0.126 | 3.2 |
| 1-1/4" | 35 | 218 | 98.88 | 1.66 | 42.2 | 0.133 | 3.4 |
| 1-1/2" | 41 | 263 | 119.3 | 1.9 | 48.3 | 0.138 | 3.5 |
| 2" | 53 | 350 | 158.76 | 2.375 | 60.3 | 0.146 | 3.7 |
| 2-1/2" | 63 | 559 | 253.56 | 2.875 | 73 | 0.193 | 4.9 |
| 3" | 78 | 727 | 329.77 | 3.5 | 88.9 | 0.205 | 5.2 |
| 3-1/2" | 91 | 880 | 399.17 | 4 | 101.6 | 0.215 | 5.5 |
| 4" | 103 | 1030 | 467.21 | 4.5 | 114.3 | 0.225 | 5.7 |
| 5" | 129 | 1400 | 635.04 | 5.563 | 141.3 | 0.245 | 6.2 |
| 6" | 155 | 1840 | 834.62 | 6.625 | 168.3 | 0.266 | 6.8 |
Applicable tolerances:
Length: 10Ft (3.05m) ± ¼" (±6.35mm).
Outside Diameter: ½"-2" ±0.015" (±0.38mm); 2½"-4" ±0.025" (±0.64mm); 5"-6" ± 1%
CONTACT INFORMATION:
TEL:+86-536-8187103

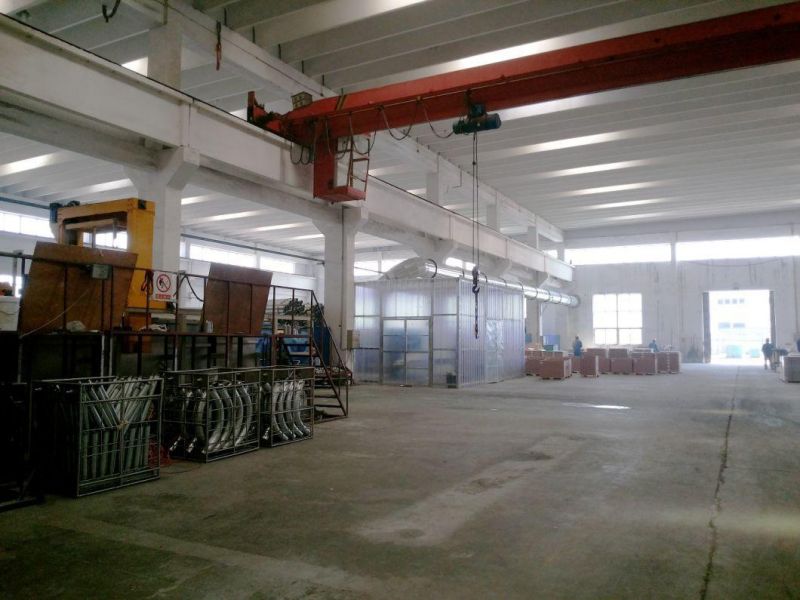

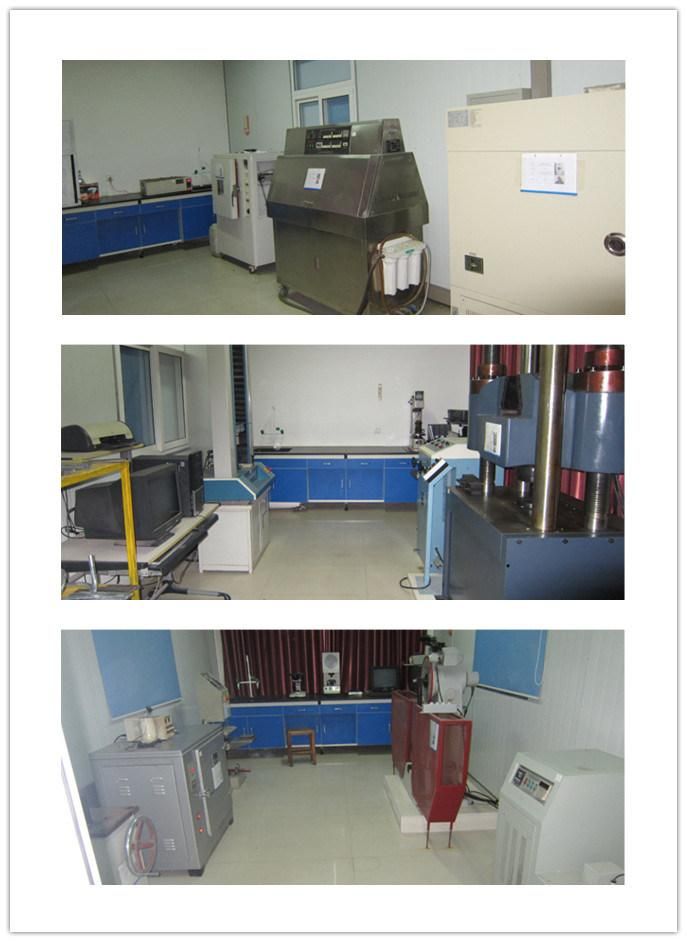

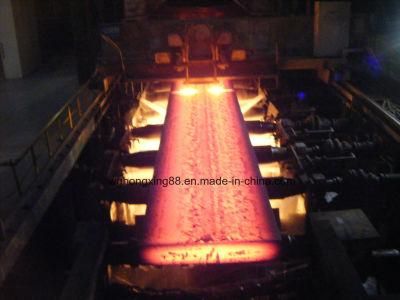

FACTORY AND LABORATORY

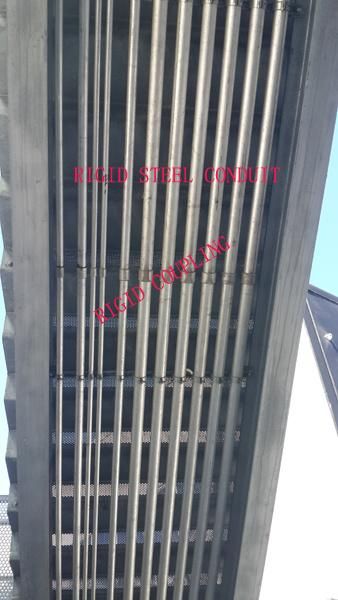

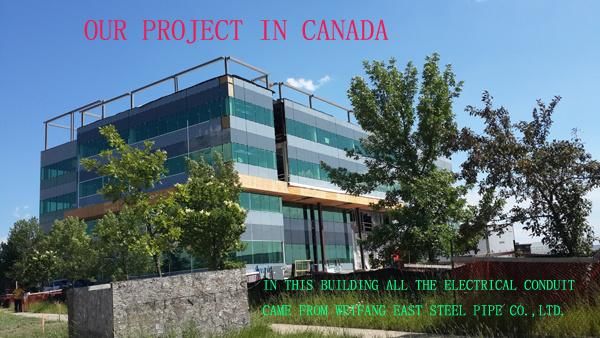

PRODUCTS IN THE WORLD
