• Surface Hardness：HRC58-60
• Chrome Layer Hardness：Hv800-1000
• Chrome Layer Thickness：15μm ~ 25μm ( Customized)
• Surface Hardning Depth：0.8-3mm
• Transport Package：Paper Sleeve and Wooden Box
• HS Code：8483109000
• Production Capacity：100 Tons ,Month

Basic Info.

Surface Hardness HRC58-60 Chrome Layer Hardness Hv800-1000 Chrome Layer Thickness 15μm ~ 25μm ( Customized) Surface Hardning Depth 0.8-3mm Transport Package Paper Sleeve and Wooden Box HS Code 8483109000 Production Capacity 100 Tons /Month

Product Description

Company overview

Suzhou Weipeng Precision Machinery Co., Ltd. is located in Suzhou, which is a foreign trade oriented economic developed city, adjacent to international port city Shanghai. Established in 2009, we're a manufacturing company specialized in the production of piston rods and linear shafts.


     Quality  is  Life  of  Enterprise. Your  Satisfaction  is  Our  Goal.

Main Products:

We offer the manufacturers of hydraulic and pneumatic cylinders a wide assortment of high quality tube and piston products.

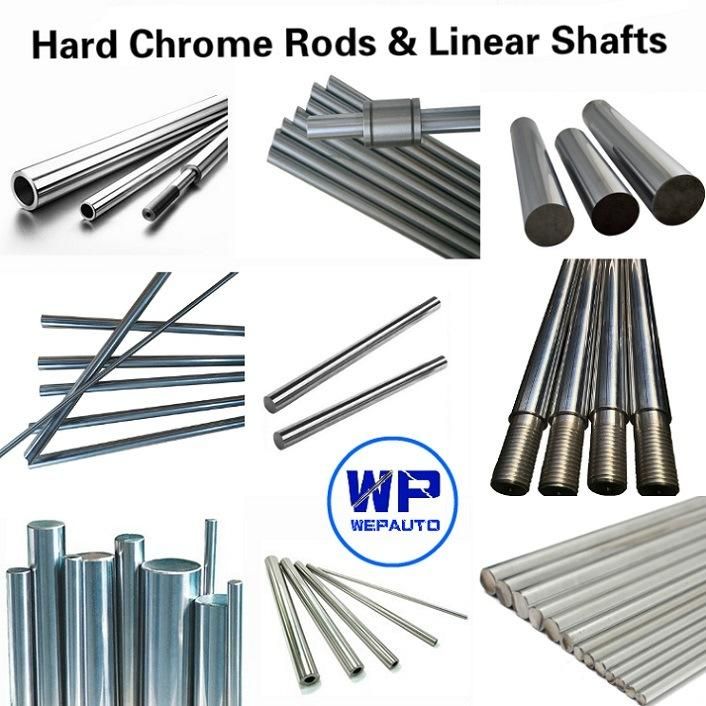

Hard Chrome Plated Rod, Hydraulic Piston Rod, Cylinder Piston Rod, Chromium Rods, Hard Chrome Shaft, Induction Rod, Induction Shaft, etc.

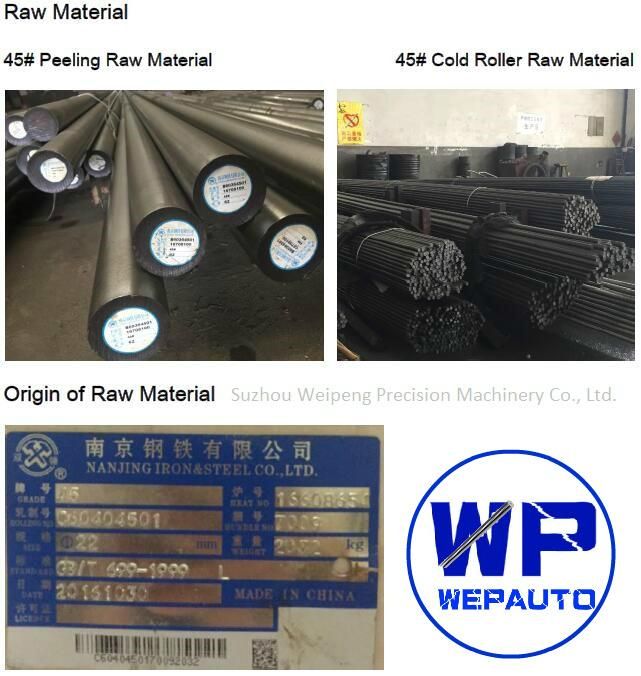

Material: JIS S45C, SAE1045, DIN CK45

The hard chromium piston rods produced by our company come with more than JIS S45C material, where the rods first undergo precision milling and processing, and are then put through gard surface chromium treatment, allowing a surface precision level of f7, and a surface hardness reaching HV800 minimum and up, which not only help to improve wear resistance but also help to extend the life cycle of the rods, thus helping the customer save cost.

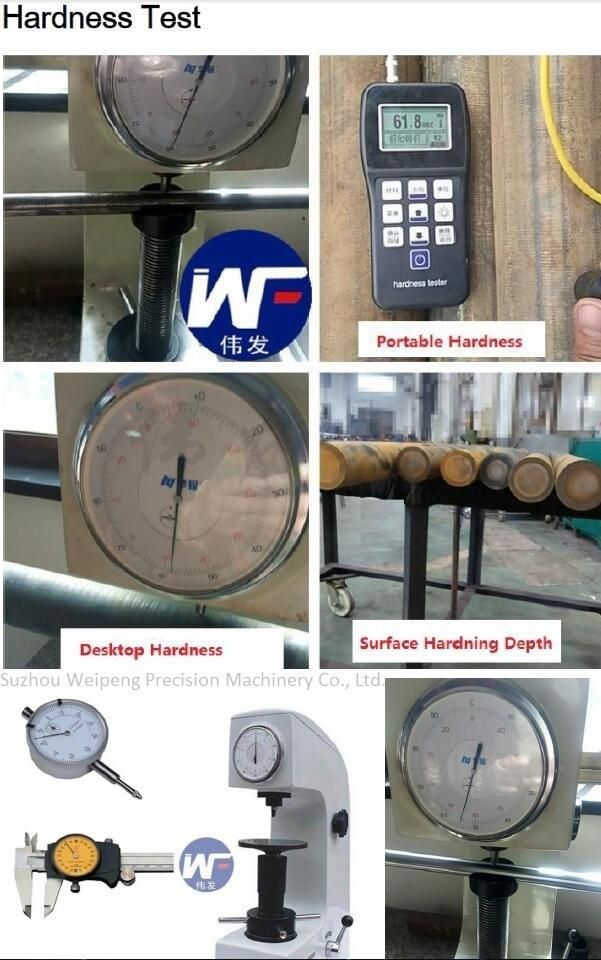

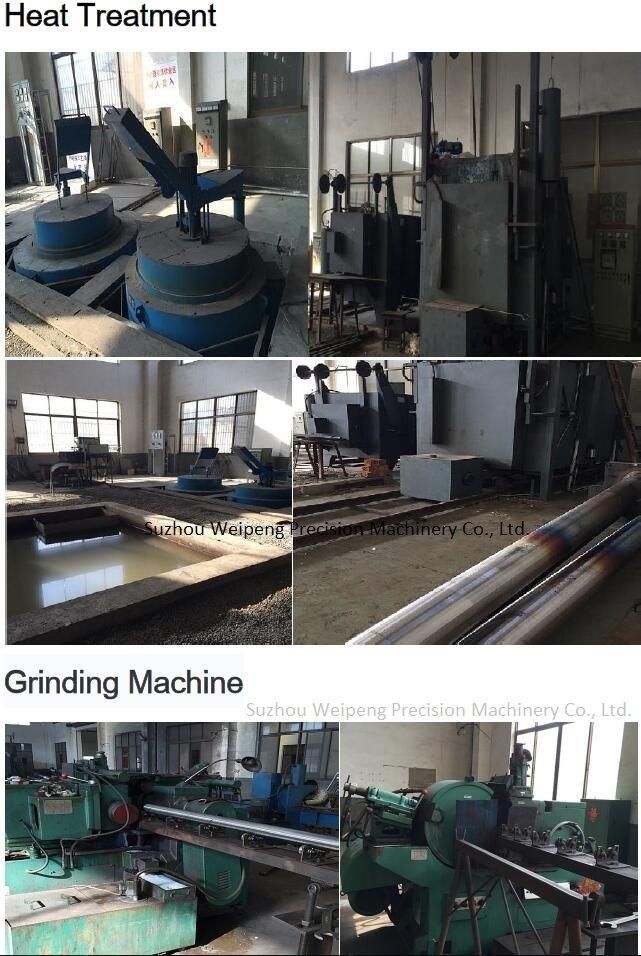

The corrosion resistances is tested in our own internal salt spray laboratory, and The rods surface heat treatment and hardness reaching HRC55°±2°, and at a hardened depth of between 0.5mm - 3mm, before the rods are put through precision milling and hard chromium treatment for a membrane thickness measuring 20 micron ± 10% to drastically improve the rod's wear resistance, and help to extend the life cycle of the rods.

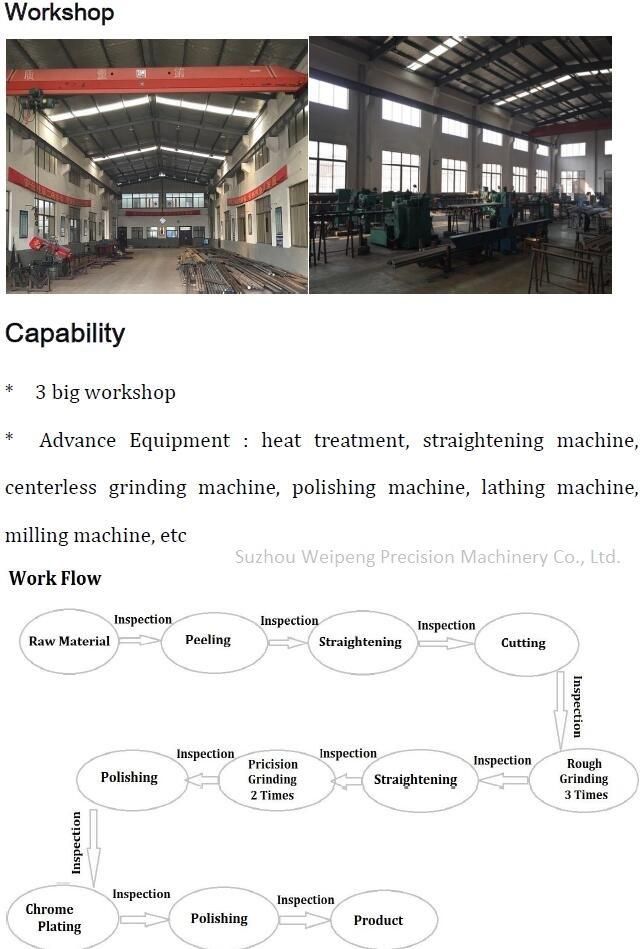

Company Capability











Our main product specifications are written below for your reference.  If any interest, pls feel free to contact us.
1.

Item	Hard Chrome Plated Rod	Induction Hard Chrome Rod
Place of Origin	Jiangsu, China	Jiangsu, China
Material	JIS S45C, SAE1045, DIN CK45	JIS S45C, SAE1045, DIN CK45
Length	1000-6000mm	1000-6000mm
Shaft Diameter	3-120mm	3-120mm
Surface Hardness	without hardened or hardened	HRC58-60
Chrome Layer Hardness	above HV800	above HV800
Chrome Layer Thickness	15μm ~ 25μm ( CUSTOMIZED)	15μm ~ 25μm ( CUSTOMIZED)
Surface Hardning Depth	/	0.8-3mm
Axis Straightness	0.15mm /1000mm	0.15mm /1000mm
Roughness	Ra 0.2μm~0.4μm	Ra 0.2μm~0.6μm
Precision	G6/F7	G6/F7

Chrome Plated Steel Bars:

Our Chrome Plated Bars are produced from medium carbon cold-finished or hot rolled steel bars usually in 1045 grades. The bars are centerless ground, polished, and chrome plated to a minimum thickness of 0.0005", and 0.001" per side.
Chrome Plated bars are specifically designed to be used for most piston rod applications in hydraulic and pneumatic cylinders.

Induction Hardened Chrome Plated Bars:

Our  Induction Hardened Chrome Plated Bars are produced by using advanced processing techniques usually on JIS S45C, SAE1045 or DIN CK45 steel rods, for surface removal, polishing, induction hardening, followed by hard chrome plating to a thickness minimum of 0.0005" or 0.001" per side. The finished product results in a superior impact resistant bar ideal for high quality piston rods capable of handling tough environments.

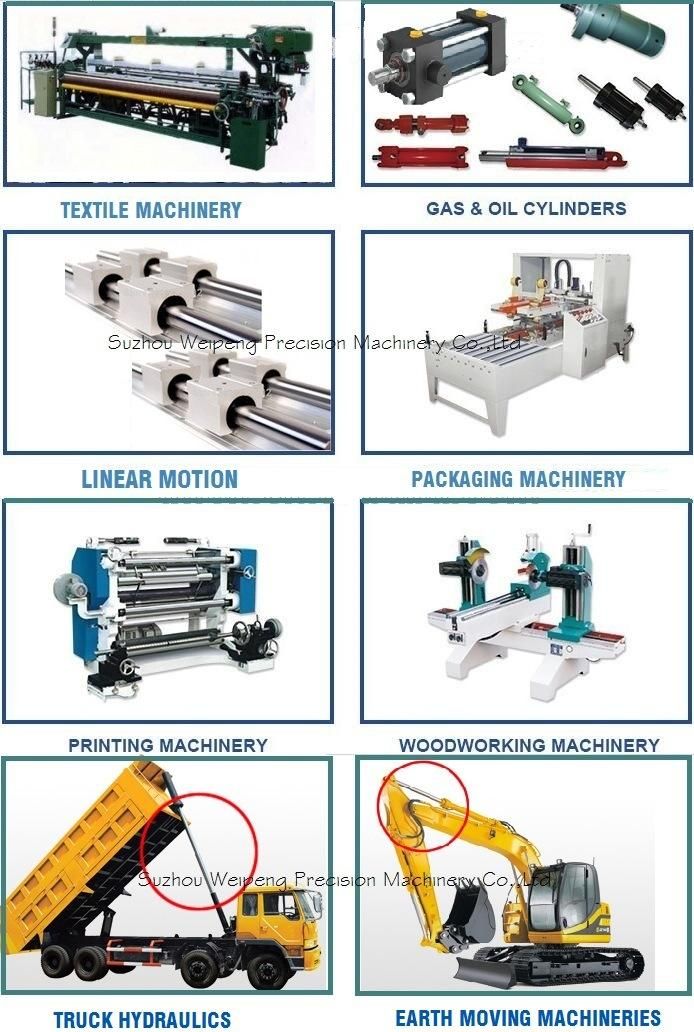

Applications:

Linear Motion Guides, Hydraulic cylinder rods
plastic injection molding machines, construction equipment, rubber molding machines, papermaking machines, printing machines, refrigeration equipment, foods and chemical machinery, loading equipment, fiber spinning equipment, textile machinery, agricultural equipment, automotives, shipbuilding and the like.


2.

Item	Honed Tube
Raw Material	DIN ST52, SAE1020
Pressure & Temperatur Classification	High pressure & temperature piping
Inner Diameter	40mm-320mm
Outer Diameter	50-400mm
Thickness	5-40mm
Length	7000mm
Straightness	Max 0.5/1000mm
Inside Surface Roughness(Ra)	0.2-0.4um
Tolerance INT	DIN2391 H8

Cold Drawn Seamless Mechanical Tubing (CDS)

is a cold drawn 1020 steel tube. Produced from piercing hot rolled bar stock, the cold drawing process increases the tube's physical properties reducing the cost of machine time. Cold drawn seamless tubing provides a better uniformed OD and ID, enhanced machinability, increased strength, and tighter tolerances compared to hot finish seamless products

Applications:

Hydraulic cylinders
Truck and Automotive parts
Heavy equipment
Agricultural components
Auto and Truck Axles, Suspension parts and shock absorbers
High Speed Shafts and rollers
Bearings and Spacers, Roll cages, and many other machined tubular parts.


The raw material we use is the most famous brand in China, which has very high density and stability in the quality. Our products are hightly appreciated by our clients for their competitive price and good quality.
