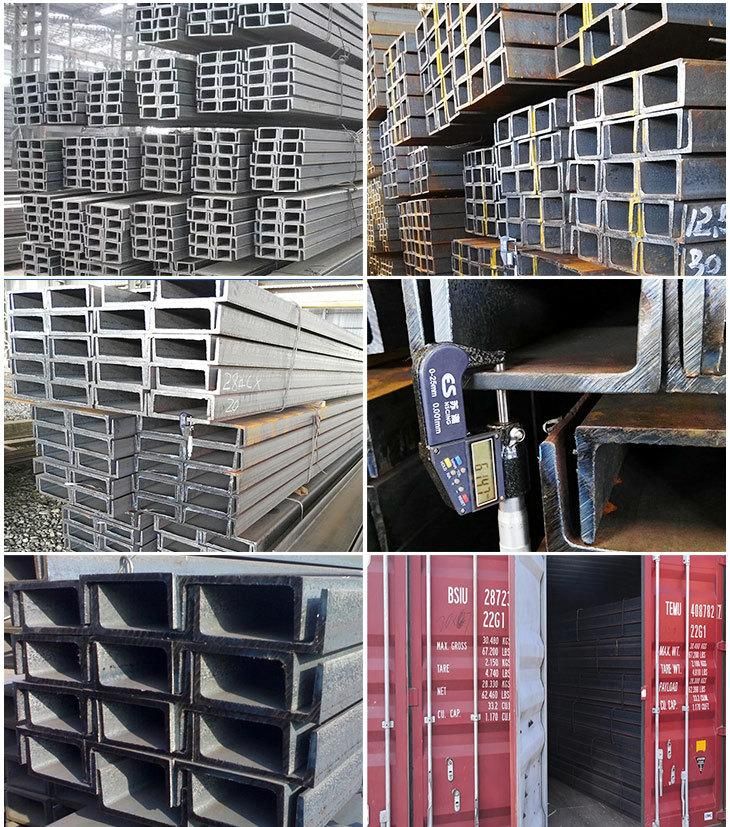

Carbon Steel U Shaped Channel for Steel Warehouse
Zibo Jianda Building Material Co., Ltd.- Type：Hot Rolled Steel Channel
- Standard：GB, ASTM, JIS, AISI, DIN, BS
- Shape：U Channel
- Perforated：Not Perforated
- Length：6-15m
- Zinc Coated：90-600G,M2 , 6-85um
Base Info
- Material：Q195 Q215 Q235 Q345
- HS Code：72163100
Description
Theory Weight
(kg/m)h b d 5# 50 37 4.5 5.438 6.3# 63 40 4.8 6.634 8# 80 43 5 8.045 10# 100 48 5.3 10.007 12# 120 53 5.5 12.059 12.6 126 53 5.5 12.319 14#a 140 58 6 14.535 14#b 140 60 8 16.733 16#a 160 63 6.5 17.24 16#b 160 65 8.5 19.752 18#a 180 68 7 20.174 18#b 180 70 9 23 20#a 200 73 7 22.637 20#b 200 75 9 25.777 22#a 220 77 7 24.999 22#b 220 79 9 28.453 25#a 250 78 7 27.41 25#b 250 80 9 31.335 28#a 280 82 7.5 31.427 28#b 280 84 9.5 35.832 30#a 300 85 7.5 34.463 30#b 300 87 9.5 39.173 32#a 320 88 8 38.083 32#b 320 90 10 43.107 36#a 360 96 9 47.814 36#b 360 98 11 53.466 40#a 400 100 10 58.928 40#b 400 102 12.5 65.208

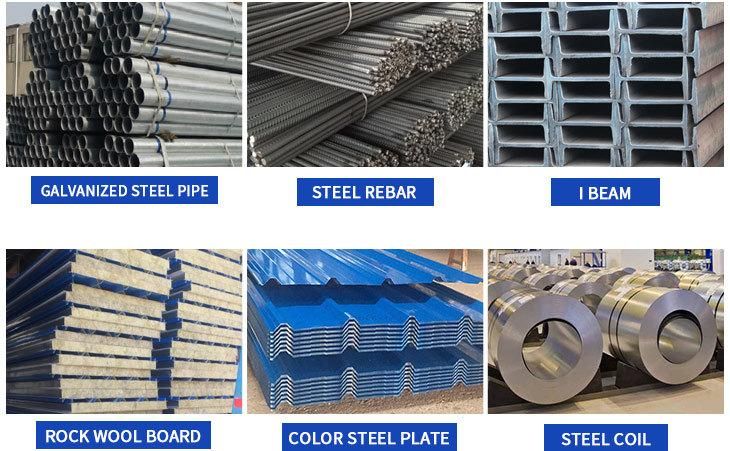

Related Products

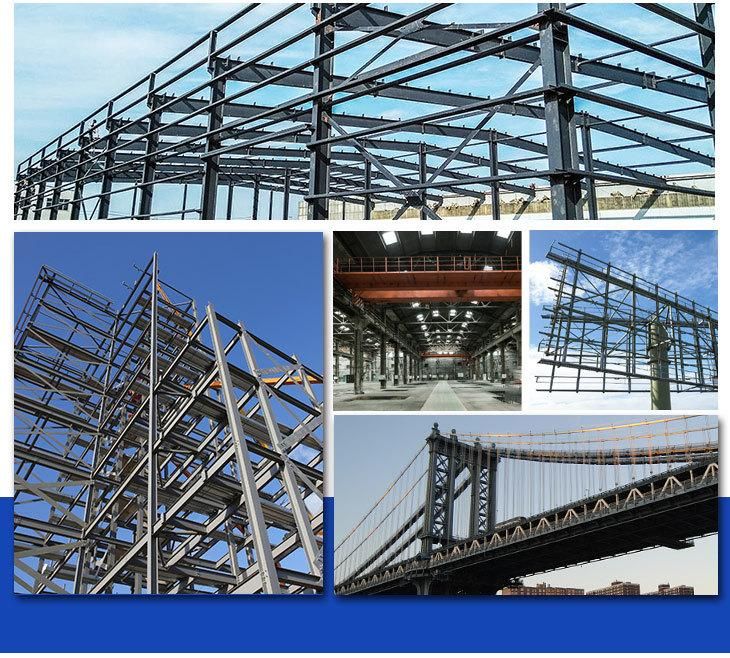

Application:
1: U Beams can be used in the industry and constructions.
2: U Beams also can be used in the large Bridge.
3: The industries of trains, automobiles and tractors also will use the U Beam.
Packaging & transportation

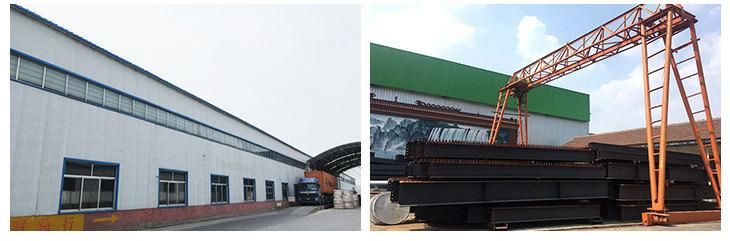

Factory
Zibo Jianda Building Materials Co., Ltd. Undertakes photovoltaic power generation engineering, steel structure engineering, distribution processing of aluminum silicate ceramic fiber, honing pipe hydraulic cylinder, chrome-plated seamless steel pipe in the consumer market, enjoying a high position among consumers, the company Established long-term and stable cooperative relationships with many retailers and agents.
Zibo Jianda Building Materials Co., Ltd. Has strong strength, credit, contract and quality assurance. It has won the trust of customers with its multi-variety management features and the principle of small profits but quick turnover.
FAQ
Q:Do you offer service for installation?
A: We will give detailed installation drawings and direction info for free. And we could send engineers as
installation director even a team.
Q:Do you accept container loading inspection?
A: You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
Q: Do you have quality control?
A: Yes, we have gained BV, SGS authentication.
Q: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Contact
If you are interested in our products or have any doubts,Please
