1080MPa Ground Anchor Bar for Micropiles
Handan Yidao Metal Products Co., Ltd- After-sales Service：1year
- Warranty：1year
- Length：12m
- Standard：GB
- High Yield Stength：Min 1080MPa
- High Tensile Strength：Min 1230MPa
Base Info
- Model NO.：40
- Transport Package：Pallet
- Specification：Dia15,20,25,32,36,40,50
- Trademark：YD
- Origin：China
- HS Code：730840
- Production Capacity：5000ton,Month
Description
1080/1230
Nominal Bar Dia D1
mm²
20
25
32
Nominal Section Area
mm²
314
491
804
Nominal Weight
kg/m
2.47
4.1
6.65
Yield Load
KN
339
530
868
Ultimate Load
KN
386
604
989
Application: *Post-Tensioning system*Formwork *Geotechnical *Reinforcing *Micropile *Ground Anchor *Soil Nailing *Mining *Tunneling

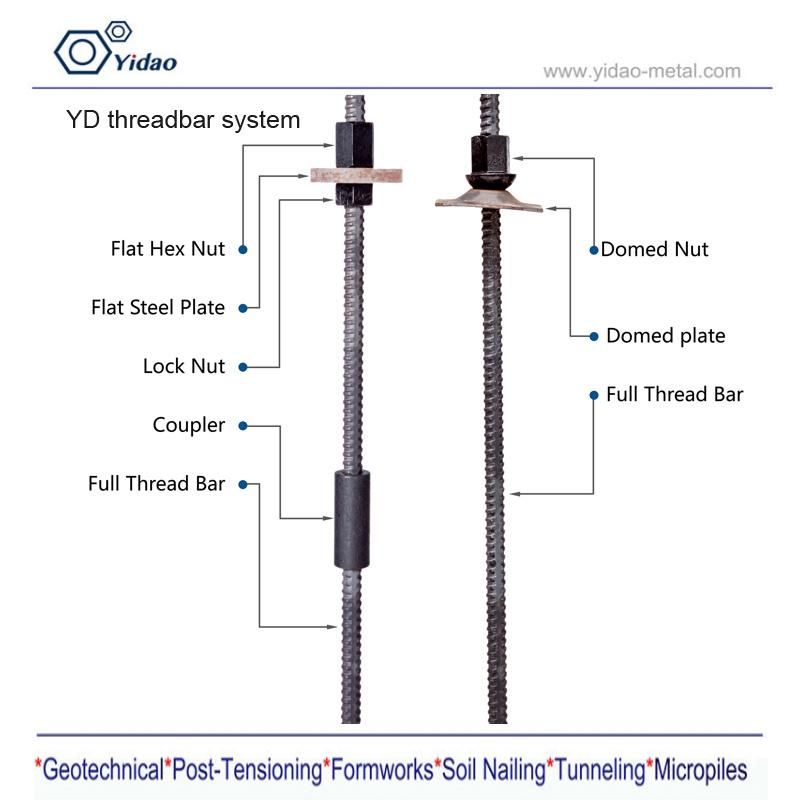

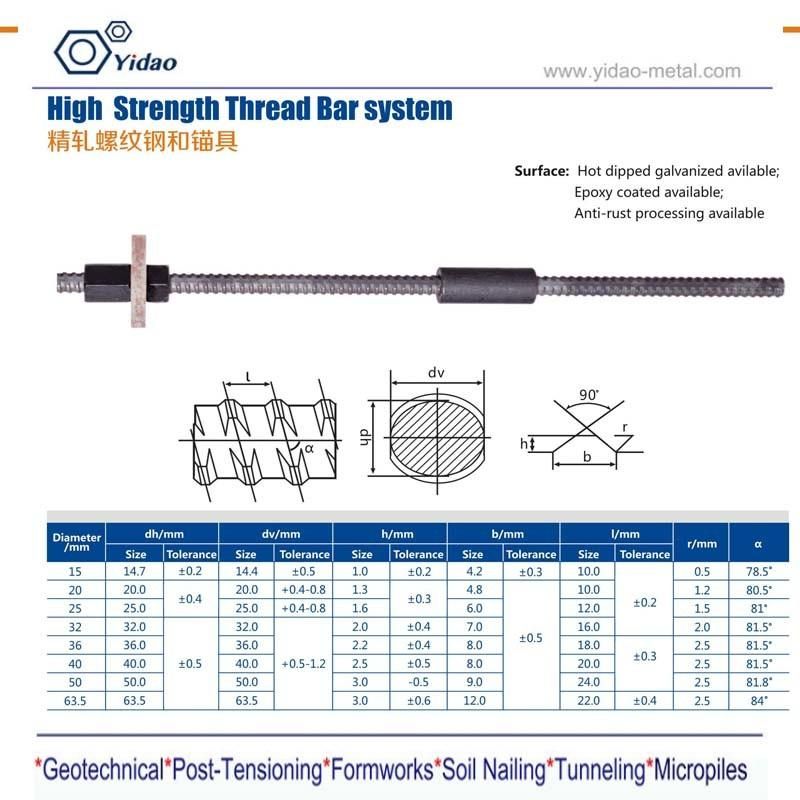

yidao thread bar full diameter and grade
Our factory established in 1994, there are 150 employees,we have passed ISO 9001:2008 certificate. Through the years, we offer reliable and quick service to response to the changing market. Our products are popular in many countries like Europe, Australia, Africa, Southeast Asia and North America etc,which has won a good reputation among customers with high quality and competitive price.
Sincerely hope to establish long term and mutual beneficial cooperation with any new and old customers!
Anna Yang
Handan Yidao Metal Products Co.,Ltd
No.183 Lianfang East Road, Handan, Hebei China 056004
*Post-Tensioning *Formworks *Geotechnical *Ground Anchors *Soil Nailing *Tunneling
