ASTM A500 Black Hollow Section Square Rectangular Tube
CANGZHOU BEWIN PIPELINE CO., LTD.- Shape：Square
- Technique：Welded
- Composition：Carbon Steel
- Standard：AISI, ASTM, DIN, JIS
- Type：Square
- Surface Treatment：Black
Base Info
- Payment：Tt, L,C at Sight
- Transport Package：Bundle by Steel Strip with Oil
- Delivery：with 5-15 Days
- MOQ：1ton
- Packing：by Bundle with Steel Strip
- Surface：Oiled
- Grade：Q195, Q215, Q345, A500, A53, A36
- Thickness：0.5-12mm
- Application：Structure Pipe
- Special Use：High-strength Steel Plate, Wear Resistant Steel, Silicon Steel, Cold Heading Steel
- Model NO.：50x50mm
- Specification：10x10-500x500mm,10x20-450x500mm
- Trademark：BEWIN
- Origin：China
- HS Code：73063090
- Production Capacity：100, 000, 000
Description
Mechanical Property Square pipe: 10*10mm~500*500mm Thickness: 0.5mm~12mm Length: 2m~12m Construction / building materials steel pipe Structure steel pipe Solar structure component steel pipe Fence post steel pipe Greenhouse frame steel pipe FOB, CFR, CIF, EXW, FCA C% Mn% S% P% Si% Yield Point (Mpa) Tensile Strength(Mpa) Elongation
(%) Q195 0.06-0.12 0.25-0.50 <0.050 <0.045 <0.30 >195 315-430 32-33 Q215 0.09-0.15 0.25-0.55 <0.05 <0.045 <0.30 >215 335-450 26-31 Q235 0.12-0.20 0.30-0.70 <0.045 <0.045 <0.30 >235 375-500 24-26 Q345 <0.20 1.0-1.6 <0.040 <0.040 <0.55 >345 470-630 21-22
ASTM A500 Black Hollow Section Square Rectangular TubeProduct Name ASTM A500 Black Hollow Section Square Rectangular Tube Specifications
Rectangular pipe: 10*20mm~450*500mmMaterial Low carbon steel Steel Grade Q195 = S195 / A53 Grade A
Q235 = S235 / A53 Grade B / A500 Grade A / STK400 / SS400 / ST42.2
Q355 = S355JR / A500 Grade B Grade CStandard EN10219, EN10210
GB/T 6728
JIS G3466
ASTM A500, A36Surface Anti-rusty Coating pre-galvanized (Zinc coating: 40-80g/m2)

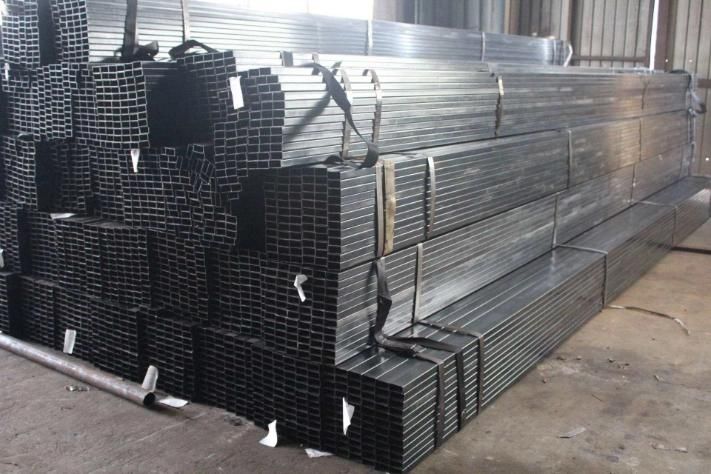

hot dipped galvanized (Zinc coating: 200-600g/m2 )Pipe Ends Plain ends Certificates ISO 9001 / ISO 18001 / ISO 14001 / CE Packing and Shipment 1. OD 300mm and below In hexagonal seaworthy bundles packed by steel strips, With two nylon slings for each bundles
2. above OD 300mm in bulk or according to custom opinion
3. 25 tons/container and 5 tons/size for a trial order;
4. For 20" container the max length is 5.8m;
5. For 40" container the max length is 11.8m.Usage Trade terms Payment terms T/T, LC Delivery time 5-10 days (based on quantity) after receiving advanced payment by T/T or LC . Main market Southeast Asia, South Asia, Middle East, Europe, Middle&South America, Africa and Oceania
