Building Material SPTE Tin Coated Dr8 Dr9 Dr10 Tinplate Coil

Qingdao Quanlong Metal Materials Co., Ltd.

Standard：ASTM, AISI, GB, JIS, DIN, BS
Type：Steel Plate
Warranty：Yes
After-sales Service：Yes
Certification：ISO, RoHS, IBR
Surface Treatment：Coated

Base Info

Payment：30%T,T, 70%T,T
MOQ：5 Tons
Delivery Time：15-20 Work Days
Coil Weight：2-10mt
Packing Standard：Anti-Rust Paper+Galvanized Steel Sheet
Form：Coils, Plain Sheet
Surface：Stone Finish ,Bright Finish , Matte Finish
Coating：2.8,2.8,2.8,5.6,5.6,5.6
Temper：T2 to T5 , Dr 8 and Dr 9
Width：300~1250mm
Thickness：0.135~0.70mm
Base Metal：Mr,SPCC,SPTE
Product：SPTE Tin Coated Dr8 Dr9 Dr10 Tinplate Coil
Stock：Not Stock
Special Use：High-strength Steel Plate
Application：Mainly for Packaging
Technique：Cold Rolled
Model NO.：SPTE Tin Coated DR8 DR9 DR10 Tinplate Coil
Delivery Term：Fob, CIF, CFR, CNF..
Service：Can Be Customized
Transport Package：Standard Export Packing, Paper+Film
Specification：CE, RoHS, SGS, BV.
Trademark：Quanlong
Origin：China Mainland
HS Code：721012000
Production Capacity：1100000

Description

Overview Tinplate SpecificationCommodityTinplateStandardGB2520-2000,JISG3303-2002and DINEN10202-2001MaterialSPCC/MR/Q195/S08Al/SPHC~SPHD/SPTE  Thickness0.135-0.7mm (tolerance -/+0.01 mm) Width
300~1250mm (Tolerance: 0~3mm) or as per customers' requiresCutting  Length
400~1250mm (Tolerance: 0~3mm) or as per customers' requiresAnnealingBA & CATemperT1 T2 T3 T4 T5 DR8 DR9 BA and CA bothTin Coating1.1/1.1 2.8/2.8 5.6/5.6 Or as per customers' requiresSurface finishBright, Stone, Silver, MattCoil DiameterID 420/ 508/610mm, OD from 1,000 to 1,250mCoil Weight  3~10 MTPackage

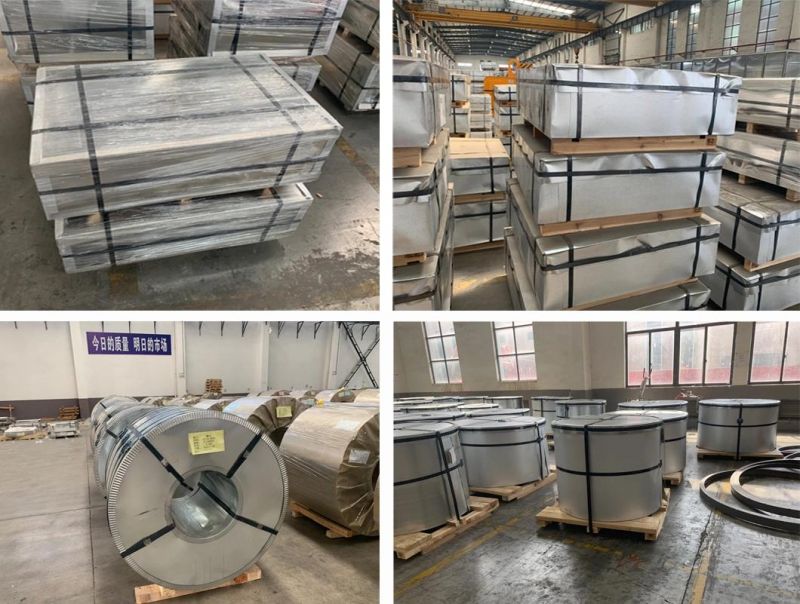

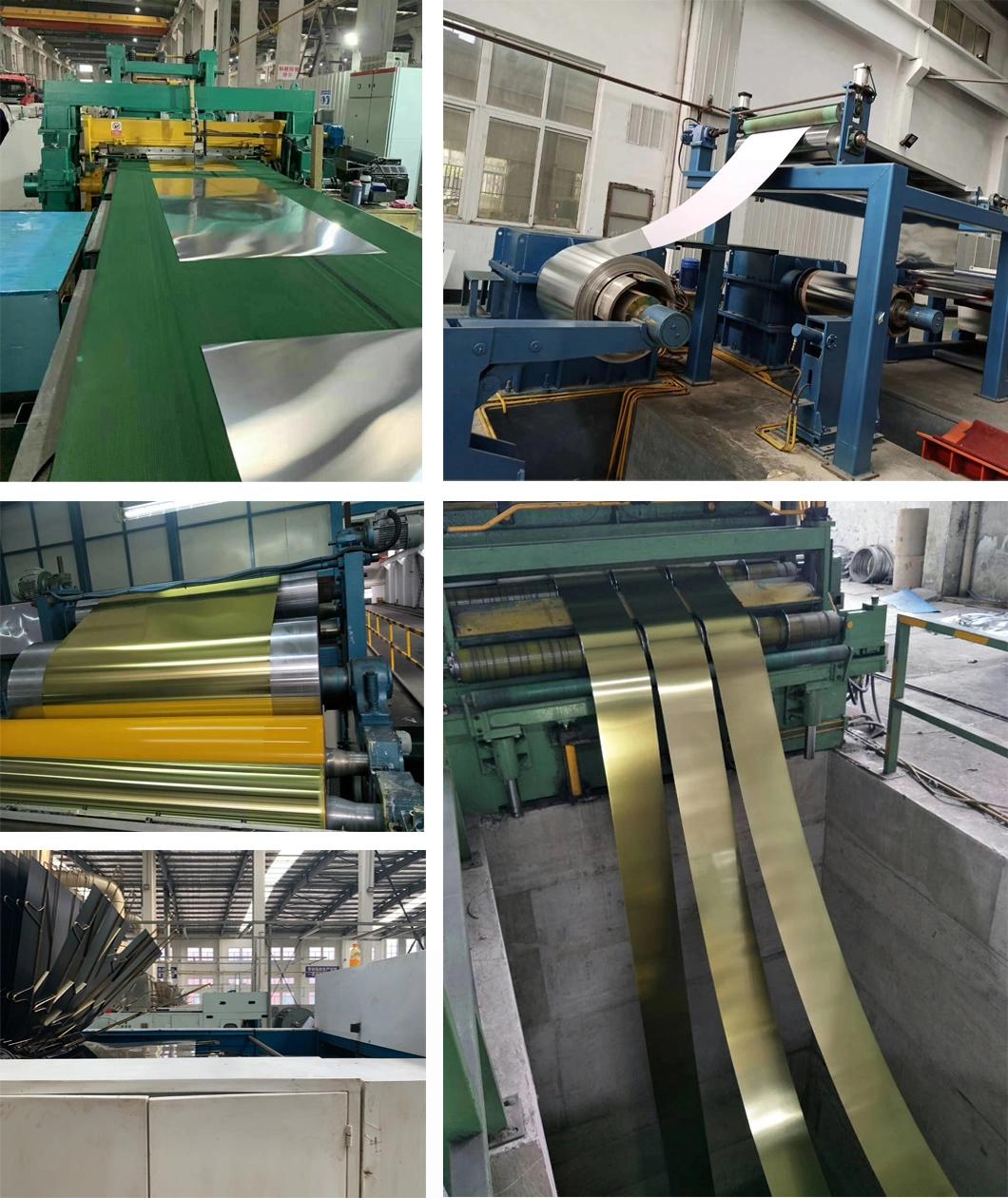

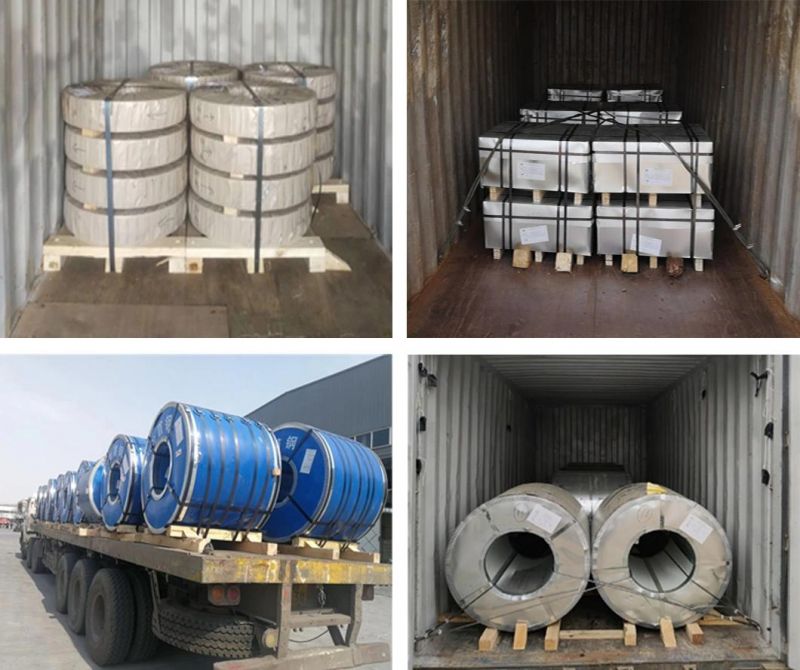

Seaworthy Standard with wooden pallet, corner protected. by sheet or coils according customer's requires.Product line BA furnace line: LOI company

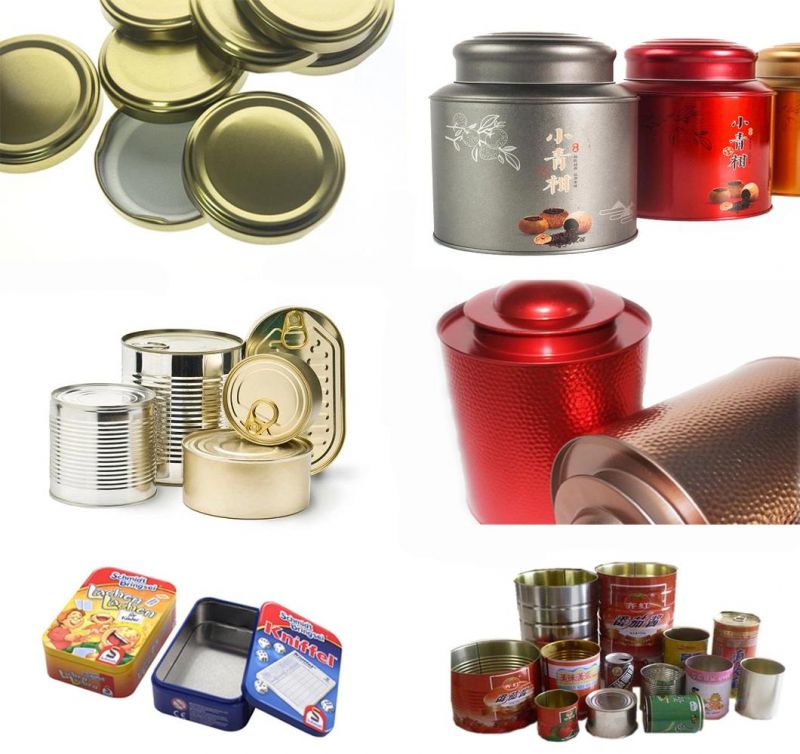

CA line: SMS ApplicationsMetal package usage like paint, chemical can,aerosol can and different food can production, Also battery,electric cable and other industries Tin Coating WeightTypeDesignation of tin       coating weightMin.average tin coating weight(g/m2)Former Coating DesignationEqual tin coating1.4/1.41.2/1.2#152.2/2.22.0/2.0#202.8/2.82.45/2.45#255.6/5.65.05/5.05#508.4/8.47.55/7.55#7511.2/11.210.1/10.1#100Differentially Coating1.4/2.81.2/2.45#15/252.2/2.82.2/2.45#20/252.8/5.62.45/5.05#25/502.8/8.42.45/7.55#25/752.8/11.22.45/10.1#25/1005.6/8.45.05/7.55#50/755.6/11.25.05/10.1#50/1008.4/11.27.55/10.1#75/100 Surface FinishSurface FinishNominal surface roughness

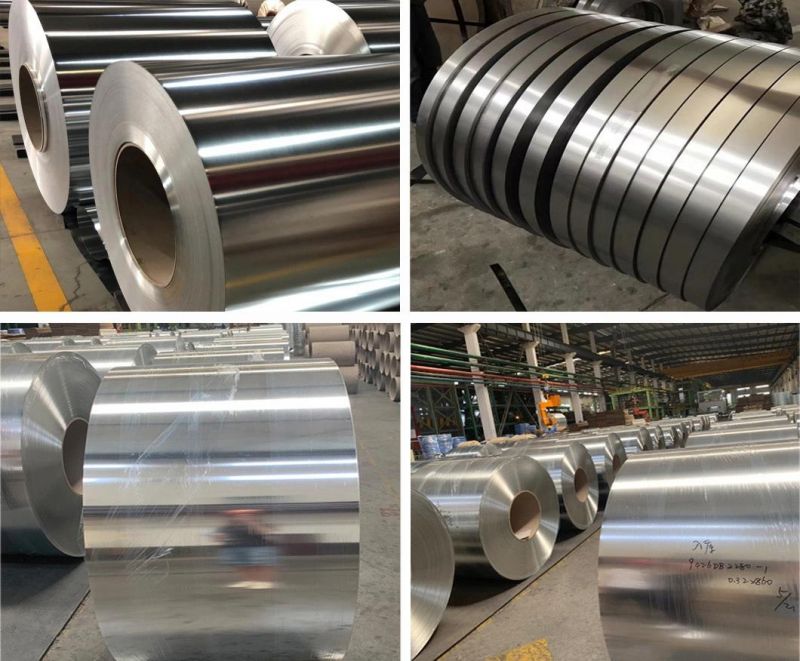

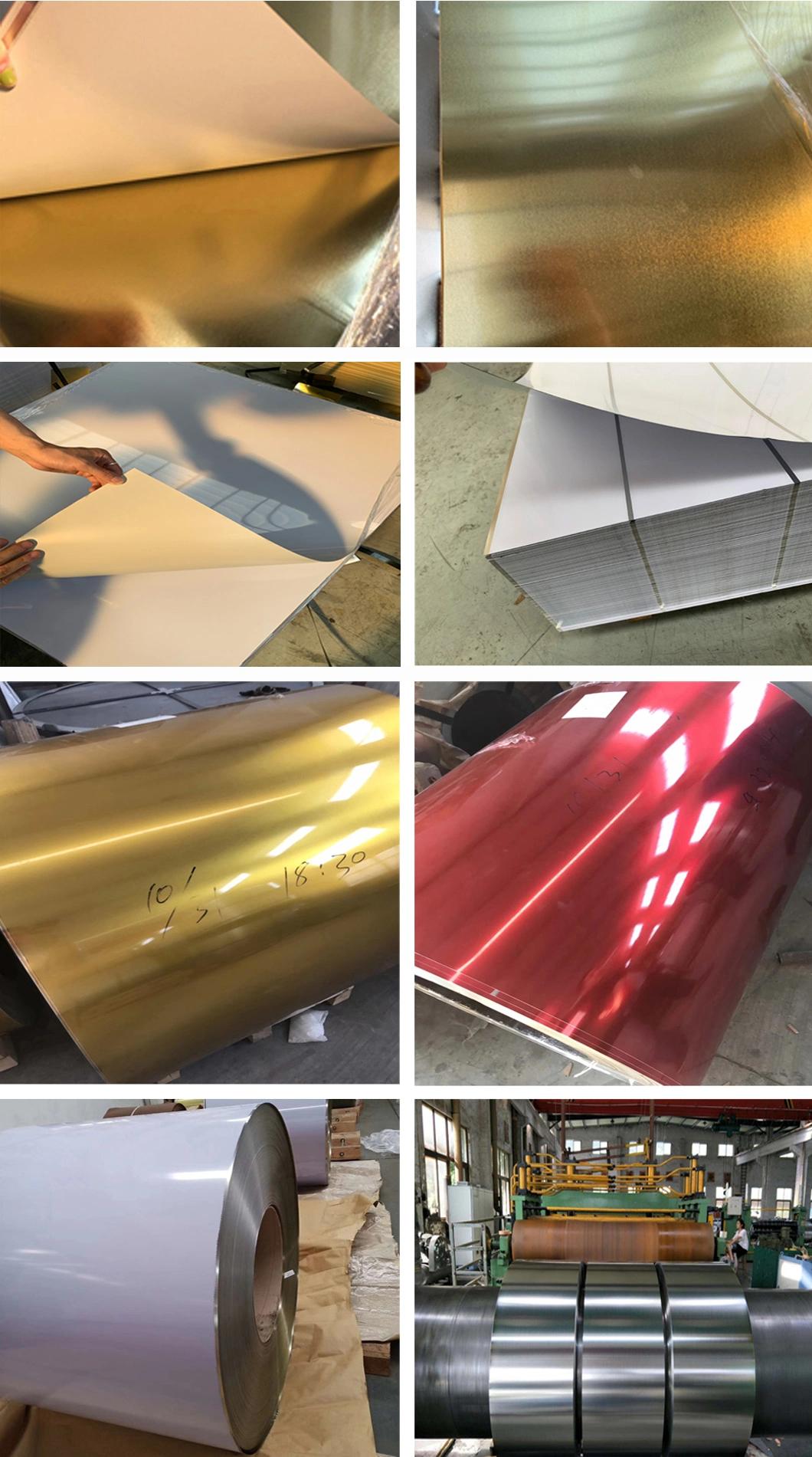

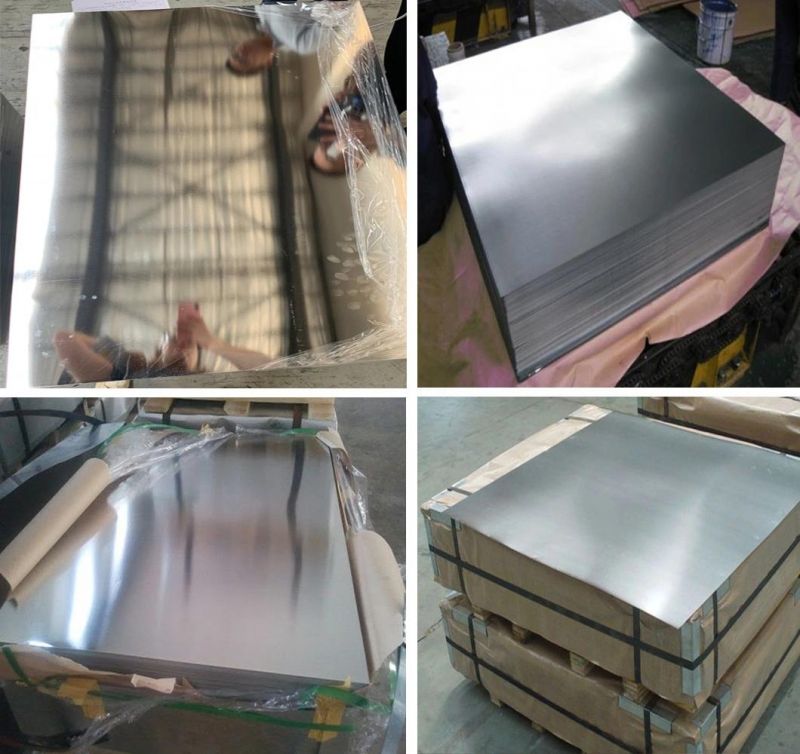

(um Ra)CharacteristicBright Finish≤0.35Glazed surface obtained after melting treatment of electrotinned smooth raw material strip with extremely fine rubstone fingerure by processingStone Finish0.25~0.60Glazed surface obtained after melting treatment of electrotinned smooth raw material stripfeaturing certain rubstone figuresSilver Finish0.50~1.00Galzed surface obtained after melting treatment of electrotinned smooth raw material strip with rough matt surfaceMatte Finish0.8~2.50Matt surface of general matt raw material strip without melting treatmentDetailed Photos
