UL Conduit EMT
Weifang East Pipe Industry Technical Co., Ltd.- Usage：Construction & Decoration, Wire Pulling
- Surface Treatment：Hot DIP Galvanized
- Material：Carbon Steel
- Technique：ERW
- Type：Welded
- Section Shape：Round
Base Info
- Specification：1,2"-4"
- Transport Package：Bundles
- Model NO.：1,2"-4"
- Trademark：east conduit
- Origin：China
Description
Nominal Wall ThicknessU.S. Metric Lbs Kg In. mm In. mm 1/2" 16 30 13.5 0.706 17.93 0.042 1.07 3/4" 21 46 20.7 0.922 23.42 0.049 1.24 1" 27 67 30.6 1.163 29.54 0.057 1.45 1-1/4" 35 101 45.6 1.51 38.35 0.065 1.65 1-1/2" 41 116 52.8 1.74 44.2 0.065 1.65 2" 53 148 67.2 2.197 55.8 0.065 1.65 2-1/2" 63 216 97.9 2.875 73.03 0.072 1.83 3" 78 265 120 3.5 88.9 0.072 1.83 3-1/2" 91 348 158 4 101.6 0.083 2.11 4" 103 392 178 4.5 114.3 0.083 2.11
Applicable Tolerances:
Length: 10Ft (3.05m) ± ¼" (±6.35mm).
Outside Diameter: ½"-2" ±0.005" (±0.13mm); 2½" ±0.010" (±0.25mm); 3" ±0.015" (±0.38mm); 3½"-4" ±0.020" (±0.51mm)
CONTACT INFORMATION:
TEL:+86-536-8187103

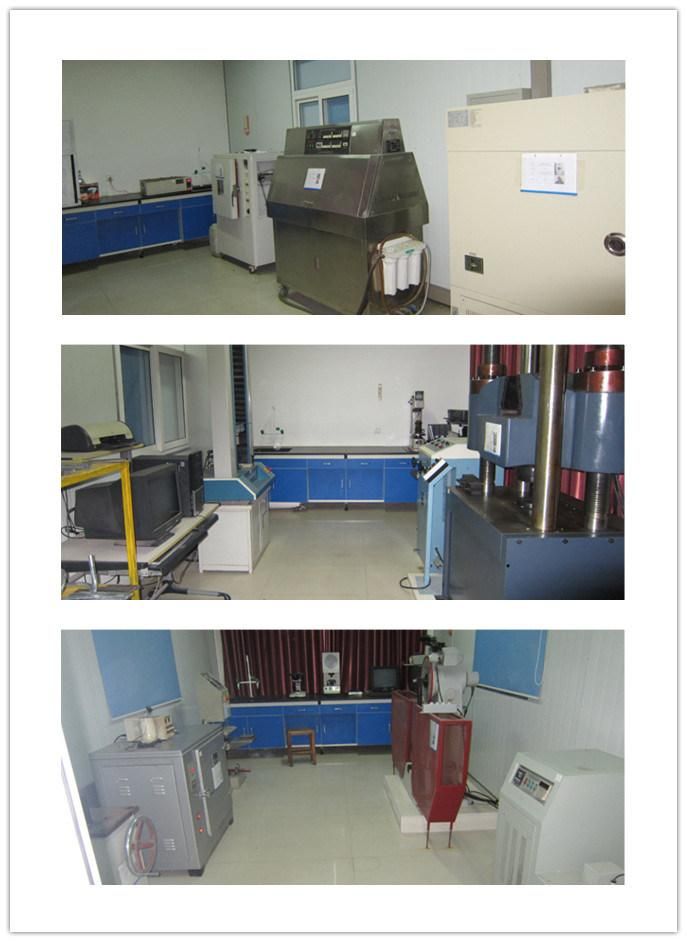

FACTORY AND LABORATORY

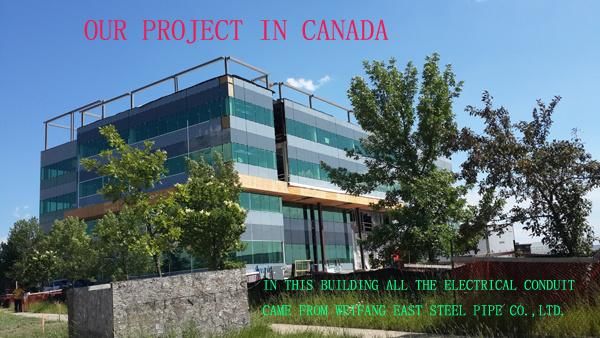

PRODUCTS IN THE WORLD

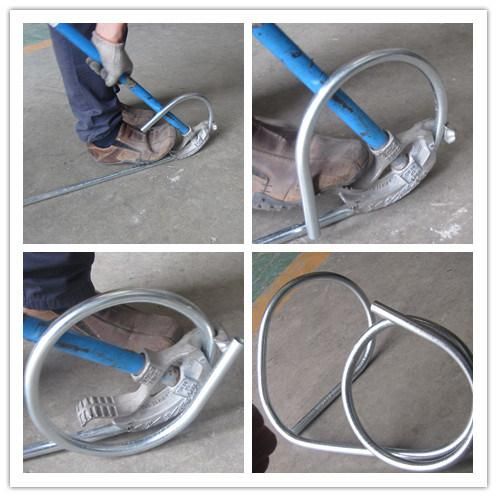

BENDING TEST
