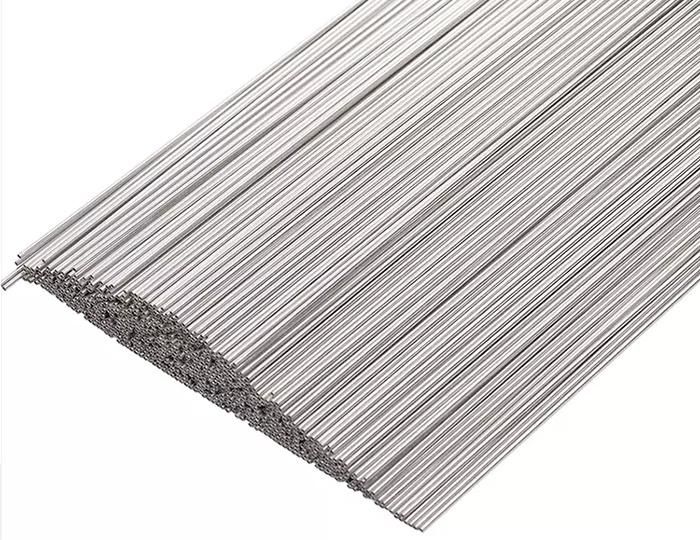

304 Stainless Steel Tube Sanitary Capillary Tube 0.8X0.05mm
TJYCT STEEL CO., LTD.- Certification：ISO, RoHS, IBR, AISI, ASTM, GB, EN, DIN, JIS
- Grade：300 Series
- Standard：ASTM, AISI, GB, JIS, DIN, EN
- Type：Stainless Steel Pipes
- Shape：Round
- Technique：Cold-Drawing
Base Info
- Transport Package：PE Bag+Wooden Box
- Delivery Time：10 Days
- Certificates：SGS,BV
- MOQ：1kg
- Sample：Free
- Stock：Yes
- Length：Any
- Wt：0.05~0.5
- Dia：0.33~5.0
- Material：304 316 316L 321 410
- Product Name：Sanitary Capillary Tube
- Surface Treatment：Bright
- Model NO.：sanitary capillary tube
- Specification：0.33x0.05~5.0x0.5mm
- Trademark：YCT
- Origin：China
- HS Code：7304119000
- Production Capacity：50000kgs,Month
Description
Grade
O.D
0.33 -5.0 mm
W.T
0.08 - 0.2 mm
Length
As for your requirement
Standard
Delivery Time
10~50 days ,according to customer's quantity
Delivery Condition
Pickled, polished, bright annealed, electrolytic polished
Trading Information
1) 30% advance payment by T/T, the balance against copy of B/L by T/T.
2) 30% advance payment by T/T, the balance by L/C at sight.
3) 100% L/C at sight.

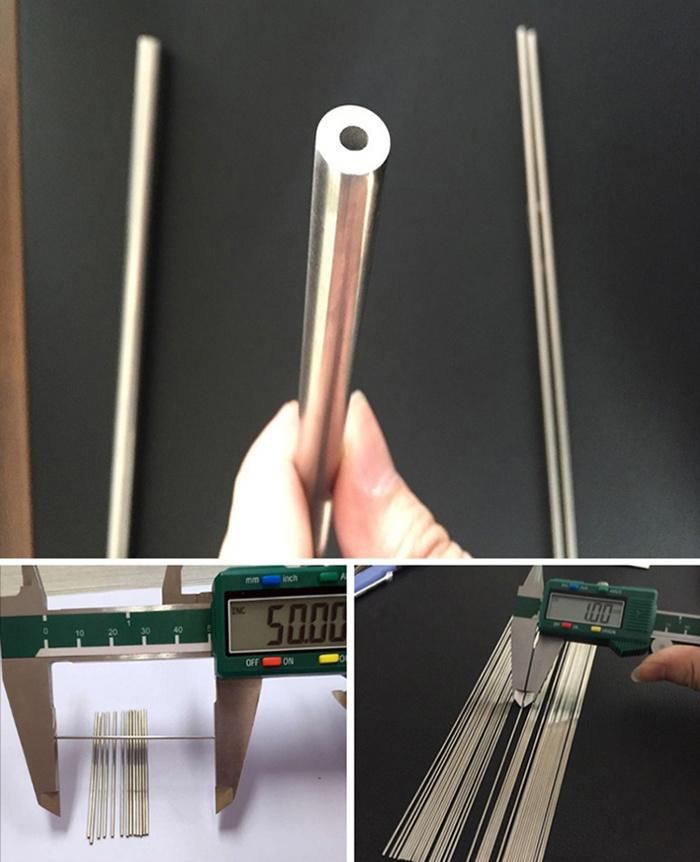

Quality Control
About capillary tube
ID = + 0.00 mm & - 0.05 mm / + 0.000" & - 0.002"
- Bright annealed: Yield strength 500 - 700 N/mm²
- Halfhard: Yield strength 700 - 800 N/mm²
- Harddrawn: Yield strength 800 - 900 N/mm²
- Extra hard: Yield strength >1000 N/mm²
- Single random of 3.5 to 6 meters.
- Coils up to 1524 mtrs. long.
- Cut to lengths on customer specification.
- Gas lines
- Manometry
- Measuring
- Cardiology
- Medical instruments
- Endoscopy
- Sensors
- Liquid lines
- Chromatography
- Implants
- Pyrometry
- General
- Industrial
Precise dimensions, bright surface, cleaned and ready to use!
we offers a wide range of seamless capillary tubing, mainly stainless steel.
The current stock is available in the following :304, 304L, 321, 316, 316L, 310, etc.
Either annealed (hardness < 180HV) or harddrawn (hardness 260-330 HV).
The tolerances are according to EN10216-5 TC1/ISO 1127 D4/T3 or ASTM A 269/A 213 mostly
closer.
Our capillary tubes are characterized by tight tolerances with precise dimensional accuracy,smooths
bright surfaces and cleaned, free from oil, grease and other particles.
This ensures an optimized flow of liquids and gases for all kind of industrial applications.
More Products
About Us
FAQ
Q: Can I get sample? How long you need to prepare?
A: Yes, free sample can be got in about 4 days.
Q: Can I get your best price?
A: According to your quantity. If your quantity is more , best price will be offered.
Q: What kind of products can you supply?
A: Round, square, rectangular, oval and customized shapes . according to your requirement
Q: Do you have products in stock?
A: Yes. We have stainless steel tubes in different sizes in stock. So do other accessories.
