• Origin：Wuxi, China (Mainland)
• Trademark：tisco
• Specification：219*8.0
• Transport Package：Standard Seaworthy Package
• Leading Time：7-25days
• MOQ：1ton
• Surface Treatment：Bright
• Model NO.：ASME TP304
• HS Code：2200
• Production Capacity：80000tons,Year

DescriptionP304 TP304l TP316l Mirror Polished Stainless Steel PipeSupply Capacity80000 tons/YearProcess MethodAutomatic welding or seamless precision rollingOut Diameter6-323.8mmWall Thickness1.0mm.1.2mm 1.5mm.1.65mm.2.0mm.2.1m3.0mm and so onLength6m, or as customers demandSteel Grade 301 (Ni : 6%), 304, TP304, TP304L/304L, 321, TP321, 316, TP316L, 316L, StandardsASTM A249, A269, A312, A554, A270SpecificationO.D: 1/4" - 12" (inch) W.T: SCH5S, SCH10SOr non-regular size to be tailored as required.ApplicationLiquid delivery,for food,dairy, and so onPacking1.with plastic cap to protect both ends2.plastic bag wrapped outside the pipe3.Plywood case packing

Annealed & Pickled (for sanitary or industial pipe)
Bright Annealed
Polished to 180#, 240#, 320#, 400#, 600#

CertificateISO 9001:2008 for 304 304l 316l Mirror Polished Stainless Steel Pipe Sanitary PipingDelivery time30-60 days depend on Quantity Payment TermT/T, Irrevocable L/C at sight Trade TermFOB , CFR , CIF

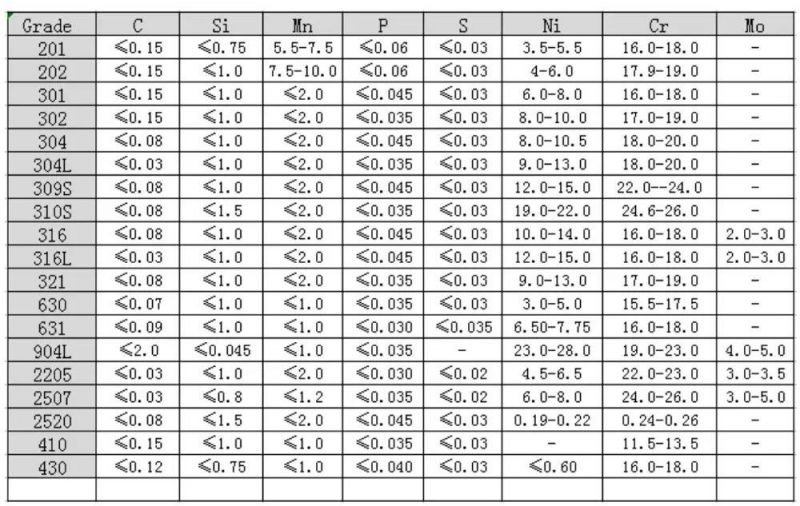

Chemical CompositionTensile StrengthYield StrengthElongation

Hardness

HRB

Grade 304 Stainless Steel (100% & MPA)C≤0.08, Mn≤2, P≤0.045, S≤0.03, Si≤0.75, 8≤Ni≤10.5, 18≤Cr≤20≥515≥205≥40≤92Grade 304L Stainless Steel (100% & MPA)C≤0.03, Mn≤2, P≤0.045, S≤0.03, Si≤0.75, 8≤Ni≤12, 18≤Cr≤20≥485≥170≥40≤92Grade 316L Stainless Steel (100% & MPA)C≤0.03, Mn≤2, P≤0.045, S≤0.03, Si≤0.75, 10≤Ni≤14, 16≤Cr≤18≥485≥170≥40≤95

a) Advanced technology of cold draw machine
b) Advanced annealing machine
c) Better mechanical property
d) More precise dimension
e) Perfect inspection method and inspection equipment etc
